Upper Ring Hydraulic Cylinder for Vulcanizing Machine

Upper Ring Hydraulic Cylinder for Vulcanizing Machine

The upper ring hydraulic cylinder is an essential component of a vulcanizing machine used in various industries, particularly in the rubber and tire manufacturing sector. It plays a crucial role in the vulcanization process, which involves applying heat and pressure to mold and cure rubber products.The main purpose of the upper ring hydraulic cylinder is to provide the required force and pressure to compress the rubber components during the vulcanization process. It is typically positioned on the upper part of the vulcanizing machine, directly above the mold or platen where the rubber material is placed.

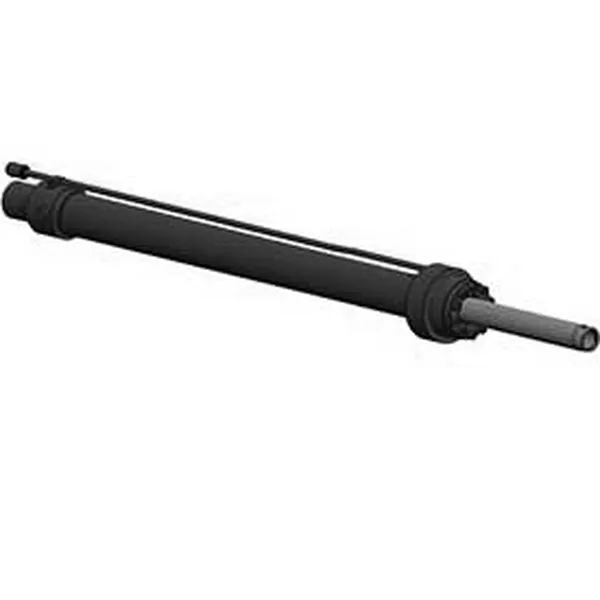

Upper Ring Hydraulic Cylinder for Vulcanizing Machine Specifications

Product Name	Upper Ring Hydraulic Cylinder
Features:	Drive the upper chuck on the center mechanism to lift and lower for tire loading and shaping.
Specification:	Bore diameter: 50mm～140mmRod diameter: 28mm～100mmStroke: ≤1000mm
Thrust force:	Max 384KN(Cylinder diameter 140mm/pressure 25MPa)
Upper Ring Cylinder Applications:	Vulcanizing Machine

Features of Upper Ring Hydraulic Cylinder for Vulcanizing Machine

1. Compact structure design, high-strength materials, and special heat treatment and welding technology ensure that the cylinder has a very high fatigue endurance life under high pressure and heavy load.2. The low friction sealing system is designed with special material to meet the customer's requirements of low starting pressure, low oil film, and fast response.3. Wide range of temperature resistance (-25℃～+120℃) and can provide customized service for higher or lower temperature cylinders.4. Reasonable oil drain hole design can effectively solve the problem of heavy oil film caused by high frequency and high speed and prevent the sealing system from producing "trapped pressure"; at the same time, the accumulated oil can be returned to the tank through the hose, with high anti-pollution ability.5. The surface of the piston rod is treated specially to ensure excellent wear and corrosion resistance.6. Working pressure, size, installation, and so on can be customized according to the customer's needs.

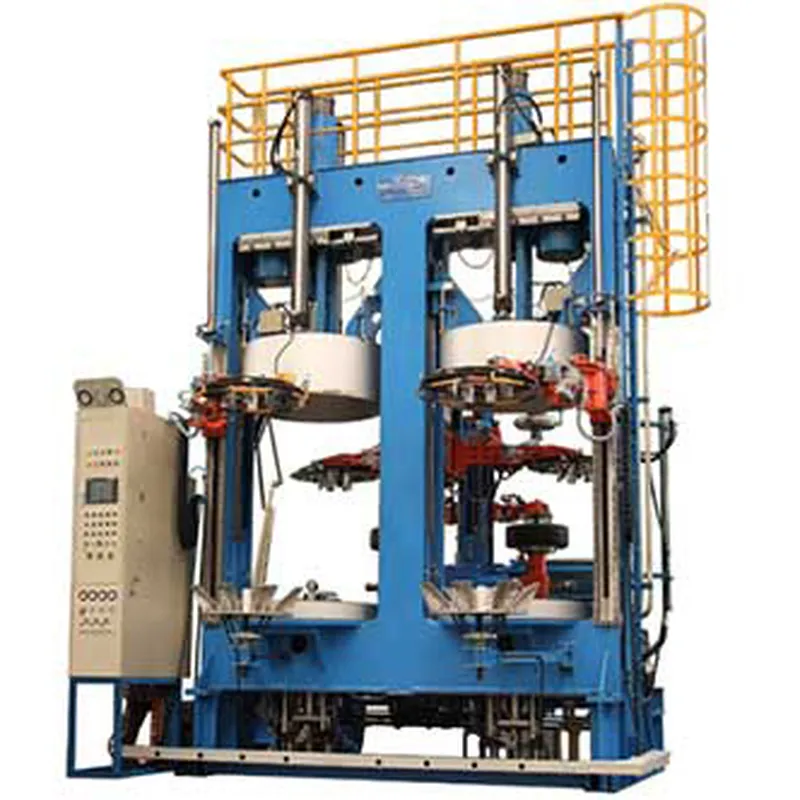

Applications of Upper Ring Hydraulic Cylinder for Vulcanizing Machine

The upper ring hydraulic cylinder in a vulcanizing machine plays a pivotal role in the rubber manufacturing and processing industry. Its primary function is to apply controlled pressure to the upper part of the mold during the vulcanization process, ensuring even and effective molding of rubber products. Here are several key applications of upper ring hydraulic cylinders in vulcanizing machines across various sectors:1. Tire Manufacturing: In tire production, the upper ring hydraulic cylinder applies precise pressure to shape and cure rubber into tires. It ensures uniform pressure distribution, crucial for the tire's structural integrity and performance characteristics.2. Rubber Seals and Gaskets: For the manufacturing of rubber seals and gaskets, the cylinder provides the necessary force to form tight seals and specific shapes required for automotive, aerospace, and industrial applications.3. Conveyor Belting: The vulcanization process for rubber conveyor belts relies on the upper ring hydraulic cylinder to apply heat and pressure, resulting in belts that are durable and resistant to wear and tear for industrial use.4. Hoses and Tubing: Rubber hoses and tubing for automotive, medical, and industrial applications are vulcanized under pressure to ensure they are flexible yet strong enough to handle pressure without bursting.5. Automotive Parts: These components, made from vulcanized rubber, require precise pressure during manufacturing to achieve the necessary density and elasticity. The upper ring cylinder ensures these specifications are met.6. Medical Equipment: Vulcanizing machines equipped with upper ring hydraulic cylinders are used to produce rubber components for medical devices, where precision and reliability are paramount for patient safety.

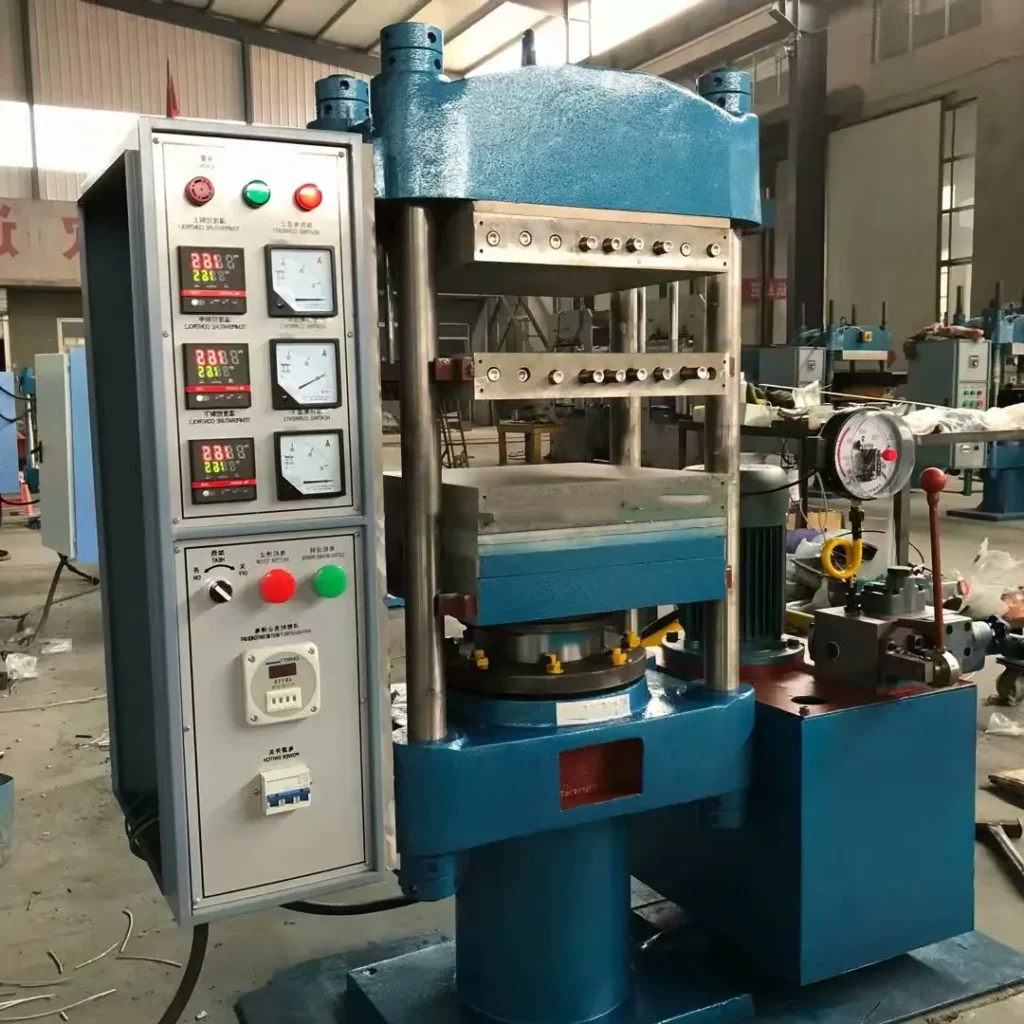

Upper Ring Hydraulic Cylinder for Vulcanizing Machine Working Principle

The working principle of the upper ring hydraulic cylinder in a vulcanizing machine is based on the principles of hydraulic power transmission. It involves the conversion of hydraulic energy into mechanical force and motion to compress the rubber components during the vulcanization process. Here's a step-by-step explanation of its working principle:1. Hydraulic fluid supply: The upper ring hydraulic cylinder is connected to a hydraulic power unit, which supplies pressurized hydraulic fluid, typically oil or a specialized hydraulic fluid. The power unit consists of a pump, reservoir, valves, and other necessary components.2. Fluid pressure generation: The hydraulic pump creates pressure by mechanically displacing the hydraulic fluid from the reservoir and forcing it into the hydraulic system. The pump is powered by an electric motor or an internal combustion engine.3. Fluid distribution: The pressurized hydraulic fluid is directed through hydraulic hoses or pipes to the upper ring hydraulic cylinder. These hoses are equipped with control valves that regulate the flow and pressure of the fluid.4. Cylinder actuation: The hydraulic fluid enters the cylinder through an inlet port, filling the cylinder chamber on one side of the piston. The piston is fitted with seals to prevent fluid leakage. As the pressurized fluid enters the cylinder, it applies force on the piston, causing it to move in a linear direction.5. Force transmission: The movement of the piston generates a corresponding force on the upper ring of the vulcanizing machine. This force is transmitted to the rubber material, compressing it against the lower ring or mold. The pressure applied depends on the hydraulic fluid pressure and the effective area of the piston.6. Stroke control: The upper ring hydraulic cylinder may have adjustable stroke length to accommodate different sizes and thicknesses of rubber components. This adjustability allows for customization based on specific manufacturing requirements.7. Pressure control and safety: The hydraulic system incorporates pressure control valves to regulate the pressure applied by the upper ring cylinder. These valves ensure that the pressure remains within the desired range for proper vulcanization. Additionally, safety features such as pressure relief valves, emergency stop buttons, and safety interlocks are often included to protect operators and prevent overpressure situations.8. Repeat operation: The hydraulic pump continues to operate, maintaining the desired hydraulic fluid pressure. This enables the upper ring hydraulic cylinder to repeatedly compress and release the rubber components, facilitating the vulcanization process.

Hydraulic Cylinder for Vulcanizing Machine Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the hydraulic cylinder market segment for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinders are non-standard products, and we independently develop all products.
