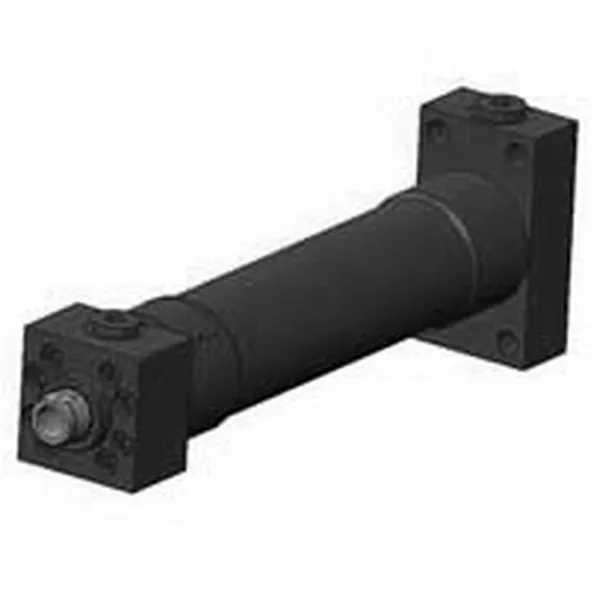

Lower Ring Hydraulic Cylinder for Vulcanizing Machine

Lower Ring Hydraulic Cylinder for Vulcanizing Machine

A lower ring hydraulic cylinder is a crucial component of a vulcanizing machine, specifically used in the process of rubber vulcanization. Vulcanization is a chemical process that transforms raw rubber into a durable and elastic material by cross-linking its polymer chains. This process involves applying heat and pressure to the rubber, which is facilitated by the lower ring hydraulic cylinder.The lower ring hydraulic cylinder is designed to provide the required force and stability during the vulcanization process. It consists of a cylindrical structure with a piston inside that moves in response to hydraulic pressure. The cylinder is typically made of high-strength materials such as steel to withstand the forces involved in the vulcanization process.During operation, the lower ring hydraulic cylinder is positioned beneath the rubber material to be vulcanized. Once the rubber is placed on the lower ring, the cylinder exerts downward force through the piston, compressing the rubber and creating a tight seal. This seal is essential for maintaining uniform pressure and heat distribution throughout the vulcanization process.Hydraulic fluid, usually oil, is used to generate the pressure needed to move the piston inside the cylinder. The fluid is supplied through hydraulic lines connected to a power unit, which controls the pressure and flow rate. By adjusting these parameters, operators can regulate the force applied by the lower ring hydraulic cylinder to suit the specific requirements of the vulcanization process.The lower ring hydraulic cylinder plays a critical role in ensuring the successful vulcanization of rubber materials. Its ability to provide controlled and consistent pressure helps achieve uniform curing and bonding of the rubber, resulting in high-quality and durable products. The cylinder's robust construction and reliable hydraulic system contribute to the overall efficiency and reliability of the vulcanizing machine.

Lower Ring Hydraulic Cylinder for Vulcanizing Machine Specifications

Product Name	Lower Ring Hydraulic Cylinder
Features:	Compact front and rear cushioning
Specification:	Bore diameter: 50mm～140mmRod diameter: 28mm～100mmStroke: ≤2000mm
Thrust force:	Max 384KN(Cylinder diameter 140mm/pressure 25MPa)
Lower Ring Cylinder Applications:	Vulcanizing Machine

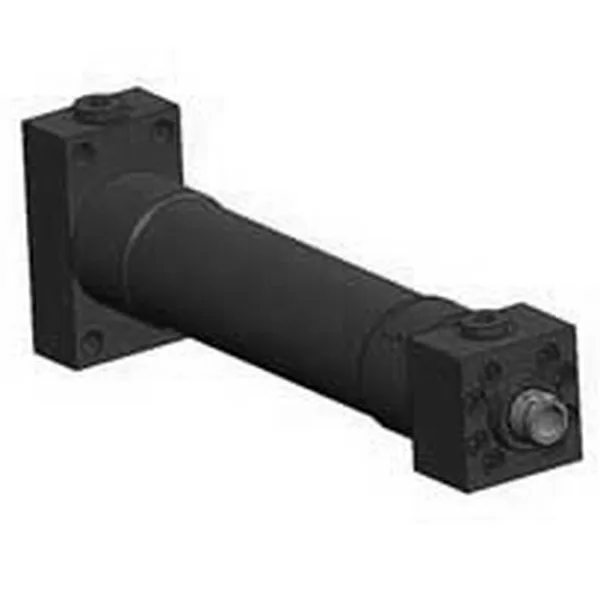

Features of Lower Ring Hydraulic Cylinder for Vulcanizing Machine

1. Compact structure design, high-strength materials, and special heat treatment and welding technology ensure that the cylinder has a very high fatigue endurance life under high pressure and heavy load.2. The low friction sealing system is designed with special material to meet the customer's requirements of low starting pressure, low oil film, and fast response.3. Wide range of temperature resistance (-25℃～+120℃) and can provide customized service for higher or lower temperature cylinders.4. Reasonable oil drain hole design can effectively solve the problem of heavy oil film caused by high frequency and high speed and prevent the sealing system from producing "trapped pressure"; at the same time, the accumulated oil can be returned to the tank through the hose, with high anti-pollution ability.5. The surface of the piston rod is treated specially to ensure excellent wear and corrosion resistance.6. Working pressure, size, installation, and so on can be customized according to the customer's needs.

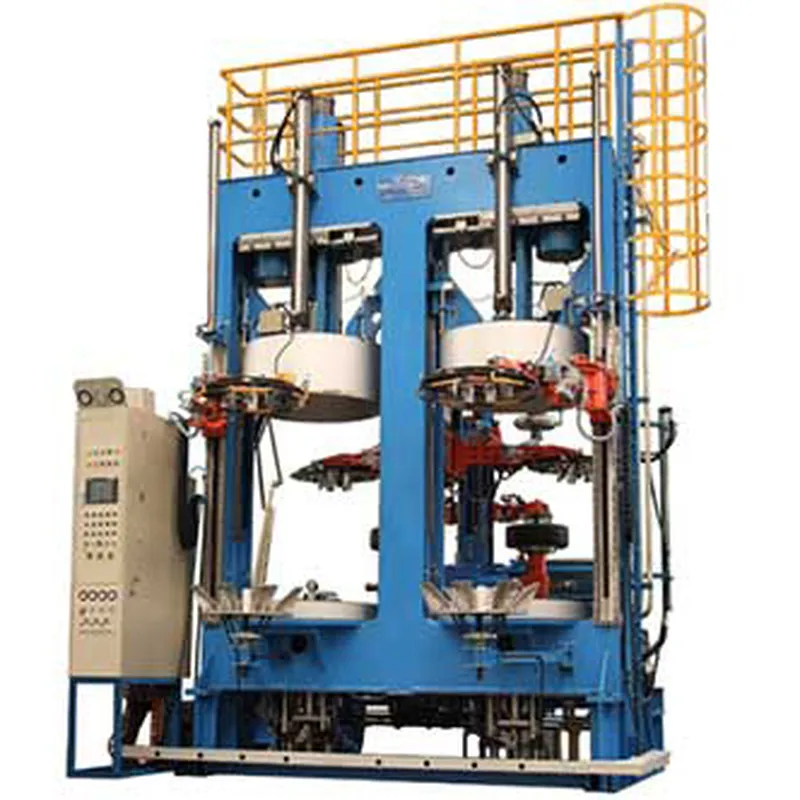

Applications of Lower Ring Hydraulic Cylinder for Vulcanizing Machine

The lower ring hydraulic cylinder used in a vulcanizing machine finds applications in various industries where rubber processing and vulcanization are essential. Some of the common applications include:(1) Tire Manufacturing: Vulcanizing machines equipped with lower ring hydraulic cylinders are extensively used in the tire manufacturing industry. The cylinder applies pressure and heat to the rubber components, such as tire treads, sidewalls, and belts, to achieve optimal vulcanization and bonding. This ensures the production of high-quality and durable tires.(2) Conveyor Belt Production: Conveyor belts used in industries like mining, logistics, and manufacturing require vulcanization to enhance their strength and durability. The lower ring hydraulic cylinder plays a crucial role in the vulcanization process by applying the necessary pressure and heat to create a strong bond between the rubber layers, resulting in reliable and long-lasting conveyor belts.(3) Rubber Hose and Pipe Manufacturing: Hydraulic hoses and pipes made from rubber undergo vulcanization to improve their resistance to pressure, temperature, and chemical degradation. The lower ring hydraulic cylinder ensures uniform curing and bonding of the rubber material, enhancing the overall strength and performance of the hoses and pipes.(4) Rubber Gasket and Seal Production: Gaskets and seals made from rubber are used in various industries, including automotive, aerospace, and manufacturing, to prevent leaks and provide airtight or watertight seals. The lower ring hydraulic cylinder helps in the vulcanization process of rubber gaskets and seals, ensuring their dimensional stability, elasticity, and resistance to environmental factors.(5) Rubber Mat and Flooring Manufacturing: Rubber mats and flooring materials used in gyms, industrial settings, and commercial spaces often undergo vulcanization to enhance their durability, shock absorption, and slip resistance. The lower ring hydraulic cylinder is employed to apply the necessary pressure and heat during the vulcanization process, resulting in robust and long-lasting rubber mats and flooring.

Proper Maintenance of Lower Ring Hydraulic Cylinder for Vulcanizing Machine

Proper maintenance of the lower ring hydraulic cylinder in a vulcanizing machine is crucial to ensure its optimal performance and longevity. Here are some key maintenance practices to follow:1. Regular Inspection: Perform routine visual inspections of the hydraulic cylinder, checking for any signs of wear, leaks, or damage. Inspect the cylinder body, piston, seals, and hydraulic lines. Look for any signs of oil leakage or corrosion. If any issues are detected, address them promptly to prevent further damage.2. Lubrication: Ensure proper lubrication of the cylinder components as recommended by the manufacturer. Lubricate the piston rod, seals, and other moving parts using the appropriate lubricant. This helps reduce friction, extend component life, and maintain smooth operation.3. Cleanliness: Keep the hydraulic cylinder and its surrounding area clean and free from debris, dirt, and contaminants. Regularly clean the cylinder and remove any accumulated dirt or foreign particles. Contaminants can cause damage to seals and other components, leading to hydraulic system failure.4. Seal Inspection and Replacement: Check the condition of the seals regularly and replace them if they show signs of wear, cracking, or leakage. Properly functioning seals are crucial for maintaining pressure and preventing oil leaks, ensuring the hydraulic cylinder operates effectively.5. Hydraulic Fluid Maintenance: Monitor the hydraulic fluid level and quality regularly. Check for any signs of contamination, such as water or debris, in the hydraulic fluid. Maintain the recommended fluid level and replace the fluid as per the manufacturer's guidelines or when it shows signs of degradation.6. Pressure Testing: Periodically test the hydraulic system's pressure to ensure it is within the recommended range. Use appropriate pressure gauges and follow the manufacturer's instructions for testing and adjusting the pressure. This helps identify any potential issues and ensures the system operates safely and efficiently.

Hydraulic Cylinder for Vulcanizing Machine Manufacturers

In 30 years of focusing on innovation, Raydafon has reached the forefront of the world’s hydraulic industry in terms of both production scale and technical level. Meanwhile, Raydafon is now a widely recognized benchmarking enterprise in the domestic hydraulic industry. Headquartered in Ningbo, Raydafon has founded five hydraulic R&D centers in China, Germany, the United States, Japan, and Mexico, and ten manufacturing bases worldwide. Raydafon the establishment of a high-precision foundry and a pump & valve factory, Raydafon has mastered the key to developing and manufacturing more advanced hydraulic transmission and control components to supply high-pressure cylinders, hydraulic pump valves, motors, precision castings, and the complete hydraulic system. Well sold in over 20 countries and regions, the products are widely applied in various fields such as mobile machinery, agricultural machinery, industrial engineering, offshore, energy technology, and tunnel boring machines.Raydafon is a company in the R&D and manufacture of hydraulic cylinders. It maintains a leading position in the hydraulic cylinder market segment for forklifts in China. In 2020, the domestic market share was around 29%. We produce industrial vehicle hydraulic cylinders, aerial work vehicle hydraulic cylinders, mobile machinery cylinders, construction machinery hydraulic cylinders, forklift hydraulic cylinders, crane luffing hydraulic cylinders, and sanitation machinery hydraulic cylinders. Hydraulic cylinders are non-standard products, and we independently develop all products.
