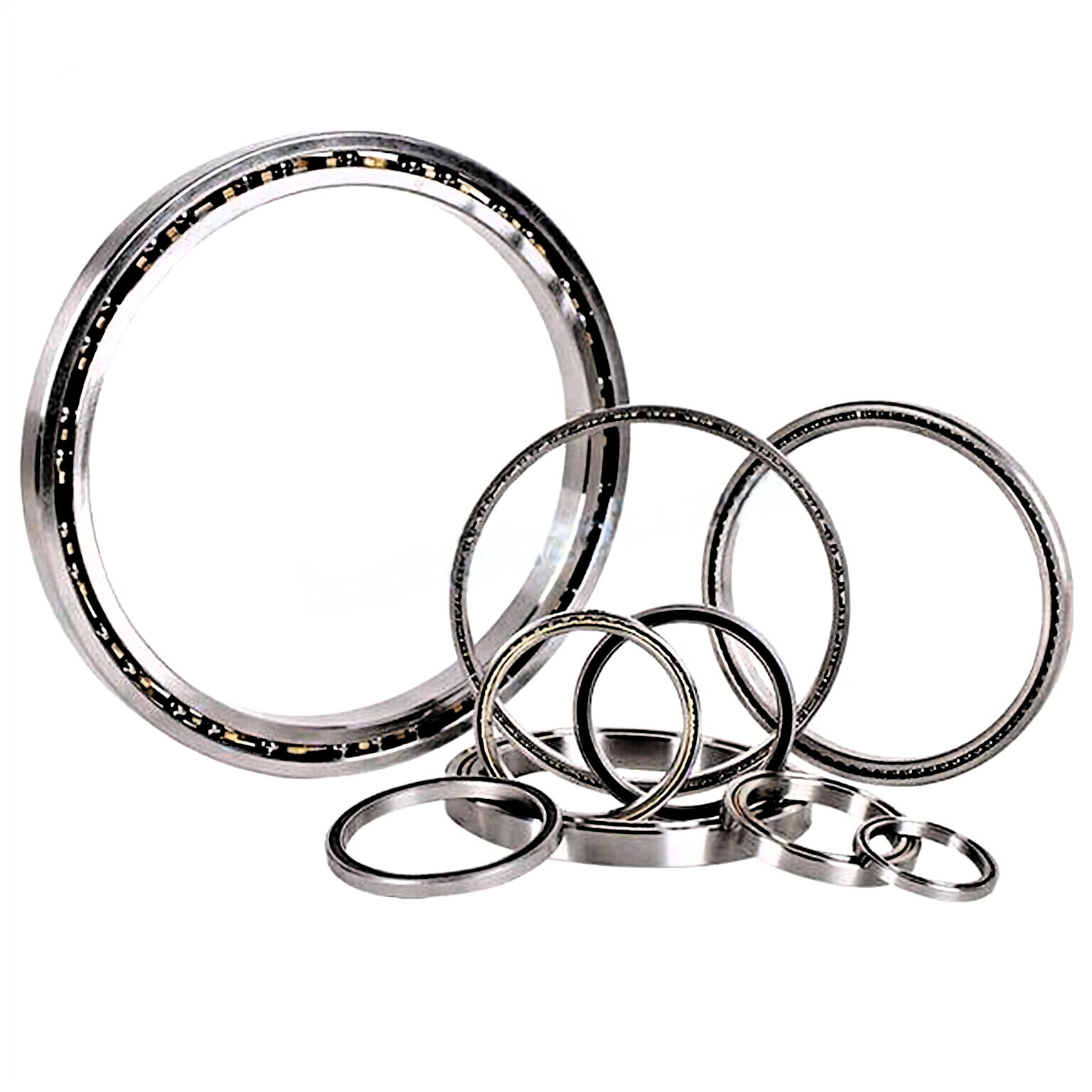

Metric Series Thin Section Bearings

Discover Raydafon Group's Metric Series Thin Section Bearings: ultra-slim, precision-engineered solutions for compact machinery and robotics. With superior durability and reduced friction, they excel in high-precision applications like aerospace and medical devices, enhancing performance and efficiency. Experience unparalleled reliability in space-constrained designs, empowering engineers to achieve smoother, quieter operations. Choose Raydafon Group for innovative bearings that redefine precision engineering.

Send Inquiry

Product Description

Metric Series Thin Section BearingsRaydafon can do metric series thin section bearings, including three types: Radial contact (type C), Angular contact (type A), and Four-point contact (type X).8mm Series: Inner Diameter from 25 mm to 360mm13mm Series: Inner Diameter from 25 mm to 360mm20mm Series: Inner Diameter from 25 mm to 360mmThe Accuracy class: P0-P6-P5-P4-P2 Available. In addition, we also can customize nonstandard bearings (special size and particular type) according to customer needs.

Technical data

(1) 8mm Series

8mm Series - Angular Contact Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic Load		Static Load		Weight
Bearing Model	d	D	B	Radial	Axial	Radial	Axial	kg
K02508AR0	25 mm	41 mm	8 mm	2667	5502	3648	10523	0.06
K05008AR0	50 mm	66 mm	8 mm	3599	8032	6433	18574	0.08
K06008AR0	60 mm	76 mm	8 mm	4001	9071	7718	22291	0.09
K07008AR0	70 mm	86 mm	8 mm	4315	9895	8787	25380	0.1
K08008AR0	80 mm	96 mm	8 mm	4609	10689	9865	28469	0.12
K09008AR0	90 mm	106 mm	8 mm	4952	11591	11150	32185	0.13
K10008AR0	100 mm	116 mm	8 mm	5227	12327	12219	35284	0.14
K11008AR0	110 mm	126 mm	8 mm	5502	13033	13298	38383	0.15
K12008AR0	120 mm	136 mm	8 mm	5757	13729	14367	41472	0.16
K13008AR0	130 mm	146 mm	8 mm	6061	14533	15651	45189	0.17
K14008AR0	140 mm	156 mm	8 mm	6306	15191	16730	48278	0.18
K15008AR0	150 mm	166 mm	8 mm	6541	15838	17799	51377	0.2
K16008AR0	160 mm	176 mm	8 mm	6825	16583	19084	55094	0.2
K17008AR0	170 mm	186 mm	8 mm	7061	17201	20153	58183	0.21
K18008AR0	180 mm	196 mm	8 mm	7277	17809	21231	61282	0.22
K19008AR0	190 mm	206 mm	8 mm	7541	18525	22516	64998	0.23
K20008AR0	200 mm	216 mm	8 mm	7757	19103	23585	68097	0.23
K25008AR0	250 mm	266 mm	8 mm	8797	22006	29165	84190	0.28
K30008AR0	300 mm	316 mm	8 mm	9797	24830	34951	100901	0.33
K32008AR0	320 mm	336 mm	8 mm	10189	25939	37314	107706	0.36
K34008AR0	340 mm	356 mm	8 mm	10523	26919	39452	113894	0.38
K36008AR0	360 mm	376 mm	8 mm	10885	27988	41816	120710	0.4

8mm Series - Deep Groove Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic	Stastic	Weight
Bearing Model	d	D	B	Radial	Radial	kg
K02508CP0	25 mm	41 mm	8 mm	2501	2971	0.06
K05008CP0	50 mm	66 mm	8 mm	3432	5452	0.08
K06008CP0	60 mm	76 mm	8 mm	3766	6433	0.09
K07008CP0	70 mm	86 mm	8 mm	4089	7433	0.1
K08008CP0	80 mm	96 mm	8 mm	4393	8424	0.11
K09008CP0	90 mm	106 mm	8 mm	4688	9405	0.13
K10008CP0	100 mm	116 mm	8 mm	4972	10405	0.14
K11008CP0	110 mm	126 mm	8 mm	5237	11395	0.15
K12008CP0	120 mm	136 mm	8 mm	5502	12376	0.16
K13008CP0	130 mm	146 mm	8 mm	5766	13376	0.17
K14008CP0	140 mm	156 mm	8 mm	6011	14367	0.18
K15008CP0	150 mm	166 mm	8 mm	6257	15347	0.2
K16008CP0	160 mm	176 mm	8 mm	6492	16338	0.2
K17008CP0	170 mm	186 mm	8 mm	6727	17328	0.2
K18008CP0	180 mm	196 mm	8 mm	6953	18319	0.21
K19008CP0	190 mm	206 mm	8 mm	7110	19064	0.21
K20008CP0	200 mm	216 mm	8 mm	7335	20055	0.22
K25008CP0	250 mm	266 mm	8 mm	8365	25007	0.28
K30008CP0	300 mm	316 mm	8 mm	9307	29959	0.35
K32008CP0	320 mm	336 mm	8 mm	9660	31940	0.39
K34008CP0	340 mm	356 mm	8 mm	9660	31940	0.39
K36008CP0	360 mm	376 mm	8 mm	10297	35657	0.46

8mm Series - Four Point Contact Ball Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic			Static			Weight
Bearing Model	d	D	B	Radial	Thrust	Moment	Radial	Thrust	Moment	kg
K02508XP0	25 mm	41 mm	8 mm	3246	4599	40	3275	7433	49	0.06
K05008XP0	50 mm	66 mm	8 mm	4511	6531	98	5443	13621	158	0.08
K06008XP0	60 mm	76 mm	8 mm	4962	7306	127	6433	16093	219	0.09
K07008XP0	70 mm	86 mm	8 mm	5384	8032	158	7424	18574	290	0.1
K08008XP0	80 mm	96 mm	8 mm	5796	8728	191	8424	21045	370	0.11
K09008XP0	90 mm	106 mm	8 mm	6188	9405	228	9405	23526	461	0.13
K10008XP0	100 mm	116 mm	8 mm	6570	10052	266	10395	25997	562	0.14
K11008XP0	110 mm	126 mm	8 mm	6933	10689	307	11395	28469	672	0.15
K12008XP0	120 mm	136 mm	8 mm	7286	11297	350	12376	30950	792	0.16
K13008XP0	130 mm	146 mm	8 mm	7630	11886	395	13366	33431	923	0.18
K14008XP0	140 mm	156 mm	8 mm	7963	12464	442	14367	35902	1063	0.19
K15008XP0	150 mm	166 mm	8 mm	8296	13033	492	15347	38383	1213	0.2
K16008XP0	160 mm	176 mm	8 mm	8610	13592	543	16338	40855	1373	0.2
K17008XP0	170 mm	186 mm	8 mm	8924	14131	596	17328	43326	1543	0.2
K18008XP0	180 mm	196 mm	8 mm	9228	14661	651	18319	45807	1722	0.21
K19008XP0	190 mm	206 mm	8 mm	9444	15063	701	19064	47660	1888	0.21
K20008XP0	200 mm	216 mm	8 mm	9728	15573	759	20055	50141	2086	0.22
K25008XP0	250 mm	266 mm	8 mm	11111	18044	1075	25007	62517	3226	0.28
K30008XP0	300 mm	316 mm	8 mm	12366	20359	1429	29959	74903	4614	0.35
K32008XP0	320 mm	336 mm	8 mm	12847	21241	1580	31940	79856	5238	0.39
K34008XP0	340 mm	356 mm	8 mm	13239	22114	1728	33921	84808	5859	0.42
K36008XP0	360 mm	376 mm	8 mm	13690	22849	1890	35657	89133	6561	0.46

(2) 13mm Series

13mm Series - Angular Contact Bearing
Bearing Model	Inner Dia	Outer Dia	Width	Dynamic Load		Static Load		Weight
Bearing Model	d	D	B	Radial	Axial	Radial	Axial
