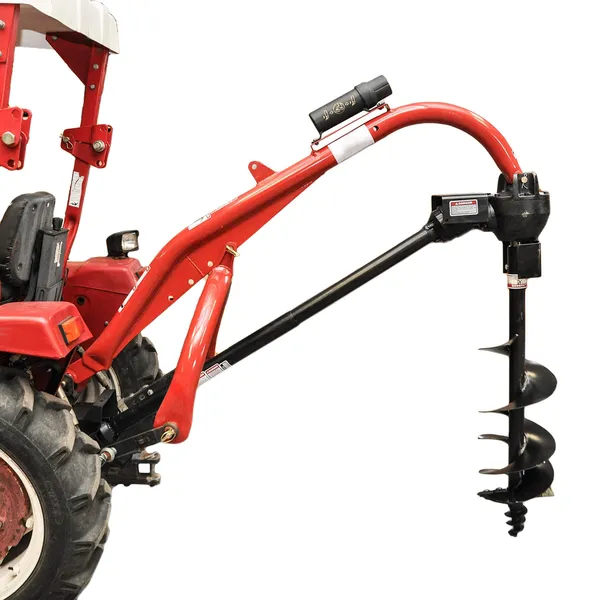

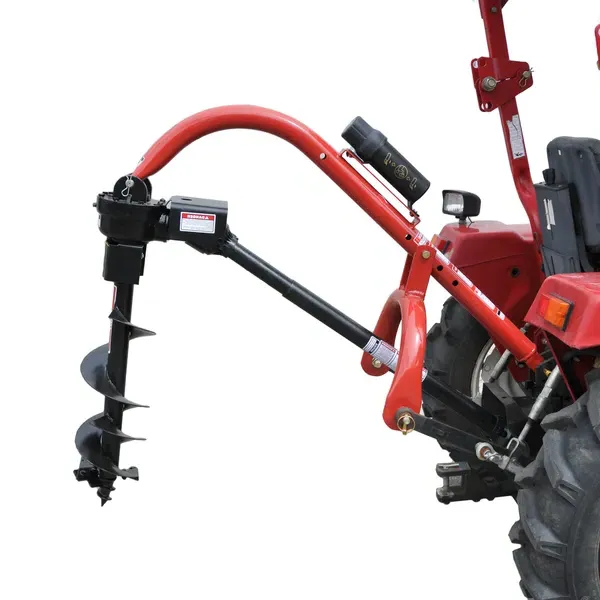

Model 1500 Heavy Duty 3 Point Post Hole Digger for Cat 1 & 2 Tractors

Model 1500 Heavy Duty 3 Point Post Hole Digger for Cat 1 & 2 Tractors

The Model 1500 heavy duty 3 point post hole digger is a high-quality, durable tool used for digging holes in tough soil conditions for construction and farming purposes. It is designed with a strong, heavy-duty steel frame that can withstand even the toughest terrain. The post hole digger features a 9-inch auger with replaceable cutting edges for easy digging and long-lasting performance. The auger is also available in various sizes to accommodate different hole sizes. The 3-point quick hitch design provides stable and easy attachment to most tractors, making it easy to operate. Additionally, the PTO-driven gearbox ensures smooth and easy operation.

Specifications of 3 Point Post Hole Digger

- Rated for tractors up to 75 hp - Series 4 Driveline - Super Heavy Duty Gearbox, 3:1 Reduction Ratio - 2" Output Shaft with Dual 1/2" Bolt-Holes for Auger Attachment - Choose Combos of Up to 5 Heavy Duty Augers - Fits Cat 1 & 2 Tractors - Super Heavy Duty Reinforced Steel Boom - Backed by our 6-month warranty & exceptional Customer Service

Heavy Duty 3 Point Post Hole Digger for Sale

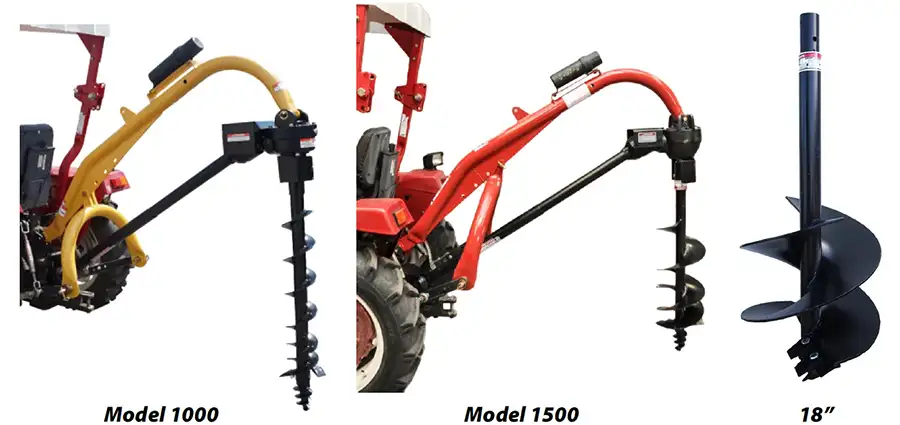

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3'  lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150  bs	160  bs	200  bs	235  bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

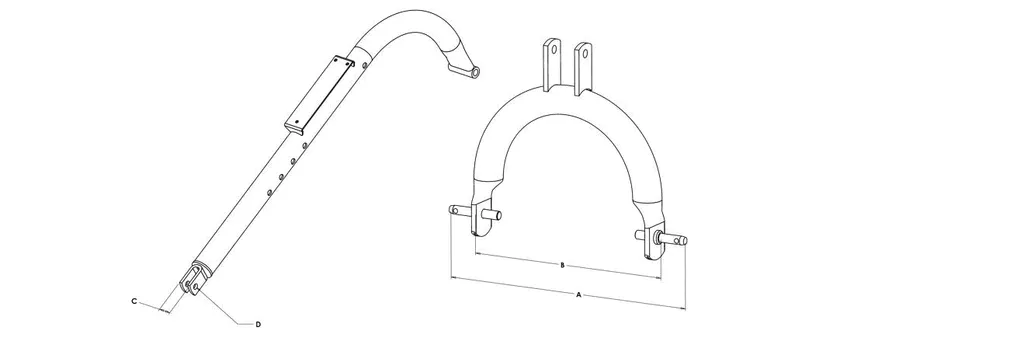

Model 1500 Heavy Duty 3 Point Post Hole Digger Parts

Model # / CAT	A(in) Lower Hitch Point Spread -Max	B(in) Lower Hitch Point Spread -Min	C(in) Clevis/ Ball Joint Outside Width	D(in) Upper Hitch Point Pin Dia
Model 400 / CAT 0, Sub Compact	26-3/8	20-7/8	1.75	0.75
Model 650 / CAT 1	33-1/2	28	1-5/8	1.0
Model 1000 / CAT 1	32-3/8	26-7/8	1-5/16	0.75
Model 1500 / CAT 1 & 2	38-3/8	32-7/8	1-5/16	0.75

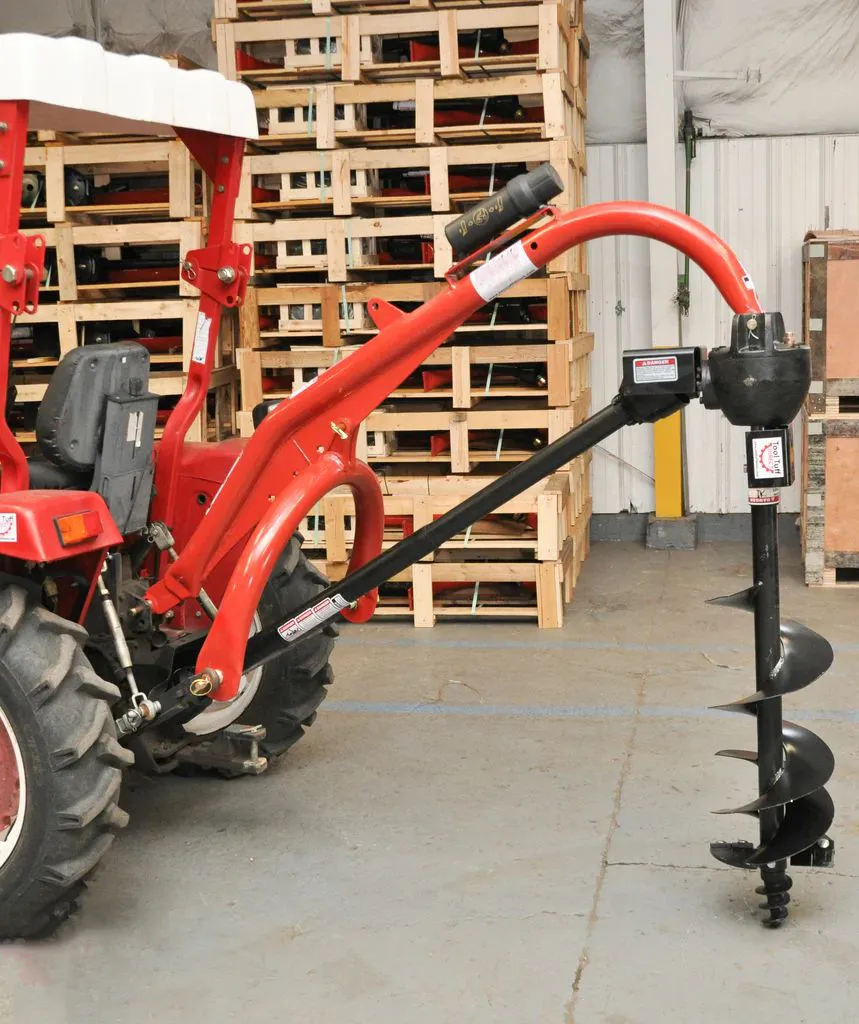

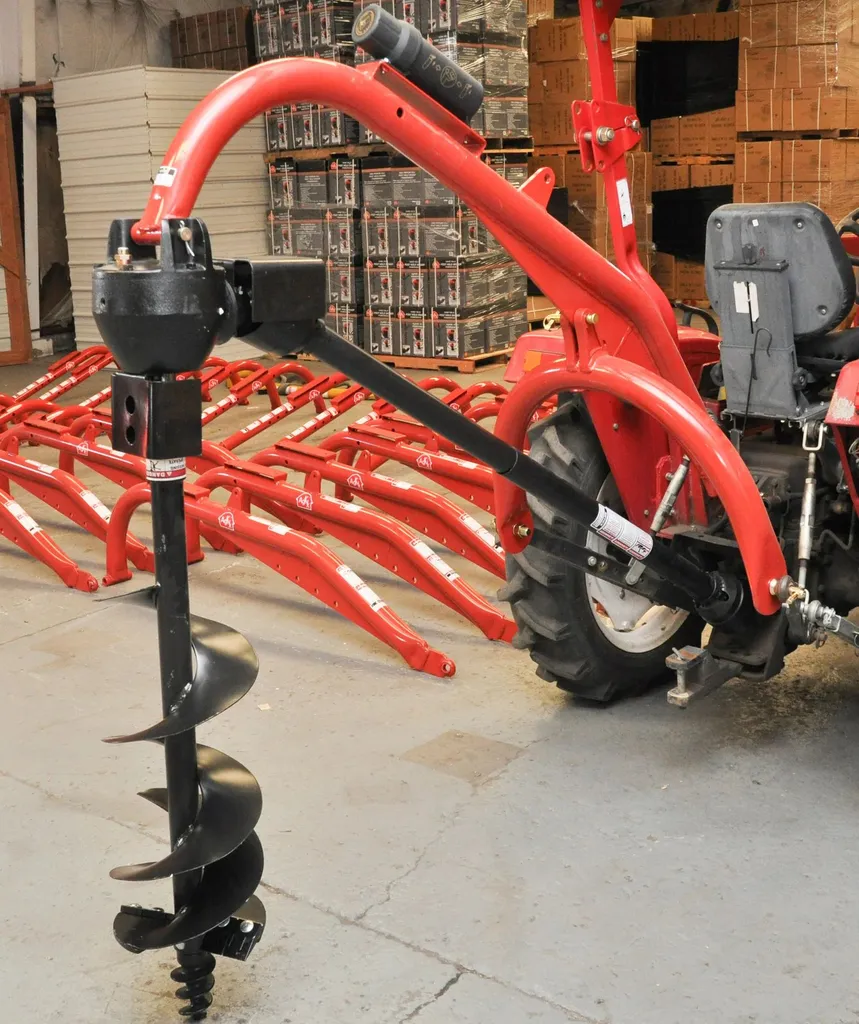

Key Features:

Here are some features of the Model 1500 heavy duty 3 point post hole digger: 1. Heavy-duty steel frame: The post hole digger has a robust steel frame, which makes it durable enough to withstand challenging soil conditions. 2. Auger with replaceable cutting edges: The Model 1500 heavy duty 3 point post hole digger comes with a 9-inch high-carbon steel auger with replaceable cutting edges for long-lasting performance. The auger size can vary according to user preferences, and it can efficiently dig holes of different sizes. 3. 3-Point hitch design: The 3 point post hole digger is designed to be attached to the three-point hitch of most tractors, making it easy to operate. 4. PTO-driven gearbox: The power take-off (PTO)-driven gearbox ensures that the post hole auger spins at a consistent speed, providing smooth and easy operation. 5. Versatility: The removable auger bit comes in various sizes for different hole sizes, making the 1500 heavy duty 3 point post hole digger ideal for several purposes. 6. Gripping handles: The post hole auger's gripping handles provide the operator with sufficient controlled support and balance during use.

Advantages of Using a Heavy Duty 3 Point Post Hole Digger

Using a heavy duty 3 point post hole digger offers numerous advantages that make it an invaluable tool for a wide range of applications, including landscaping, construction, and agriculture. Here are some of the key benefits:

• Efficient Power Transfer: The design of a 3-point post hole digger ensures efficient power transfer from the tractor to the auger. This efficiency allows the digger to penetrate tough soil conditions with minimal effort, reducing the time and labor required compared to manual digging methods. This is particularly beneficial for large-scale projects.
• Versatility: These diggers are compatible with Category 1 and 2 tractors, making them suitable for a wide range of uses. Whether you're working on a farm, in landscaping, or in construction, the digger can handle different types of tasks with various auger sizes available to match specific project needs, offering great flexibility.
• Durability and Strength: Constructed with reinforced steel frames and robust components, heavy-duty post hole diggers are built to withstand demanding conditions. This durability ensures a long lifespan even under frequent use, providing a reliable tool that can handle the stress of digging through hard or rocky soil without significant wear or damage.
• Increased Productivity: By mechanizing the hole-digging process, these diggers significantly increase productivity. The speed and ease with which holes can be dug allow for more work to be completed in less time. This efficiency is particularly useful for projects requiring numerous holes, such as fencing or planting large numbers of trees.
• Precision and Consistency: The use of a post hole digger ensures that each hole is dug to a consistent depth and width, which is crucial for projects requiring uniformity, such as fence installation. This precision reduces the likelihood of errors and ensures that posts are securely set, leading to more professional and stable results.
• Safety Features: Many models include safety features such as shear bolt protection, which prevents damage by stopping the auger if it encounters a hard obstruction. This feature not only protects the equipment but also enhances operator safety by reducing the risk of abrupt stops or mechanical failures during operation.

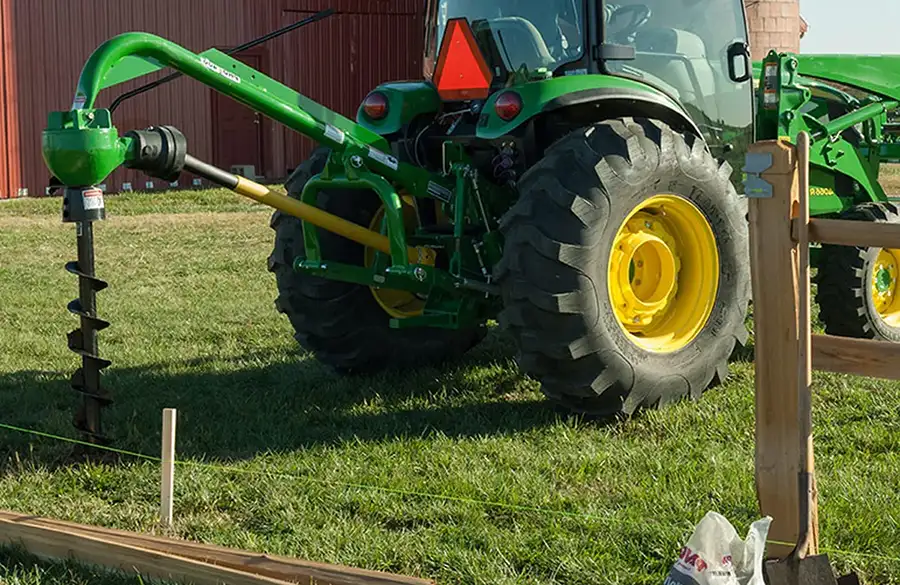

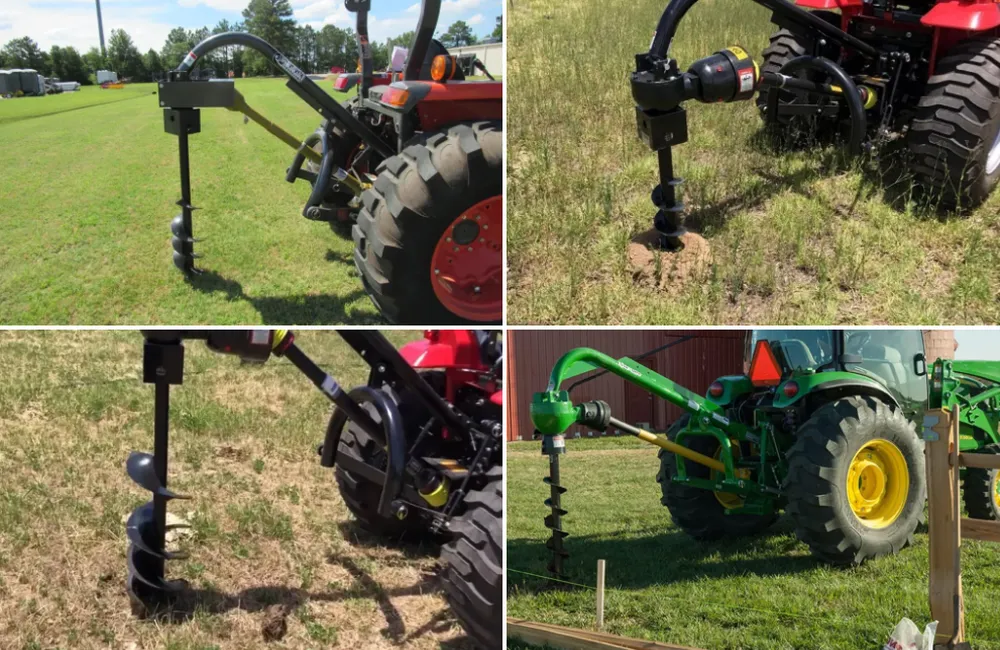

Common Applications:

The 3 point post hole digger is a versatile tool that finds common applications across various industries and tasks. Here are some of the most common applications for this type of equipment:

1. Fence Installation: A post hole digger is essential for creating uniform holes required for setting fence posts. It ensures consistency in depth and width, which is crucial for the stability and durability of the fence. This tool greatly speeds up the process compared to manual digging.
2. Tree Planting: When planting trees, especially in large numbers, a post hole digger is invaluable. It allows for precise hole sizes that accommodate root balls, ensuring proper planting depth and space. This precision helps promote healthy growth and efficient use of land.
3. Irrigation Systems: Installing irrigation systems often requires digging holes for pipes and supports. A post hole digger simplifies this task, enabling quick and accurate hole creation. This efficiency is vital for large agricultural or landscape irrigation setups where time and precision are key.
4. Utility Poles: Setting utility poles demands deep and secure holes. A heavy-duty post hole digger is capable of reaching the necessary depths efficiently. It ensures the poles are correctly positioned and firmly anchored, which is crucial for safety and functionality.
5. Installing Road Signs: For road sign installation, precise and stable holes are needed to ensure signs are securely placed and visible. A post hole digger allows for quick installation, reducing traffic disruption while ensuring that signs are properly aligned and durable.
6. Landscaping: In landscaping projects, post hole diggers are used to create spaces for various installations like arbors, trellises, or decorative posts. The tool provides the flexibility to work with different soil types and project requirements, enhancing the aesthetic and functional aspects of the landscape.
7. Fencing and Decking: Building decks and fences requires numerous post holes. A post hole digger ensures each hole is uniform, providing a stable foundation. This uniformity is essential for the structural integrity of decks and fences, leading to long-lasting and visually appealing constructions.

How to Use Heavy Duty 3 Point Post Hole Digger?

Here are the basic steps to follow when using a heavy-duty 3-point post hole digger like the Model 1500: (1) Position the post hole digger: Attach the post hole digger to the three-point hitch of your tractor and ensure that it is securely fixed. (2) Adjust the auger height: Adjust the post hole auger height to the desired depth by sliding the pin towards the appropriate height marker. (3) Engage the PTO shaft: Turn on the PTO shaft switch of your tractor to engage the auger. If you're unsure how to engage the PTO shaft, consult the operator's manual of your tractor. (4) Begin digging: With the post hole auger engaged, you can now start to dig the hole. Position the post hole auger at the desired location and slowly lower it into the ground, taking care to keep the auger vertical as you do so. (5) Remove the dug soil: Once you've reached the desired depth, pull up the post hole auger from the hole, and use a shovel or a scoop to remove the soil from the hole. (6) Repeat the process: Repeat the process to dig as many holes as you need. Take care to periodically check the post hole auger's cutting edges to ensure they are sharp and replace them when they're worn out. (7) Clean the post hole digger: When you're finished, clean the post hole digger with water and a stiff brush to remove dirt and debris. Always remember to follow the safety instructions provided with both the post hole digger and tractor.

We Also Provide Other 3-Point Post Hole Digger Accessories

Related products to the 3-point post hole digger include a variety of accessories and implements designed to work in conjunction with this type of equipment. Here are some common 3-point post hole digger related products:

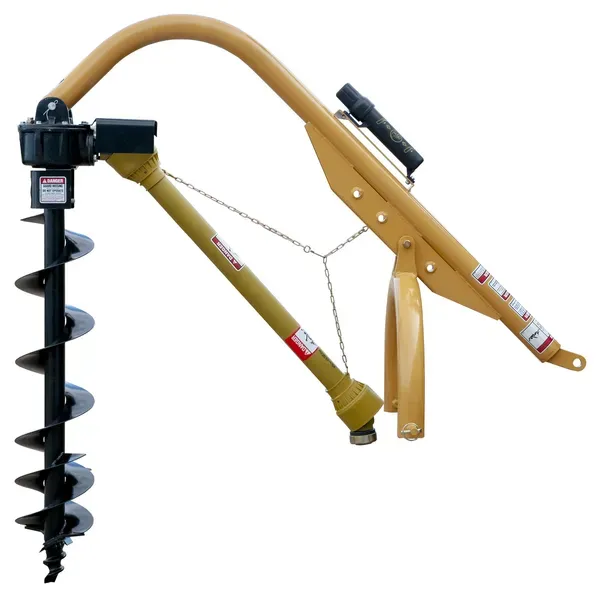

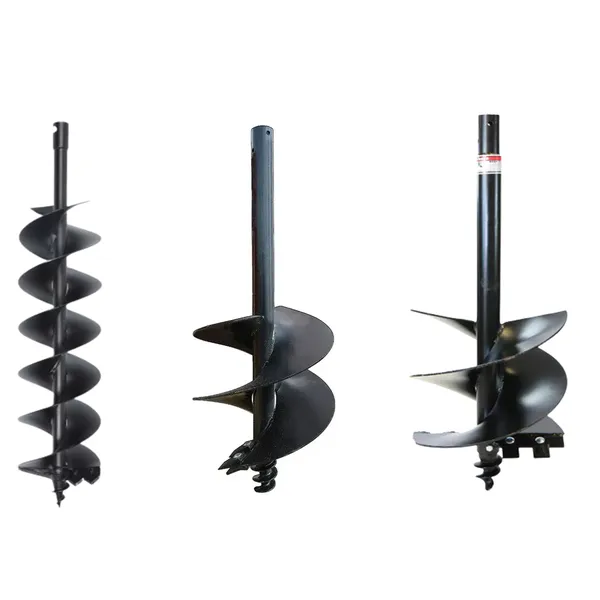

• 3 Point Post Hole Digger Auger: The auger is a crucial component of the post hole digger, responsible for the actual digging process. Made from durable materials like heavy-duty steel, it is designed to penetrate various soil types. Augers come in different diameters, allowing users to select the size that best fits their specific needs, from small posts to large poles.
• Post Hole Digger Auger Bits: Auger bits are replaceable components attached to the auger for cutting through soil. They are available in various lengths and diameters, providing versatility for different digging projects. High-quality bits are made to withstand tough conditions, ensuring efficient digging and reduced wear, which extends the lifespan of the digger.

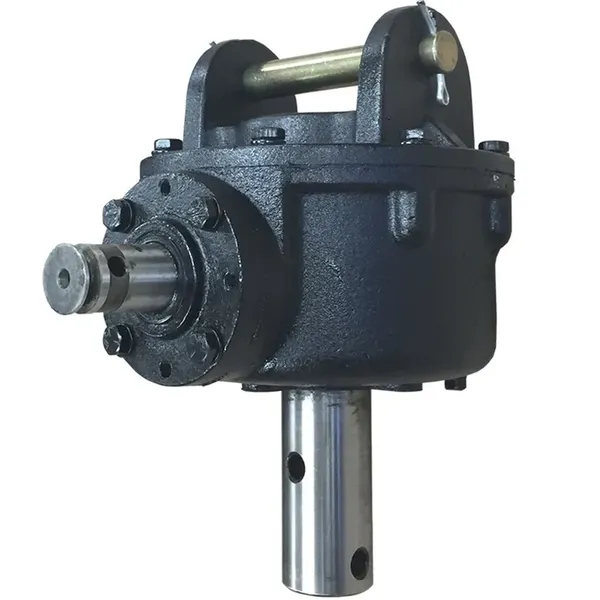

• Post Hole Digger Gearbox: The gearbox is the heart of the post hole digger, transferring power from the tractor to the auger. It is engineered for durability and smooth operation, handling the stress of heavy-duty tasks. A reliable gearbox ensures consistent performance, reducing maintenance needs and enhancing the overall efficiency of the digging process.

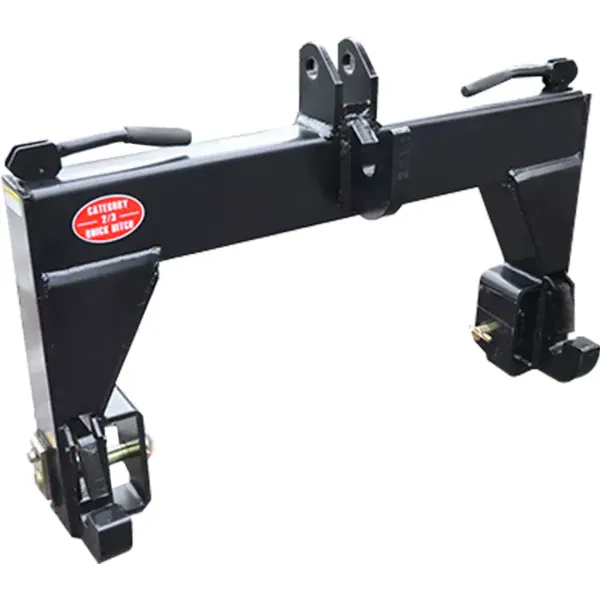

• 3-Point Tractor Quick Hitch: A 3-point tractor quick hitch simplifies the attachment and detachment of implements like post hole diggers. Designed for ease of use, it allows operators to quickly switch between different tools without the need for manual adjustments. This feature enhances productivity, especially in settings where multiple implements are used regularly.
• 3 Point Post Hole Digger Frame: The frame provides the structural support for the post hole digger, connecting the auger and gearbox to the tractor. Built from robust materials, it ensures stability and durability during operation. A well-designed frame reduces vibrations and enhances safety, making the digging process smoother and more efficient for the operator.

3 Point Post Hole Digger Auger	3 Point Post Hole Digger Auger Bits
3 Point Post Hole Digger Gearbox	3-Point Tractor Quick Hitch

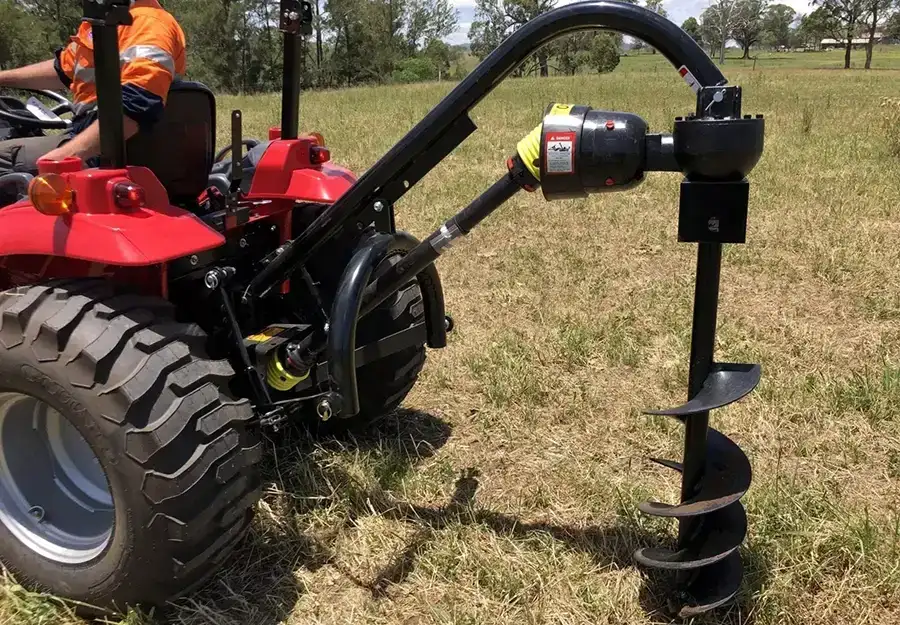

How to Select the Right Tractor 3 Point Post Hole Digger?

When selecting the right tractor 3 point post hole digger, there are several factors that you need to consider. Here are some steps to guide you in choosing the right one: 1. Determine the size of holes you need to dig - The size of the holes you need to dig will determine the size of the auger you need. Post hole diggers come in various sizes ranging from 6 inches, 9 inches, or 12 inches. 2. Choose the right auger type - There are two types: the standard auger and the heavy-duty auger. If you need to dig holes in tough soil conditions, select a heavy-duty auger. 3. Consider the depth - Determine the depth of the holes you need to dig. Most post hole diggers can dig holes up to 48 inches deep, but some can go down even deeper depending on your needs. 4. Check your tractor's horsepower - Make sure your tractor has enough horsepower to handle the post hole digger you choose. Check the manufacturer's guidelines for horsepower requirements based on the size of the auger. 5. Consider the price - Post hole diggers come at different price points. Determine your budget and look for one that fits within your price range. 6. Look for quality - When selecting a 3 point post hole digger, check for quality construction and durable materials. A reputable brand with positive reviews and a long-term warranty is usually a good choice. By considering these factors, you can select the right tractor 3 point post hole digger that is suitable for your needs and budget.

FAQ:

Q1: What is a post hole digger used for? A: A post hole digger is used to dig holes for fence posts, tree planting, signposts, and other applications requiring precise and deep holes. Q2: How do I choose the right size auger? A: Choose an auger size based on the diameter of the posts you need to install. Common sizes range from 6 to 12 inches. Q3: Can a post hole digger handle rocky soil? A: Yes, but it's important to use a heavy-duty auger with reinforced blades designed for tough conditions. Q4: How deep can a post hole digger dig? A: Most post hole diggers can dig up to 3 feet deep, but extensions are available for deeper holes. Q5: What maintenance does a post hole digger require? A: Regularly check and lubricate moving parts, inspect the gearbox, and ensure the blades are sharp and free from damage. Q6: Is it difficult to attach a post hole digger to a tractor? A: With a compatible quick hitch system, attaching a post hole digger to a tractor is straightforward and efficient. Q7: What safety precautions should I take? A: Always wear protective gear, ensure the area is clear of obstacles, and follow the manual's safety instructions. Q8: Can I use a post hole digger in wet soil? A: Yes, but wet soil can be heavier and more challenging to work with, so proceed with caution to avoid equipment strain.
