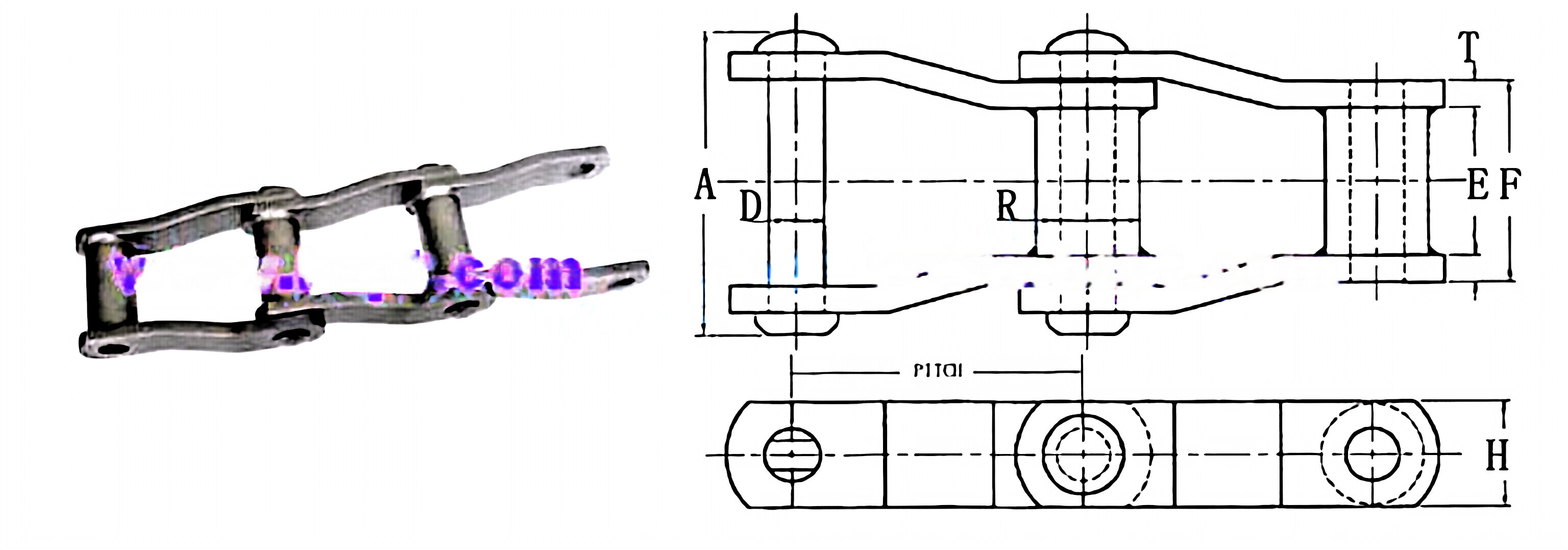

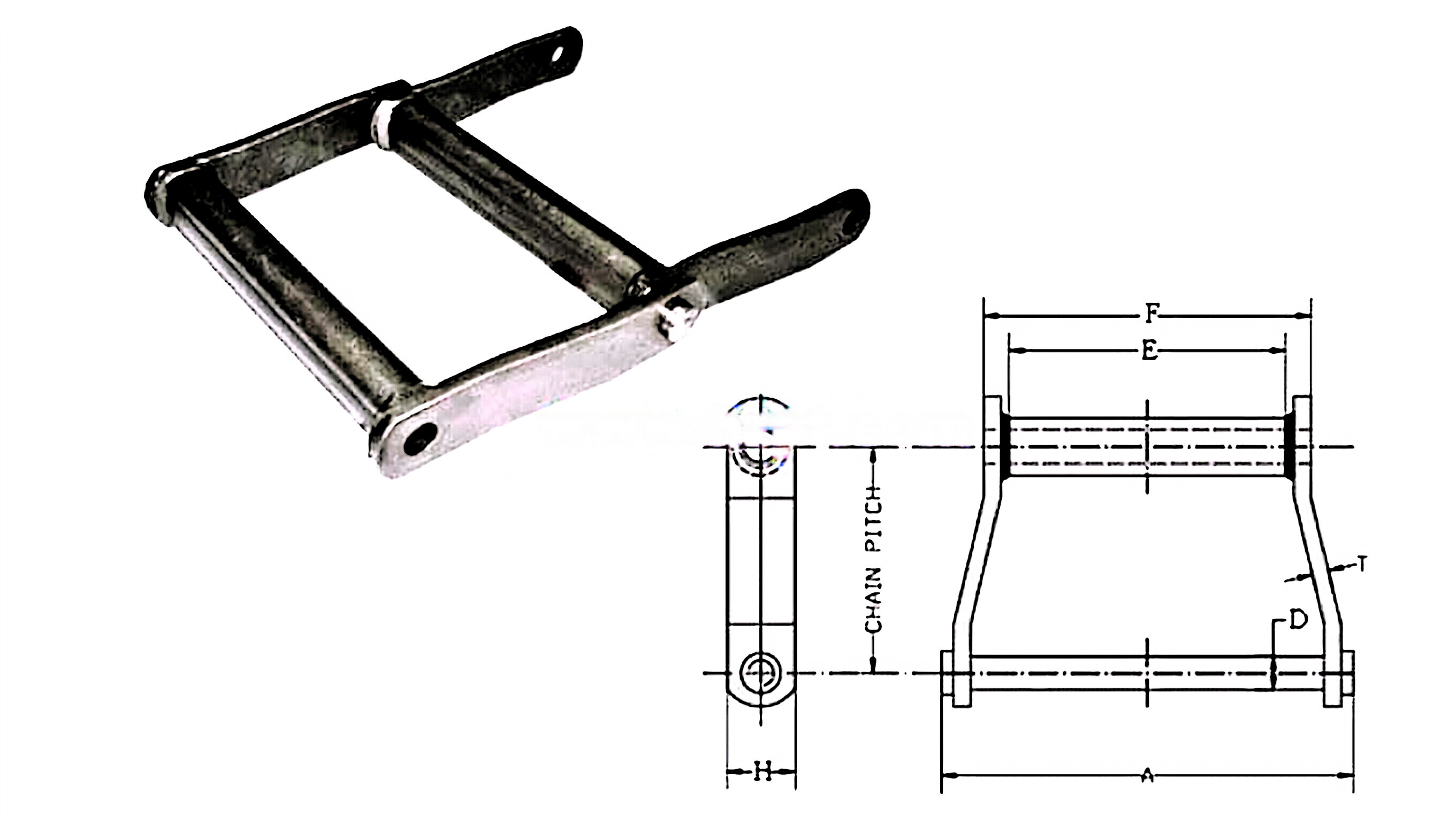

Narrow Series WR/WH/WHX/WRC/WHC Welded Steel Chains

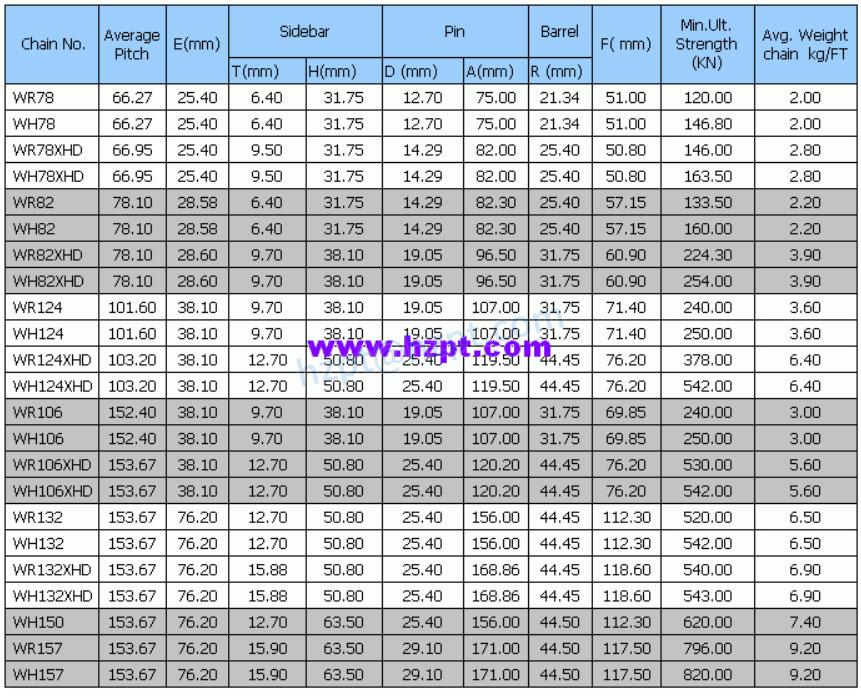

Features of Narrow Series Welded Steel Chains

● WR chains have only thru-hardened rivets.● WH chains have all parts thru-hardened.● WHX chains have thru-hardened parts and induction hardened rivets as standard.● Riveted construction is standard. Pin and cottered construction can be furnished on a made-to-order basis.● WRC chain has a straight sidebar and thru-hardened rivets.● WHC chain has a straight sidebar and all parts thru-hardened.

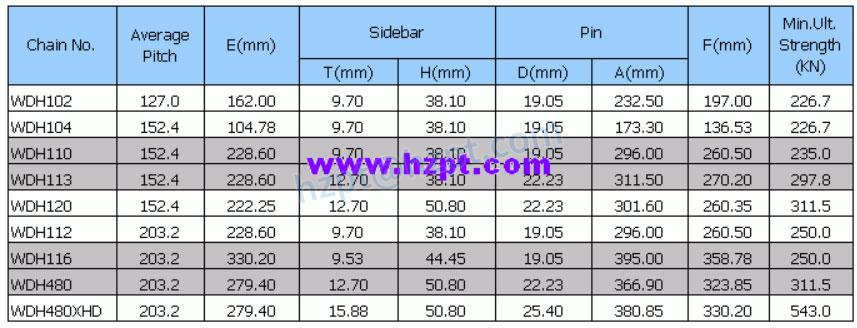

Features of WDH Narrow Series Welded Steel Chains

● WDH Series have all parts thru-hardened.● Riveted construction is standard. Pin and cottered construction can be furnished on a made-to-order basis.

Chains and Sprockets

• Chains and sprockets are mainly used in all applications such as transportation, machinery and other motor applications.
• Chain and sprockets are maintained with grease and oil spray to provide smoother and better operation.
• It makes the wheels run as the motor rotates and is considered as Rotation Per Minute (RPM).

Chains and sprockets are mainly used in the transport industry and machine building industry to rotate wheels by means of motors or engines. These chains and sprockets both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprocket, the motor turns the sprocket and the chain is connected to the sprocket teeth, which can turn simultaneously with the motor wheel, thus making the vehicle or machine run smoothly. Raydafon is one of the leading manufacturers and suppliers in China. We can offer various high-quality drive chains and sprockets for sale. Contact now!
