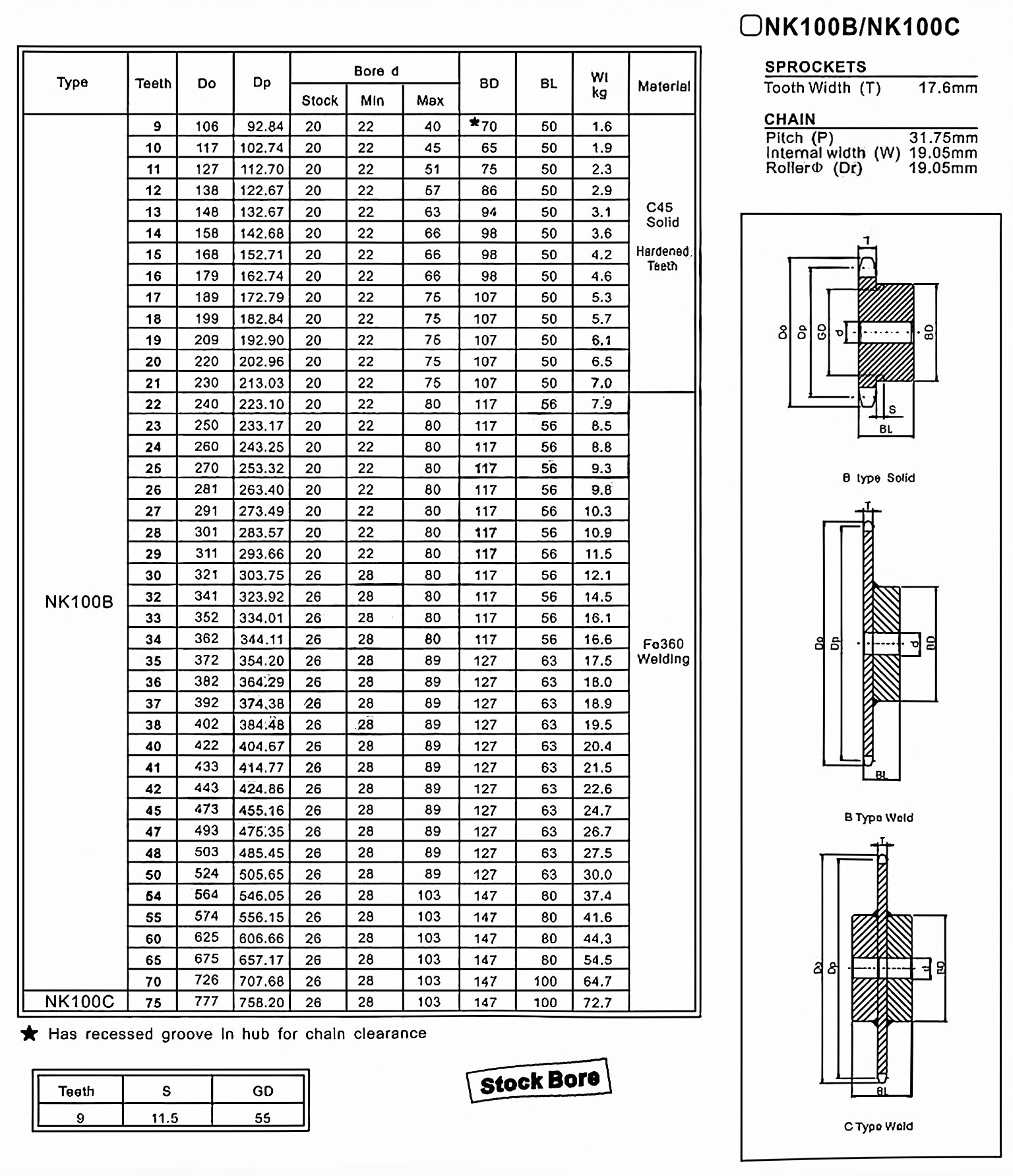

NK100C Standard Bore Sprocket

NK100C Standard Bore Sprocket

A standard bore sprocket is a type of sprocket that has a pre-bored center hole to fit onto a specific shaft diameter. The NK100C Standard Bore Sprocket is one such sprocket that has been designed to fit shafts with a diameter of 1 inch. It is made of high-quality steel and has been engineered to provide optimum performance in a wide range of applications.

Basic structure of a sprocket

A sprocket is a wheel with evenly spaced teeth that mesh with a chain, belt or other perforated material. The basic structure of a sprocket consists of a hub, teeth, and a bore. To customize a sprocket, the following things need to be determined:

• Material: The material of a sprocket determines its strength, durability, and ability to withstand wear and tear. NK100C Standard Bore Sprocket can be made of high carbon steel, alloy steel, or stainless steel.
• Teeth profile: The teeth profile depends on the type of chain the sprocket will be used with. It can be a standard tooth profile or a custom profile depending on the specific application.
• Number of teeth: The number of teeth on a sprocket determines the gear ratio and the speed of the driven equipment.
• Size: The size of a sprocket is determined by the pitch of the chain and the diameter of the sprocket.
• Bore: The bore of a sprocket is the diameter of the hole in the center of the sprocket that fits onto the shaft.
• Keyway: The keyway is a slot on the bore of the sprocket that fits onto the key of the shaft and prevents the sprocket from rotating on the shaft.
• Surface treatment: The surface of a sprocket can be treated to improve its corrosion resistance, wear resistance, and hardness. The common treatments include heat treatment, quenching, tempering, and surface hardening.

Materials and manufacturing process

NK100C Standard Bore Sprocket is made of high-quality steel and manufactured using a variety of processes to ensure its quality and durability. The manufacturing process includes material selection, cutting, stamping, forging, machining, heat treatment, surface treatment, and quality inspection.

• Material selection: The material used to make the sprocket is carefully selected to ensure its strength, durability, and resistance to wear and tear. High carbon steel, alloy steel, or stainless steel can be used depending on the specific application.
• Cutting: The steel is cut into the required shape using a cutting machine or laser cutting machine.
• Stamping: The steel is stamped or pressed to create the sprocket's teeth or other features.
• Forging: The steel is heated and shaped using a forging machine to improve its strength and durability.
• Machining: The sprocket is machined to the required size and shape using a lathe, milling machine, or drilling machine.
• Heat treatment: The sprocket is heated to a specific temperature and then cooled rapidly to improve its hardness and strength. This process is called quenching. The sprocket is then reheated to a lower temperature to reduce its brittleness. This process is called tempering.
• Surface treatment: The sprocket is treated with a surface coating or plating to improve its corrosion resistance and wear resistance. The common treatments include black oxide coating, zinc plating, and nickel plating.
• Quality inspection: The sprocket is inspected to ensure that it meets the required quality standards. This includes dimensional inspection, hardness testing, surface finish inspection, and material testing.

Applications

NK100C Standard Bore Sprocket is suitable for a wide range of applications, including heavy machinery and equipment, food processing and packaging, chemical and pharmaceutical industries, assembly lines, logistics, and warehousing.

Maintenance and troubleshooting

To ensure the smooth operation and long service life of a sprocket, it is important to perform regular maintenance and troubleshooting. The following maintenance tasks should be performed:

• Daily inspection: Check the sprocket for signs of wear, damage, or misalignment. Replace or repair any damaged or worn parts immediately.
• Cleaning: Clean the sprocket regularly to remove dirt, debris, and other contaminants that can cause damage to the chain or sprocket.
• Lubrication: Lubricate the sprocket regularly to reduce friction and wear. Use a lubricant that is compatible with the chain and sprocket material.
• Adjustment and calibration: Adjust and calibrate the sprocket as necessary to ensure that it is aligned and working properly.

The following are some common problems that can occur with a sprocket:

• Skipping teeth: This can be caused by a loose chain, worn sprocket teeth, or a misaligned sprocket. The solution is to replace the worn parts and adjust the alignment as necessary.
• Fracture: This can be caused by excessive load, fatigue, or material defects. The solution is to replace the sprocket with a new one.
• Wear: This can be caused by normal use or abrasive materials. The solution is to replace the worn parts and use lubrication to reduce friction.
• Noise: This can be caused by misalignment, worn parts, or loose components. The solution is to adjust and replace the worn parts as necessary.
• Chain slipping: This can be caused by a loose chain, worn sprocket teeth, or misalignment. The solution is to replace the worn parts and adjust the alignment as necessary.

Other types of sprockets

In addition to NK100C Standard Bore Sprocket, we also provide other types of sprockets, including platewheel sprocket, idler sprocket, qd sprocket, taper lock sprocket, and other sprockets. We also provide matching chains and other power transmission products.

Author: Miya
