NK200C Standard Bore Sprocket

NK200C Standard Bore Sprocket

A standard bore sprocket is a mechanical component that is a part of the chain drive family, consisting of a wheel-like shape with evenly spaced teeth around the circumference. It is a vital component of a chain drive and works in conjunction with the chain to transmit power. The NK200C Standard Bore Sprocket is a type of sprocket that is widely used in various industrial applications due to its high-quality material and excellent performance.

Basic Structure of a Sprocket

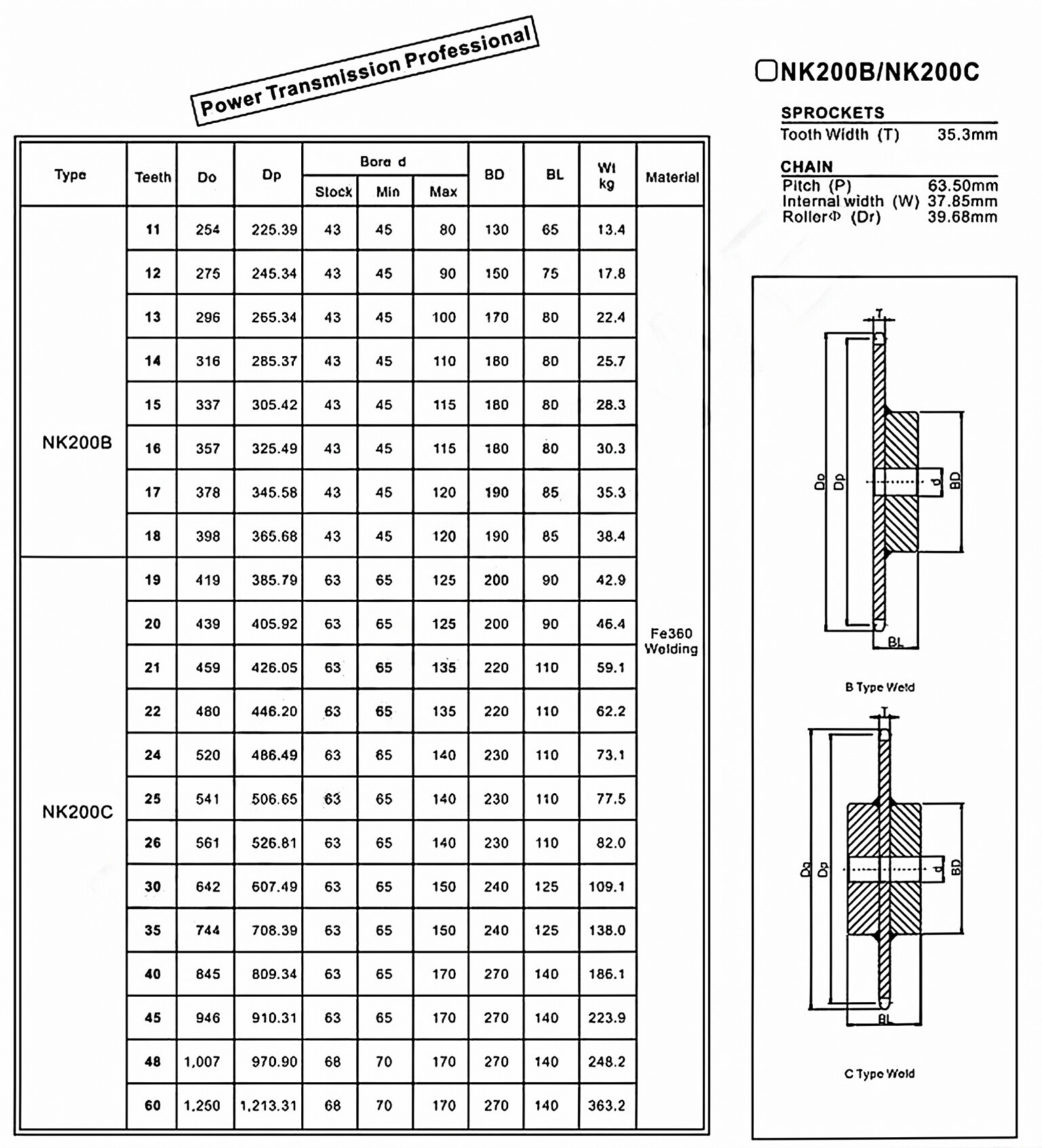

A sprocket consists of two main components: the hub and the teeth. The hub is the central part of the sprocket that connects to the shaft. The teeth are the external part of the sprocket that meshes with the chain. The basic structure of a sprocket is shown in the following figure:

When it comes to customizing a sprocket, there are several key factors that need to be considered, which include:

• Material: Depending on the application, sprockets can be made from a variety of materials, including high-carbon steel, alloy steel, and stainless steel.
• Tooth Profile: The shape of the teeth determines how the chain fits with the sprocket. There are different types of tooth profiles, including standard, modified, and custom profiles.
• Number of Teeth: The number of teeth on the sprocket determines the speed ratio and torque transfer.
• Dimensions: The dimensions of the sprocket include the pitch diameter, the bore diameter, and the width.
• Bore Size: The bore size refers to the diameter of the center hole of the sprocket.
• Keyway: The keyway is a slot on the bore that allows the sprocket to be fixed onto the shaft using a key.
• Surface Treatment: The surface of the sprocket can be treated to improve corrosion resistance and wear resistance.

Materials and Manufacturing Process

Our sprocket is made of high-quality materials, which include high-carbon steel, alloy steel, or stainless steel. The selection of the material depends on the application and the operating conditions. We use a variety of manufacturing processes to ensure that our sprockets meet the highest industry standards. These processes include:

• Material Selection: We carefully select the appropriate material based on the application and customer requirements.
• Cutting: We use cutting machines to cut the material into the desired shape.
• Forging: We use forging machines to forge the material into the desired shape.
• Machining: We use advanced CNC machines to perform machining operations such as turning, milling, drilling, and tapping.
• Heat Treatment: We use heat treatment processes such as quenching, tempering, and surface hardening to improve the strength and durability of the sprocket.
• Surface Treatment: We use surface treatment processes such as electroplating, painting, and coating to improve the corrosion resistance and aesthetics of the sprocket.
• Quality Control: We have a strict quality control system that ensures that every sprocket meets the highest industry standards.

Applications

Our sprockets are widely used in various industrial applications, including:

• Heavy Machinery and Equipment: Our sprockets are used in heavy machinery and equipment such as excavators, cranes, and bulldozers.
• Food Processing and Packaging: Our sprockets are used in food processing and packaging equipment such as conveyors and elevators.
• Chemical and Pharmaceutical: Our sprockets are used in chemical and pharmaceutical equipment such as reactors and mixers.
• Assembly Lines: Our sprockets are used in assembly lines such as automotive assembly lines and production lines.
• Logistics and Warehousing: Our sprockets are used in logistics and warehousing equipment such as conveyor systems and lift trucks.

Maintenance and Troubleshooting

Proper maintenance and troubleshooting are essential for ensuring the longevity and performance of the sprocket. The following are some maintenance tips and common problems:

• Daily Inspection: Check the sprocket regularly for any wear, deformation, or damage.
• Cleaning: Clean the sprocket regularly to remove any dirt, dust, or debris that may cause wear or damage.
• Lubrication: Lubricate the sprocket regularly to reduce wear and friction.
• Adjustment and Calibration: Adjust and calibrate the sprocket regularly to ensure proper alignment and tension.
• Common Problems:
• Skipping Teeth: This is usually caused by worn or damaged teeth. The solution is to replace the sprocket.
• Broken Teeth: This is usually caused by overloading or shock loading. The solution is to replace the sprocket.
• Wear: This is usually caused by high-speed operation or abrasive particles. The solution is to replace the sprocket.
• Noise: This is usually caused by loose or misaligned sprocket. The solution is to adjust or replace the sprocket.
• Chain Slippage: This is usually caused by worn or damaged chain or sprocket. The solution is to replace the chain or sprocket.

Other Types of Sprockets

In addition to the NK200C Standard Bore Sprocket, we also offer other types of sprockets such as platewheel sprocket, idler sprocket, qd sprocket, taper lock sprocket, and more. We also provide a wide range of compatible chains to meet your specific needs.

Author: Miya
