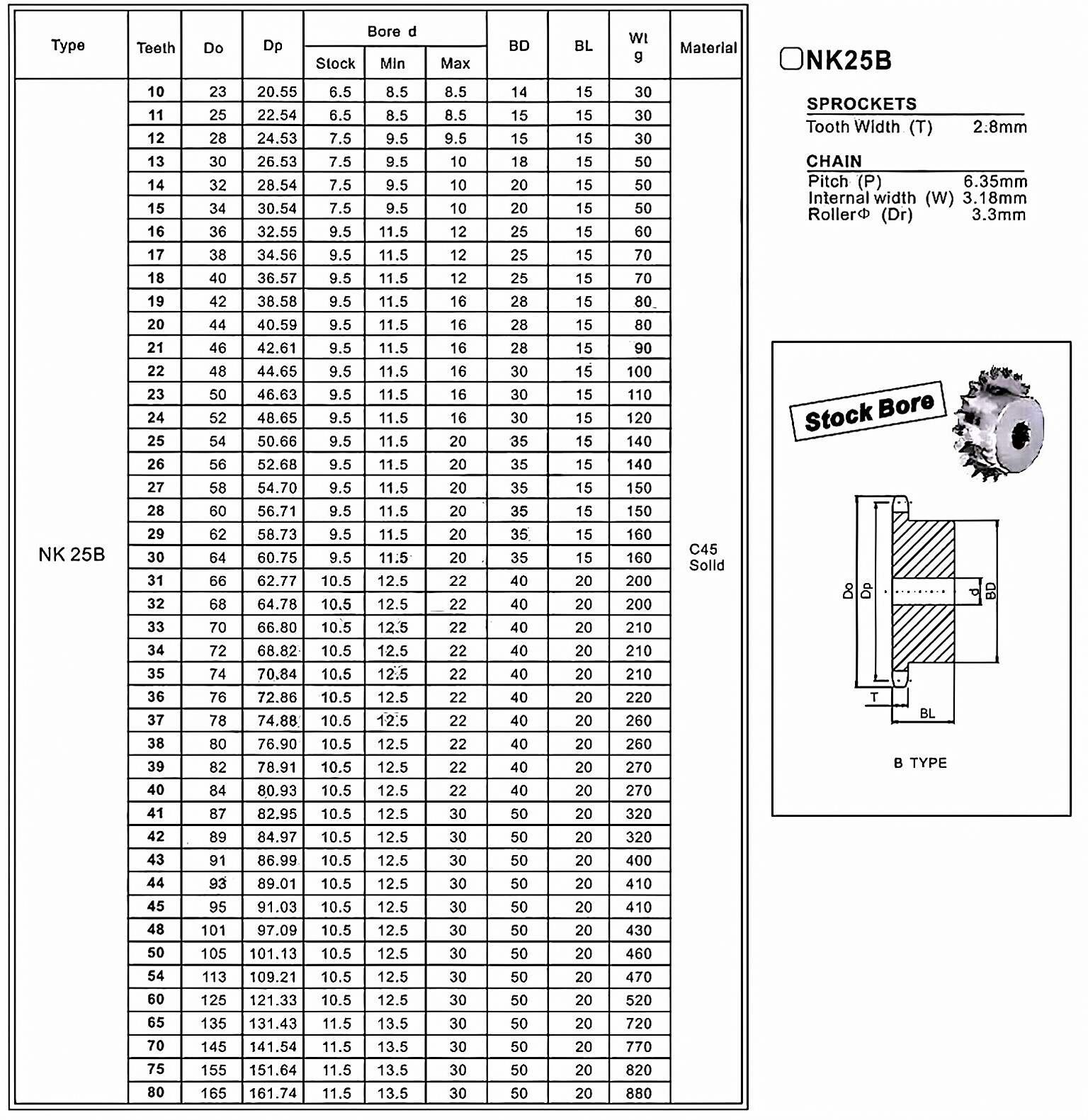

NK25B Standard Bore Sprocket

NK25B Standard Bore Sprocket

What is a Standard Bore Sprocket?

A standard bore sprocket is a type of sprocket that is commonly used in various industrial applications. It is designed to transmit rotational motion between two shafts by means of a roller chain. The standard bore sprocket consists of a circular disc with teeth that mesh with the chain, allowing for smooth and efficient power transmission.

Basic Structure and Customization of Sprockets

When customizing a sprocket, several factors need to be considered:

1. Material: The material used for the sprocket depends on the specific application requirements. It can be made of high carbon steel, alloy steel, or stainless steel.
2. Tooth Profile: The tooth profile determines how the sprocket engages with the chain. There are various tooth profiles available, each suited for different types of chains.
3. Number of Teeth: The number of teeth on the sprocket affects the speed ratio and torque transmission of the system.
4. Dimensions: The overall dimensions of the sprocket play a crucial role in determining its compatibility with the application.
5. Bore Diameter: The bore diameter refers to the size of the central hole in the sprocket, which fits onto the shaft.
6. Keyway: The keyway is a slot on the bore that allows for secure fitting of the sprocket onto the shaft.
7. Surface Treatment: The sprocket can undergo various surface treatments, such as rust prevention and hardening, to enhance its durability and performance.

Materials and Manufacturing Process

Our sprockets are manufactured using high-quality materials and advanced manufacturing processes:

• Material: We utilize high carbon steel, alloy steel, or stainless steel, depending on the specific application requirements.
• Manufacturing Process: The sprockets undergo a series of processes, including material selection, cutting, stamping, forging, machining, heat treatment, surface hardening, rust prevention, and quality inspection.

Applications

Our sprockets find applications in various industries, including:

• Heavy Machinery and Equipment
• Food Processing and Packaging
• Chemical and Pharmaceutical
• Assembly Lines
• Logistics and Warehousing

Maintenance and Care

To ensure the longevity and smooth operation of the sprocket, regular maintenance and care are essential:

1. Daily Inspection: Check for any signs of damage, misalignment, or wear.
2. Cleaning: Remove any dirt, debris, or lubricant buildup from the sprocket.
3. Lubrication: Apply a suitable lubricant to reduce friction and wear between the chain and sprocket.
4. Adjustment and Calibration: Ensure proper tension and alignment of the chain to prevent premature wear.

Common Problems and Solutions

Some common issues that may arise with sprockets include:

• Skipping Teeth
• Breakage
• Excessive Wear
• Noise
• Chain Slippage

For each problem, there are specific solutions to address them effectively.

Other Types of Sprockets

In addition to NK25B Standard Bore Sprockets, we also provide various other types of sprockets:

• Platewheel Sprocket
• Idler Sprocket
• QD Sprocket
• Taper Lock Sprocket

For seamless performance, we offer compatible chains to complement our sprockets.

Author: Miya
