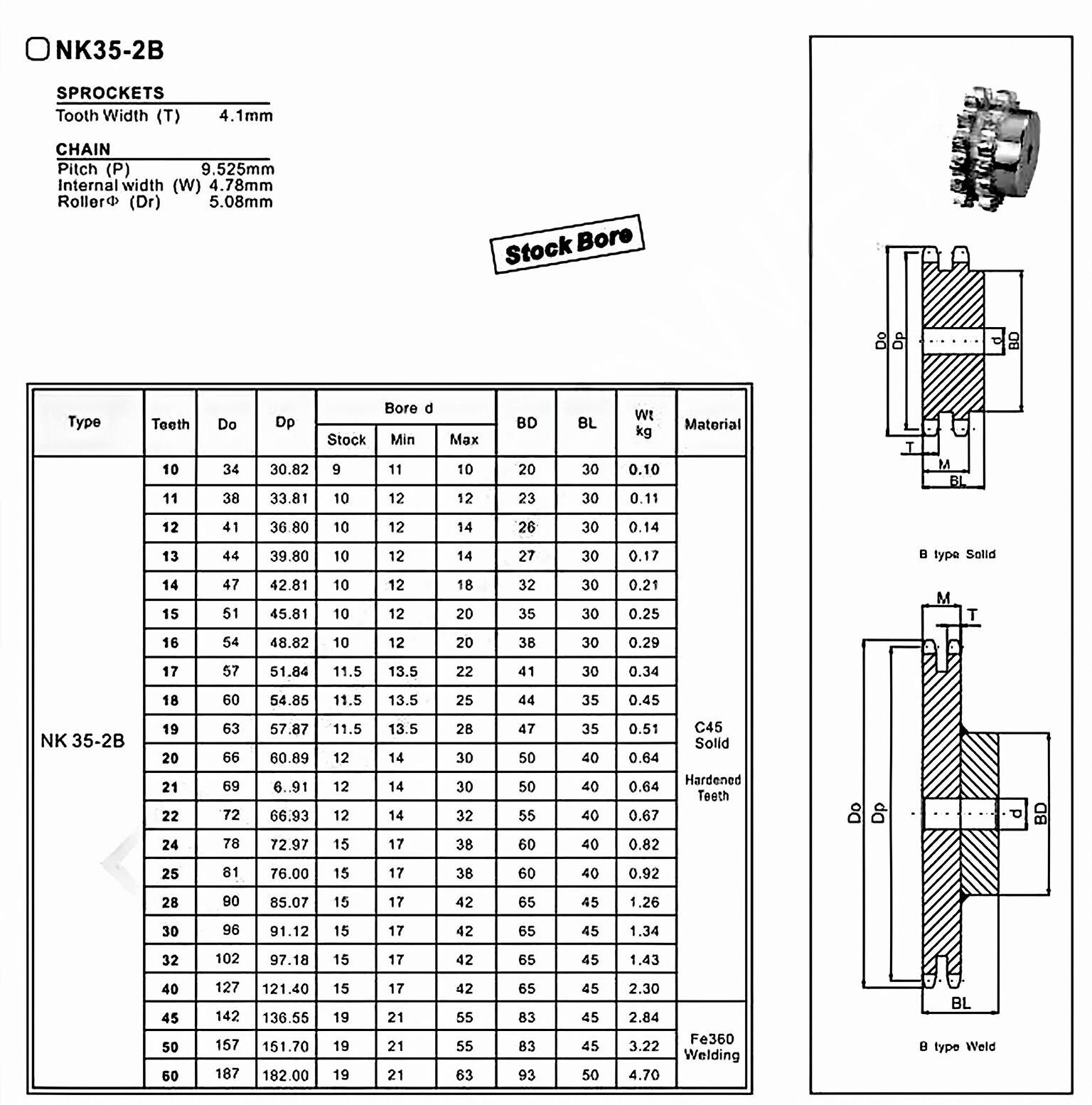

NK35-2B Standard Bore Sprocket

NK35-2B Standard Bore Sprocket

Introduction to Standard Bore Sprocket

A standard bore sprocket is a type of chain wheel that is commonly used in various industries. It is an essential component in power transmission systems where chains are used to transfer motion or power between two rotating shafts.

Basic Structure of a Sprocket

A sprocket typically consists of teeth, a bore, and sometimes keyways. When customizing a sprocket, several factors need to be considered:

• Material: The choice of material depends on the specific application and requirements. It can be high carbon steel, alloy steel, or stainless steel.
• Tooth Profile: The tooth profile affects the engagement and efficiency of the chain drive system. Common tooth profiles include standard, double pitch, and specialty profiles.
• Number of Teeth: The number of teeth determines the speed ratio and torque transmission capacity of the sprocket.
• Dimensions: The dimensions of the sprocket, such as outer diameter and hub diameter, are crucial for proper installation and alignment.
• Bore Size: The bore size must match the shaft diameter for secure and accurate mounting.
• Keyway: If required, a keyway can be incorporated into the sprocket to prevent rotational slippage.
• Surface Treatment: To enhance durability and corrosion resistance, various surface treatments like heat treatment and rust prevention are applied.

Materials and Processes

Our sprockets are made from high carbon steel, alloy steel, or stainless steel. The manufacturing process involves material selection, cutting, stamping or forging, machining, heat treatment, surface hardening, rust prevention, and quality inspection.

Applications

Our sprockets find applications in the following industries:

• Heavy Machinery and Equipment
• Food Processing and Packaging
• Chemical and Pharmaceutical
• Assembly Lines
• Logistics and Warehousing

Maintenance and Care

Proper maintenance and care of sprockets are essential for their longevity and optimal performance. Here are some key points:

• Daily Inspection: Regularly check for signs of wear, damage, or misalignment.
• Cleaning: Keep the sprocket clean from dirt, debris, and lubrication residues.
• Lubrication: Apply appropriate lubrication to reduce friction and wear.
• Adjustment and Calibration: Ensure proper tension and alignment of the chain.

Common Problems and Solutions:

• Skipping Teeth: This can be caused by improper tension or worn-out chain. Adjust the tension or replace the chain.
• Breakage: Excessive load or fatigue can lead to sprocket breakage. Replace the sprocket with a new one.
• Wear: Over time, sprockets can wear down due to continuous use. Replace the worn sprocket timely.
• Noise: Excessive noise may indicate misalignment or lack of lubrication. Correct the alignment or apply lubrication as needed.
• Chain Disengagement: Ensure that the chain is properly seated on the sprocket. Re-engage the chain if it becomes dislodged.

Other Types of Sprockets

In addition to the NK35-2B Standard Bore Sprocket, we also offer a range of other sprocket types:

• Platewheel Sprocket
• Idler Sprocket
• QD Sprocket
• Taper Lock Sprocket

Author: Miya
