Non-Return Valve-RHV-M-ED Hydraulic Fittings

Non-Return Valve-RHV-M-ED Hydraulic Fittings

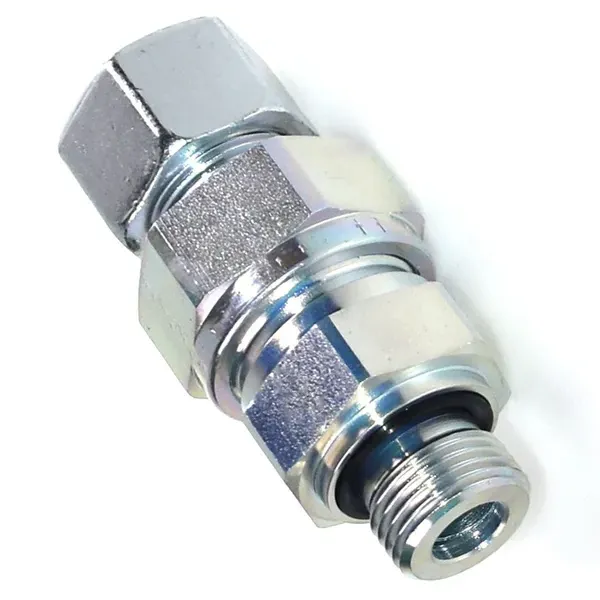

The Non-Return Valve-RHV-M-ED Hydraulic Fittings is a type of hydraulic fitting commonly used in fluid power systems. It is designed to allow fluid flow in one direction while preventing backflow or reverse flow in the opposite direction. These hydraulic fittings are particularly useful in applications where it is essential to maintain the integrity of the hydraulic system and prevent damage or malfunction caused by reverse flow.The "Non-Return" aspect of the valve's name refers to its function of inhibiting backflow. It ensures that fluid can only flow in the desired direction, typically from the inlet side to the outlet side. When fluid pressure is exerted in the correct direction, the valve opens, allowing the fluid to pass through. However, when the pressure tries to reverse, the valve closes, effectively blocking the flow and preventing any backflow.Non-Return Valve-RHV-M-ED Hydraulic Fittings are crucial components in hydraulic systems, as they provide protection against the damage that can occur due to reverse flow. They are commonly used in various industries, including manufacturing, construction, agriculture, and automotive applications. These hydraulic fittings help maintain system efficiency, prevent fluid contamination, and safeguard sensitive hydraulic components from potential damage caused by reverse flow.

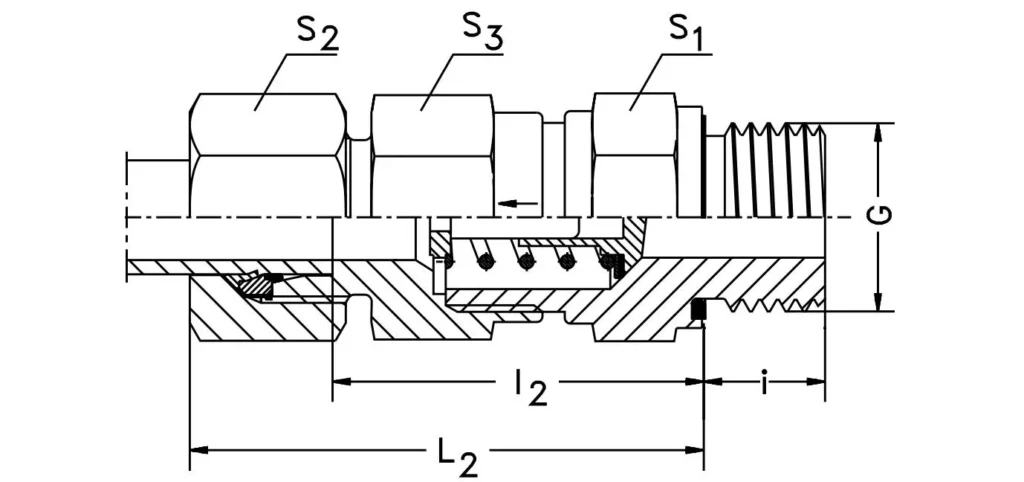

Non-Return Valve-RHV-M-ED Hydraulic Fitting Size Chart:

RHV-MPart no.	Series Working Pressure(bar/psi)	Tube o.d.	S1	S2	S3	L2	I2	I	BSPThread G
RHV06LMED	L Light250 bar3625 psi	6	17	14	17	42.5	28	8	M 10x1
RHV08LMED		8	19	17	19	44.5	29	12	M 12X1.5
RHV10LMED		10	22	19	24	53	38.5	12	M 14X1.5
RHV12LMED		12	27	22	30	57	42.5	12	M 16X1.5
RHV15LMED		15	27	27	32	60.5	45.5	12	M 18X1.5
RHV18LMED	160 bar2320 psi	18	36	32	36	66	50	14	M 22X1.5
RHV22LMED		22	41	36	46	71	55	16	M 26X1.5
RHV28LMED	100 bar1450 psi	28	50	41	55	79.5	63	18	M 33X2
RHV35LMED		35	60	50	60	90.5	69	20	M 42X2
RHV42LMED		42	65	60	70	91	68.5	22	M 48X2
RHV06SMED	S Heavy400 bar5800 psi	6	19	17	19	46	31.5	12	M 12X1.5
RHV08SMED		8	19	19	19	46	31.5	12	M 14X1.5
RHV10SMED		10	22	22	24	54	38	12	M 16X1.5
RHV12SMED		12	24	24	27	57	41	12	M 18X1.5
RHV14SMED	315 bar4560 psi	14	27	27	32	62	44.5	14	M 20X1.5
RHV16SMED		16	32	30	36	66	48	14	M 22X1.5
RHV20SMED	250 bar3625 psi	20	41	36	46	73.5	52	16	M 27X2
RHV25SMED		25	46	46	50	78.5	54.5	18	M 33X2
RHV30SMED		30	60	50	60	90.5	64	20	M 42X2
RHV38SMED		38	65	60	70	100	69.5	22	M 48X2

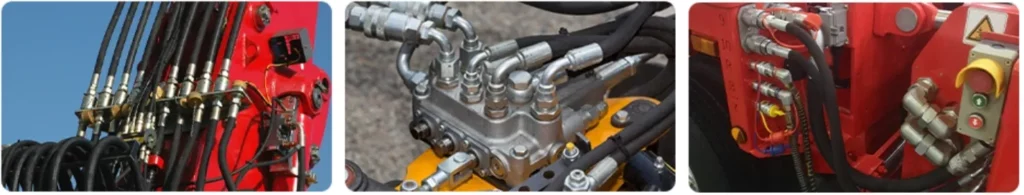

Applications of Non-Return Valve-RHV-M-ED Hydraulic Fittings:

The Non-Return Valve-RHV-M-ED hydraulic fittings finds applications in various industries and hydraulic systems where preventing backflow is critical. Here are some common applications of this type of valve:1. Hydraulic Power Units: Non-Return Valve-RHV-M-ED hydraulic fittings are often used in hydraulic power units to ensure that pressurized fluid flows in the desired direction, such as from the pump to the actuator. They prevent backflow that could potentially damage the pump or other components in the system.2. Control Systems: Hydraulic control systems, such as those used in industrial machinery and equipment, utilize Non-Return Valve-RHV-M-ED hydraulic fittings to maintain proper fluid flow and prevent reverse flow that could interfere with the system's operation or accuracy.3. Mobile Equipment: Non-Return Valve-RHV-M-ED hydraulic fittings are commonly employed in mobile hydraulic equipment such as construction machinery, agricultural machinery, and material handling equipment. They help maintain the hydraulic system's integrity, ensuring efficient operation and preventing damage caused by reverse flow.4. Automotive Industry: Non-Return Valve-RHV-M-ED hydraulic fittings are used in automotive hydraulic systems, particularly in braking systems. They help regulate the flow of brake fluid and prevent backflow, ensuring the reliable operation of the braking system and driver safety.5. Fluid Transfer Systems: Non-Return Valve-RHV-M-ED hydraulic fittings are employed in fluid transfer systems, such as fuel delivery systems and fluid distribution networks. These valves prevent fuel or fluid from flowing back into the storage tanks or source, maintaining the desired flow direction and preventing leaks.6. Process Control: Non-Return Valve-RHV-M-ED hydraulic fittings are utilized in various process control applications, such as in chemical processing plants and oil refineries. They help control the flow of fluids, ensuring that they move in the intended direction and preventing the mixing of different process streams.7. Pneumatic Systems: While primarily used in hydraulic systems, Non-Return Valve-RHV-M-ED hydraulic fittings can also be employed in pneumatic systems. They enable the one-way flow of compressed air or gas, preventing backflow that could disrupt the system's operation.
