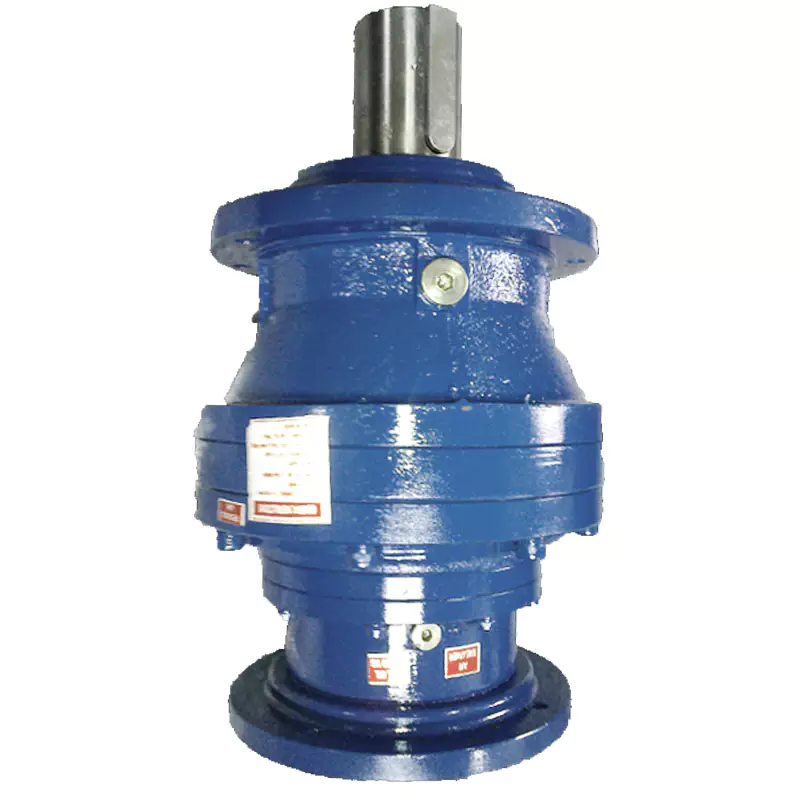

Planetary Gearboxes For Paver (Track Drive & Inline Gearbox)

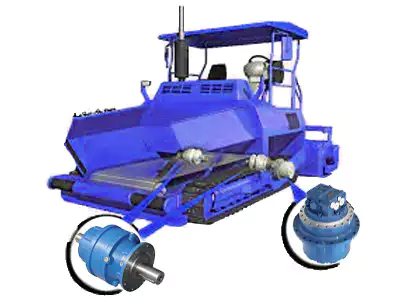

Which Planetary Gearboxes are Used in the Paver

On the left side of the paver, the Track Drive planetary gearbox is used for track drive. This planetary gearbox is usually located near the track system of the paver, and it helps the paver move on the work site by transmitting power from the engine to the tracks.The Inline Planetary Gearbox is typically used for the main drive system of pavers. The inline planetary gearbox can provide high torque and precise transmission ratio control, which is crucial for the paver to maintain stable speed and uniform paving thickness during the paving process.Overall, these two planetary gearboxes play a crucial role in different parts of the paver, ensuring efficient operation and performance of the equipment.

Planetary Gearboxes Play a Crucial Role in Pavers

Planetary gearboxes play a crucial role in pavers, especially in track drive and inline gearboxes. Their applications and functions mainly include the following points:

Track Drive:

Power transmission and torque amplification: The planetary gearbox is located at the core of the track drive system, used to receive power from the engine or hydraulic motor, and effectively convert it into high torque output to drive the track to rotate. This allows the paver to maintain strong traction and stable travel speed even when fully loaded or facing uneven ground.Speed adjustment: Through different gear ratios, the planetary gearbox can adjust the rotation speed of the track to meet different construction speed requirements, and also provide more precise speed control when fine operations are needed.Space efficiency: Planetary gearboxes are favored due to their compact design, which can provide efficient transmission in limited space, which is particularly important for tightly arranged paver chassis.

Inline Gearbox:

Power distribution: Although the application of inline gearboxes in pavers may not be directly related to the drive system like planetary gearboxes, they may be used for power distribution of auxiliary equipment, such as conveyor belts or distribution mechanisms for paving materials. An inline gearbox can provide linear transmission, helping to achieve smooth and continuous power transmission within these components.Deceleration and torque increase: Similar to planetary gearboxes, inline gearboxes can also be used for deceleration and increasing torque output, especially when it is necessary to directly drive certain mechanical components with higher loads.Easy maintenance: The structure of the inline gearbox is relatively simple, easy to maintain and repair, which is an important advantage for heavy machinery equipment that requires frequent maintenance.

Design Characteristics & Advantages of Paver Planetary Gearbox

• Compact structure: The planetary gearbox adopts a ring-shaped planetary gear design, which is very compact and can achieve a large transmission ratio in limited space, which is crucial for the chassis design of road pavers with limited space.
• High torque density: Due to multiple planetary gears rotating around the sun gear and transmitting torque simultaneously, planetary gearboxes can provide higher torque output in small volumes, which is particularly critical for paver operations that require strong traction and propulsion.
• Load balancing: The load of the planetary gearbox is distributed across multiple gears, which helps reduce wear on individual gears, extend service life, and ensure stable performance under heavy loads and continuous operating conditions.
• Efficient transmission: Planetary gearboxes typically have higher transmission efficiency, which means that more engine power can be directly converted into driving force, reducing energy loss and improving fuel economy.
• Adjustable speed ratio: By replacing different planetary gear sets, the transmission ratio of the gearbox can be easily adjusted to adapt to different driving speeds and workload requirements, increasing the flexibility of the equipment.

Our Gearbox can Adapt to the Vast Majority of Pavers

Our high-performance Gearbox design is widely compatible and aims to meet the stringent requirements of the vast majority of Pavers on the market, whether in municipal construction, highway laying, or airport runway construction. We are well aware that different brands and models of Pavers have differences in design, power output, torque requirements, and interface specifications. Therefore, our Gearbox series not only covers standard models, ensuring seamless integration with mainstream Pavers in the market such as Caterpillar AP series, V ö gel Super series, Bombag BW series, Dynapac F series, etc., but also provides customized services to meet more personalized and professional application needs.

1. Interface size customization: No matter what specifications of input and output interfaces your Paver requires, we can adjust the flange size, shaft diameter, and keyway specifications of the gearbox according to specific needs, ensuring accurate matching with existing transmission systems.
2. Power Matching: Our engineering team can accurately calculate the power of the Paver's engine or electric motor, customize the gear ratio, and ensure that the Gearbox can operate at optimal efficiency, without wasting power or causing overload, enabling the entire transmission system to perform at its best.
3. Torque demand adjustment: Considering the possible load changes that the Paver may face under different working conditions, we provide a wide range of torque options from light load to heavy load, and can adjust the internal gear structure according to specific working conditions, such as climbing, compacting thick layers of asphalt, etc., to meet specific torque output requirements.
4. Environmental adaptability: For harsh working conditions such as extreme temperature, humidity, and dust, we use advanced sealing technology and weather resistant materials to ensure stable operation of the Gearbox in various environments and extend its service life.
