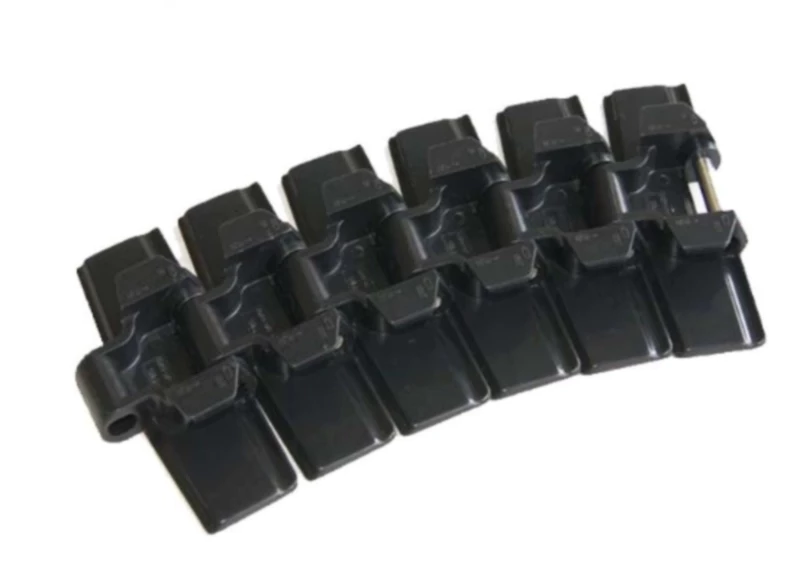

Plastic Flat Top Chain Anti-Static Sideflexing Replacement Of System Plast 880TAB

Understanding the Plastic Flat Top Chain

For those involved in industries where goods need to be conveyed accurately and efficiently, the Plastic Flat Top Chain is a vital component. This piece of equipment, a replacement of the System Plast 880TAB, is a game-changer in terms of durability, reliability, and customization.

Material Composition

The Plastic Flat Top Chain is typically constructed from high-quality engineering plastics like Polypropylene (PP), Polyethylene (PE), and Polyamide (PA). These materials are carefully chosen for their superior corrosion resistance, wear resistance, and chemical stability. As such, they can withstand harsh environments and heavy-duty operations with ease.

Chain Structure

The structure of the Plastic Flat Top Chain consists of a series of flat chain plates, linked together by pins, rivets, or bolts. This design creates a flat conveying surface, ensuring that objects are transported smoothly and without interruption.Mainly used for different kinds of anti-static conveyor line.The longest distance: 9MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: anti-static POMPacking: 10 feet = 3.048 M/box 26pcs/M

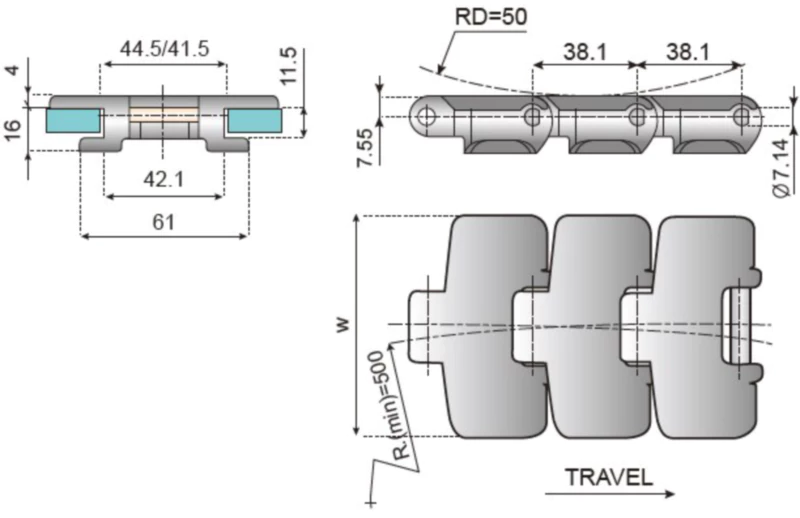

Chain Board Shape and Size

Depending on your specific application requirements, the shape and size of the chain board can be customized. Whether you need a rectangular or square shape, the size and design can be tailored to fit your conveyor system perfectly.

Product Features

The Plastic Flat Top Chain boasts an array of impressive features and technical parameters. They include a high maximum load capacity, a wide operating temperature range, excellent chemical resistance, superior wear resistance, and impressive tensile strength. Each of these attributes contributes to the overall performance and versatility of the product.

Applications of Plastic Flat Top Chain

Plastic Flat Top Chains are popular across a range of industries, particularly in automobile manufacturing, electronic product manufacturing, mechanical processing, food and beverage transportation, and material transportation. Their durability and adaptability make them an excellent choice for these demanding applications.

Customer Case Studies

Our Plastic Flat Top Chains have been successfully used in a variety of demanding applications. These case studies illustrate the product's real-world effectiveness and value.

Customization Options

We offer a plethora of customization options for our Plastic Flat Top Chains. They can be tailored to meet specific requirements, including different sizes, shapes, and accessory options. This flexibility ensures they can adapt to virtually any conveyor system.

Installation and Maintenance

Our Plastic Flat Top Chains are easy to install and require minimal maintenance. Their corrosion resistance and self-lubricating properties mean they require less upkeep than their metal counterparts. However, regular cleaning and lubrication will ensure they continue to operate at their best.

We also provide sprockets that match the chain.

Sprocket is a key component of chain power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing it to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.

Future Development of Plastic Flat Top Chain

With advances in polymer technology and the integration of intelligent technologies, the plastic flat top chain's capabilities are set to expand even further in the future.

Other Products from Raydafon

At Raydafon, we offer a wide range of chain products, including Plastic Chains, Stainless Steel Chains, agricultural chains, leaf chains, and Pintle Chains. We also provide matching sprockets, a crucial component for any chain system.

About Raydafon

Raydafon is a globally recognized supplier of high-quality chain products. Our commitment to professionalism, international certification, and customized services set us apart in the industry. We use advanced production and inspection equipment to ensure the quality of our products and offer excellent after-sales service to our customers.
