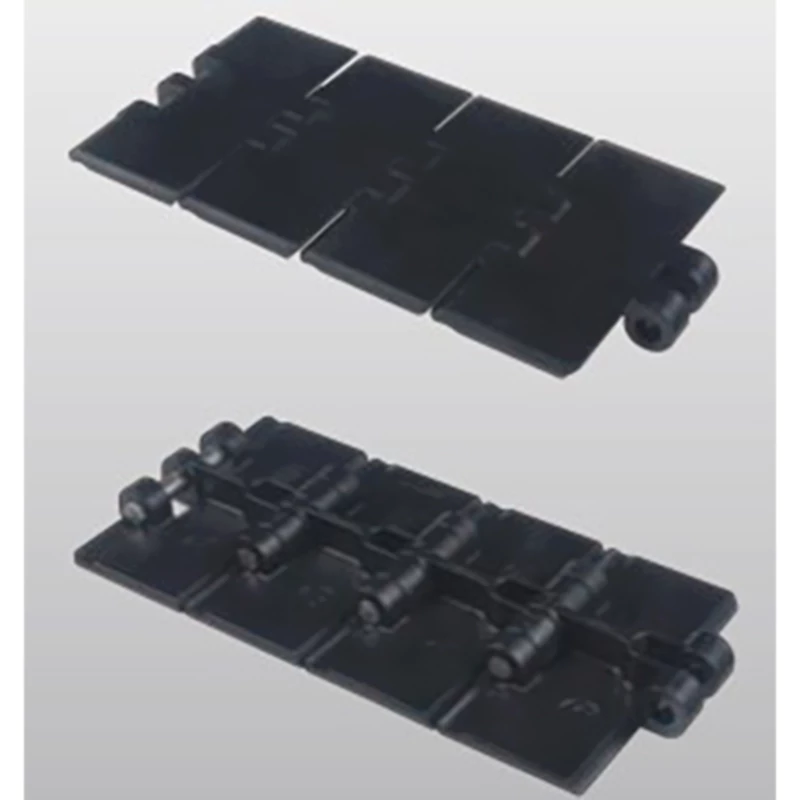

Plastic Flat Top Chain Anti-Static Straight Replacement Of System Plast 820E

Understanding the Plastic Flat Top Chain

The plastic flat top chain is an essential component in various industries. This article presents an in-depth look at it, from its composition and structure to its features and advantages.

Composition and Structure of the Plastic Flat Top Chain

The plastic flat top chain is typically made of high-quality engineering plastics such as polypropylene (PP), polyethylene (PE), and polyamide (PA). These materials are renowned for their excellent corrosion resistance, wear resistance, and chemical stability. The chain itself consists of a series of flat chain plates, linked together by pins, rivets, or bolts. This provides a flat conveying surface that stabilizes the transportation of objects and ensures smooth operations.

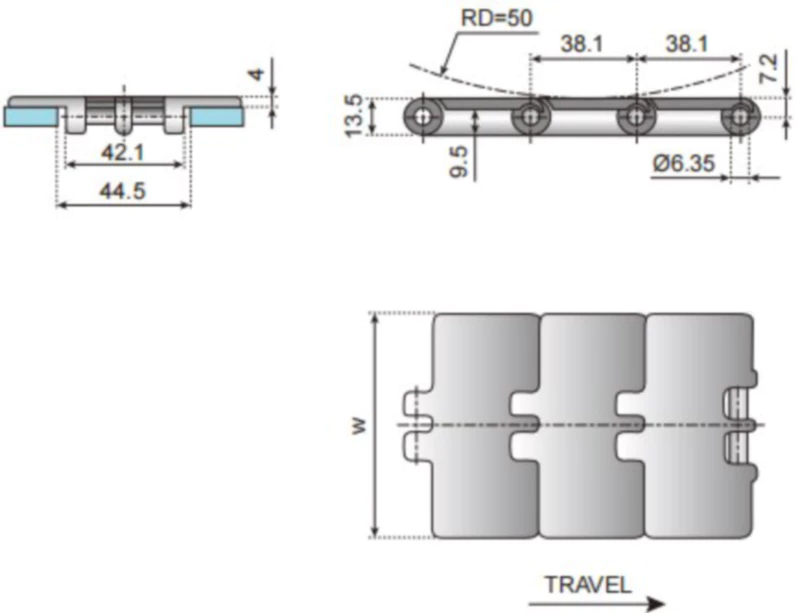

Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF820 - K250E	63.5	2.50	0.79	0.53
LF820 - K325E	82.6	3.25	0.86	0.58
LF820 - K350E	88.9	3.50	0.89	0.60
LF820 - K400E	101.6	4.00	0.92	0.62
LF820 - K450E	114.3	4.50	1.01	0.68
LF820 - K600E	152.4	6.00	1.22	0.82
LF820 - K750E	190.5	7.50	1.45	0.98

The shape and size of the chain plate can be tailored to fit specific application requirements. Most commonly, the chain plate is rectangular or square, and its size is designed according to the requirements of the conveying system.

Product Features

The plastic flat top chain boasts numerous features and technical parameters that make it a popular choice in various industries. These include maximum load capacity, operating temperature range, chemical resistance, wear resistance, and tensile strength. By providing these accurate and useful technical data, we aim to help potential customers understand the product's capabilities and applicability.

Material Characteristics and Industry Applications

Due to their specific material characteristics, plastic flat top chains are widely utilized in several industries such as automobile manufacturing, electronic product manufacturing, mechanical processing, food and beverage transportation, and material transportation. They are superior and adaptable, making them a versatile choice for different operational needs.

Customer Case Studies

To further demonstrate the success of plastic flat top chains in practical applications, we have compiled several customer case studies. These real-world examples will help potential customers understand the actual application effects and commercial value of the product.

Customization Options

The plastic flat top chain offers a high degree of customization. It can be tailored to meet specific requirements, including different sizes, shapes, and accessory options. This flexibility makes it adaptable to various conveyor systems.

Installation and Maintenance

Proper installation and maintenance are crucial to the performance and lifespan of the plastic flat top chain. Unlike metal chains, they require less maintenance due to their corrosion resistance and self-lubricating properties. We provide guidance on installation methods, chain adjustments, and alignment requirements for gears or rollers. Additionally, we offer tips on chain cleaning and lubrication to maintain its normal operation.

Future Development

In response to emerging trends like advanced polymers and integrated intelligent technologies, we continually strive to enhance the performance and capabilities of plastic flat top chains. We believe in the potential of these chains and are committed to their future development.

We also provide sprockets that match the chain.

Sprocket is a key component of chain power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing it to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.

Additional Chain Products

Besides the plastic flat top chain, we also offer a variety of other chain products such as plastic chain, Stainless Steel Chain, agricultural chains, leaf chains, and Pintle Chain. We believe in providing a comprehensive solution to our customers' needs.
