Plastic Flat Top Chain Sideflexing Replacement Of System Plast 882TAB

Unveiling the Plastic Flat Top Chain: A Reliable Solution for Material Handling

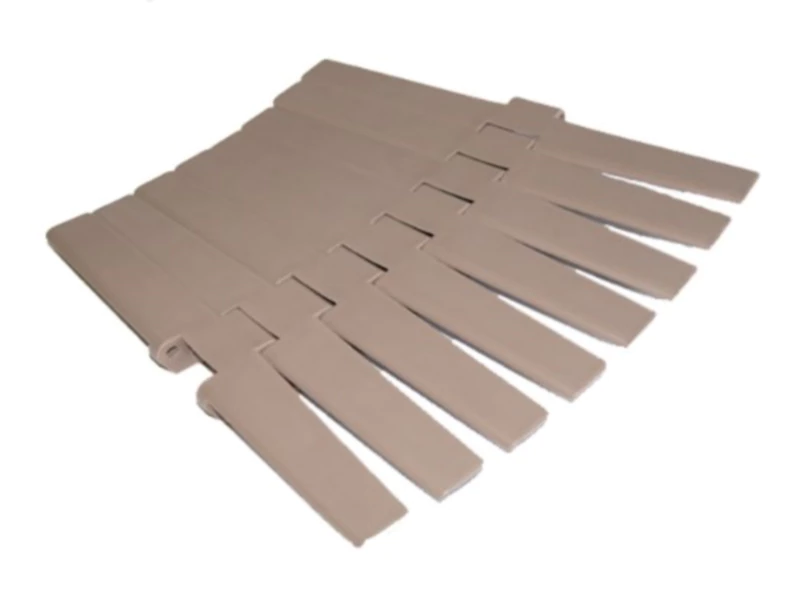

Understanding the Plastic Flat Top Chain

A plastic flat top chain is a unique tool in the material handling industry. As the name suggests, this chain is made from high-quality engineering plastics like polypropylene (PP), polyethylene (PE), and polyamide (PA). The composition of these materials ensures excellent corrosion resistance, wear resistance, and chemical stability, making the chain extremely durable and efficient.The plastic flat top chain comprises a series of flat chain plates connected by pins, rivets, or bolts. The structure forms a flat conveying surface between the chain plates, stabilizing the conveyance of objects and ensuring smooth transportation. The chain plate's shape and size can be tailored to specific application requirements, usually being rectangular or square. The size can be designed and selected according to the requirements of the conveying system.

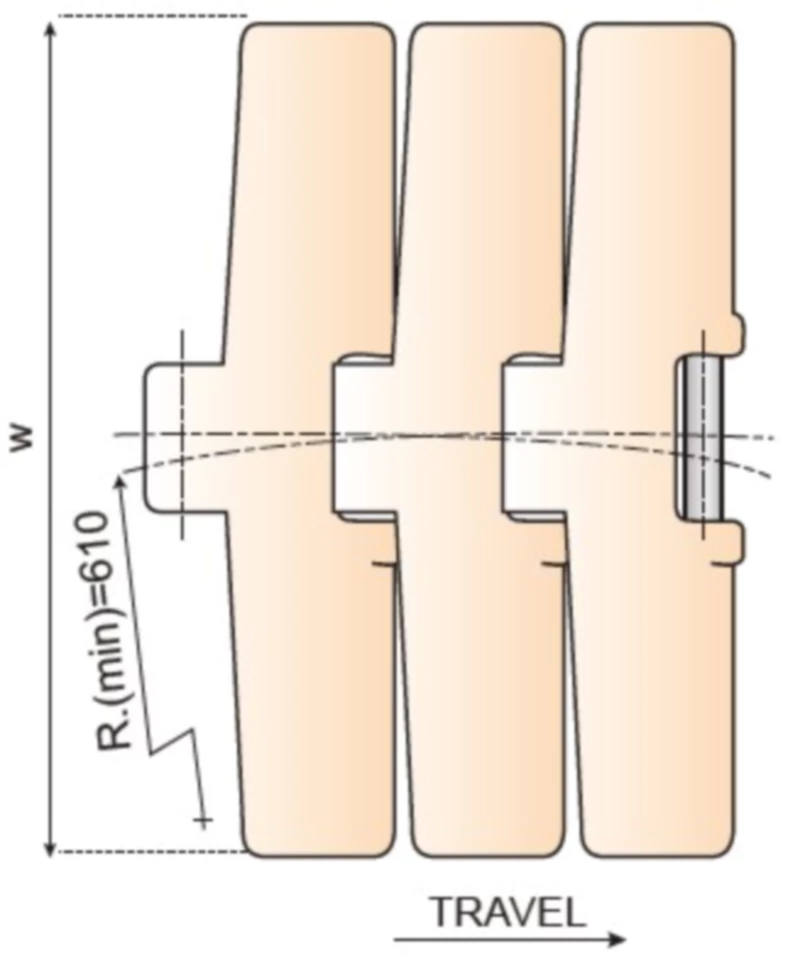

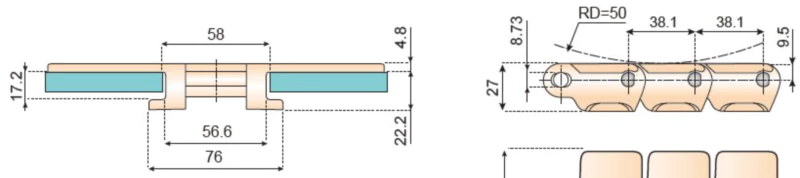

Key Features and Technical Parameters

The plastic flat top chain presents numerous key features and technical parameters that set it apart from other conveying solutions. These include its maximum load capacity, operating temperature range, chemical resistance, wear resistance, tensile strength, and more. These technical data provide potential customers with a clear understanding of the product's capabilities and applicability in various industries.Mainly used for all kinds of food industry, such as beverage, bottle, can and other conveyors.The longest distance: 12 MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

Industries and Application Areas

Due to their specific material characteristics, plastic flat top chains are popular in various sectors. These include automobile manufacturing, electronic product manufacturing, mechanical processing, food and beverage transportation, and material transportation. The chains excel in these fields due to their superior performance and adaptability.

Customer Case Studies

There are numerous case studies that highlight the success of the plastic flat top chain in practical applications. These cases help potential customers understand the actual application effects and commercial value of the product.

Customization Options

The plastic flat top chain offers a variety of customization options. Customers can tailor the chain to meet specific requirements, including different sizes, shapes, and accessory options. The chain's flexibility makes it adaptable to various conveyor systems.

Installation and Maintenance

Proper installation and maintenance of the plastic flat top chain are essential for optimal performance. This includes chain adjustments and alignment requirements for gears or rollers. Despite requiring less maintenance than metal chains, the plastic flat top chain still needs regular cleaning and lubrication to ensure its normal operation and longevity.

Future Developments

The future of the plastic flat top chain is promising, with potential advancements like the use of advanced polymers or integrated intelligent technologies. These innovations could further enhance the chain's performance and capabilities.

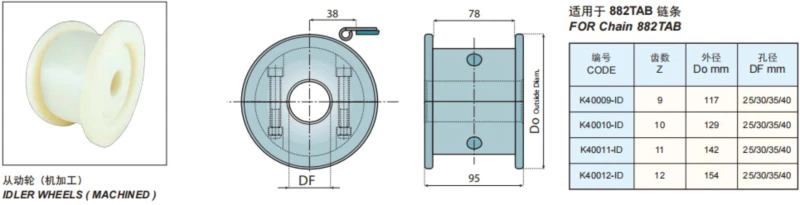

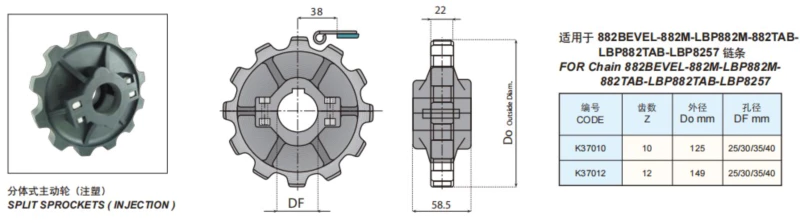

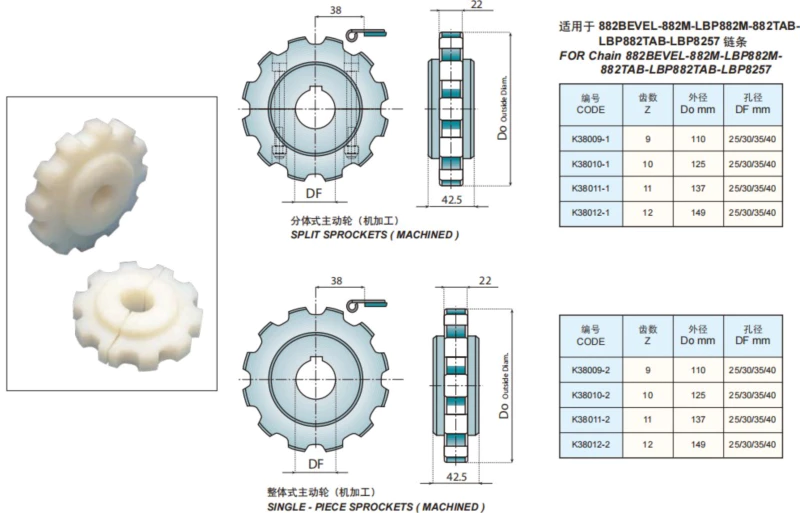

We also provide sprockets that match the chain.

Sprocket is a key component of chain power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing it to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.

Additional Product Offerings

Beyond the plastic flat top chain, our product line includes other chain products like Plastic Chain, Stainless Steel Chain, agricultural chains, leaf chains, Pintle Chain, and more. Raydafon also offers matching sprockets, a crucial component in any conveyor system.
