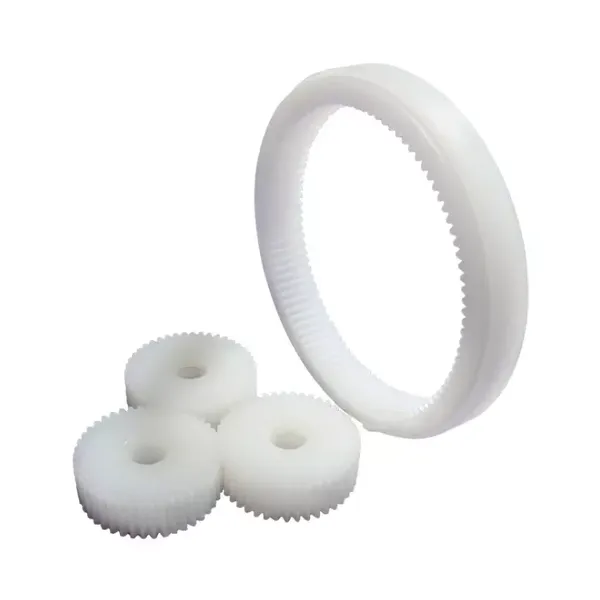

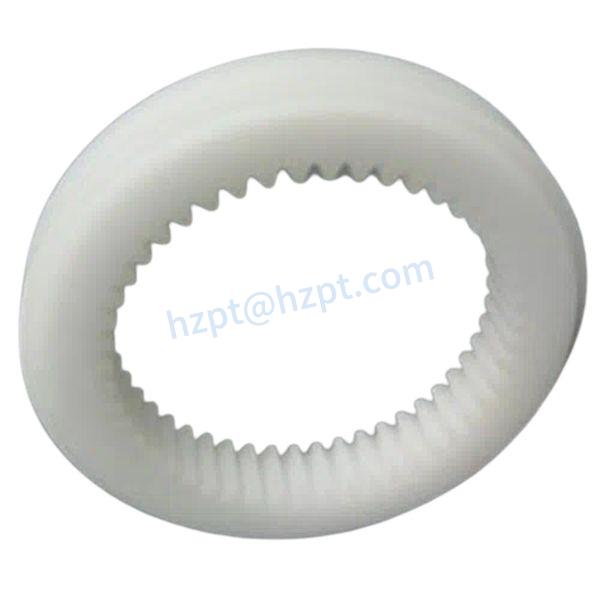

Plastic Internal Gear

Plastic Internal Ring Gear

The structure of the plastic internal gear differs from the metal internal gear in several ways. The main difference is the internal gear seat, which is made of plastic material. This allows for a lower overall mass for the Plastic Internal Gear. Plastic pinions are not made of tooth-shaped transmission parts, so they are very simple and can be easily formed in the injection molding process.The shaft of the plastic internal ring gear includes a stepped portion that engages a gear on its periphery. The stepped portion comprises two straight-edge sections and an inclined section. The rack moves along the channel as the gear turns, whereas the free end is free to move along the track.Compared to metal gears, plastic internal gears are less expensive and do not require secondary finishing. Furthermore, due to the inherent properties of Plastic Gears, they can be made with greater precision. This represents a cost savings of fifty to ninety percent over their metal counterparts.

Plastic Internal Gear Details

•Plastic Internal Gear provides a compact parallel shaft transmission drive with considerable speed reduction.•Plastic Internal gears are often used in applications involving planetary gear drives and gear couplings. There are three major types of planetary gear mechanisms: planetary, solar, and star types. Depending on the type and the pattern of shafts as input and output, many variations of speed transmission ratios and rotational directions are produced.•Provided highly precision plastic internal gear.•Offers ODM & OEM services.

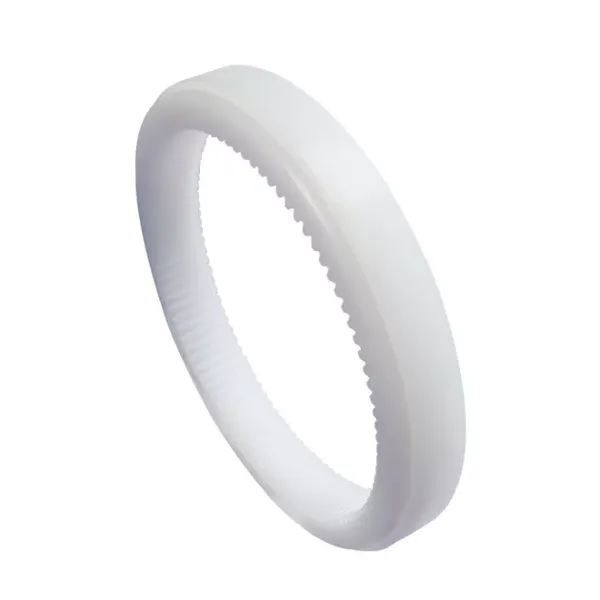

Where to Buy Internal Plastic Gear Rings?

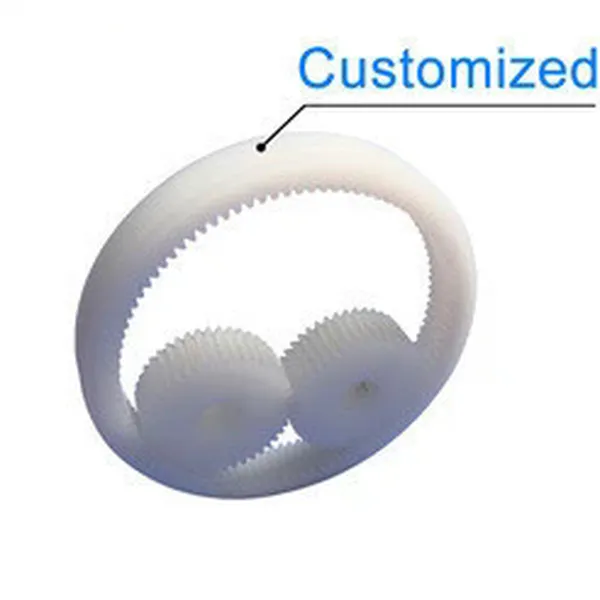

With over ten years of experience, Raydafon Machinery is one of China's leading manufacturers and suppliers of internal plastic gears. Our factory specializes in producing high-precision plastic internal ring gear products. As a plastic gear supplier, we can provide customized services for plastic internal gear, and we also can provide other series plastic gear. Trust us and contact us now!

FAQ

1. Are you a manufacturer or a trading company?We are a 3000-square-meter factory located in Ningbo in Zhejiang Province, China.2. How can I get a quote?Detailed drawings (PDF/STEP/IGS/DWG...) with material, quantity, and process requirement information.3. Can I get a quote without drawings?We appreciate receiving your samples, pictures, or drafts with detailed dimensions for an accurate quotation.4. Will my drawings be divulged if you benefit?No, we pay much attention to protecting our customers' privacy of drawings, and signing NDA are also accepted if needed.5. Can you provide samples before mass production?Sure, a sample fee is needed and will be returned when mass production is possible.6. How about the lead time?Generally, it takes 1-2 weeks for samples and 3-4 weeks for mass production.7. How do you control the quality?(1)Material inspection--Check the material surface and rough dimensions.(2)Production first inspection--To ensure the critical dimension in mass production.(3)Sampling inspection--Check the quality before sending it to the warehouse.(4)Pre-shipment inspection--100% inspected by QC assistants before shipment.8. What will you do if we receive poor-quality parts?Please send us the pictures; our engineers will find the solutions and remake them for you asap.
