Plastic Sideflexing Flat Top Chain

Plastic Sideflexing Flat Top Chain

Plastic flat top chains are made of engineering plastic and are connected using stainless steel pins. The plastic flat top chains constitute a lightweight yet a strong and silent alternative to steel chains. These chains are primarily used in the food and packaging industry for conveying many kinds of containers.

Flat top chain plate types

Standard flat top chains are not curved, which is suitable for straight conveying machines. But in some workshops, the space is limited, so the conveying line will be made into an L shape, U shape, or rectangular shape. So it needs to adjust the machine for smooth conveying. Here we can supply the standard flat top chains and the side flex flat top chains.

• Straight running flat-top chains. Linear flat top chains supply high loading capacity and smooth surfaces in the straight conveying machines. It is combined with several regular rectangular chain plates and high pins.
• Side flex flat top chains. Side flex flat top chains are suitable for flex machines, which may be L shape, U shape, or rectangular shape. The side flex flat top chains can ensure fast, smooth and steady conveying. Chain plates of side flex flat top chains have two types: flat edge chain plates and bevel edge chain plates.
  • Flat edge chain plates. It is combined with flat edge chain plates and hinge pins. Flat edge chain plates can complete side flex conveying by increasing the clearance between high pins. This way, the neighbor chain plate can permit a specific turning angle to achieve smooth side flex giving. A flat edge chain plate can ensure smooth and steady side flexing and the normal conveying for straight running.
  • Bevel edge chain plates. The chain plates are made of chain plates with symmetrical bevel edges. The bevel edge can eliminate interference during side flexing and ensure smooth and highly efficient conveying. Additionally, there is no gap when used in the flex position. The angle of the beveled plate and the pin clearance decide the turning radius.

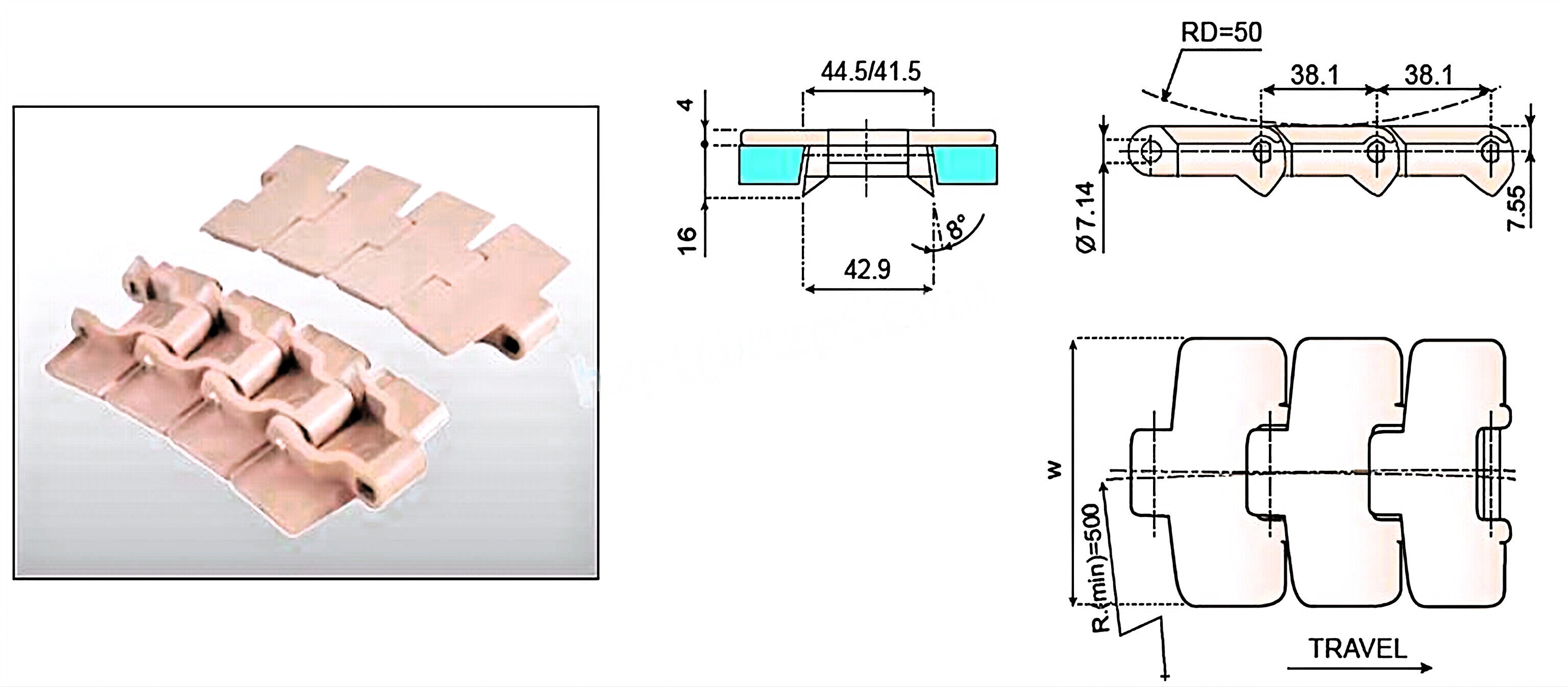

(1) Lf880 Bevel Sideflexing Flat Top Chain

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF880 - K325	82.6	3.25	0.89	0.60
LF880 - K450	114.3	4.50	1.05	0.71

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 9MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

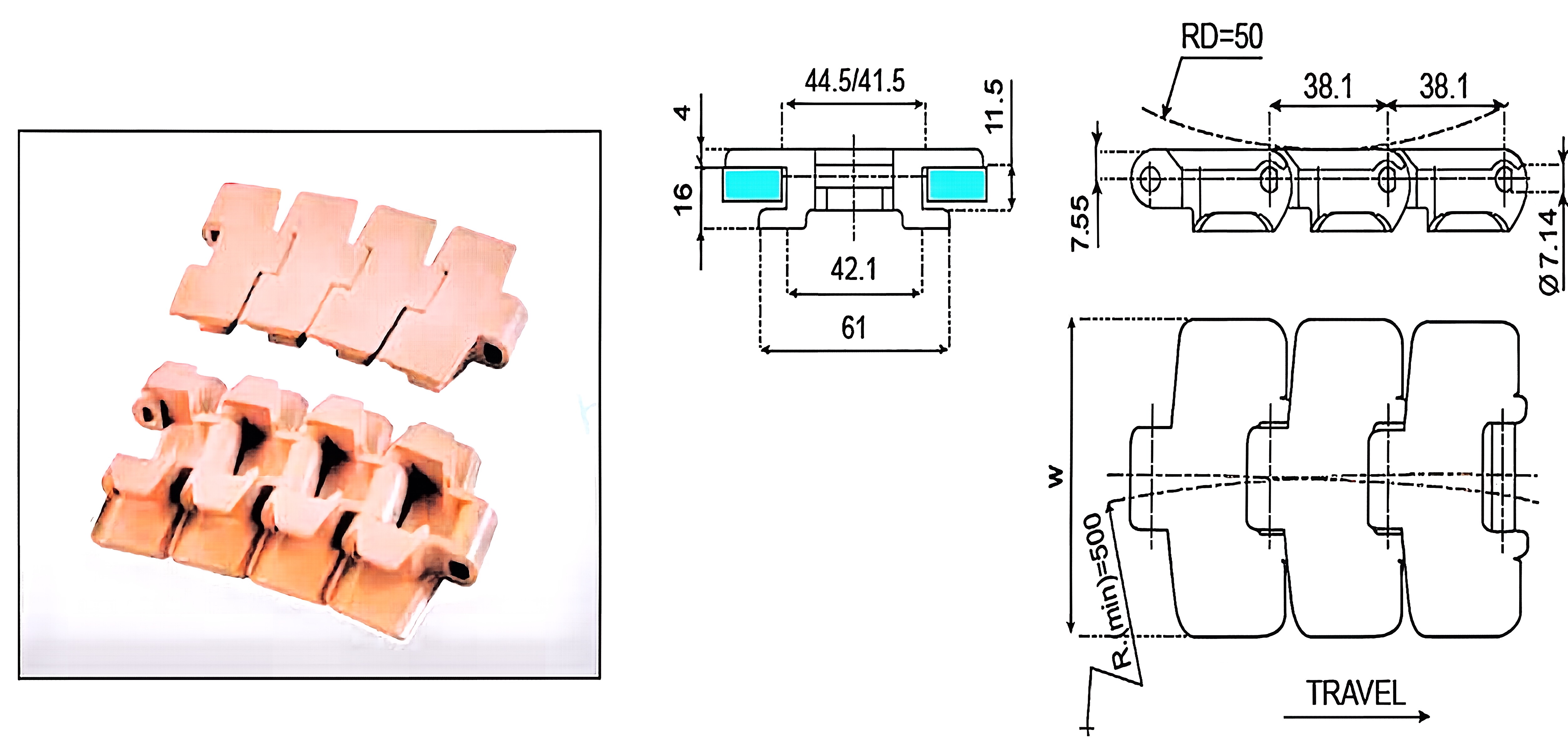

(2) Lf880tab Sideflexing Flat Top Chains

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF880TAB - K325	82.6	3.25	1.08	0.73
LF880TAB - K450	114.3	4.50	1.21	0.81

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 9MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

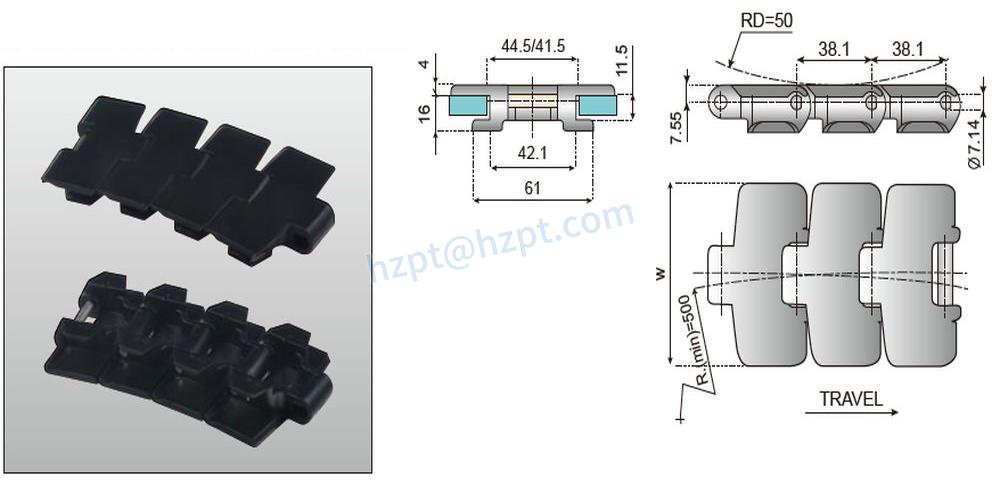

(3) Lf880tab Anti-static Sideflexing Flat Top Chains

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF880TAB - K325E	82.6	3.25	1.08	0.73
LF880TAB - K450E	114.3	4.50	1.21	0.81

Mainly used for different kinds of anti-static conveyor lines.The longest distance: 9MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: anti-static POMPacking: 10 feet = 3.048 M/box 26pcs/M

(4) Lf880m Magnetic Sideflexing Flat Top Chains

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF880M - K325	82.6	3.25	1.03	0.71
LF880M - K330	83.8	3.30	1.05	0.72
LF880M - K450	114.3	4.50	1.15	0.77

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 9MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: ferritic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

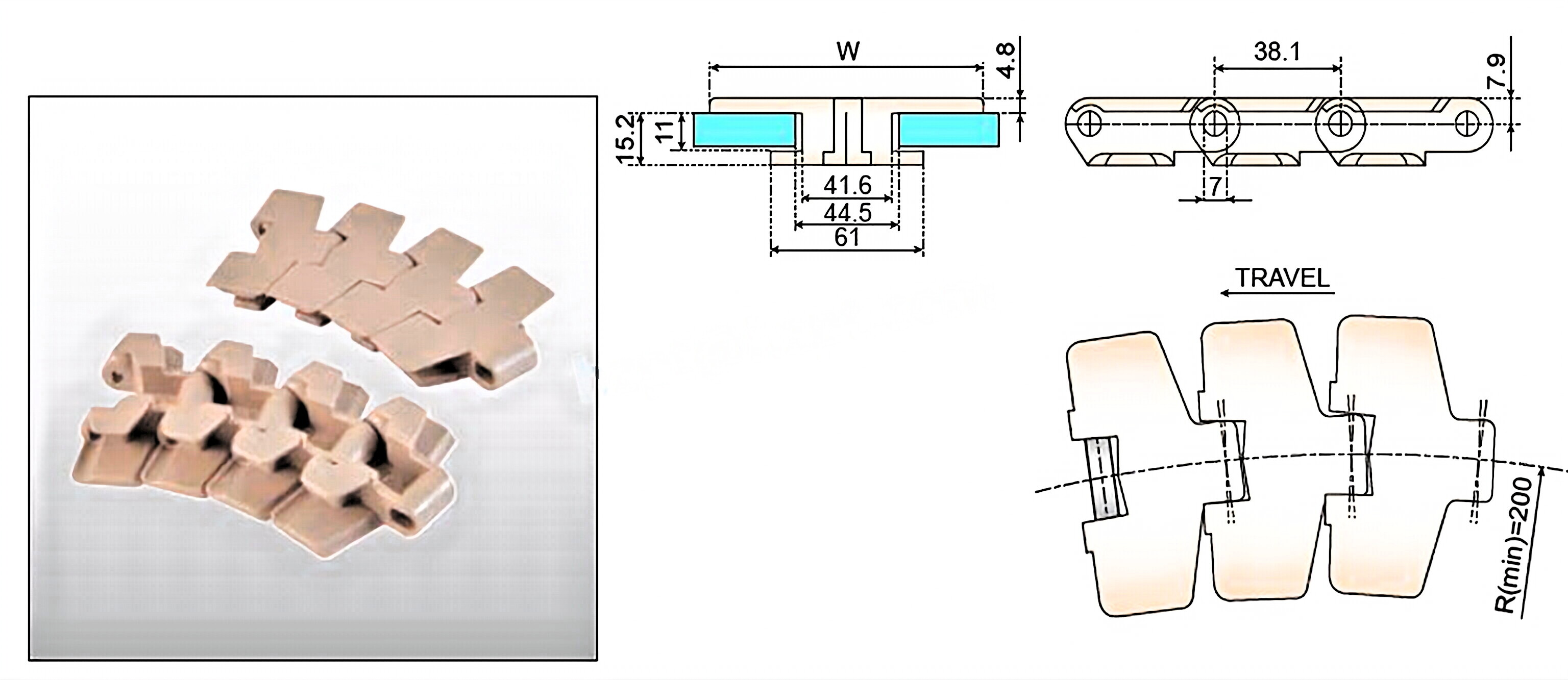

(5) Lf880bs Sideflexing Flat Top Chains

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF880BS - K325	82.6	3.25	1.05	0.71
LF880BS - K450	114.3	4.50	1.15	0.77

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 9MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

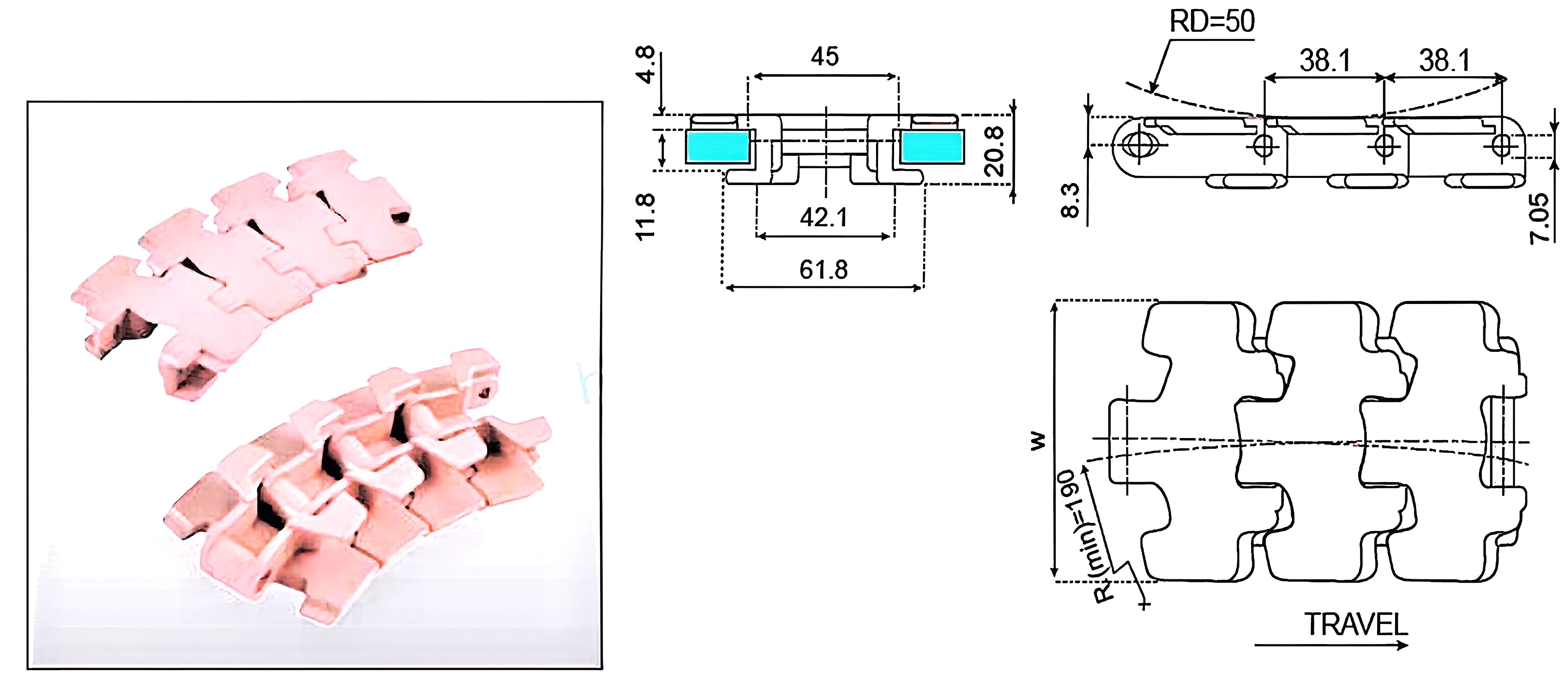

(6) Lf878tab Sideflexing Flat Top Chains

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF878TAB - K325	82.5	3.25	1.08	0.73
LF878TAB - K450	114.3	4.50	1.21	0.81

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 9MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

(7) Lf882 Bevel Sideflexing Flat Top Chains

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF882 - K325	82.6	3.25	1.05	0.70
LF882 - K450	114.3	4.50	1.94	1.30
LF882 - K600	152.4	6.00	2.10	1.40
LF882 - K750	190.5	7.50	2.38	1.60
LF882 - K1000	254.0	10.00	2.83	1.90
LF882 - K1200	304.8	12.00	3.37	2.27

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 12 MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

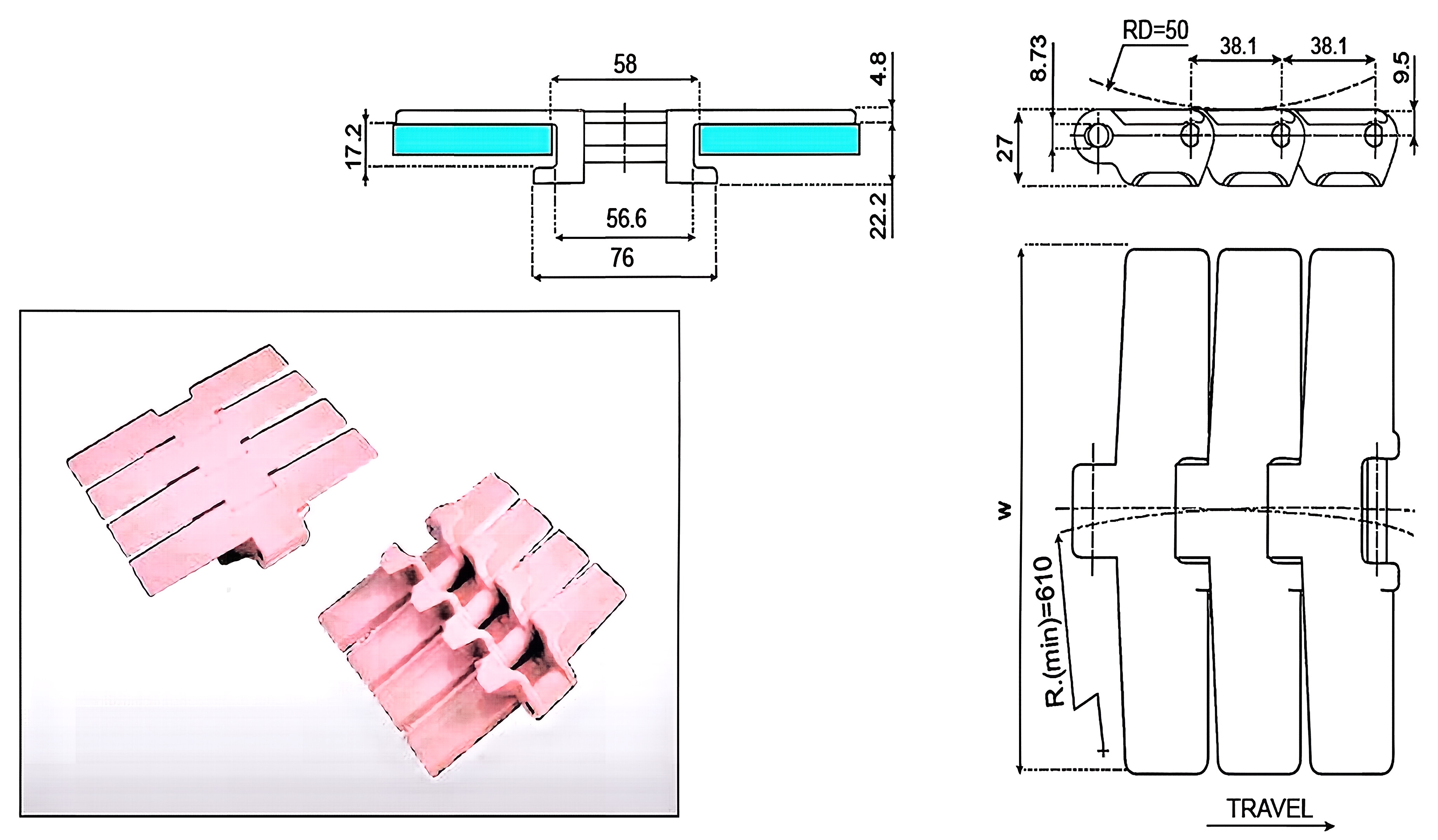

(8) Lf882tab Sideflexing Flat Top Chains

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF882TAB - K325	82.6	3.25	1.76	1.20
LF882TAB - K450	114.3	4.50	2.03	1.37
LF882TAB - K600	152.4	6.00	2.20	1.48
LF882TAB - K750	190.5	7.50	2.46	1.66
LF882TAB - K1000	254	10.00	2.80	1.89
LF882TAB - K1200	304.8	12.00	3.05	2.06
LF882TAB - K1600	406.4	16.00	3.45	2.33

Mainly used for all kinds of the food industry, such as beverage, bottle, can, and other conveyors.The longest distance: 12 MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 2250NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

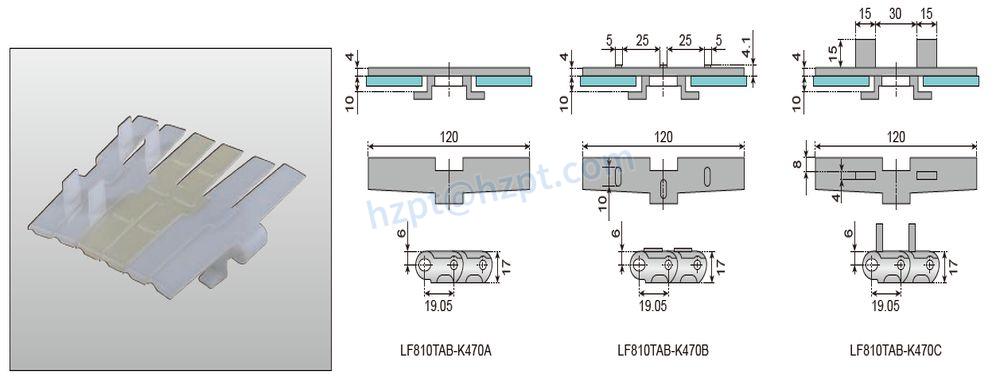

(9) Lf882tab Sideflexing Flat Top Chains

Product Specifications

链号Chain No.	宽度 Width ( W )		重量 Weight
	mm	inch	kg/m	lbs/ft
LF810TAB-K470A	120	4.7	0.78	550
LF810TAB-K470B	120	4.7	0.80	550
LF810TAB-K470C	120	4.7	1.00	550

Mainly used for the conveyor of instant noodles.The longest distance: 12MPacking: 10 feet = 3.048 M/box 52pcs/M

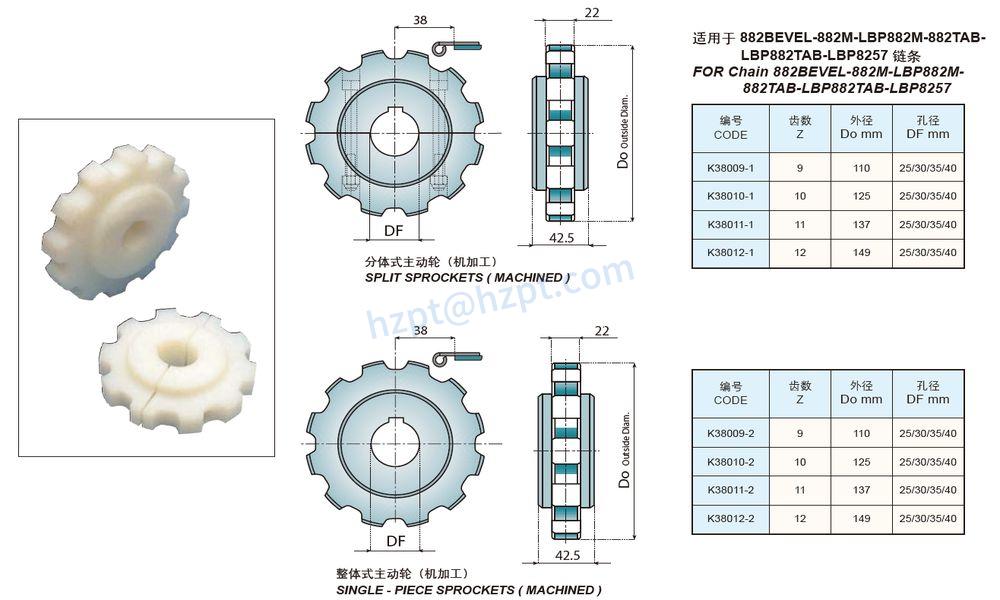

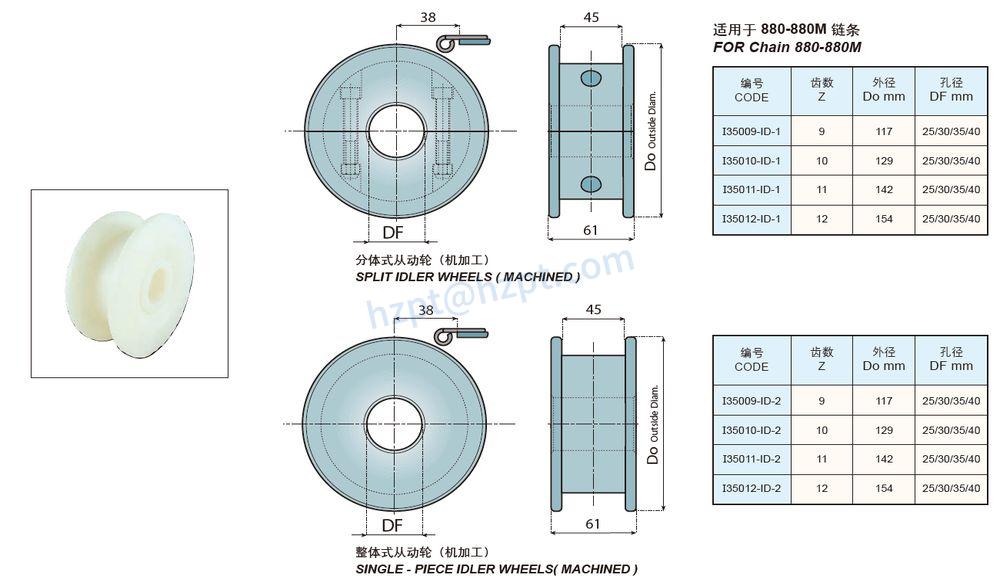

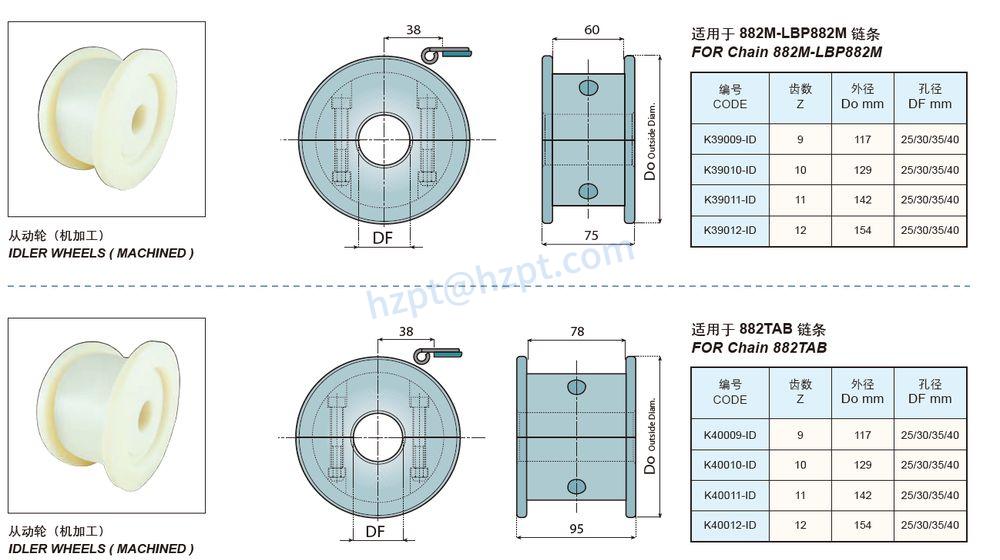

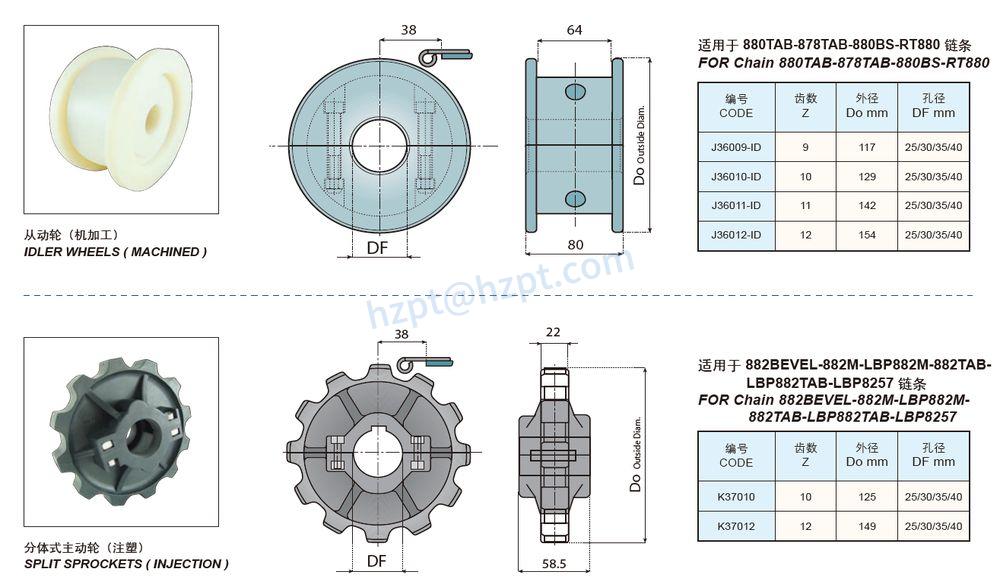

We Can Also Provide Matching Sprockets and Idler Wheels.

A?drive chain?and sprocket drive is a type of power transmission in which a roller chain meshes with two or more gears or sprockets used in an engine as the drive from the crankshaft to the camshaft.A broken industrial chain sprocket can stop your machine from running. Many devices cannot operate without drive sprockets, and replacing them can cost a lot of time and money. Furthermore, the performance of a conveyor or drive depends on the interaction of the sprocket chain. Using the right sprocket is just as important as choosing a suitable chain. We offer a wide selection of standard roller chain sprockets at unbeatable prices. Our sprockets are engineered to perform well under pressure and to last.
