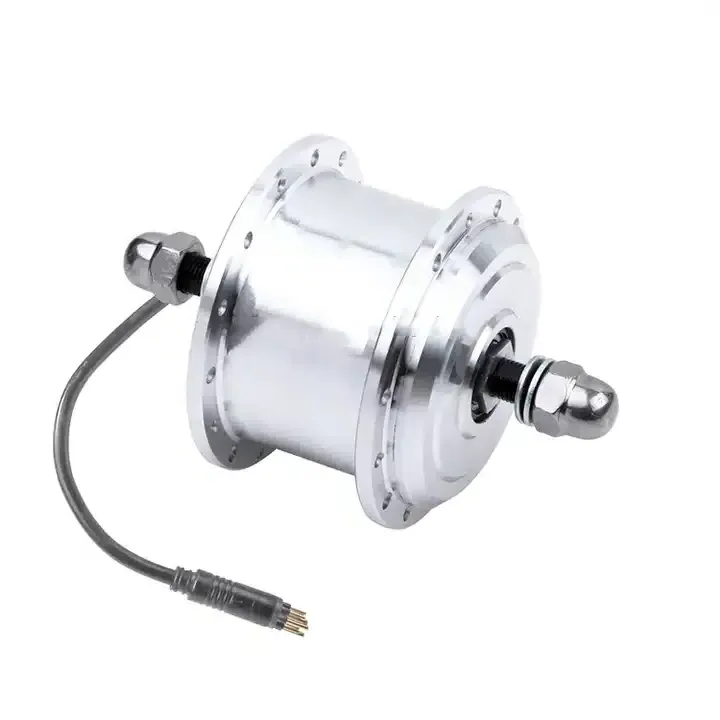

Powerful P110 Front Hub Motor with Controller: The Ultimate Electric Bike Kit

Get ready to transform your bicycle into a high-performance e-bike with the Powerful P110 Front Hub Motor. This electric bike kit includes a powerful and efficient motor, along with a brushless design for smoother and more reliable operation. Available in sleek black or silver, the P110 motor is compact yet robust, with a diameter of 112??1mm and a width of 100??2mm. The motor operates at a rated voltage of 24V/33V/36V and delivers a power output of 250W. With an efficiency of more than 90%, this motor offers excellent performance for your e-bike. The motor spins at a rated revolution of 160-260r/min and weighs just 2.3kg for easy handling. The product comes securely packed in a carton box with bubble wrap and can be shipped from Shanghai, Ningbo, or Shenzhen.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Product Advantages

The P110 Front Hub Motor offers numerous advantages that make it an excellent choice for your e-bike conversion kit. These include:

1. 1. Built-in controller: The motor comes with a built-in controller, eliminating the need for external controllers and simplifying the installation process.
   2. Wireless pedal sensor: The wireless pedal sensor ensures seamless communication between the pedals and motor, providing a smooth and responsive riding experience.
   3. Easy to install & disassemble: The P110 motor is designed for easy installation and disassembly, making it convenient for maintenance and upgrades.
   4. Maximum power of 750W and torque exceeding 40N??m: Despite its compact size, the P110 motor delivers a powerful performance with a maximum power output of 750W and a torque of more than 40N??m.

1. High efficiency: With an efficiency of over 90%, the P110 motor ensures optimal utilization of battery power, providing a longer ride on a single charge.
2. Wireless control: The wireless control feature offers easy and convenient operation, enhancing your riding experience.

We are capable of producing this high-quality electric bike kit and can cater to bulk orders.

Applications of the P110 Front Hub Motor

The P110 Front Hub Motor is versatile and can be used in a variety of applications. These include:

1. Commuting: E-bikes equipped with P110 front hub motors are ideal for commuting, providing assistance to overcome long distances and steep hills.
2. Urban Riding: These motors offer smooth acceleration, making it easy to navigate through busy city streets and congested traffic.
3. Recreation and Leisure: Whether exploring trails or cruising along scenic routes, the P110 motor enhances your outdoor adventures by providing an extra boost.
4. Delivery Services: E-bikes with P110 motors are used by many food delivery and courier services, helping riders cover distances quickly and efficiently.
5. Tourism and Sightseeing: E-bikes with P110 motors are perfect for tourists exploring cities, landmarks, and attractions, providing an efficient and enjoyable way to sightsee.
6. Electric Bike Sharing Programs: Bike-sharing programs use e-bikes with P110 motors to provide convenient transportation options in urban areas.

How the P100/P110 Front Hub Motor Works

The P100/P110 front hub motor is a key component of the e-bike system. Here's how the system works:

1. Power Source: The rechargeable battery pack provides electrical power to the motor.
2. Motor Controller: The motor controller manages the flow of electricity from the battery to the motor, based on the rider's input.
3. Torque Sensor or Throttle: The system may have a torque sensor or a throttle to control the motor's power output.
4. Motor Assistance: The motor controller interprets the input and sends power to the P100/P110 front hub motor when the rider applies force to the pedals or activates the throttle.
5. Front Hub Motor: The P100/P110 front hub motor, located in the front wheel hub, generates rotational force (torque) that propels the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel through the gears integrated into the hub motor.
7. Regenerative Braking: Some e-bike systems with P100/P110 front hub motors have regenerative braking capabilities, converting the kinetic energy of the moving e-bike back into electricity and storing it in the battery for later use.
8. Display and Control Unit: The display and control unit provides information such as speed, battery level, and assistance level, and allows the rider to adjust settings and control the motor's assistance level.

Choosing the Right P100/P110 Front Hub Motor for Your E-bike

When selecting the right P100/P110 front hub motor for your e-bike, consider the following factors:

1. Power and Torque: Consider your riding needs and terrain. If you need more power or frequently encounter steep hills, opt for a higher power or torque motor.
2. Efficiency: Choose a motor with high efficiency for longer battery life and a better riding experience.
3. Compatibility: Ensure that the P100/P110 front hub motor is compatible with your e-bike system by checking the motor's specifications and comparing them with your battery and controller specifications.
4. Wheel Size: The motor should fit the specific wheel size of your e-bike. Common sizes include 26 inches, 27.5 inches, and 29 inches.
5. Weight and Size: Consider the weight and dimensions of the motor, as they can affect the overall weight distribution and handling of your e-bike.

Maintaining Your P100/P110 Front Hub Motor

Proper maintenance of your P100/P110 front hub motor is crucial for its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Regularly clean the front hub motor with a damp cloth to remove dirt, dust, and debris.
2. Inspection: Periodically inspect the front hub motor for any signs of damage, loose connections, or wear, and address any issues promptly.
3. Lubrication: Some front hub motors may require lubrication for smooth operation. Follow the manufacturer's guidelines or user manual for lubrication instructions.
4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, including proper charging procedures and storage guidelines.
5. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension. If any issues are detected, have them addressed by a qualified bike mechanic.
6. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water. If riding in wet conditions, take precautions like using fenders and avoiding deep puddles.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your E-bike?

Raydafon Electric Technology Co Ltd., established in 1993, is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. Our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We use professional production and testing equipment, advanced production lines, and a complete quality management system. Our products are CE-certified and renowned for their reliable quality, exquisite craftsmanship, and stylish design. Whether you're seeking high-end electrical components for electric bicycles, want to avoid traffic jams, or wish to contribute to environmental protection, Raydafon is your ideal partner.We also offer customized services for motor technical specifications and logos, and provide a comprehensive after-sales service. We sincerely welcome global distributors to visit and negotiate, and look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
