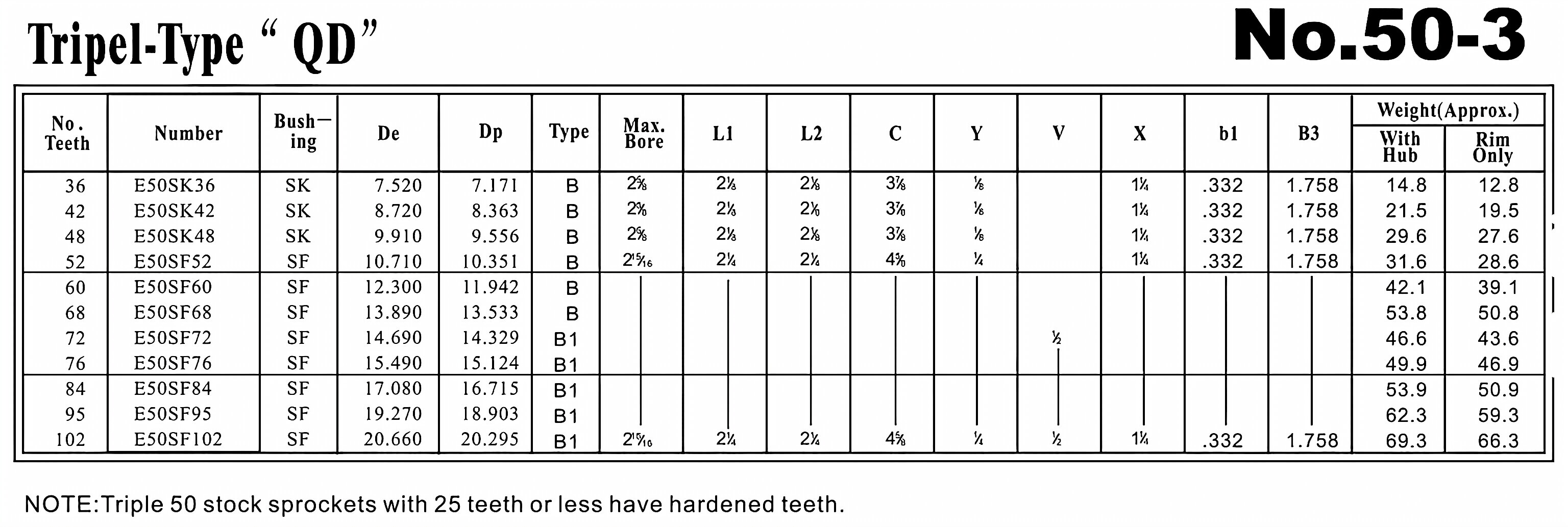

QD Sprocket No.50-3 Triple Type

Introduction to QD Sprocket No.50-3 Triple Type

QD Sprocket No.50-3 Triple Type is a type of sprocket used in transmission systems. It is designed for heavy-duty applications and provides reliable power transmission. The QD sprocket is an essential component in various industries, including manufacturing, agriculture, and mining.

Definition and Basic Structure of QD Sprocket

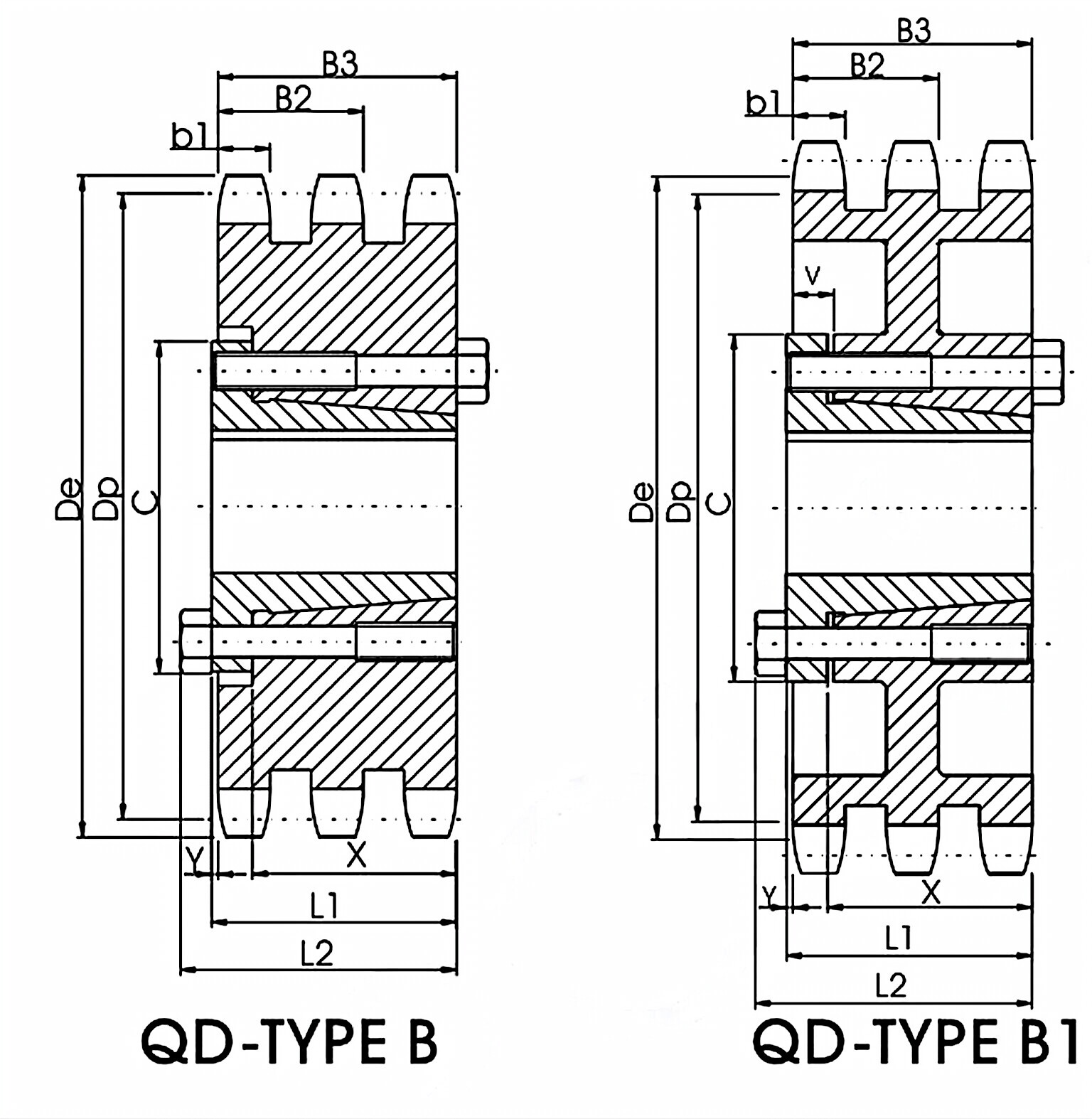

QD Sprocket, short for Quick Detachable Sprocket, refers to a type of sprocket that can be quickly and easily attached or detached from a shaft. It consists of teeth, a hub, and a QD bushing. The teeth engage with the chain, transmitting rotational motion from the driving shaft to the driven shaft. The hub provides support and strength, while the QD bushing ensures secure and reliable connection between the sprocket and the shaft.

Characteristics and Functions of QD Bushing

QD bushing has several key features and plays an important role in the proper functioning of a QD sprocket:

1. Easy Installation: The QD bushing allows for quick and hassle-free installation, saving time and effort during assembly.
2. High Load Capacity: The design of the QD bushing ensures excellent load-bearing capacity, enabling it to withstand heavy loads and torque.
3. Standardized Design: QD bushings are manufactured according to industry standards, ensuring compatibility and interchangeability with various sprocket sizes.
4. Compact Design: The compact size of the QD bushing allows for efficient use of space in the transmission system.
5. Low Maintenance Cost: QD bushings require minimal maintenance, reducing overall maintenance costs in the long run.

The advantage of easy installation and removal provided by QD bushings significantly simplifies maintenance and allows for quick replacement of sprockets when necessary, minimizing downtime and increasing operational efficiency.

Installation and Removal Process of QD Bushing

The installation and removal of a QD bushing involve the following steps:

1. Prepare Tools and Materials: Gather the necessary tools and materials required for the installation or removal process.
2. Clean Shaft and Sprocket Surface: Ensure the shaft and sprocket surfaces are clean and free from any debris or contaminants.
3. Position the Sprocket: Align the sprocket with the shaft, ensuring proper engagement with the QD bushing.
4. Install QD Bushing: Slide the QD bushing onto the shaft, making sure it fits securely and aligns with the sprocket.
5. Secure the Sprocket: Tighten the screws or bolts to secure the sprocket in place, ensuring a tight and reliable connection.
6. Check: Verify that the sprocket and QD bushing are properly installed and securely fastened. Perform any necessary adjustments if needed.

Manufacturing Process of QD Sprocket

The manufacturing process of QD sprockets typically involves the following steps:

1. Prepare Raw Materials: Gather the required raw materials, such as steel or cast iron, based on the specifications of the sprocket.
2. Cutting and Shaping: Cut the raw material into the desired shape and size using specialized cutting and shaping techniques.
3. Forging or Casting: Depending on the material, the sprocket may undergo forging or casting processes to enhance its strength and durability.
4. Machining: Use precision machining tools to refine the shape, dimensions, and teeth profile of the sprocket.
5. Teeth Rolling: Roll the teeth of the sprocket to ensure smooth engagement with the chain.
6. Heat Treatment: Apply heat treatment to enhance the hardness and toughness of the sprocket, improving its wear resistance.
7. Surface Treatment: Apply surface treatments, such as coating or plating, to protect the sprocket from corrosion and improve its appearance.
8. Quality Inspection: Conduct thorough quality inspections to ensure the sprocket meets the required specifications and standards.

Frequently Asked Questions (FAQ)

1. Q: What are the advantages of using QD Sprocket No.50-3 Triple Type?

A: The advantages of using QD Sprocket No.50-3 Triple Type include its high load capacity, easy installation and removal, standardized design, compact size, and low maintenance cost.

2. Q: How does a QD bushing enhance the performance of a QD sprocket?

A: A QD bushing ensures a secure and reliable connection between the sprocket and the shaft, allowing for efficient power transmission and easy replacement when needed.

3. Q: What industries commonly use QD Sprocket No.50-3 Triple Type?

A: QD Sprocket No.50-3 Triple Type is commonly used in industries such as manufacturing, agriculture, and mining due to its heavy-duty capabilities.

4. Q: Can QD Sprocket No.50-3 Triple Type be used in high-speed applications?

A: Yes, QD Sprocket No.50-3 Triple Type can be used in high-speed applications as long as the sprocket and chain are properly matched and maintained.

5. Q: How often should QD sprockets and QD bushings be inspected and replaced?

A: Regular inspections should be conducted to assess the condition of the sprockets and bushings. Replacement should be done when signs of wear, damage, or deterioration are observed.

Author: Miya
