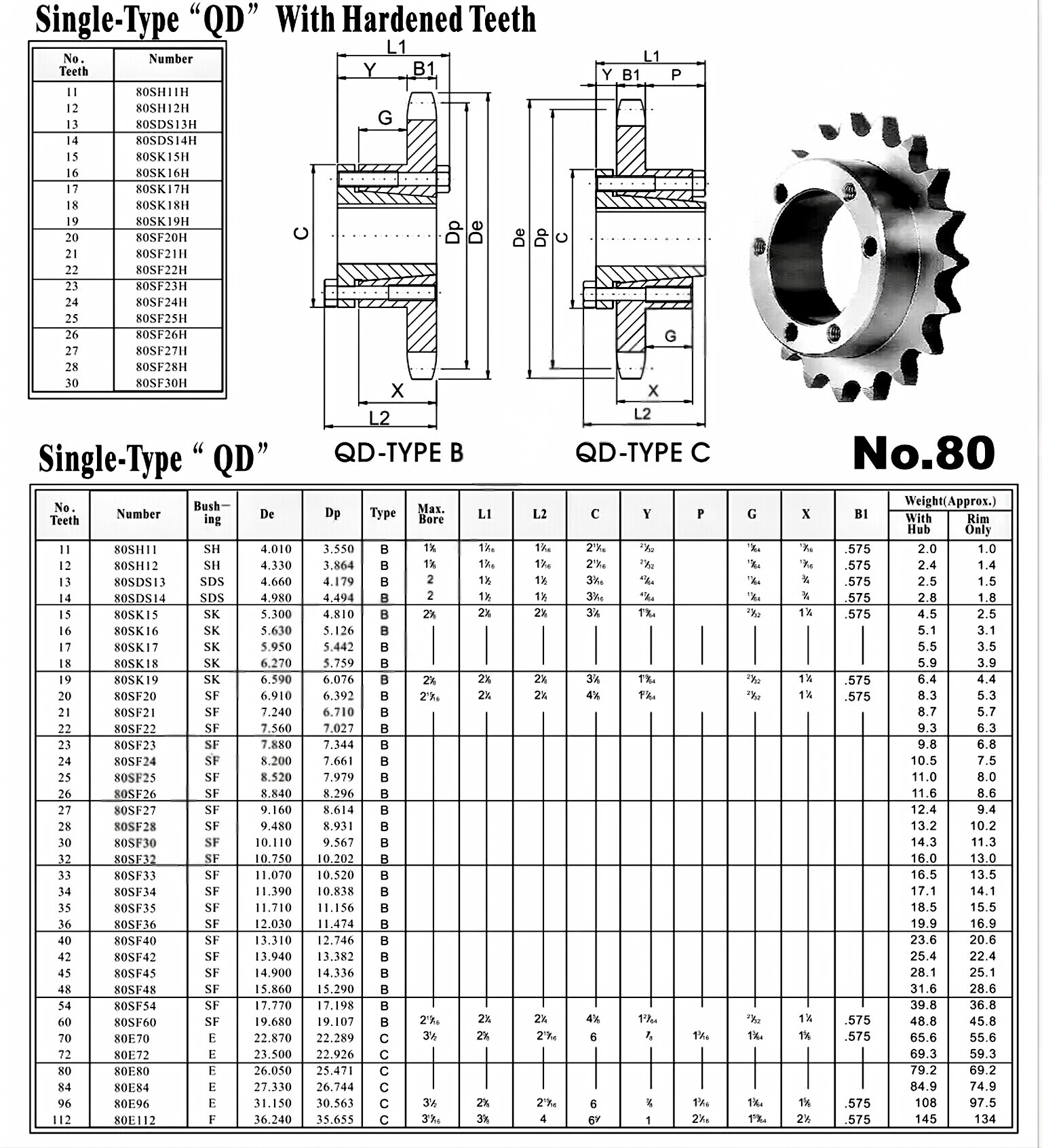

QD Sprocket No.80 Single Type

Introduction to QD Sprocket No.80 Single Type

QD Sprocket No.80 Single Type is a type of sprocket that is commonly used in power transmission systems. It is a type of sprocket that is designed to work with QD bushings, which allow for easy installation and removal of the sprocket.

Definition and Basic Structure of QD Sprocket

A QD sprocket is a type of sprocket that is designed to work with QD bushings. QD sprockets have a hub with a tapered bore that matches the taper on the QD bushing. The sprocket is mounted on the bushing using a set screw, which holds the sprocket firmly in place.

Characteristics and Functions of QD Bushing

The QD bushing is designed to make it easy to install and remove sprockets from shafts. It has several key characteristics:

• Easy to install: QD bushings are designed to be easy to install, which makes it simple to change sprockets as needed.
• High load capacity: QD bushings are capable of handling high loads, which makes them ideal for use in heavy-duty applications.
• Standardized design: QD bushings have a standardized design, which ensures compatibility between different types of sprockets and bushings.
• Compact design: QD bushings have a compact design, which makes them ideal for use in applications where space is limited.
• Low maintenance cost: QD bushings require very little maintenance, which helps to keep maintenance costs low.

These characteristics make QD bushings ideal for use in a wide variety of power transmission applications. The easy installation and removal process is particularly advantageous, as it allows for quick and efficient sprocket changes.

Installation and Removal Process of QD Bushing

The installation and removal process of QD bushing is a simple and straightforward process that can be broken down into several key steps:

1. Prepare tools and materials: Before beginning the installation or removal process, it is important to gather all of the necessary tools and materials.
2. Clean shaft and sprocket surface: The shaft and sprocket surface should be cleaned thoroughly to ensure a tight fit between the bushing and sprocket.
3. Position sprocket: The sprocket should be positioned on the shaft so that it is aligned with the other components in the power transmission system.
4. Install QD bushing: The QD bushing should be installed onto the shaft using the appropriate tools and techniques.
5. Secure sprocket: Once the QD bushing is in place, the set screw should be tightened to secure the sprocket in place.
6. Check: The installation should be checked to ensure that everything is in place and working properly.

Following these steps carefully will ensure that the QD bushing is installed or removed correctly, which will help to prevent damage to the sprocket or other components in the power transmission system.

Manufacturing Process of QD Sprocket

The manufacturing process of QD sprocket involves several key steps:

1. Prepare raw materials: The raw materials used to make QD sprockets are carefully selected to ensure high quality and reliability.
2. Cut to size: The raw materials are cut to the appropriate size using specialized cutting equipment.
3. Forging or casting: The sprocket is forged or cast into the appropriate shape using specialized equipment.
4. Machining: The sprocket is machined to ensure that it is the correct size and shape.
5. Rolling: The teeth of the sprocket are rolled to ensure that they are the correct shape and size.
6. Heat treatment: The sprocket is heat treated to ensure that it is strong and durable.
7. Surface treatment: The sprocket is treated with a surface coating to protect it from corrosion and other types of damage.
8. Quality inspection: The sprocket is inspected to ensure that it meets the highest standards of quality and reliability.

This complex manufacturing process ensures that QD sprockets are of the highest quality, and capable of meeting the demands of even the most challenging power transmission applications.

FAQ

1. What are QD sprockets used for?
   QD sprockets are used in power transmission systems to transfer power from one component to another.
2. What are QD bushings?
   QD bushings are components that are used to mount sprockets onto shafts. They are designed to make it easy to install and remove sprockets as needed.
3. What are the advantages of using QD bushings?
   QD bushings offer several advantages, including easy installation and removal, high load capacity, standardized design, compact design, and low maintenance cost.
4. How do you install a QD bushing?
   A QD bushing can be installed by following a simple set of steps, including preparing tools and materials, cleaning the shaft and sprocket surface, positioning the sprocket, installing the QD bushing, securing the sprocket, and checking the installation.
5. How are QD sprockets manufactured?
   QD sprockets are manufactured using a complex process that involves several steps, including preparing raw materials, cutting to size, forging or casting, machining, rolling, heat treatment, surface treatment, and quality inspection.
