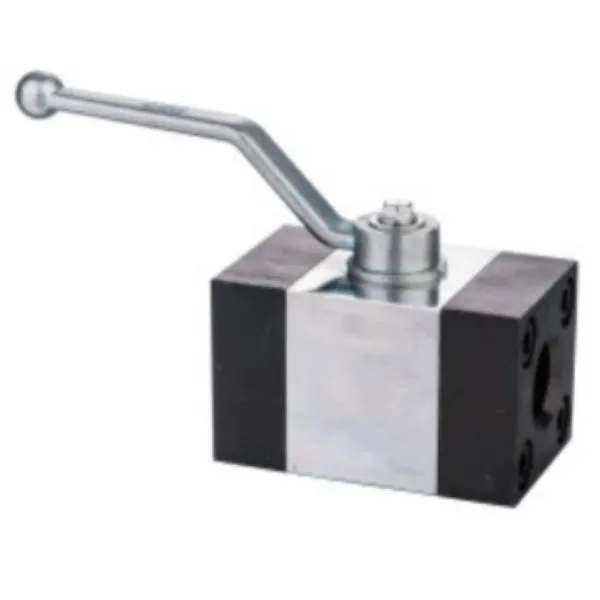

QINS Series Hydraulic Ball Valves

QINS Series Hydraulic Ball Valves

QINS series hydraulic ball valves are a type of valve that uses hydraulic pressure to operate a ball-shaped element to control the flow of fluid. They are typically used in industrial applications where high pressure and flow rates are required, such as in oil and gas, mining, and power generation. QINS series hydraulic ball valves are known for their reliability, durability, and performance. They are made with high-quality materials and construction, and they are also relatively easy to maintain and repair.

Some of the key features and benefits of QINS series hydraulic ball valves include:

• High pressure and flow ratings: QINS series ball valves are available in a wide range of pressure and flow ratings, making them suitable for a variety of applications.
• Reliable and durable: QINS series hydraulic ball valves are made with high-quality materials and construction, and they are backed by a long warranty.
• Easy to maintain and repair: QINS series ball valves are relatively easy to maintain and repair, which can save time and money in the long run.
• Wide range of sizes and materials: QINS series hydraulic ball valves are available in a wide range of sizes and materials, making them suitable for a variety of applications.

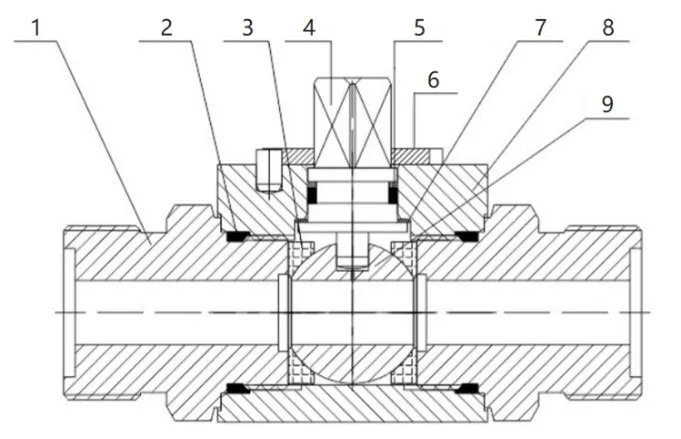

QINS Series Hydraulic Ball Valve Materials of Construction:

	Item	Name	Material
			Stainless Steel	Carbon Steel
	1	Fittings	SS 316 / SS 304	A105 / 45#
	2	O-ring	FKM	NBR
	3	Packing	POM / PEEK	POM
	4	Stem	SS 316 / SS 304	A105 / 45#
	5	O-ring	POM / PEEK	POM
	6	stop Pin	SS 316 / SS 304	A105 / 45#
	7	Washer	SS 316 / SS 304	A105 / 45#
	8	Body	SS 316 / SS 304	A105 / 45#
	9	Ball	SS 316 / SS 304	A105 / 45#

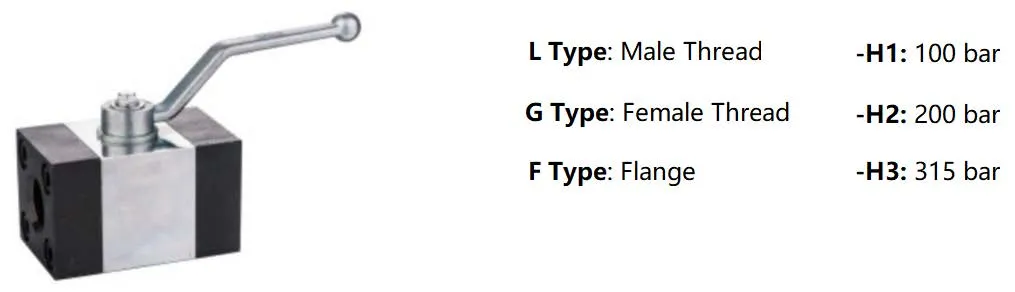

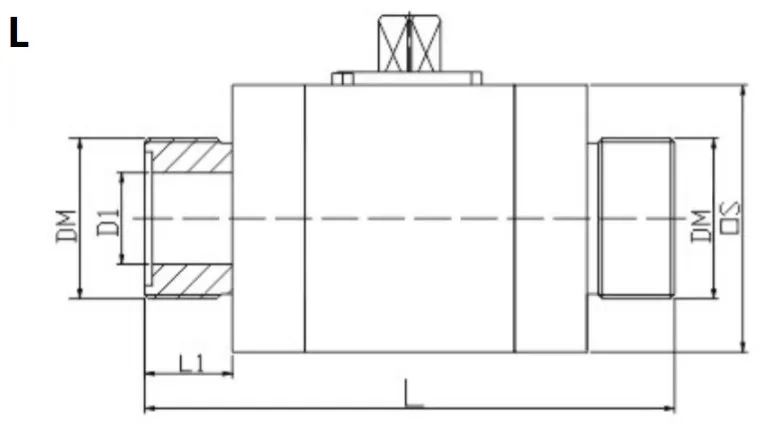

QINS Series Hydraulic Ball Valve Dimensions:

	Part NO.	PN	DN	Dimension(mm)
				DM	L	L1	D1	□S
	QINS-L10-H3	315	10	M18*1.5	106	18	10	52
	QINS-L20-H3	315	20	M27*2	125	20	20	64
	QINS-L25-H3	315	25	M42*2	139	23	24	70
	QINS-L32-H3	315	32	M60*2	164	30	32	83
	QINS-L40-H3	315	40	M60*2	180	38	38	94

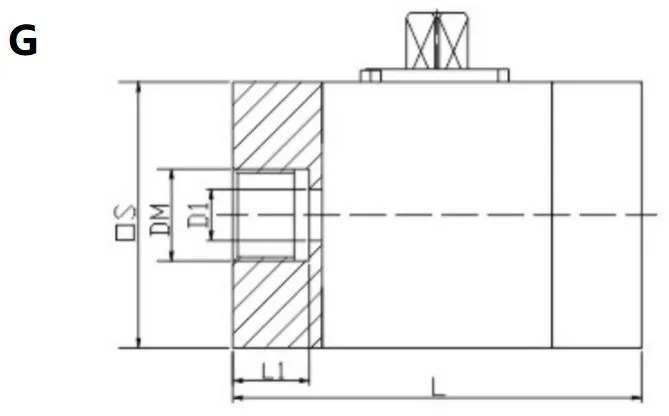

	Part NO.	PN	DN	Dimension(mm)
				DM	L	L1	D1	□S
	QINS-G10-H3	315	10	M18*1.5	80	15	10	52
	QINS-G15-H3	315	15	M22*1.5	90	18	15	55
	QINS-G20-H3	315	20	M27*2	100	20	20	64
	QINS-G25-H3	315	25	M32*2	110	22	24	70
	QINS-G32-H3	315	32	M42*2	120	24	32	83
	QINS-G40-H3	315	40	M48*2	135	26	38	94

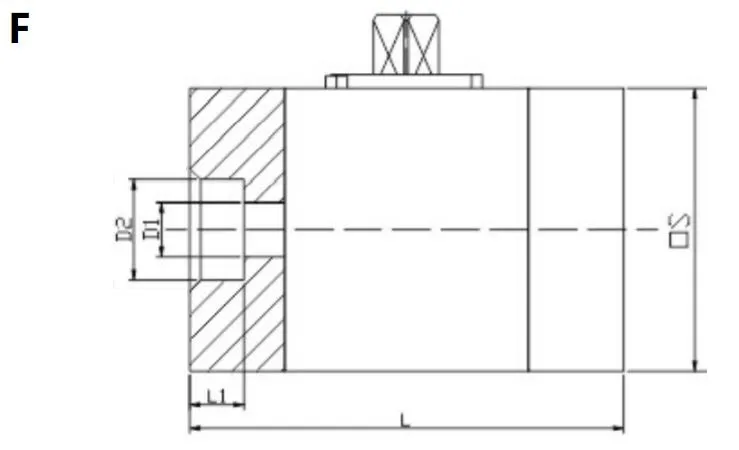

	Part NO.	PN	DN	Dimension(mm)
				L	L1	D1	D2	□S
	QINS-F10-H3	315	10	80	10	10	18.5	52
	QINS-F15-H3	315	15	90	11	15	22.5	55
	QINS-F20-H3	315	20	100	12	20	28.5	64
	QINS-F25-H3	315	25	106	14	24	33.5	70
	QINS-F32-H3	315	32	120	16	30	43	83
	QINS-F40-H3	315	40	135	18	38	52	94
	QINS-F50-H3	315	50	148	20	48	65	116

Applications of QINS Series Hydraulic Ball Valves:

QINS Series hydraulic ball valves find applications in various industries and systems where reliable fluid control is essential. Here are some common applications of QINS Series hydraulic ball valves:1. Hydraulic Systems: QINS Series hydraulic ball valves are widely used in hydraulic systems to control the flow of hydraulic fluids. They are employed in applications such as hydraulic power units, cylinders, motors, and other hydraulic components. These valves allow for precise control of fluid flow, enabling efficient operation of hydraulic machinery.2. Oil and Gas Industry: In the oil and gas industry, QINS Series ball valves are used in various applications, including wellhead control, pipeline systems, refineries, and offshore platforms. They play a crucial role in controlling the flow of oil, gas, and other fluids, ensuring safe and reliable operation.3. Petrochemical Plants: QINS Series hydraulic ball valves are utilized in petrochemical plants for controlling the flow of chemicals, gases, and other fluids during production processes. They are commonly employed in pipelines, storage tanks, reactors, and other critical areas where precise fluid control is necessary.4. Manufacturing and Industrial Processes: QINS Series ball valves are suitable for a wide range of manufacturing and industrial processes. They are used in applications such as water treatment systems, cooling systems, lubrication systems, and process control systems. These valves provide efficient flow control and help maintain optimal operating conditions in industrial processes.5. Agriculture and Irrigation Systems: QINS Series hydraulic ball valves are utilized in agricultural and irrigation systems for controlling the flow of water and other fluids. They are used in irrigation pipelines, sprinkler systems, and agricultural machinery, allowing for precise control of water distribution and optimizing crop irrigation.6. Construction Equipment: QINS Series ball valves are employed in construction equipment, such as hydraulic excavators, loaders, and cranes. These valves control the hydraulic circuits responsible for powering the various functions of the equipment, enabling precise movement and operation.7. Mining Applications: In mining operations, QINS Series hydraulic ball valves are used in hydraulic systems for controlling the flow of fluids in mining equipment, such as hydraulic shovels, drills, and haul trucks. These valves ensure efficient and reliable operation of the equipment in demanding mining environments.8. Power Generation: QINS Series ball valves are found in power generation plants, including thermal power plants, hydroelectric plants, and nuclear power plants. They are used in systems for controlling steam, water, and coolant flow, contributing to the safe and efficient operation of power generation processes.
