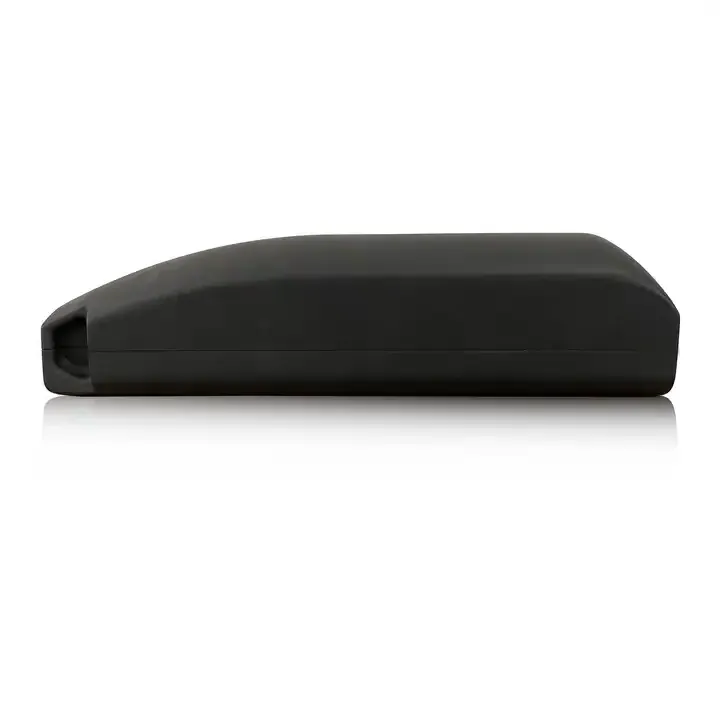

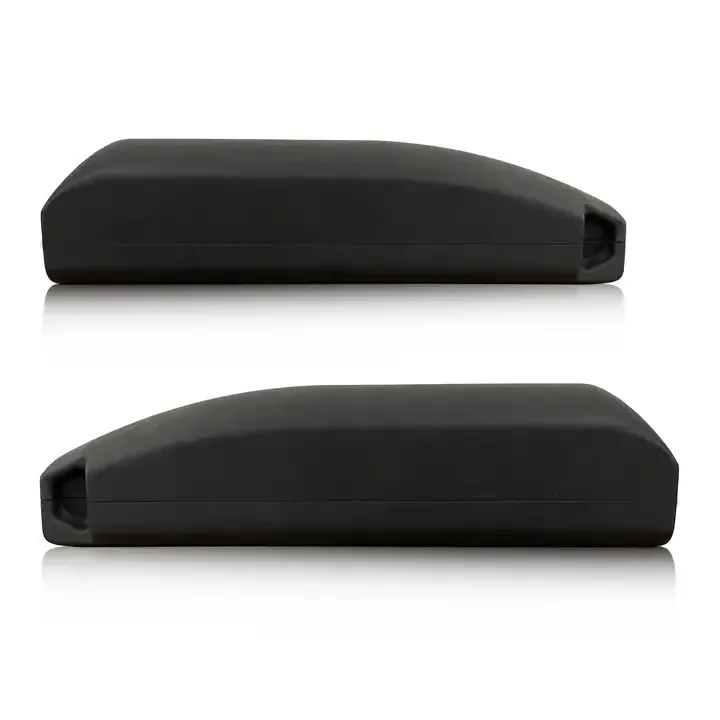

Raydafon Down Tube Li-ion Battery 36V 14Ah High Capacity Electric Bicycle Battery

[embed]https://youtu.be/1gEgTyn5N2Q[/embed]Introducing the Raydafon Down Tube Li-ion Battery 36V 14Ah High Capacity Electric Bicycle Battery, a game-changer in the world of e-biking. With a model number of BI3614, this lithium battery has a high-rated capacity of 14Ah and a battery capacity of 504Wh. The charge current is 3A and it operates efficiently within a temperature range of -20??~75??. This waterproof battery (with an IP66 rating) weighs a mere 2.5kg, making it light and easy to mount on your bicycle. Notably, it is shipped in a carton package from Shanghai or Ningbo.

BI3614 Down Tube Battery Specification

Specification	BI3614
L×W×H (mm)	303mm×75mm×74.3mm
Rated Voltage (V)	36V
Rated Capacity (Ah)	14Ah
Voltage Range (V)	28V~42V
Battery Capacity (Wh)	504Wh
Maximum Current (A)	40A
Charge Current (A)	3A
Charge Time (h)	4h~5h
Charge Mode	CC-CV
Working Temperature (℃)	-20℃~75℃
Cycle Life (times)	≥1000times
Waterproof	IP66
BMS	Yes
Position	Water holder
Weight (kg)	2.5kg

BI3614 Down Tube Battery Dimension

Advantages of the Raydafon Down Tube Battery

Our Raydafon Down Tube Battery is not just any ordinary battery, it boasts several unique features and advantages that make it stand out.

1. 1. Lightweight: Weighing only 2.5kg, it adds minimal additional weight to your bicycle.
   2. High Capacity: With a high-rated capacity of 14Ah, it ensures long rides without frequent recharging.
   3. Lockable: It is equipped with a lock for added security.
   4. Built-in BMS: The built-in Battery Management System (BMS) protects the battery from overcharging and maximizes its lifespan.
   5. Imported Panasonic cells: The battery is made up of imported Panasonic cells for superior performance.
   6. Long Cycle Life: Our battery has a long cycle life, ensuring it lasts for years without frequent replacements.
   7. Waterproof grade IP66: The battery is waterproof, making it resistant to rain and moisture.

Indeed, it is a product we are proud to produce. With these advantages in mind, it's clear to see why our Raydafon Down Tube Battery is a popular choice among e-bike enthusiasts.

Applications of the Raydafon Down Tube Battery

Down tube batteries for electric bicycles have several applications that make them a popular choice among riders. Here are some of the key applications of our Raydafon Down Tube Battery:

1. Extended Range: Down tube batteries typically have a larger capacity compared to other types of e-bike batteries. This allows riders to enjoy extended range and travel longer distances on a single charge.
2. Improved Weight Distribution: By integrating the battery into the down tube, e-bike manufacturers achieve a more balanced weight distribution. This helps in maintaining the overall stability and handling of the bicycle.
3. Aesthetics and Integration: Down tube batteries offer a clean and streamlined appearance. They seamlessly blend into the frame design, giving the e-bike a sleek look.
4. Protection from Elements: The down tube placement of the battery provides better protection against external elements such as water, dust, and impacts.
5. Removability and Convenience: Many down tube batteries are designed to be easily removable. This allows riders to conveniently detach the battery from the frame for charging, storage, or transportation.
6. Compatibility and Accessibility: Down tube batteries are widely used in the e-bike industry, and as a result, there is a wide range of e-bike models and brands that support down tube battery integration.

How Does the Down Tube Battery for Electric Bicycle Work?

The down tube battery for an electric bicycle works by storing electrical energy and supplying it to power the e-bike's motor. Here's a step-by-step explanation of how it functions:

1. Battery Integration: The down tube battery is designed to be integrated into the down tube of the bicycle frame. It is securely mounted and connected to the e-bike's electrical system.
2. Lithium-ion Cells: The down tube battery typically consists of lithium-ion cells, which are the primary energy storage units. These cells are connected in a series or parallel configuration to achieve the desired voltage and capacity.
3. Voltage and Capacity: The number and configuration of the lithium-ion cells determine the voltage and capacity of the battery. Higher voltage batteries, such as 36V or 48V, are common in e-bikes.
4. Power Control: The down tube battery is connected to the e-bike's motor controller, which regulates the power flow.
5. Charging Process: To charge the down tube battery, you typically connect it to a charger using a charging cable. The charger supplies the appropriate voltage and current to replenish the battery's energy.
6. Discharging Process: When the e-bike is in use, the down tube battery discharges its stored energy to power the motor.
7. Removability: Many down tube batteries are designed to be easily removable. This allows riders to detach the battery from the down tube for charging or replacement.

Choose the Right Down Tube Battery for Electric Bicycle

When choosing the right down tube battery for an electric bicycle, several factors need to be considered to ensure compatibility and meet your specific needs.

1. Voltage and Capacity: Determine the voltage and capacity requirements based on your e-bike's motor specifications and your desired range.
2. Battery Size and Shape: Down tube batteries come in various sizes and shapes to fit different bicycle frames.
3. Battery Weight: Consider the weight of the down tube battery as it affects the overall weight of the e-bike.
4. Battery Integration: Check if the down tube battery is compatible with your specific e-bike model and frame.
5. Battery Management System (BMS): The battery management system is crucial for safety and performance.
6. Removability: Decide if you prefer a removable or non-removable down tube battery.

Maintenance of the Raydafon Down Tube Battery

Proper maintenance of the down tube battery for an electric bicycle is essential to ensure its longevity, performance, and safety. Here are some maintenance tips to keep in mind:

1. Read the Manual: Start by carefully reading the manufacturer's manual that accompanies the battery.
2. Charging: Follow the recommended charging procedures outlined in the manual.
3. Storage: If you won't be using the e-bike for an extended period, store the battery in a cool and dry place away from direct sunlight.
4. Cleaning: Keep the battery and its connections clean and free from dirt, dust, and moisture.
5. Inspections: Regularly inspect the battery for any signs of physical damage, such as cracks, dents, or bulges.
6. Extreme Temperatures: Lithium-ion batteries are sensitive to extreme temperatures. Avoid exposing the battery to excessively high or low temperatures, as it can affect its performance and lifespan.
