Raydafon Electric Bike Conversion Kit Bicycle Dynamo Hub Electric Bicycle Motor

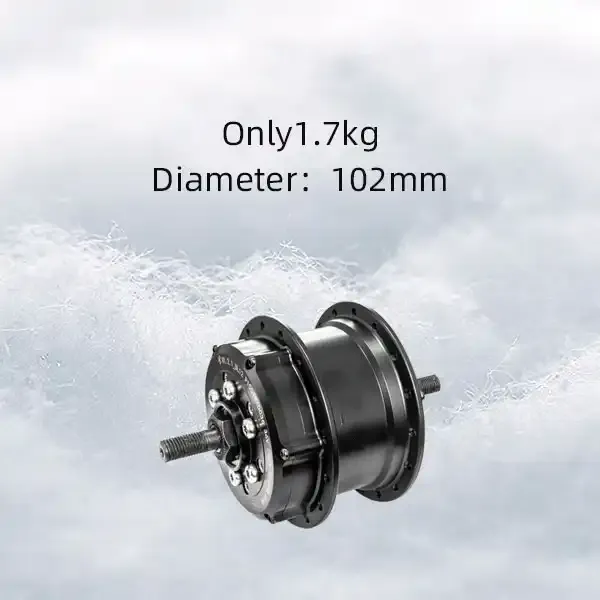

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]Get ready to transform your traditional bicycle into an efficient, power-packed e-bike with the Raydafon Electric Bike Conversion Kit. This kit features the P100 Powerful Front Hub Motor designed to provide exceptional performance and convenience. Built to perfection, this hub motor is available in two versatile colors - black and silver. The device is highly efficient with an efficiency rating of over 90%. It is lightweight and compact, with a weight of 1.7 kg, making it a perfect fit for all types of bicycles.

Specifications of P100 Front Hub Motor for E-bike

Item No.	P100SWXDC36/P100SWXC36
Diameter	103mm±1mm
Width	100±2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Controller	Internal
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Rated power	250W
Max. power	500W
Max. torque	30N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞89%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	1.7KGS

P100 E-bike Front Hub Motor Dimension

Advantages of the P100 Powerful Front Hub Motor

Our P100 Powerful Front Hub Motor comes with a host of benefits that make it a remarkable addition to your bicycle.1. Built-in controller: The hub motor features an integrated controller, eliminating the need for an external one and making the setup process seamless.2. Wireless pedal sensor: It has a wireless pedal sensor that offers real-time feedback for a responsive and intuitive riding experience.3. Easy to install & disassemble: The hub motor is easy to install and remove, allowing for hassle-free maintenance and replacement.4. Maximum power of 750W: Despite its compact size, this motor doesn't compromise on power. It can deliver a maximum power output of 750W, providing more than enough propulsion for your e-bike.5. High torque: With a torque exceeding 40N·m, this motor ensures your e-bike can tackle steep inclines with ease.6. Wireless control: The motor can be conveniently controlled wirelessly, offering you a clutter-free and modern e-bike experience.

Applications of the P100 Powerful Front Hub Motor

The P100 Powerful Front Hub Motor is versatile and can be used for a variety of applications:1. Commuting: This motor is excellent for daily commuting, providing the necessary assistance for covering long distances and climbing steep hills.2. Urban Riding: With its smooth acceleration, it's ideal for navigating through busy city streets and congested traffic.3. Recreation and Leisure: Whether you're exploring trails or cruising scenic routes, this motor enhances your overall riding experience.4. Delivery Services: It's also preferred by many food delivery and courier services for its efficiency and ability to navigate urban environments.5. Tourism and Sightseeing: This motor makes sightseeing a breeze, allowing tourists to explore attractions with ease.6. Electric Bike Sharing Programs: It's commonly found in e-bikes used in bike-sharing programs, providing convenient transportation options in urban areas.

How Does the Ebike System P100 Front Hub Motor Work?

The P100 front hub motor is a crucial component of the e-bike system. Here's an overview of how it works:1. Power Source: A rechargeable battery pack serves as the motor's power source.2. Motor Controller: The controller manages the flow of electricity from the battery to the motor.3. Torque Sensor or Throttle: The e-bike system can include a torque sensor or a throttle for control options.4. Motor Assistance: When force is applied to the pedals or the throttle is activated, the appropriate amount of power is sent to the front hub motor.5. Front Hub Motor: The motor is located in the front wheel hub and generates rotational force to propel the e-bike forward.6. Power Transmission: The motor's force is transmitted to the wheel through gears integrated into the hub motor.7. Regenerative Braking: Some e-bike systems may have regenerative braking capabilities for energy conservation.8. Display and Control Unit: The system includes a display and control unit for real-time information and settings adjustment.

Choosing the Right P100 Front Hub Motor for Your Ebike System

When selecting the right P100 front hub motor for your e-bike system, consider the following:1. Power and Torque: Choose a motor that offers the necessary power and torque for your riding needs.2. Efficiency: High-efficiency motors provide longer battery life and a better riding experience.3. Compatibility: Ensure the motor's specifications are compatible with your e-bike system.4. Wheel Size: The motor should fit the wheel size of your e-bike.5. Weight and Size: Consider the weight and dimensions of the motor as they can affect your e-bike's maneuverability and balance.

Maintenance of the P100 Front Hub Motor

Proper maintenance is crucial for the longevity and performance of your P100 front hub motor. Here are some maintenance tips:1. Regular Cleaning: Keep the motor clean by wiping it down regularly.2. Inspection: Check the motor for any signs of damage or wear and address them promptly.3. Lubrication: Some motors may require lubrication for smooth operation.4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance.5. Wheel Maintenance: Regularly inspect the wheel for proper alignment and spoke tension.6. Water and Moisture Protection: Avoid excessive moisture or submerging the motor in water.

Why Choose Raydafon's P100 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. specializes in the R&D, manufacturing, and marketing of high-end electric bicycle parts. With a commitment to superior quality and innovative technology, we offer an extensive range of products, including super-mini wireless motors, super-mini intelligent motors, front hub motors, and Li-Ion batteries. Our products are CE-certified and protected by independent intellectual property rights. We ensure excellent after-sales services and provide ODM & OEM services as per your requests. If you're looking for high-end electrical components for electric bicycles, look no further than Raydafon.Author: Yjx
