Raydafon Intelligent Conversion Kit Front Motor 350w 20 inch Electric Bicycle Motor Kit With Battery

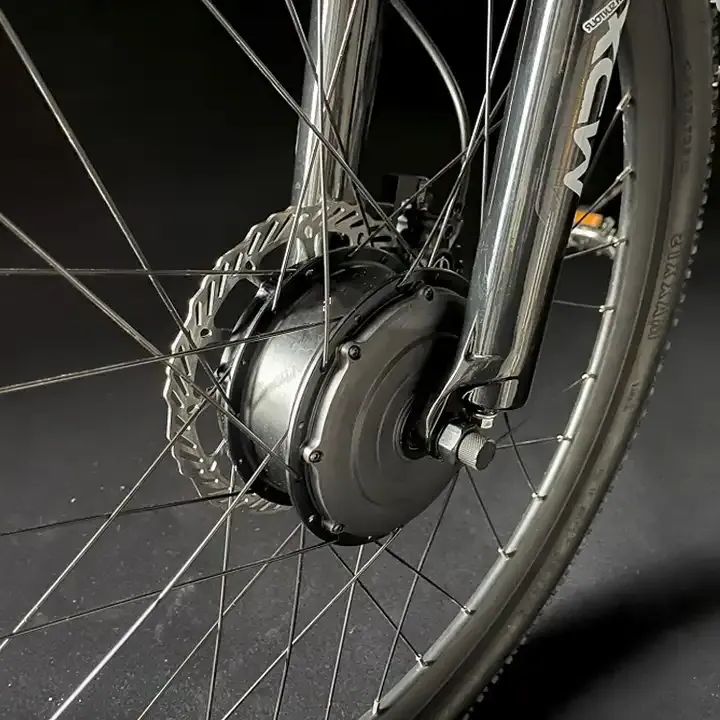

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]Introducing the Raydafon Intelligent Conversion Kit Front Motor, a 350w 20 inch electric bicycle motor kit, complete with a battery. This innovative product is designed with a brushless, non-gear hub motor, available in both black and silver. The motor boasts a high efficiency of over 90% and a manageable weight of 3.7kg. Notably, the battery is conveniently located inside the motor, with control managed through a Bluetooth button/display.

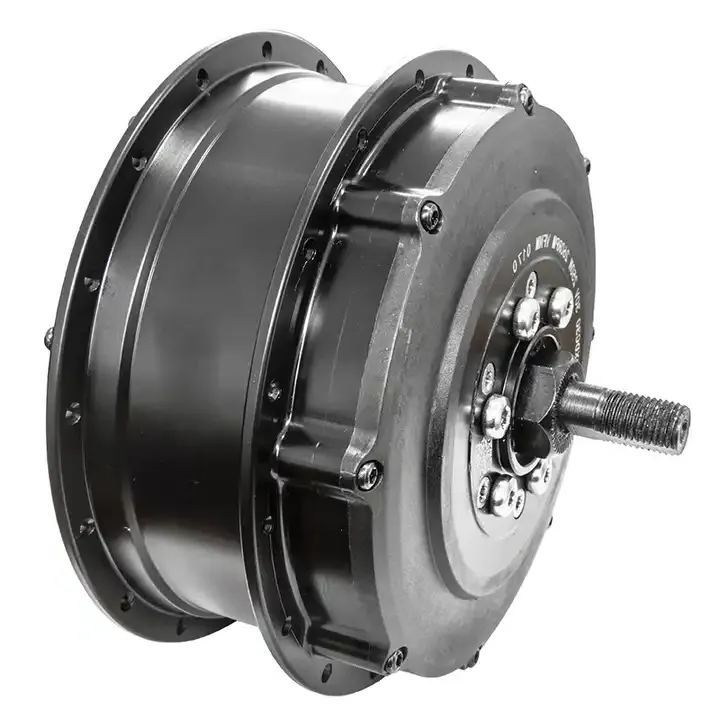

P160 ALL-IN-ONE Front Hub Motor Specification:

Item No.	P160SWXDC30/P160SWXC30
Diameter	162mm±1mm
Width	100±2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Battery	10Ah
Rated power	250W
Max. power	300W
Max. torque	30N·m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	＜50dB
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	3.7KGS

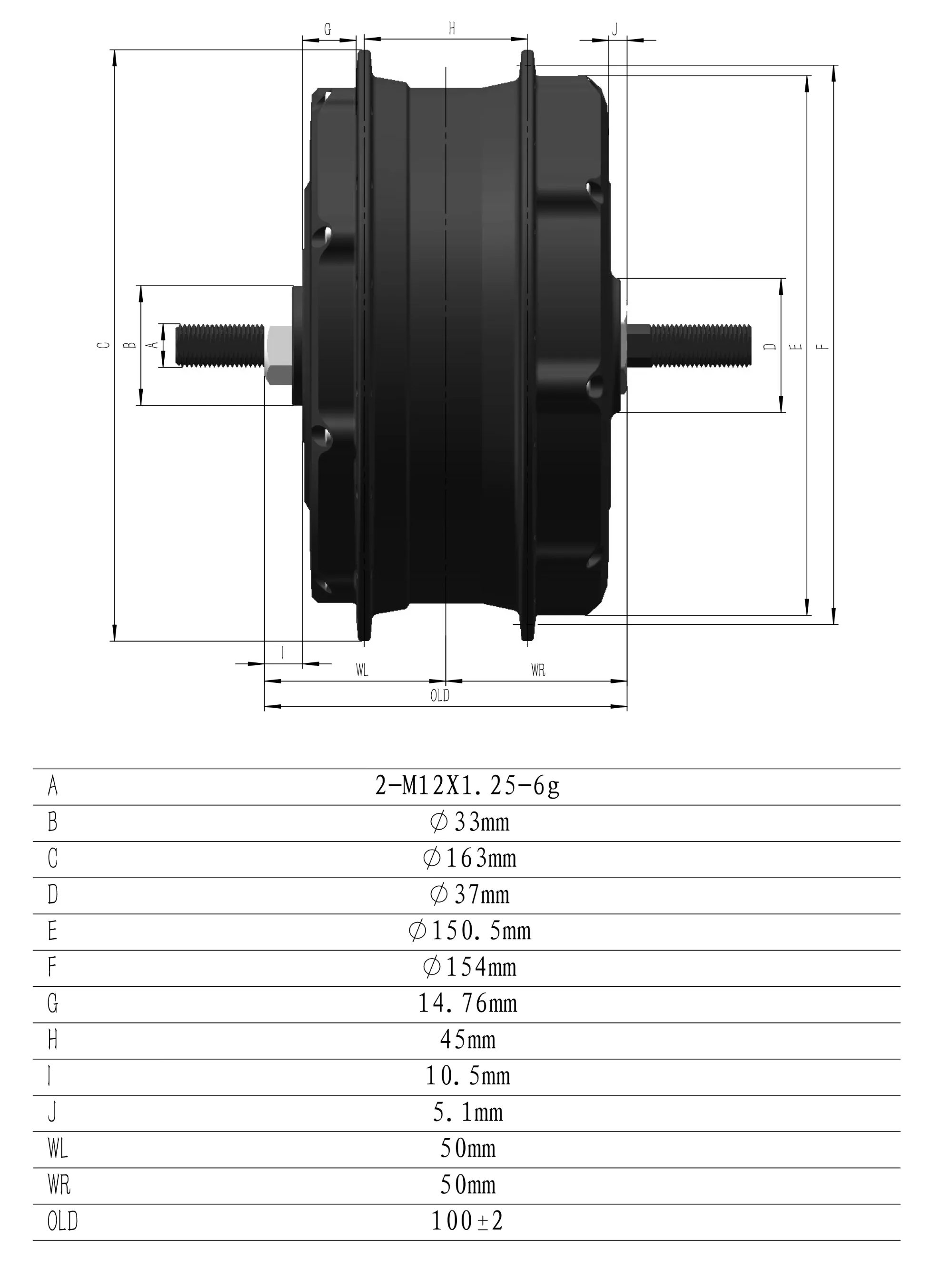

P160 ALL-IN-ONE Front Hub Motor Dimension:

P160 ALL-IN-ONE Front Hub Motor Features

The Raydafon Intelligent Conversion Kit Front Motor boasts several remarkable features. These include:

1. A built-in 7Ah battery and controller
2. Wireless pedal sensor
3. Support for extended-range battery
4. Lightweight design
5. Wireless control
6. Easy installation and disassembly

With these features, this front hub motor offers an enhanced electric bike experience. The product is available for production upon request.

Applications of the ALL-IN-ONE Front Hub Motor

The ALL-IN-ONE Front Hub Motor system for e-bikes boasts a wide array of applications. These include:

1. Commuting: The system is popular among commuters who want to incorporate the benefits of electric assistance into their daily travels.
2. Urban Transportation: E-bikes equipped with ALL-IN-ONE Front Hub Motors are well-suited for urban transportation. They offer an eco-friendly alternative to traditional modes of transportation.
3. Recreation and Leisure: This system is also widely used in e-bikes designed for recreational purposes.
4. Delivery Services: With the growing demand for efficient and sustainable delivery services, e-bikes equipped with ALL-IN-ONE Front Hub Motors have become a popular choice for last-mile deliveries.
5. Bike-Sharing Programs: The compact and user-friendly nature of the ALL-IN-ONE Front Hub Motor system makes it suitable for bike-sharing programs.

How Does the Ebike System ALL-IN-ONE Front Hub Motor Work?

The ALL-IN-ONE front hub motor system for e-bikes combines several components into a single unit, including the motor, battery, and controller. Here's a general overview of how it works:

1. Motor: The front hub motor is located in the front wheel hub. It consists of a brushless electric motor that generates torque to propel the bicycle forward.
2. Battery: The battery supplies power to the motor and is responsible for storing and providing the electrical energy needed for propulsion.
3. Controller: The controller acts as the brain of the system, managing the flow of electricity between the battery and the motor.
4. Power delivery: When the rider activates the electric assistance, either through a throttle or pedal-assist sensor, a signal is sent to the controller.
5. Propulsion: As the current flows into the motor, it creates a magnetic field that interacts with the magnets in the motor. This interaction generates rotational force (torque), which is transmitted to the wheel hub and propels the bicycle forward.
6. Control settings: The ALL-IN-ONE front hub motor system often offers different control settings to suit the rider's preferences.

Choosing the Right ALL-IN-ONE Front Hub Motor for Your Ebike System

When choosing the right ALL-IN-ONE front hub motor for your e-bike system, consider the following factors:

1. Power and torque: The power and torque of the front hub motor will determine the level of assistance and performance it provides.
2. Battery capacity: The battery capacity directly affects the range of your e-bike.
3. Voltage and current: The voltage and current rating of the motor and battery should be compatible.
4. Wheel size: Check the compatibility of the front hub motor with your e-bike's wheel size.
5. Weight and balance: Consider the weight of the front hub motor system.
6. Installation compatibility: Check the compatibility of the front hub motor system with your bike's fork and dropout spacing.

Maintenance of the ALL-IN-ONE Front Hub Motor

Proper maintenance of the ALL-IN-ONE front hub motor for your e-bike system is essential to ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular cleaning: Clean the front hub motor and the surrounding area regularly to prevent the buildup of dirt, dust, and debris.
2. Battery maintenance: Take care of the e-bike's battery according to the manufacturer's instructions.
3. Check electrical connections: Periodically inspect the electrical connections between the motor, controller, and battery.
4. Tire pressure and wheel alignment: Maintain the appropriate tire pressure as recommended by the tire manufacturer.
5. Brake system maintenance: Regularly inspect and adjust the brakes to ensure they are functioning properly.
6. Lubrication: Apply lubricant to the moving parts of the front hub motor system, such as the bearings and gears, as recommended by the manufacturer.
7. Protect from moisture: Avoid exposing the front hub motor and electrical components to excessive moisture.

Why Choose Raydafon's ALL-IN-ONE Front Hub Motor for Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," adhere to the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes.All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, All-IN-ONE motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.If you are seeking the high-end electrical components of electric bicycles, if you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
