Raydafon P100 Bicycle Motor Kits Intelligent Brushless Non-gear 36v 250w Front Hub Motor for Electric Bike

Transform your regular bicycle into an electric bike with the Raydafon P100 Bicycle Motor Kits. This intelligent, brushless, non-gear front hub motor offers a dependable and efficient power source for your electric bike. Here, we delve into the features, applications, workings, selection process, maintenance, and more of this impressive piece of equipment.

Specifications of P100 Front Hub Motor for E-bike

Item No.	P100SWXDC36/P100SWXC36
Diameter	103mm±1mm
Width	100±2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Controller	Internal
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Rated power	250W
Max. power	500W
Max. torque	30N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞89%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65

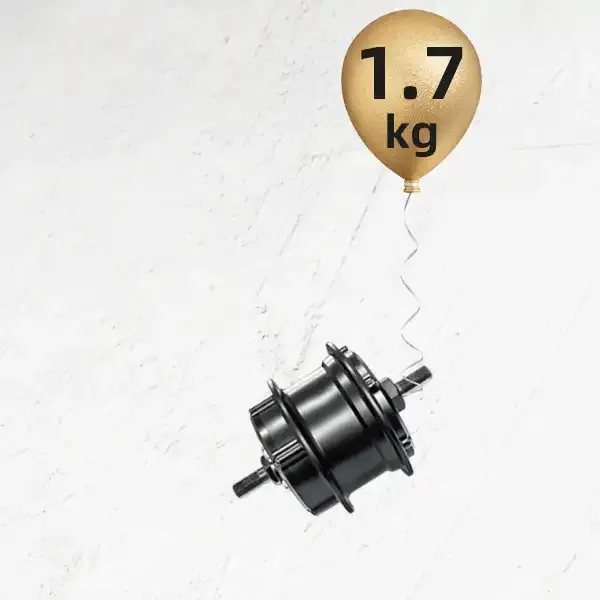

Weight	1.7KGS

P100 E-bike Front Hub Motor Dimension

Advantages of the Raydafon P100 Front Hub Motor

With the Raydafon P100 Front Hub Motor, you can enjoy several benefits that enhance your cycling experience:

1. Built-in controller: The motor comes with an integrated controller, simplifying the installation process and reducing the number of external components.
2. Wireless pedal sensor: A wireless pedal sensor allows for seamless control of your e-bike, providing a smoother, more immersive riding experience.
3. Easy to install and disassemble: Even if you're not a bike expert, you can easily install this front hub motor on your e-bike and equally easy to remove when necessary.
4. Max power 750W, torque exceeds 40N??m: This motor delivers impressive power and torque, making it suitable even for steep terrains and heavy loads.
5. Efficiency ??90%: With an efficiency rate of over 90%, this motor ensures that the majority of the power from your battery is converted into motion, giving you more ride time per charge.
6. Wireless control: The wireless control feature provides a cleaner, clutter-free look and feel to your e-bike.

With these advantages, the Raydafon P100 Front Hub Motor is an excellent choice for converting your bicycle into a high-performance e-bike.

Applications of the Raydafon P100 Front Hub Motor

The P100 Front Hub Motor is versatile and can be used in various applications:

1. Commuting: E-bikes fitted with this motor can assist riders in covering long distances and climbing steep hills with less effort, making daily commutes more comfortable.
2. Urban Riding: The motor provides smooth acceleration, helping riders navigate busy city streets and congested traffic with ease.
3. Recreation and Leisure: Whether you're exploring trails, cruising along scenic routes, or engaging in outdoor adventures, the P100 Front Hub Motor provides an extra boost to enhance your riding experience.
4. Delivery Services: Due to its efficiency and ability to navigate urban environments, this motor is widely used in e-bikes for food delivery services and courier companies.
5. Tourism and Sightseeing: E-bikes equipped with this motor allow tourists to explore cities, landmarks, and attractions effortlessly, making sightseeing more enjoyable and efficient.
6. Electric Bike Sharing Programs: The P100 Front Hub Motor is commonly found in e-bikes used in bike-sharing programs, providing convenient transportation options in urban areas.

How Does the Ebike System P100 Front Hub Motor Work?

Understanding the workings of the P100 Front Hub Motor can help you better utilize its features. Here's a general overview of how this e-bike system works:

1. Power Source: The system uses a rechargeable battery pack as the power source, providing electrical energy to the motor.
2. Motor Controller: The controller manages the flow of electricity from the battery to the motor. It receives input from the rider through controls like a throttle or pedal-assist sensor.
3. Torque Sensor or Throttle: The e-bike system may include a torque sensor, measuring the force applied to the pedals, or a throttle, allowing direct control of the motor's power output.
4. Motor Assistance: When force is applied to the pedals or the throttle is activated, the motor controller interprets the input and sends power to the motor.
5. Front Hub Motor: Located in the front wheel hub, the P100 Front Hub Motor comprises a brushless electric motor, gears, and a sensor system. It generates rotational force that propels the e-bike forward.
6. Power Transmission: The motor's rotational force is sent to the wheel through the integrated gears. These gears increase torque and adapt it to the required speed.
7. Regenerative Braking: Some systems, including those with the P100 Front Hub Motor, have regenerative braking capabilities. When the brakes are applied, the motor acts as a generator, converting kinetic energy back into electricity.
8. Display and Control Unit: Mounted on the handlebars, this unit provides information like speed, battery level, and selected assistance level. It also allows the rider to adjust settings and control the motor's assistance level.

Choosing the Right P100 Front Hub Motor for Your Ebike System

When choosing the right P100 Front Hub Motor for your e-bike system, several factors need to be considered:

1. Power and Torque: The power and torque output of the motor will determine the level of assistance it provides. Higher power motors are suitable for steep hills or heavy loads, but may consume more battery energy.
2. Efficiency: An efficient motor can significantly impact the range and overall performance of your e-bike, converting more electrical energy into mechanical power for a longer battery life and a more effective ride.
3. Compatibility: Ensure the motor's specifications, including voltage and wattage requirements, are compatible with your battery and motor controller to avoid any issues or damage.
4. Wheel Size: The motor should fit the specific wheel size of your e-bike. Common sizes include 26 inches, 27.5 inches, and 29 inches.
5. Weight and Size: Consider the weight and size of the motor, as it can affect the overall weight distribution and handling of your e-bike. A lighter motor contributes to better maneuverability.

Maintaining Your P100 Front Hub Motor

Proper maintenance of the P100 Front Hub Motor is crucial for its longevity and optimal performance. Here are some tips:

1. 1. Regular Cleaning: Wipe down the motor regularly with a damp cloth to remove dust and debris.
   2. Inspection: Periodically inspect the motor for any signs of damage, loose connections, or wear. Check the cables, connectors, and wiring to ensure they are secure and free from damage.

1. 1. Lubrication: Some motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines for lubrication requirements and recommended lubricants.

1. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, such as proper charging procedures and storage guidelines. Check the battery's charge level regularly and ensure it is properly connected to the motor.
2. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension. If any issues are detected, address them with a qualified bike mechanic.
3. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water. Use fenders and avoid deep puddles when riding in wet conditions.

Why Choose Raydafon's P100 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. has been dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. We have introduced professional production and testing equipment, advanced production lines, and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life" and the business philosophy of "Credit First, Quality First." Our products are renowned for their reliable quality, exquisite craftsmanship, and stylish design. They are suitable for all kinds of bikes and are CE-certified. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. Whether you need super-mini wireless motors, super-mini intelligent motors, front hub motors, Li-Ion batteries, wireless buttons, or wireless displays, we have got you covered.Author: Yjx
