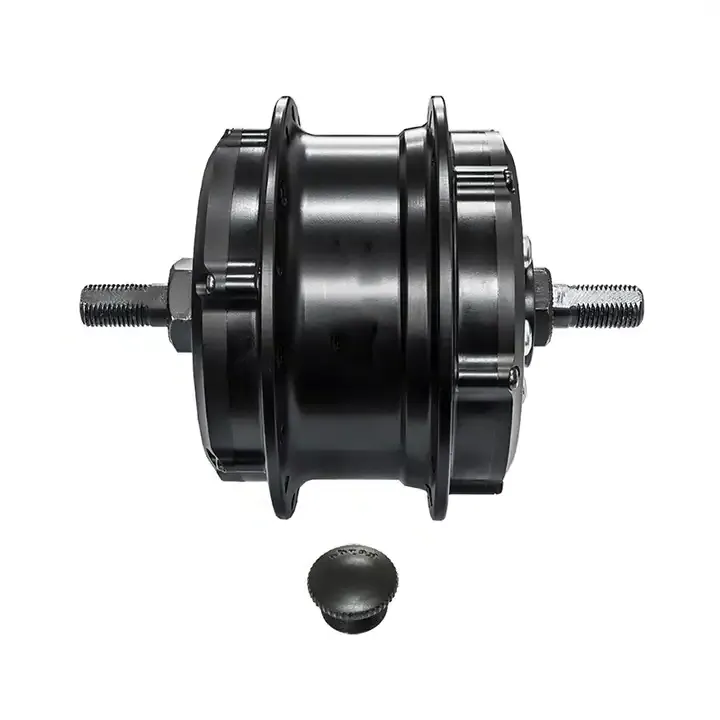

Raydafon P100 E-bike Front Wheel Hub Motor

Introducing the Raydafon P100 E-bike Front Wheel Hub Motor - the perfect small electric bicycle motor for your e-bike. This electric bicycle kit features a brushless design and comes in two rounds style. With a rated output power of 250W, this motor can efficiently power your e-bike for a smoother, more enjoyable ride.Available in black and silver, the P100 front hub motor has a diameter of 102??1mm and a width of 100??2mm. It operates at a rated voltage of 24V, 33V, or 36V and uses a rated current of 6.25A, 6.74A, or 9.16A. The motor's high efficiency of ??90% ensures optimal performance, and its light weight of only 1.7kg does not add significant weight to your e-bike. It comes packaged in a carton box with bubble wrap for secure shipping from Shanghai, Ningbo, or Shenzhen.

Specifications of P100 Front Hub Motor for E-bike

Item No.	P100SWXDC36/P100SWXC36
Diameter	103mm±1mm
Width	100±2mm
Brake types	Disc brake / V brake
Outlet position	Under the shaft on the right side
Controller	Internal
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Rated power	250W
Max. power	500W
Max. torque	30N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞89%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	1.7KGS

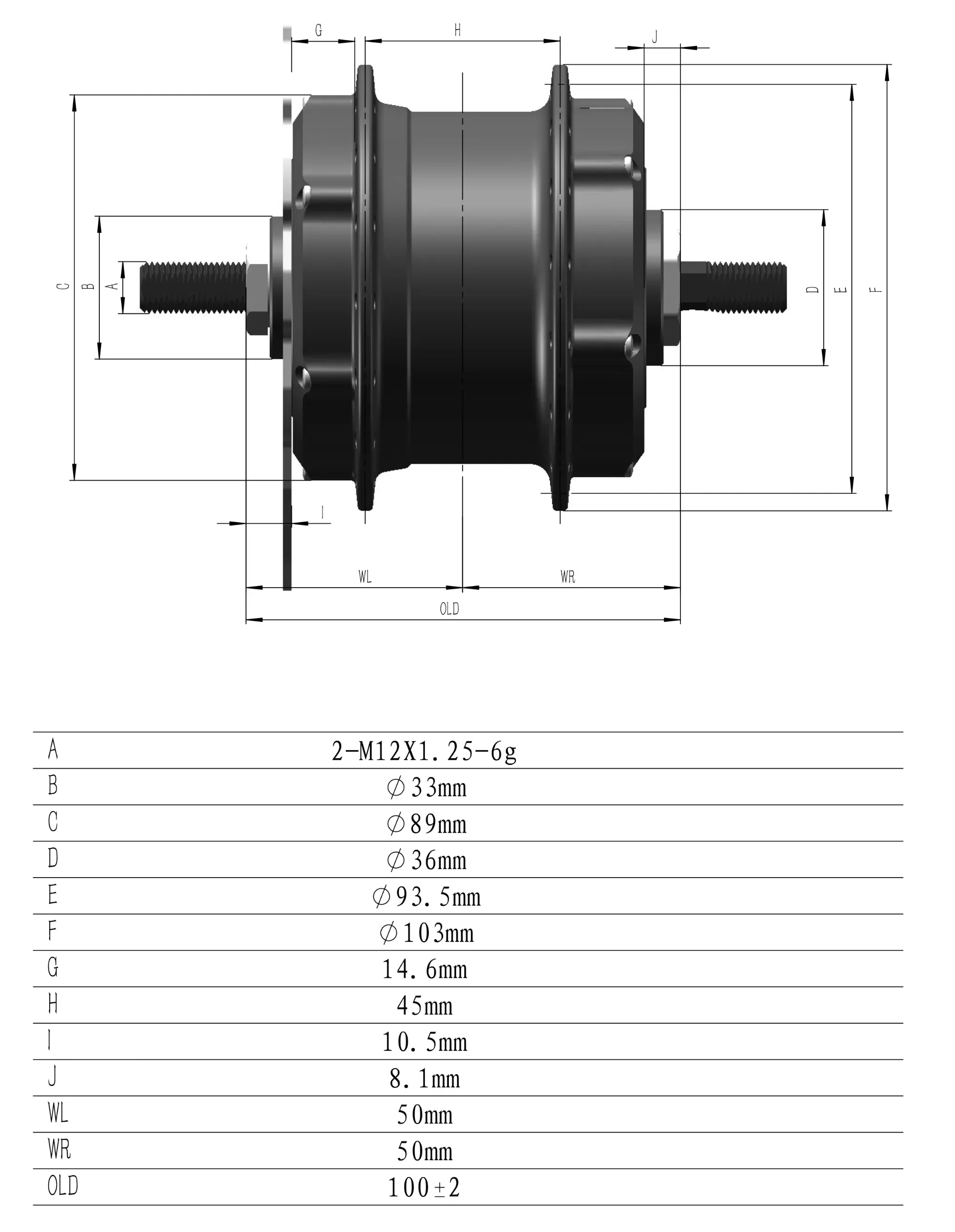

P100 E-bike Front Hub Motor Dimension

Product Advantages

One of the significant advantages of the Raydafon P100 E-bike Front Wheel Hub Motor is its built-in controller. This feature eliminates the need for a separate controller device, making the motor more compact and easier to install.Another advantage is the motor's wireless pedal sensor, which can accurately detect the cyclist's pedaling force and adjust the motor's power output accordingly. This feature ensures a more natural and comfortable riding experience as the motor seamlessly integrates with the cyclist's pedaling.The motor's easy installation and disassembly process make it a convenient choice for e-bike enthusiasts who prefer to do their bike maintenance. With its maximum power of 750W and torque exceeding 40N??m, this motor can power your e-bike through steep inclines and challenging terrains with ease. The motor's high efficiency of ??90% ensures that most of the battery's power is converted into mechanical power, optimizing the e-bike's range and performance. In addition, the motor's wireless control feature adds a layer of convenience by allowing you to easily adjust the motor's settings without having to deal with cumbersome wires.

P100 Front Hub Motor Applications

The P100/P110 front hub motors are versatile and can be used in a variety of e-bike applications. Here are some of the common uses of these motors:

1. Commuting: E-bikes equipped with P100/P110 front hub motors are often used for daily commuting. The motor's power assistance makes it easier to cover long distances and navigate through hilly terrains.
2. Urban Riding: With their smooth acceleration and power assistance, these motors are perfect for riding in busy city streets and congested traffic.
3. Recreation and Leisure: Whether you're exploring trails, cruising scenic routes, or enjoying outdoor adventures, these motors can enhance your riding experience with their extra power boost.
4. Delivery Services: Many food delivery services and courier companies prefer e-bikes with these motors for their efficiency and navigability in urban environments.
5. Tourism and Sightseeing: E-bikes equipped with these motors are commonly used for sightseeing. They enable tourists to explore cities and attractions with ease.
6. Electric Bike Sharing Programs: Bike-sharing programs often use e-bikes with these motors for their convenience and easy-to-ride nature.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is a critical component of an e-bike system. Here's a brief overview of how this system works:

1. Power Source: The system includes a rechargeable battery pack that provides electrical energy to the motor.
2. Motor Controller: This device manages the flow of electricity from the battery to the motor. It interprets input from the rider through the throttle or pedal-assist sensor and adjusts the motor's power output accordingly.
3. Torque Sensor or Throttle: The system can include a torque sensor to measure the force applied to the pedals or a throttle to allow the rider to control the motor's power output directly.
4. Motor Assistance: When the rider pedals or activates the throttle, the motor controller sends the appropriate amount of power to the front hub motor.
5. Front Hub Motor: Located in the front wheel hub, the motor generates rotational force (torque) that propels the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel through integrated gears, allowing the e-bike to accelerate or maintain a consistent speed.
7. Regenerative Braking (optional): Some e-bike systems with these motors have regenerative braking capabilities. When the brakes are applied, the motor converts the e-bike's kinetic energy back into electrical energy, which is stored in the battery for later use.
8. Display and Control Unit: This unit, typically mounted on the handlebars, provides the rider with information such as speed, battery level, and assistance level. It also allows the rider to adjust settings and control the motor's assistance level.

Choosing the Right P100/P110 Front Hub Motor

When choosing the right P100/P110 front hub motor for your e-bike system, several factors should be considered:

1. Power and Torque: The motor's power and torque output will determine the level of assistance it provides. Consider your riding needs and terrain when choosing a motor.
2. Efficiency: A highly efficient motor will offer longer battery life and better performance.
3. Compatibility: Ensure that the motor you choose is compatible with your e-bike system. Check the motor's specifications and compare them with your battery and motor controller specifications.
4. Wheel Size: The motor should fit the specific wheel size of your e-bike. Common sizes include 26 inches, 27.5 inches, and 29 inches.
5. Weight and Size: The weight and size of the motor can affect the overall weight distribution and handling of your e-bike. Consider these factors when choosing a motor.

Maintaining Your P100/P110 Front Hub Motor

Proper maintenance of your P100/P110 front hub motor can ensure its longevity and optimal performance:

1. 1. Regular Cleaning: Wipe down the motor regularly with a damp cloth to remove dirt and debris.
   2. Inspection: Periodically inspect the motor for signs of damage or wear. Check the cables, connectors, and wiring for security and damage.
   3. Lubrication: Some motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines for lubrication.
   4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, such as proper charging procedures and storage guidelines.
   5. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension. Have any issues addressed by a qualified bike mechanic.

1. Water and Moisture Protection: Avoid exposing the motor to excessive moisture and water. Use fenders and avoid deep puddles when riding in wet conditions.

Why Choose Raydafon's P100/P110 Front Hub Motor?

Established in 1993, Raydafon Electric Technology Co., Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. With professional production and testing equipment, advanced production lines, and a complete quality management system, Raydafon strives to provide the best products in the market.All of Raydafon's products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. Our products are CE-certified and renowned for their reliable quality, exquisite craftsmanship, and stylish design. They are suitable for all kinds of bikes and can provide electric power support for bicycles, making riding more convenient, easy, and environmentally friendly.If you are seeking high-end electrical components for electric bicycles, Raydafon is the best choice. We provide customized services to meet your specific needs. Our after-sales service is located in Germany or China, allowing you to choose the most convenient location. We accept payments through T/T, L/C, D/C, Paypal, Western Union, etc.We look forward to working with you to promote the development of the electric bicycle industry and contribute to environmental protection.

Product Demonstration Video

For a better understanding of the P100/P110 front hub motor, check out our product demonstration video:Author: Yjx
