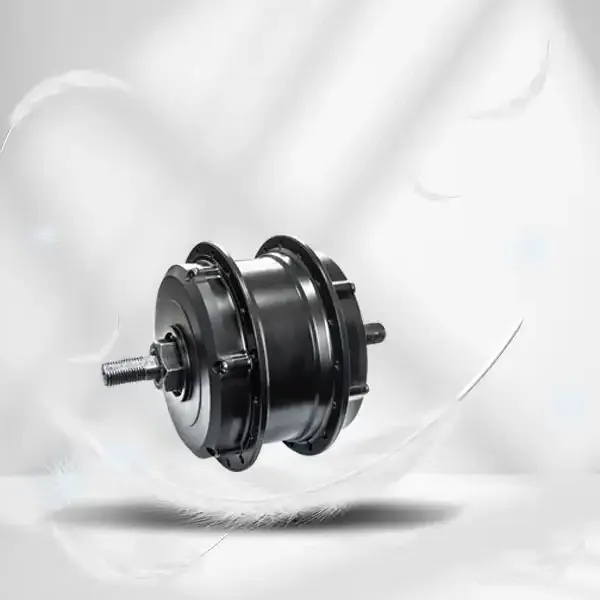

Raydafon P110 Front Motor with controller 250w bike kit electric bike motor

The Raydafon P110 is a powerful front hub motor designed for electric bikes. Its standout features include a built-in controller, wireless pedal sensor, and wireless control, providing an effortless riding experience for e-bike users. With a rated output power of 250W and efficiency of over 90%, it delivers superior performance and energy-saving benefits.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Advantages of the Raydafon P110 Front Hub Motor

The P110 Front Hub Motor comes with numerous advantages that set it apart from other e-bike motors in the market. These include:

1. Built-in controller: This feature eliminates the need for external controllers, simplifying the setup and reducing the number of components required.
2. Wireless pedal sensor: The wireless sensor enhances the e-bike's responsiveness, providing immediate assistance based on the rider's pedal force.
3. Easy to install & disassemble: The motor is designed for easy installation and disassembly, saving time and effort for both manufacturers and end-users.
4. Max. power 750W, torque exceeds 40N??m: Despite its compact size, the P110 motor packs a punch, with a maximum power of 750W and a torque exceeding 40N??m.
5. Efficiency ??90%: The motor operates at a high efficiency of over 90%, optimizing energy use and extending the e-bike's range.
6. Wireless control: The wireless control feature offers a seamless riding experience, allowing riders to easily adjust motor assistance levels.

We can produce the P110 Front Hub Motor with these specifications, ensuring a high-quality, high-performance product for our customers.

Applications of the P110 Front Hub Motor

The P110 front hub motor finds extensive applications in a variety of e-bike models, each catering to different uses and environments. Here are some common applications:

1. Commuting: The motor is a popular choice for commuting e-bikes, offering riders the necessary power to cover long distances and tackle steep gradients.
2. Urban Riding: Its smooth acceleration and power delivery make it ideal for navigating through busy city streets and congested traffic.
3. Recreation and Leisure: The motor provides a power boost for recreational riding, whether it's trail exploration, scenic route cruising, or outdoor adventures.
4. Delivery Services: Food delivery services and courier companies often choose e-bikes equipped with the P110 motor for their efficiency and agility in urban environments.
5. Tourism and Sightseeing: The motor is a common choice for e-bikes in the tourism industry, allowing tourists to explore cities and attractions with ease.
6. Electric Bike Sharing Programs: Bike-sharing programs often feature e-bikes with the P110 motor, offering users convenient and efficient short-term transportation solutions.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor plays a vital role in the overall working of the e-bike system. Here's a general overview of the system's functioning:

1. Power Source: The system includes a rechargeable battery pack that supplies electrical energy to the motor.
2. Motor Controller: The controller manages the flow of electricity from the battery to the motor. It interprets input from the rider, such as throttle activation or pedal force.
3. Torque Sensor or Throttle: The system can include a torque sensor, measuring the force applied to the pedals, or a throttle for direct control over motor power output.
4. Motor Assistance: Based on the rider's input, the controller sends the appropriate amount of power to the motor, assisting the rider's effort.
5. Front Hub Motor: The motor, located in the front wheel hub, generates rotational force (torque) that propels the e-bike forward.
6. Power Transmission: The motor's torque is transmitted to the wheel through gears integrated into the hub motor, causing the e-bike to move.
7. Regenerative Braking (optional): Some systems feature regenerative braking, converting kinetic energy back into electricity during braking and storing it in the battery.
8. Display and Control Unit: A handlebar-mounted display and control unit provides ride data and allows the rider to adjust motor assistance levels.

Choosing the Right P100/P110 Front Hub Motor for Your Ebike System

Here are some factors to consider when choosing the right P100/P110 front hub motor for your e-bike system:

1. Power and Torque: Consider your riding needs and the terrain. Higher power and torque motors may be necessary for steep hills or additional power needs.
2. Efficiency: High-efficiency motors offer longer battery life and improved riding experience.
3. Compatibility: Ensure the motor's specifications match with your battery and motor controller specifications.
4. Wheel Size: The motor should fit the wheel size of your e-bike for optimal performance and proper fit.
5. Weight and Size: Consider the motor's weight and size as it can affect the e-bike's weight distribution and handling.

Maintenance of the P100/P110 Front Hub Motor

Regular maintenance of the P100/P110 front hub motor is crucial for its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Wipe down the motor regularly to remove dirt and debris.
2. Inspection: Regularly inspect the motor for signs of damage, loose connections, or wear.
3. Lubrication: Some motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines for appropriate use.
4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, such as proper charging procedures and storage guidelines.
5. Wheel Maintenance: Regularly inspect the wheel for alignment, trueness, and spoke tension.
6. Water and Moisture Protection: Protect the motor from excessive moisture and avoid submerging it in water.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. specializes in the R&D, manufacturing, and global marketing of high-end electric bicycle parts. All our products, including the P100/P110 front hub motor, are designed and developed in-house, protected by a number of domestic and international intellectual property rights.We have introduced professional production and testing equipment, advanced production lines, and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life" and the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes.All our products are CE-certified and protected by independent intellectual property rights. Our products are renowned for their reliable quality, exquisite craftsmanship, and stylish design. They are suitable for all kinds of bikes and designed to make riding more convenient, easy, and environmentally friendly.If you are seeking high-end electrical components for electric bicycles, or if you would like to contribute to environmental protection, we warmly welcome global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.
