Raydafon P130 Ebike Brushless Motor Easy Conversion: 2 Years Warranty

Experience high-end performance and quality with the Raydafon P130 Ebike brushless motor. This robust model provides an easy conversion solution for your e-bike, complete with a two-year warranty. It boasts a two-round style with a model number of P130. The product's sleek design comes in a black and silver color scheme. Its rated power is 250W with a 30V voltage. The motor houses the battery within, ensuring a compact and efficient setup. This product is shipped in a carton box with bubble packaging for maximum protection during transit. Ports include Shanghai, Ningbo, and Shenzhen.

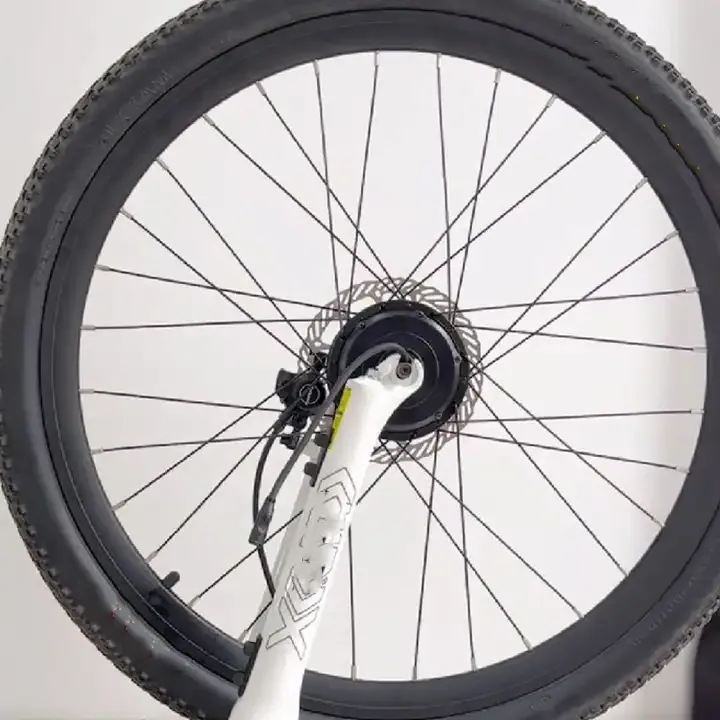

P130 ALL-IN-ONE Rear Hub Motor Specifications

Item No.	P130SWXRDC30/P130SWXRC30
Diameter	143mm±1mm
Width	135±2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Free-wheel types	Cassette & Whirl
Gears	1-12s
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Internal
Battery	7Ah
Rated power	250W
Max. power	300W
Max. torque	30N·m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	＜50dB
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.7KGS

P130 ALL-IN-ONE Rear Hub Motor Dimension

Advantages of the Raydafon P130 Ebike Brushless Motor

The Raydafon P130 Ebike brushless motor comes with several advantages that make it a compelling choice for your e-bike conversion. These advantages include:

1. 1. Built-in 7Ah battery, controller, and sensor: This all-in-one design simplifies installation and minimizes maintenance needs. It also ensures a sleeker appearance for your e-bike.
   2. Dynamic torque sensing system: This feature allows the motor to adapt to the rider's pedaling force, providing optimal assistance and ensuring a smooth and comfortable ride.
   3. Slope induction system: This feature detects when you're riding uphill and increases motor assistance accordingly, making hill-climbing easier and more enjoyable.
   4. Support for extended range battery: If you need to cover long distances on your e-bike, the motor can accommodate an extended range battery.
   5. Support for GPS positioning: This feature can be very useful for tracking your rides or in case your e-bike gets lost or stolen.
   6. Wireless control: No wires to clutter up your handlebars or to get tangled up. Wireless control makes operation simpler and neater.

The Raydafon P130 Ebike brushless motor is manufactured by Zhejiang Chaoji Electric Technology Co. Ltd., a company renowned for its commitment to high-quality e-bike components.

Applications of the Raydafon P130 Ebike Brushless Motor

The P30/P160 ALL-IN-ONE Rear Hub Motor, which includes the Raydafon P130 model, is a versatile piece of equipment that can be used in various applications:

1. Electric Bike Conversion: The P30/P160 motor can transform a regular pedal bike into an electric bike, enhancing its performance and the overall riding experience.
2. Commuting: This motor is perfect for commuting, making it easier to cover longer distances and tackle hilly terrains.
3. Eco-friendly Transportation: Electric bikes powered by the P30/P160 motor are an environmentally friendly option for short to medium-distance commuting.
4. Recreational Riding: Enhance your recreational riding experiences, whether it's exploring off-road trails or enjoying leisurely rides.
5. Cargo and Delivery Services: Electric cargo bikes equipped with the P30/P160 motor can be used for commercial purposes, allowing businesses to transport goods efficiently in traffic-heavy urban areas.
6. Fitness and Health: E-bikes require the rider to pedal, and the P30/P160 motor can be used to find a balance between exercise and assistance.

How Does the ALL-IN-ONE Rear Hub Motor for Ebike System Work?

The ALL-IN-ONE Rear Hub Motor for e-bikes, including the P30/P160 model, consists of integrated components that work together to provide electric assistance to the rider. Here's a general overview of how this system works:

1. Motor: The heart of the system, the motor generates the necessary torque and power to propel the e-bike forward.
2. Controller: This component manages the operation of the motor, regulating the flow of electric current from the battery to the motor.
3. Battery: The battery stores and supplies electrical energy to the motor and can be recharged using a charger connected to a power source.
4. Sensors: The system includes sensors that provide feedback and optimize the motor's performance.
5. User Interface: This allows the rider to select different power modes, monitor battery level, and access other relevant information.
6. Electric Assistance: When the rider begins to pedal, the sensors detect the pedaling force and send a signal to the controller, which determines the appropriate level of electric assistance.

Choosing the Right ALL-IN-ONE Rear Hub Motor for Your Electric Bicycle

Choosing the right ALL-IN-ONE Rear Hub Motor for an electric bicycle depends on several factors. Here are some key considerations to help you make an informed decision:

1. Power and Torque: Evaluate the power and torque output of the motor. Higher power and torque ratings generally provide better acceleration and climbing abilities.
2. Battery Voltage and Capacity: Check the voltage and capacity of the battery that is compatible with the motor.
3. Assistance Modes: Different motors offer various assistance modes, such as pedal-assist (PAS) or throttle control.
4. Compatibility: Ensure that the motor is compatible with your bicycle frame and wheel size.
5. Weight: Consider the weight of the motor as it affects the overall weight distribution of the e-bike.
6. Integration and Ease of Installation: Look for motors that offer a plug-and-play installation and have clear instructions or support available.

Maintaining Your ALL-IN-ONE Rear Hub Motor

Proper maintenance of an ALL-IN-ONE Rear Hub Motor for an electric bicycle is important to ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the motor clean and free from dirt, dust, and debris.
2. Check and Tighten Bolts: Periodically inspect the motor and its mounting bolts to ensure they are secure.
3. Lubrication: Some ALL-IN-ONE Rear Hub Motors may require periodic lubrication.
4. Battery Maintenance: Follow the battery manufacturer's guidelines for maintenance, charging, and storage.
5. Sensor Alignment: Periodically check their alignment.
6. Inspect Wiring: Check the wiring connections leading to and from the motor for any signs of damage.
7. Brake Adjustment: Ensure that the brake system is properly adjusted.

Why Choose Raydafon's ALL-IN-ONE Rear Hub Motor for Electric Bicycle?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Watch Our Videos to Learn More:[embed]https://www.youtube.com/embedZ3rT9dG_4wI[/embed]Author: Yjx.
