RC Series Shaft Input Helical Gearbox with B5 Flange Mounted

Discover the RC Series Shaft Input Helical Gearbox with B5 Flange Mounted from Raydafon Group—a precision-engineered solution for robust industrial motion control. This helical gearbox delivers quiet, efficient power transmission, ideal for machinery and automation setups. Crafted with durable materials and advanced helical gearing, it ensures smooth operation and extended lifespan, reducing downtime. Perfect for engineers and manufacturers seeking reliable performance in demanding environments, it solves vibration and noise issues, offering peace of mind. Stand out with its compact B5 flange design for easy integration, outperforming standard gearboxes. Elevate your projects with Raydafon Group’s trusted innovation today!

Send Inquiry

Product Description

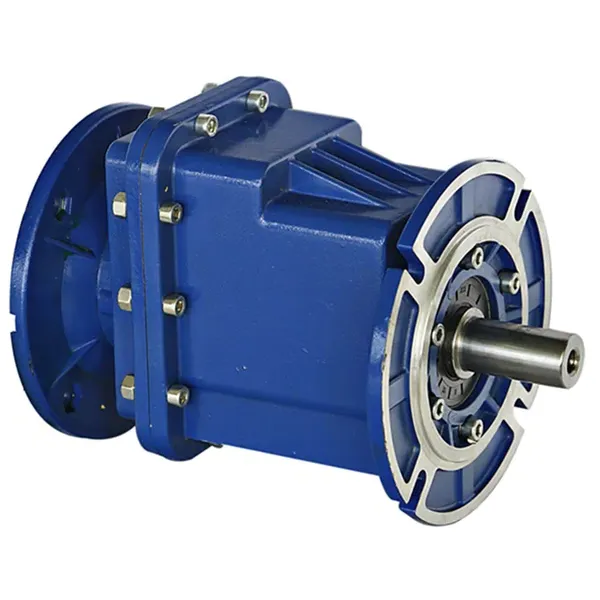

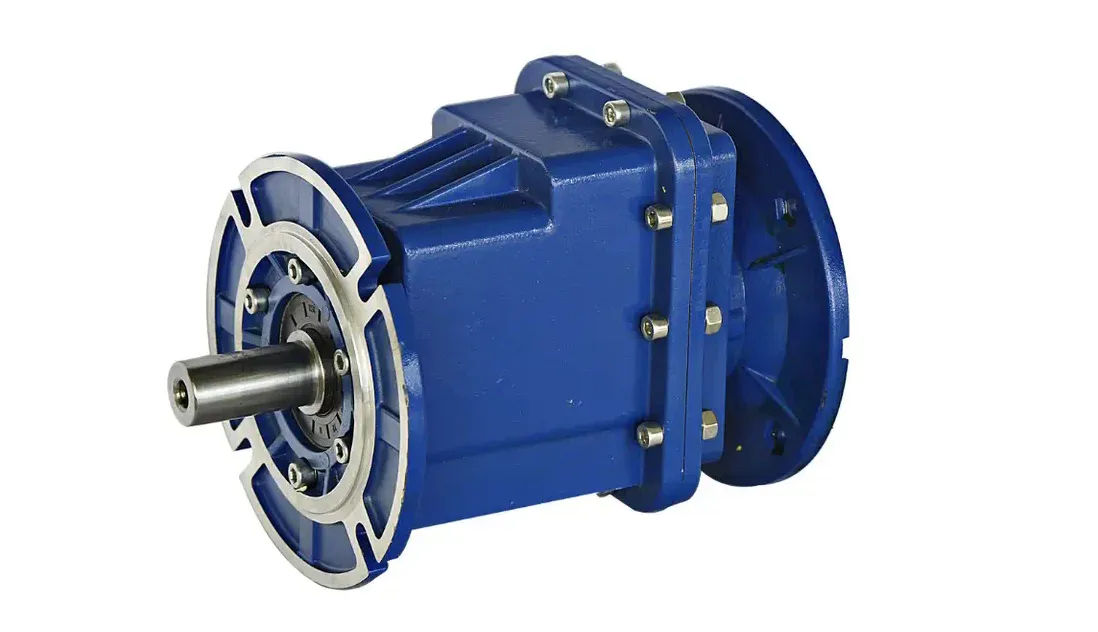

RC Series Shaft Input Helical Gearbox with B5 Flange Mounted

RC series helical gearbox is a new generation product designed based on the modular system, and It can be connected respectively with motors such as IEC standard motor, brake motor, explosion-proof motor, frequency motor, servo motor, and so on. it has 4 types(01-02-03-04),power from 0.12kw to 4.0kw, ratio from 3.66 to 58.09, Max torque from 120Nm to 500Nm.It can be connected discretionary(foot or flange) and use multi-mounting positions accordingly. RC series helical gearbox is widely used in textile, foodstuff, beverage, tobacco, logistics, industrial fields, etc.

RC Series Shaft Input Helical Gearbox Specifications:

Housing	Aluminum Alloys
Gears	Hardened Helical Gears
Input Configurations	Hollow Shaft with IEC Normalized Motor FlangeSolid Shaft Input
Applicable Motors	IEC-normalized Motors and Brake MotorsExplosion-proof MotorsInverter MotorsServo Motors
Output Configurations	Solid Shaft with B5 Output FlangeSolid Shaft with B14 Output Flange
Models	RCF(B5 Flange-mounted): RCF01,RCF02,RCF03,RCF04
Input power	0.12kW ~ 4kW
Input speed	750rpm ~ 3000rpm
Reduction ratio	1/3.66 ~ 1/54
Torque	120N.m ~ 500N.m
Material of housing	Aluminum Alloys
Precision of gear	Accurate grinding, class 6
Heat treatment	Carburizing and quenching

RC Series Shaft Input Helical Gearbox Parts Drawing:

RC Series Shaft Input Helical Gearbox Features:

1. Modular design, dismountable frame foot, optional different frame sizes and flanges2. Aluminum housing, compact structures, lightweight3. Carburizing and grinding hardened gears, sturdy and durable4. Multiple mounting positions5. Low noise

RC Series Shaft Input Helical Gearbox Applications:

RC series helical gearbox is widely used in the textile, food, ceramics, packaging, logistics, and plastics industry. RC Series Shaft Input Helical Gearbox with B5 Flange Mounted

RC Series Shaft Input Helical Gearbox Mounting Position:

We Also Provide Other Series of Helical Gearbox:

Helical Gearbox Manufacturer in China

As one of the top helical gearbox manufacturers in china, Raydafon offers superior efficiency helical gearboxes widely used in applications where high shock load is required. The helical gearbox includes a set of helical gears. These helical gears are used as power transmitting gears, cylindrical gears, with the slanted form of tooth trace. These teeth are cut at an angle to the hole (axis), and the line of contact between the two teeth is inclined. This gradual engagement of teeth from one end of the tooth to the other makes the gears function smoothly without noise.In comparison with spur gears, helical gears have a higher contact level; because of their lower dynamics, they can carry larger loads. The helical gearbox is manufactured with high-quality material and excels in quietness as its noise and vibration levels are very low. We also produce RV series worm gearboxes, WP series worm gearboxes, X/B series cycloidal gearboxes, R/F/S/K series helical gearboxes, ATA series shaft-mounted gearboxes, SMR series shaft-mounted gearboxes, etc. RC Series Shaft Input Helical Gearbox with B5 Flange Mounted
