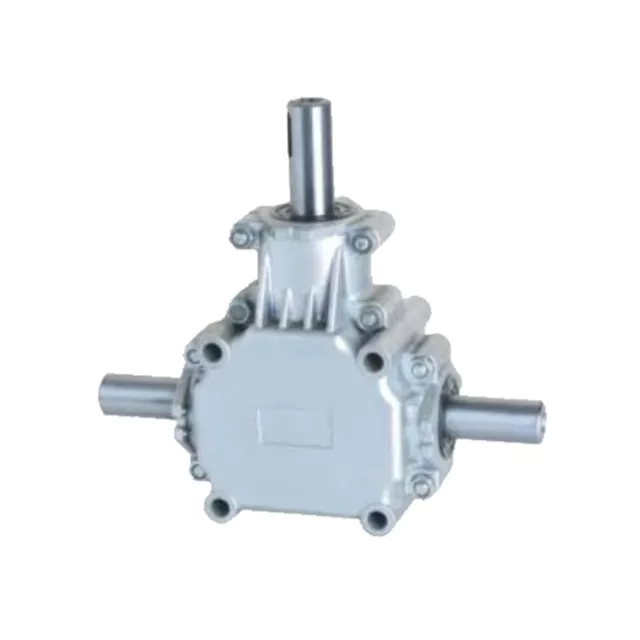

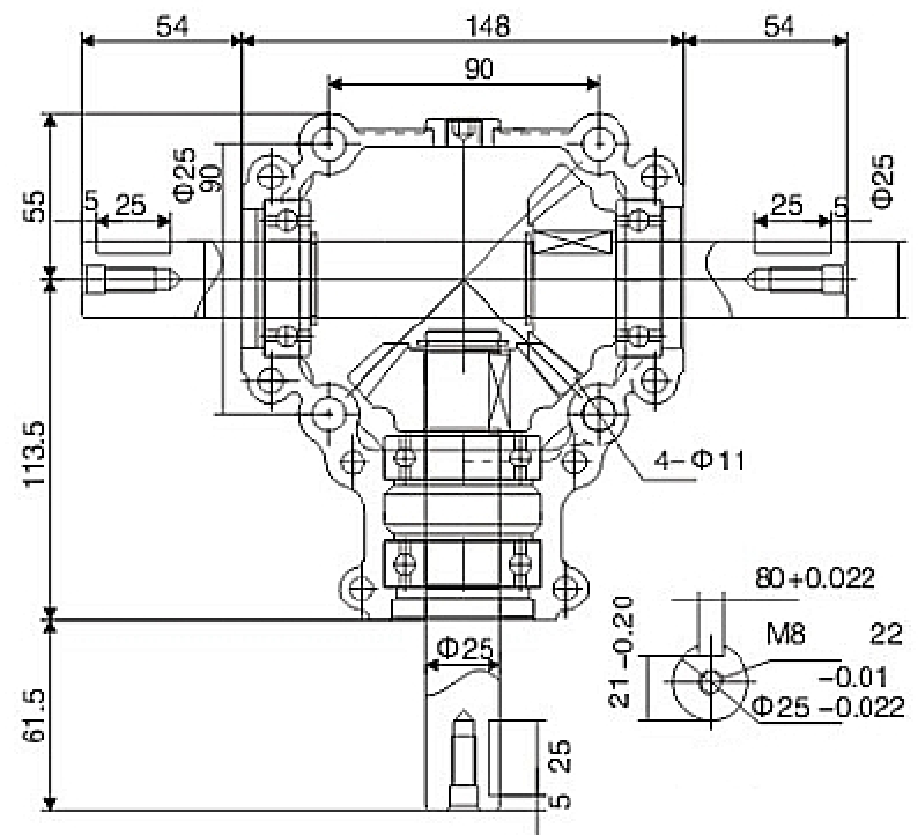

RDF-RV010 Aluminum Box Gearbox for Agricultural Fertilizer Sprayers

RDF-RV010 Aluminum Box Gearbox for Agricultural Fertilizer Sprayers



ITEM	RDF-RV010
Ratio	1:1 / 1:1.35 / 1:1.9 / 3.3:1
Teeth	16/16  17/23  10/19  10/33
Module	4.5 / 3.5 / 4.5 / 2.5
Power（HP）	15/13/15/3
Rated Input	450rpm
Input/Output description	1 3/8 Z6 OPtic axis
Weight（N.W）	4Kg

RV series multi-purpose gearbox, with power up to 200 kW at 540r. p. M. stable operation, high transmission efficiency, and long-term operation- Bevel gears are made of high-quality low-carbon alloy steel and carburized and quenched- Carburized and hardened or hardened and tempered shafts- One-piece cast iron housing for maximum strength and precise positioning of internal components- Sealing ring with anti-rust lip. High-reliability high-quality bearing.Multi-purpose transmission with a transmission ratio of 1.93 to 5.33, used as multiplier or reducer. Typical applications: flail mower, straw chopper, 540r power up to 107 kW. p. Stable operation, high transmission efficiency, and long-time operation.

Customized service of agricultural gearbox

◆ Can according to your Drawings or samples to manufacturing the exact products as your requirements.◆ Imported our products to many countries, we have advanced technical support with strict quality control.◆ Small quantities can be accepted with a fast delivery time.Hzpt is an enterprise specialized in manufacturing all kinds of gearboxes, worm gearboxes, chains, and cylinders. We have more than 10 years of experience in this industry. We have our own design department and testing laboratory. We can produce high-quality products according to your requirements or samples. According to your request, we can accept large orders.

We Also Supply PTO Shafts

The agricultural gearbox and PTO shaft are two components of a tractor that work together to transmit power. The PTO shaft rotates at 540 to 1,000 rpm. The agricultural gearbox and PTO shaft are connected by yokes at both ends. Depending on the application, they may have a higher or lower torque rating. As a professional agricultural machinery parts supplier, we also offer a wide range of PTO shafts for sale. Contact us now to get more info!

Other Agricultural Gearboxes

Raydafon provides agricultural solutions to global agricultural machinery manufacturers and dealers through a full range of spiral bevel gearboxes, straight bevel gearboxes, straight gearboxes, and drive shafts. Products such as sheet metal, hydraulic cylinders, motors, tires, worm gearboxes, and worm operators can be customized according to customer requirements. Raydafon machinery has established a perfect quality management system and sales service network to provide customers with high-quality products and satisfactory services. Our agricultural gearboxes are sold to 40 provinces and cities in China and 36 countries and regions in the world. Our main market is the European market.

Agricultural Gearbox Production Workshop

Hzpt is a China company specializing in the development and production of various gearboxes. Its products are exported to the United States, Canada, Taiwan, northern Europe, and other places. Hzpt has set up a high-performance design department, testing laboratory, and testing center. Hzpt has established a strong professional technical team. Hzpt has passed ISO9001 certification. All employees of golden gear have established a strict quality control system based on their skills, integrity, and sense of responsibility. The golden gear always insists on providing customers with high-quality products and professional services.Hzpt provides agricultural solutions to global agricultural machinery manufacturers and dealers through a full range of spiral bevel gearboxes, straight bevel gearboxes, straight gearboxes, and drive shafts. Products such as sheet metal, hydraulic cylinders, motors, tires, worm gearboxes, and worm operators can be customized according to customer requirements. Hengli machinery has established a perfect quality management system and sales service network to provide customers with high-quality products and satisfactory services. Our products are sold to 40 provinces and cities in China and 36 countries and regions in the world. Our main market is the European market
