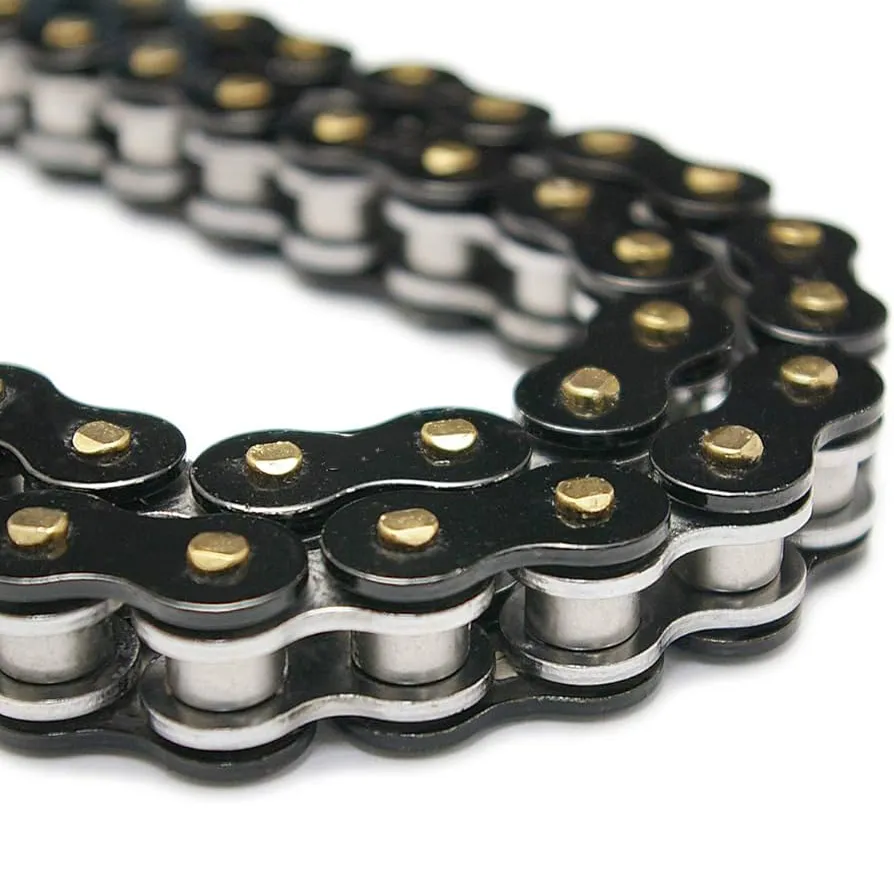

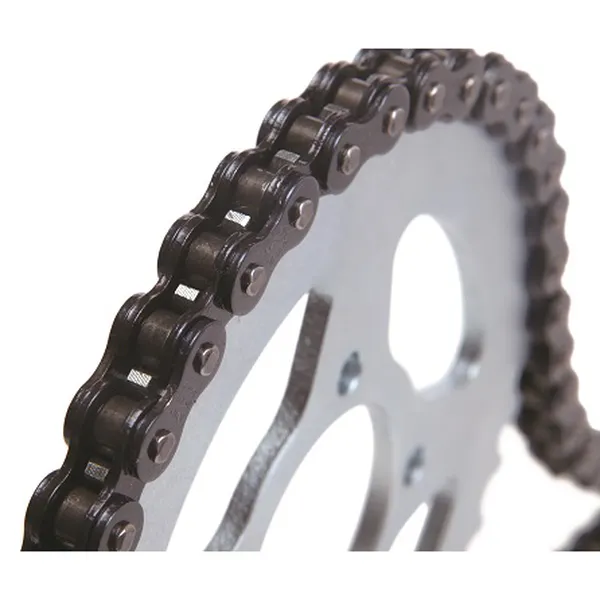

Reinforced Motorcycle Chain

Reinforced Motorcycle Chain

A reinforced motorcycle chain is a type of motorcycle drive chain that has been designed to be stronger and more durable than a standard motorcycle chain. This is achieved by using a variety of different methods, such as using thicker materials, stronger rivets, and special seals to keep dirt and moisture out.

Reinforced motorcycle chains are typically more expensive than standard motorcycle chains, but they can last much longer and can handle more power and torque. This makes them a good choice for riders who use their motorcycles for demanding applications, such as racing, off-road riding, or touring with a lot of luggage.

Reinforced Motorcycle Chain Sizes Chart:

Chain No.	Pitch	Bush Type	Width	Pin Dia	Pin Length	Roller Dia	Plate Thickness Inner	Plate Thickness Outer	Tensile Strength	Weight
	mm		mm	mm	mm	mm	mm	mm	KN	kg/m
415H	12.700	Curled	4.76	3.96	13.00	7.76	1.50	1.50	15.6	0.53
420H	12.700	Curled	6.35	3.96	16.00	7.77	1.80	1.80	18.0	0.69
428H	12.700	Curled	7.85	4.45	18.75	8.51	2.03	2.03	20.6	0.82
520H	15.875	Curled	6.35	5.08	19.00	10.16	2.40	2.35	30.5	1.04
525H	15.875	Curled	7.94	5.08	20.90	10.16	2.40	2.35	30.5	1.09
530H	15.875	Curled	9.53	5.08	22.10	10.16	2.40	2.35	30.4	1.15

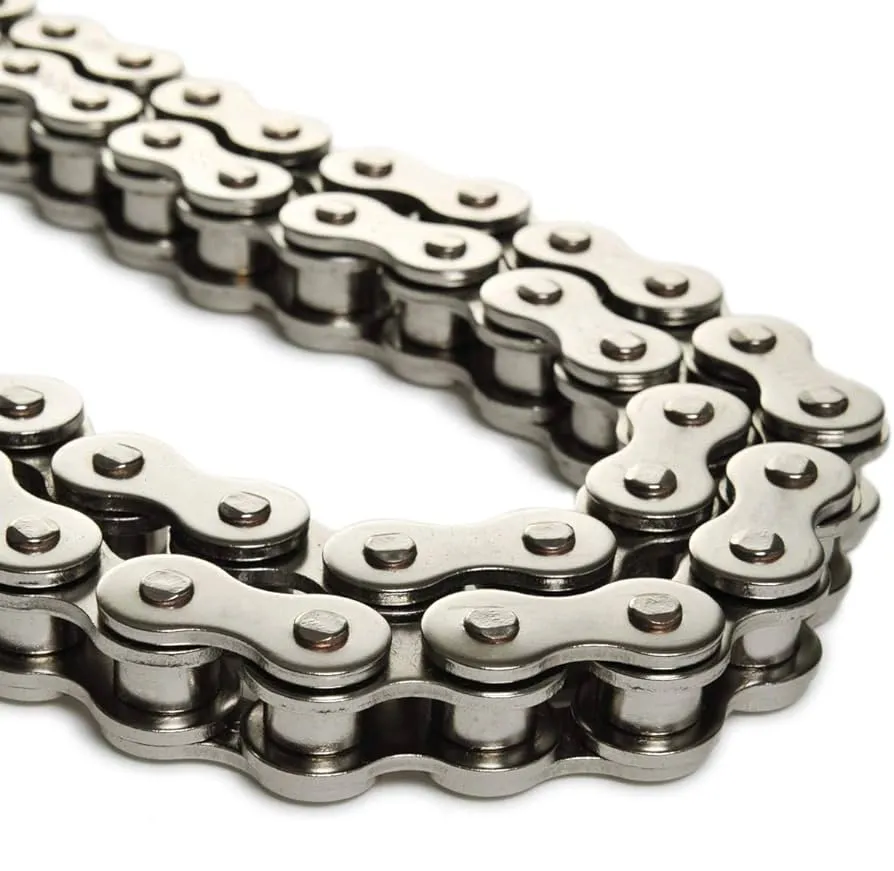

Features of Reinforced Motorcycle Chain:

Reinforced motorcycle chains are designed to withstand higher loads and more extreme conditions than standard motorcycle chains. They are typically made with stronger materials and have a more robust construction. This makes them a good choice for high-performance motorcycles, off-road riding, and other demanding applications.

Here are some of the key features of reinforced motorcycle chains:

1. Stronger materials:?Reinforced motorcycle chains are typically made with stronger materials than standard chains, such as high-carbon steel or alloy steel. This makes them more resistant to wear and tear, and less likely to break under load.2. More robust construction:?Reinforced motorcycle chains also have a more robust construction than standard chains. This may include features such as thicker plates, larger pins, and reinforced rivets. This makes them more resistant to shock and impact loads.3. O-ring or X-ring seals:?Many reinforced motorcycle chains are also equipped with O-ring or X-ring seals. These seals help to keep lubricant inside the chain and dirt and debris out. This helps to extend the life of the chain and reduce the need for maintenance.4. Longer service life:?Reinforced motorcycle chains typically have a longer service life than standard chains. This is because they are made with stronger materials and have a more robust construction.5. Increased durability:?Reinforced motorcycle chains are also more durable than standard chains. This makes them a good choice for demanding applications such as high-performance riding and off-road riding.6. Reduced maintenance requirements:?Reinforced motorcycle chains often require less maintenance than standard chains. This is because they are equipped with O-ring or X-ring seals, which help to keep lubricant inside the chain and dirt and debris out.

If you are looking for a motorcycle chain that can withstand high loads and extreme conditions, a reinforced motorcycle chain is a good option. Reinforced chains are typically more expensive than standard chains, but they offer a number of benefits, including longer service life, increased durability, and reduced maintenance requirements.

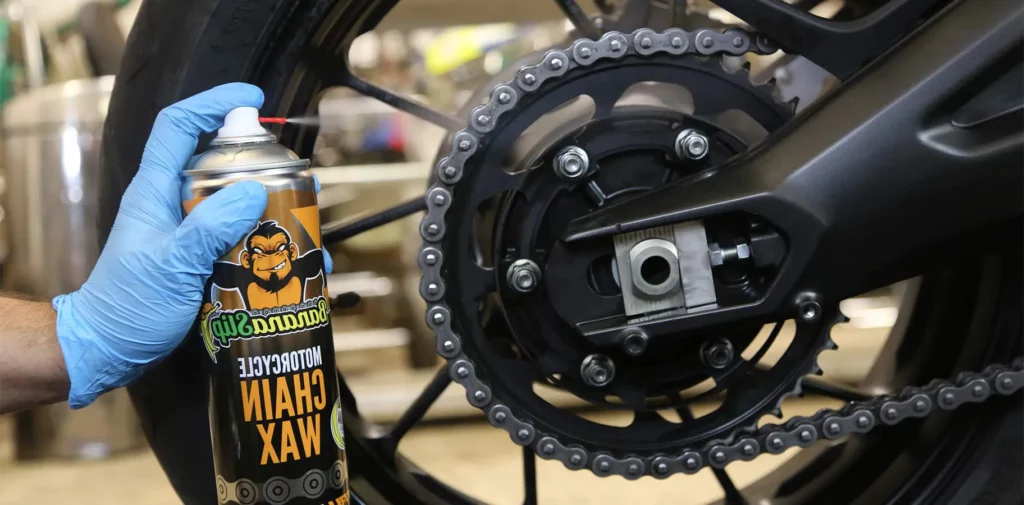

How to Lubricating a Motorcycle Chain?

To lubricate your motorcycle chain, you will need:

1. Put your motorcycle on the rear stand.
2. Apply a thin coat of chain lubricant to the inside of the chain, between the rollers and plates.
3. Rotate the rear wheel by hand to distribute the lubricant evenly.
4. Apply a thin coat of lubricant to the outside of the chain.
5. Wipe away any excess lubricant with a rag.
6. Place the cardboard behind the chain and spray the lubricant onto the chain and sprocket.
7. Rotate the rear wheel by hand to distribute the lubricant evenly.
8. Wipe away any excess lubricant with a rag.

Tips:

• Do not over-lubricate the chain. Too much lubricant can attract dirt and grime, and it can also fling off onto your rear tire, making it slippery.
• If you are riding in wet or dusty conditions, you may need to lubricate your chain more often.
• It is a good idea to clean your chain before lubricating it. This will help to remove any dirt and grime that has built up on the chain.
• There are many different types of chain lubricants available. Choose a lubricant that is specifically designed for motorcycle chains.

How often should you lubricate your motorcycle chain?

How often you need to lubricate your motorcycle chain will depend on a number of factors, including the type of chain, the riding conditions, and the climate. A good rule of thumb is to lubricate your chain every 400-800 miles, or more often if you are riding in wet or dusty conditions.

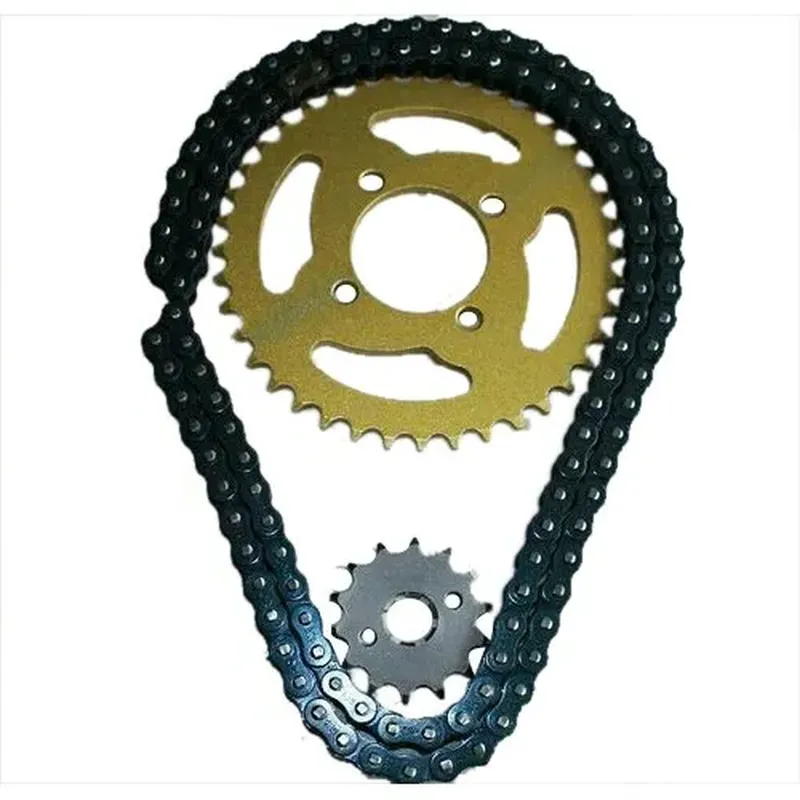

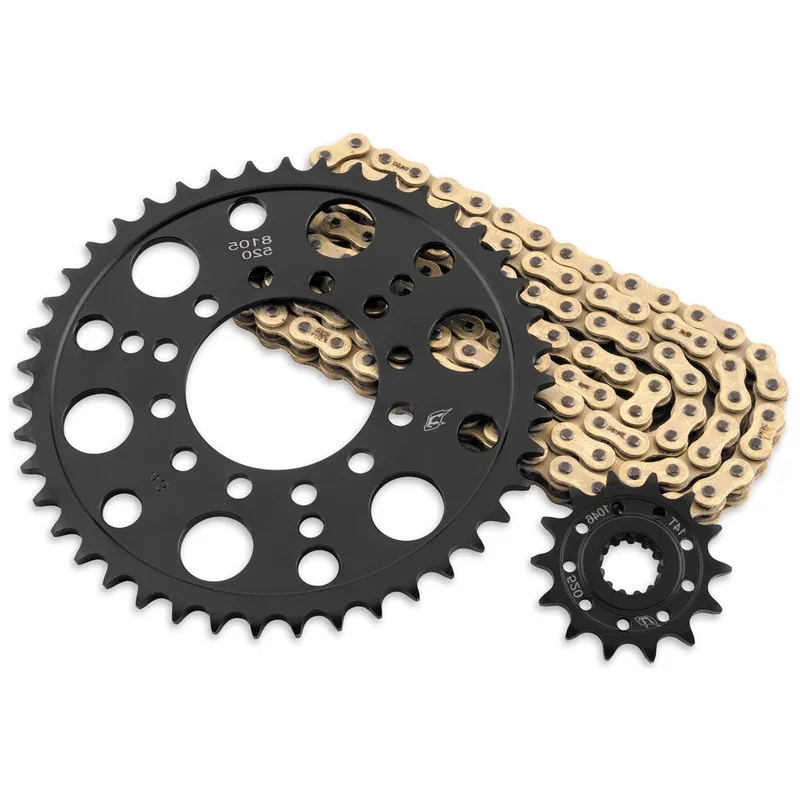

Motorcycle Sprockets for Motorcycle Chains:

Motorcycle sprockets and motorcycle chains are two of the most important components of a motorcycle's drivetrain. They work together to transfer power from the engine to the rear wheel.

Motorcycle sprockets are toothed wheels that are attached to the engine and rear wheel. The front sprocket is smaller than the rear sprocket, and this difference in size is what allows the motorcycle to accelerate and travel at different speeds.

Motorcycle sprockets are made from a variety of materials, but the most common are steel and aluminum. Steel sprockets are more durable, but they are also heavier. Aluminum sprockets are lighter, but they are not as durable.

Motorcycle chains are metal loops that connect the front and rear sprockets. They are made from a variety of materials, but the most common is steel. Motorcycle chains are available in different sizes, and the size of the chain depends on the size of the sprockets.

Motorcycle chains need to be lubricated regularly to prevent them from wearing out prematurely. If a motorcycle chain is not lubricated properly, it can stretch and become loose. This can cause the chain to jump off the sprockets, which can damage the engine and transmission.

Replacing Motorcycle Sprockets and Chains

Motorcycle sprockets and chains wear out over time, and they need to be replaced regularly. The frequency at which they need to be replaced depends on a number of factors, including the type of motorcycle, the riding conditions, and the maintenance schedule.

On average, motorcycle sprockets and chains should be replaced every 20,000 to 30,000 kilometers. However, if you ride your motorcycle hard or in dusty or dirty conditions, you may need to replace them more often.

It is important to replace both the sprockets and the chain at the same time. If you only replace one component, the new component will wear out prematurely.
