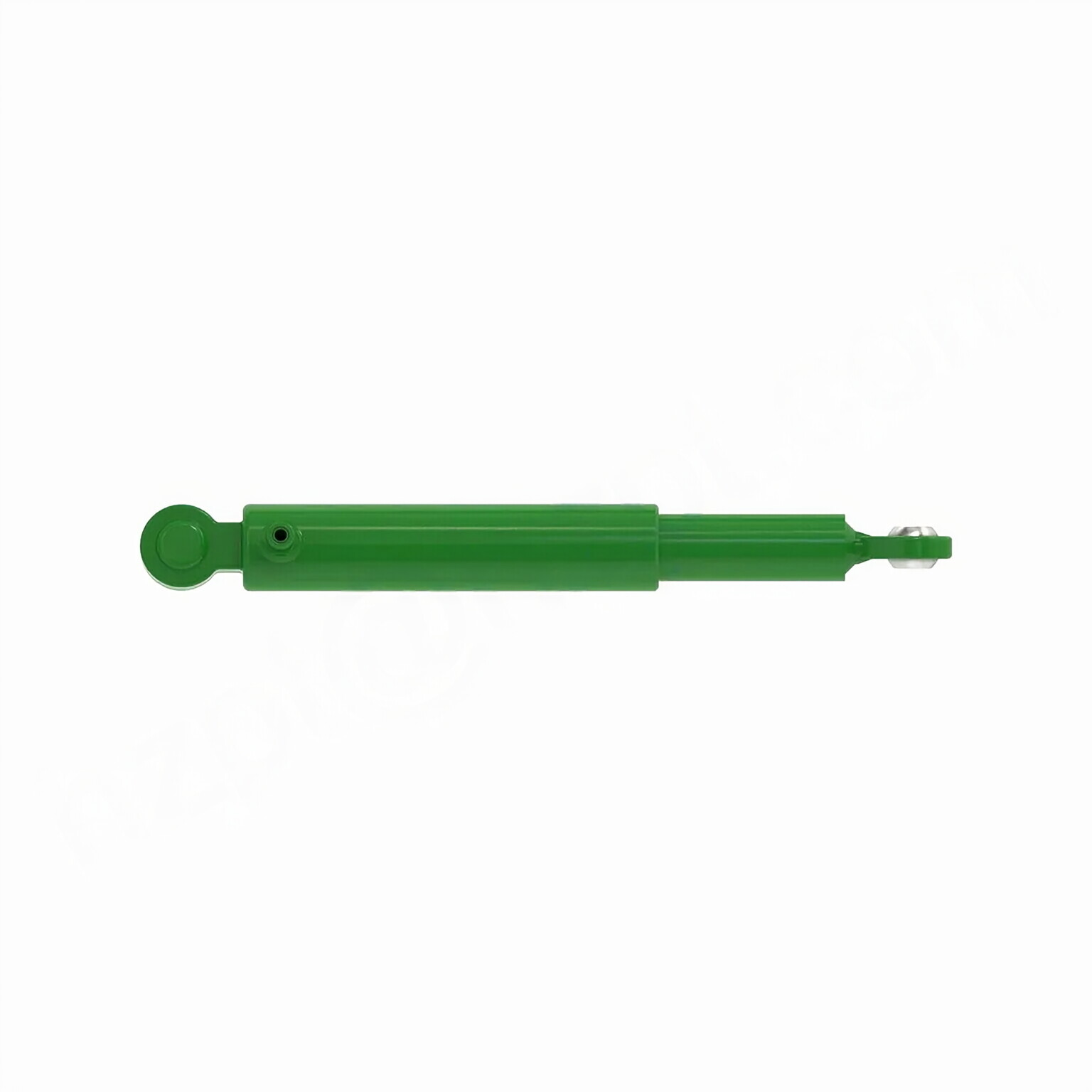

Replacement Of John Deere AL112917 Steering Hydraulic Cylinder

Replacement Of John Deere AL112917 Steering Hydraulic Cylinder

Product Introduction

The Replacement Of John Deere AL112917 Steering Hydraulic Cylinder is a hydraulic cylinder used in various models such as 6R 110, 6R 120, 2955, 3050, 3055, 3255, 3350, 6010, 6020, and many more. It is designed to provide steering assistance in agricultural machinery.

Specifications and Models

• Weight: 19.34 lb
• Height: 2.8 in
• Width: 6.8 in
• Length: 18.5 in

This hydraulic cylinder is compatible with a wide range of models including 6R 110, 6R 120, 2955, 3050, 3055, 3255, 3350, 6010, 6020, 6100, 6105M, and many more.

Product Features

• High-quality material ensures durability
• Precision engineering for smooth operation
• Easy installation and replacement
• Excellent performance in various conditions
• Cost-effective alternative to original hydraulic cylinders

Applications

This hydraulic cylinder is commonly used in the following industries:

• Construction: Often used in cranes, hoists, and elevators for securely lifting heavy objects.
• Manufacturing: Utilized in hydraulic presses for shaping materials under high pressure, requiring a stable fixing mechanism.
• Transportation: Applied in stabilizers and jacks of vehicles to ensure safety during maintenance or transportation.
• Aviation: Used in landing gear systems to securely fix the landing gear in the appropriate position during takeoff and landing.

Design Considerations and Selection Criteria

• Load-bearing capacity: The hydraulic cylinder is designed to handle various loads and pressures.
• Sealing effectiveness: High-quality seals, such as piston seals and rod seals, are used to prevent leakage.
• Durability: The cylinder body and threaded ends undergo meticulous processing to enhance wear resistance.
• Safety: The design ensures safe operation and minimizes potential hazards.
• Maintainability: The cylinder is designed for easy maintenance and repair.

Sealing and Lubrication

The hydraulic cylinder incorporates various sealing components, such as polyurethane and nitrile rubber seals, to ensure wear resistance. The cylinder body and threaded ends are finely treated to improve durability. Regular lubrication with the appropriate amount of hydraulic oil is recommended to ensure smooth operation.

Regular Inspection and Preventive Maintenance

• Inspect the hydraulic cylinder periodically for any signs of damage or wear.
• Perform regular lubrication to maintain optimal performance.
• Replace seals when necessary to prevent leaks.
• Check and calibrate the cylinder as needed to maintain accuracy.

Proper Installation Guide

Follow these steps for correct installation:

1. Align the cylinder properly according to the provided guidance.
2. Secure the cylinder using appropriate installation brackets.
3. Ensure the cylinder is correctly aligned and tightened.

Maintenance Tasks

Three common maintenance tasks for the hydraulic cylinder:

1. Regular inspections: Check for any abnormalities and address them promptly.
2. Proper lubrication: Apply the recommended lubricant as per the manufacturer's instructions.
3. Seal replacement and calibration checks: Replace worn seals and perform calibration checks to maintain optimal performance.

Safety Considerations and Environmental Factors

When using the hydraulic cylinder, it is important to follow all safety measures to ensure a secure working environment. This includes proper handling, maintenance, and adherence to safety guidelines.

Fault Diagnosis and Common Issues

Common issues and troubleshooting tips:

• Issue 1: Leakage - Check and replace seals if necessary.
• Issue 2: Inaccurate operation - Inspect and calibrate the cylinder as needed.
• Issue 3: Excessive noise - Ensure all components are properly lubricated and check for any loose connections.

Company Introduction

We are a leading manufacturer and wholesale distributor of hydraulic cylinders, offering a wide range of products. Our company is known for its professionalism, international certifications, customized services, advanced production equipment, and excellent after-sales support.

Author: lyl
