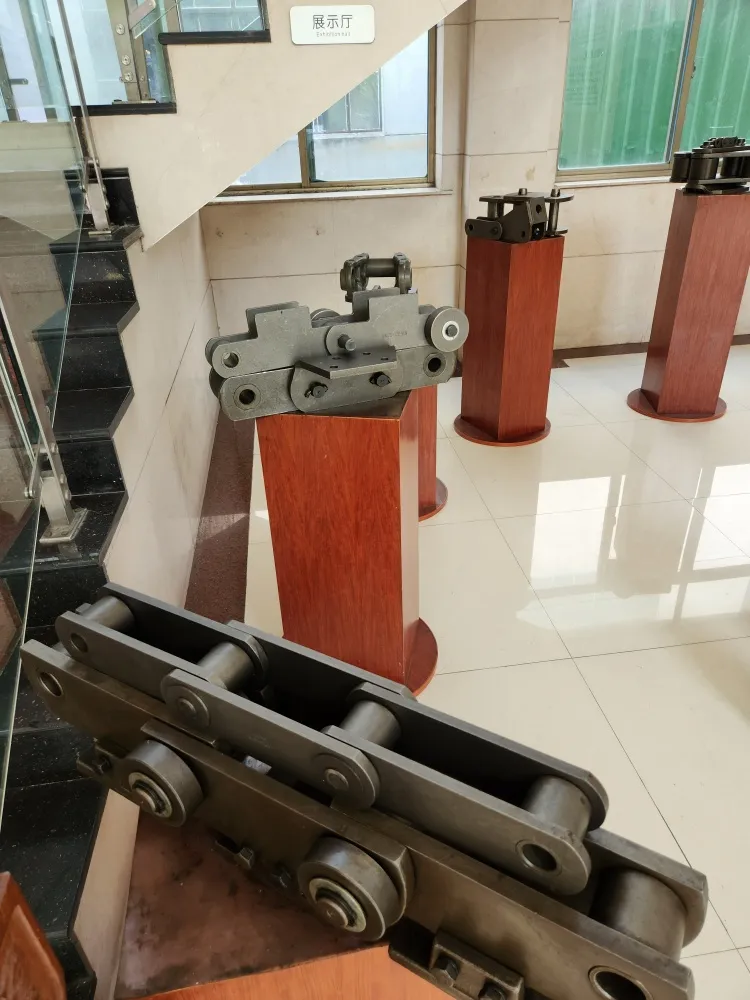

Replacement Of Thiele E-Type (Split) Flight Bars For Mining

Welcome to the global home for high-performance, precision-engineered E-Type (Split) Flight Bars. We are a trusted manufacturer specializing in heavy-duty replacement chain conveyor components for the world’s most challenging underground applications. Our commitment is simple: provide superior quality and operational efficiency that consistently meets or exceeds the specifications of original equipment manufacturers (OEMs).The E-Type, known for its unique two-part, modular design, is a critical component in scraper and armored face conveyors (AFCs). Its core function—allowing assembly and disassembly even while the chain is tensioned—is essential for maximizing conveyor uptime and reducing costly maintenance windows.Our replacement E-Type bars are engineered to directly correspond with the scraper components found within our K Series Ladder Conveyor Chains (for double-strand systems) and our DA Series Single Strand Conveyor Chains (for single-strand applications). By partnering with us, you gain access to decades of manufacturing expertise and components proven reliable in high-stress, abrasive mining environments.

E-Type Flight Bar Features & Benefits

Modular Excellence: E-Type Split Design Benefits

Our replacement E-Type flight bars are meticulously designed to maintain the key advantages of the split design while enhancing durability through advanced manufacturing.

Core Engineering & Design

Two-Part, Modular Design: The bar consists of two distinct halves that bolt together around the chain links, perfectly mimicking the OEM's robust, maintenance-friendly design.
Installation Under Tension: This is the primary operational advantage. The split structure allows the bar to be installed or removed without the time-consuming process of slackening the entire chain line. This feature is vital for quick in-seam repairs.
Precision Manufacturing: Utilizes a highly accurate manufacturing process that includes forging and calibrated chain seats. This ensures a perfect fit with your existing chain, minimizing play and preventing premature wear.
Optimal Compatibility: Our bars are universally designed for use with the correct bolts and nuts (e.g., hook bolts), guaranteeing compatibility across various OEM installations.

Key Performance Advantages

Feature	Operational Benefit	Focus
Reduced Downtime	Allows for component replacement within minutes, not hours, directly reducing maintenance costs and increasing production output.	Experience/Expertise
High Durability	Manufactured using premium alloy steel with	precise heat treatment, providing exceptional resilience against impact and abrasive wear.	Trustworthiness
Compatibility Guarantee	Engineered to dimensional parity with OEM specifications, ensuring seamless interchangeability with your existing conveyor chain and drive sprockets.	Authority
Light Weight/Easy Handling	The split components are lighter and easier for field personnel to handle and transport, improving safety and installation speed.	Experience

Technical Specifications & Material Expertise

Uncompromising Quality: Material and Heat Treatment

Our components are derived from manufacturing practices applied across our specialized heavy-duty conveyor solutions, including our DF Series Drop Forged Chain, ensuring metallurgical integrity and consistent performance.

Advanced Manufacturing & Material Science

We utilize select, high-grade alloy steel in our forging process. Our production path is rooted in professional manufacturing techniques and subject to rigorous quality control measures.

Material Strength: The flight bars are heat-treated to achieve high-impact toughness, crucial for mining applications.
Forging Advantage: The drop forging process provides superior strength and durability compared to components made using other methods. This resistance to wear and damage is paramount in high-load, abrasive mining environments.

E-Type Flight Bar Technical Compatibility

Our replacement E-Type flight bars are manufactured to match the dimensional specifications of the most common OEM configurations:

Feature	Compatibility Range	Corresponding Chain Systems (Examples)
Flight Bar Type	E-Type Split Bar	Direct component for scraper systems on DA Series and K Series chains.
Chain Size (Nominal)	$? 34 \times 126$ and $? 38 \times 137$	Suitable for a range of medium-to-heavy-duty mining conveyors.
Chain Center Distance (C)	Available in standard widths (e.g., 150mm, 200mm, 375mm, 500mm)	Engineered to fit specific conveyor trough widths for optimized material clearance.
Total Length (l)	$690 mm$ up to $1188 mm$ (for standard $? 34 \times 126$ links)	Dimensional replacement for zero-hassle integration.

DA711 CONVEYOR CHAIN SELECTION CHART
DA711B		Chain Unit Length is 19 1/2 inches (495.3mm)(one Flight Section， two Outer Links, and one Inner Link)				WIDTH: 22 1/2 INCH (572mm)
Secondary Component
DA711B02Flight Section		DA711B03Outer Link			DA711A01Cross-shaped Link
?Tertiary Component
DA711A001Single Lug Fork End	DA711A002Slotted Tongue End	DA711A003Cross Pin	DA711A004Outer Plate	DA711B005Scraper	DA711B006Inner Link	DA711A007Pin	DA711B008Scraper Pin	DA711A009cross pin joint
Note: DA chain products are suitable for continuous miners, borer miners, and road headers (mining/tunnelling). DA chains pitch range is from 2 5/8 inches to 3 1/4inches. Product data sheets, other than those listed, are available upon request.

K301B CONVEYOR CHAIN? SELECTION CHART
Pitch=4 1/10 INCH（104.14mm）		Chain Unit Length is 24 3/5 INCH （624.84mm）(one Flight Section and two Chain Section)				42 INCH（1066mm）
Secondary Component
K301B01Chain Section		K301B02Outer Link			K301B04Flight Section
Tertiary Component
K301B001Outer Plate	K301B002Inner Link	K301B003Inner link with slotted hole	K301B004Attachment Inner Link	K301B005Pin	K301B006Retainer Ring	K301B011M16X120Bolt	K101B012M16 Washer	K101B013M16 Lock Nut
Note： K series chain products are suitable for shuttle cars, underground feeder breaker chain conveyors. K series chains are suited for washing coal applications. K series chain’s pitch range is from 3 1/4 inches to 4 1/2? inches, product data sheets other than those listed are available upon request.

K205B CONVEYOR CHAIN? SELECTION CHART
Pitch=4 1/10 INCH (104.1mm)		Chain Unit Length is 24 3/5 INCH(624.6mm) (one Flight Section and two Chain Section)						WIDTH: 35 1/2? INCH(902mm)
?Secondary Component
K205B01Chain Section		K205B02Outer Link		K205B04Flight Section		K205B05Attachment Link		K205B06Inner Link
?Tertiary Component
K205B001Outer Plate A	K205B002Outer Plate B	K205B003Outer Plate C	K205B004Inner Plate		K205B005Bush		K205B006Attachment Block
K205B007Pin		DA622B007T-pin	K301B011M16X120 Bolt		K101B012M16 Washer		K101B013M16 Lock Nut

K206B CONVEYOR CHAIN? SELECTION CHART
Pitch =3? INCH (78.1mm)		Chain Unit Length is 24 3/5? INCH (624.6mm) (one Flight Section and two Chain Section)						WIDTH:42? INCH(1068mm)
Secondary Component
K206B01Chain Section		K206B02Outer Link		K206B03Inner Link		K206B04Inner Link with hole		K206B05Flight Section
Tertiary Component
K206B001Outer Plate A	K206B002Outer Plate B	K206B003Inner Plate	K206B004Inner Platewith hole	K206B005Bush	K206B006Pin	K206B007T-pin 6X40	K206B011Bolt M16X90	K101B013M16 Lock Nut
Note：K series chain products are suitable for shuttle cars, underground feeder breaker chain conveyors. K series chains are suited for washing coal applications. K series chain’s pitch range is from 3 1/4 inches to 4 1/2? inches, product data sheets other than those listed are available upon request.

Advanced Wear Solutions & System Integration

Combatting Abrasion: Advanced Customization

We offer specialized features and complementary products to enhance the overall performance and life of your conveyor system.

Optional: End Induction Hardening (Extended Life)

For applications in stone drifting or high-gangue content mines, we provide an End Induction Hardening option to significantly boost the abrasive wear life of the scraper ends.

Benefit: This treatment can achieve high surface hardness to delay wear without adverse effects on the structural integrity of the bar body.
Customization: We offer multiple hardening grades, allowing you to fine-tune the bar's performance to match your specific rock and coal composition.

Comprehensive System Solutions

Our expertise allows us to provide all essential, high-quality replacement components for a complete, reliable conveyor overhaul:

Heavy-Duty Chain Systems: We offer the K Series Ladder Conveyor Chain (for dual-strand scraper systems) and the DA Series Single Strand Conveyor Chain (for single-strand applications). Both series are built with selected premium, qualified steels and special heat-treated pins.
Drive Components: We manufacture SD Series Segmental Sprockets that are induction hardened $56 ? 60 HRC$ , designed for ease of installation, maintenance accessibility, and durability.
Forged Links: Our DF Series Drop Forged components offer exceptional tensile strength and durability, ideal for the demanding loads associated with conveyor systems.

Why Choose Our Replacement Flight Bars?

Global Quality, Specialized for Mining

Choosing our replacement E-Type flight bars means you benefit from a manufacturer with a proven track record in supplying heavy-duty solutions to world-class mining operations.

Unmatched Manufacturing Expertise: We are dedicated to delivering heavy-duty chain conveyor solutions. Our components are precision-engineered and undergo rigorous testing to ensure durability and longevity.
Focus on System Uptime: Our core product lines, including our K Series and DA Series, emphasize seamless chain operation, less maintenance complexity, and easy installation/disassembly—all critical factors mirrored in the E-Type's core design.
Certified Quality: Our commitment to quality is ingrained in our manufacturing processes, leveraging continuous material and process oversight to ensure every component performs reliably.

Request a Quote for Your E-Type Replacement Needs

Do not compromise on the reliability or maintenance efficiency of your critical haulage systems. Partner with our team of specialists today to discuss your specific operational requirements and learn how our replacement E-Type (Split) Flight Bars can deliver essential cost savings and unmatched operational lifespan.
