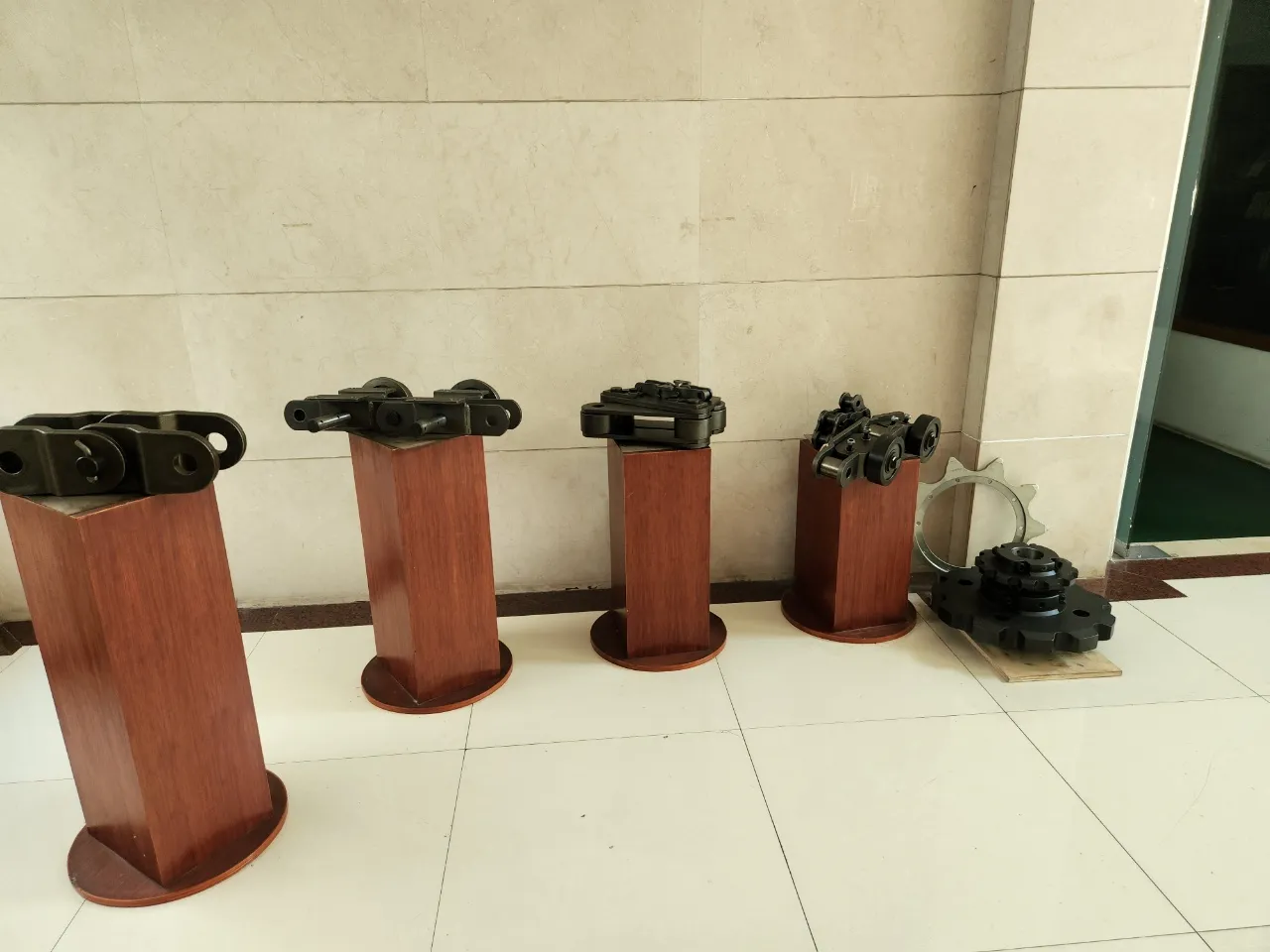

Replacement Of Thiele Sprocket Rings / Assemblies For Mining

Replacement Of Thiele Sprocket Rings / Assemblies For Mining

Welcome to the global home for high-performance, precision-engineered Segmental Sprockets and Drive Assemblies. We are a trusted international manufacturer specializing in critical power transmission and heavy-duty chain conveyor solutions for the world’s most demanding underground mining applications. Our core mission is clear: to enhance your operational efficiency and safety by providing superior component quality and reliability that meets or exceeds the specifications of original equipment manufacturers (OEMs).The drive sprocket is arguably the most stressed component in any armored face conveyor (AFC), scraper conveyor, or feeder system. It must precisely engage the chain while enduring relentless abrasive wear and immense torque. Our replacement sprockets and assemblies are engineered through advanced manufacturing techniques, ensuring they provide maximum durability and optimal engagement for all major chain standards (including round link, flat link, and forged chains).We draw on deep manufacturing expertise to deliver drive components that are designed not just to perform, but to revolutionize your maintenance procedures. Our replacement assemblies, structurally equivalent to your existing OEM sprockets, are the reliable, cost-effective solution for continuous, high-tonnage operation.

Segmental Sprocket For Mining Types:

Segmental Sprocket

12T segmental sprocket sample (coated)



Segmental Sprocket (4 pcs)

Segmental Sprocket Ring (5 pcs)

Segmental Sprocket (2 pcs)

Advantages of Segmental Sprocket:

The traditional solid sprocket design necessitates hours of complex maintenance, often requiring the removal of the entire shaft assembly—a major driver of unscheduled downtime. Our advanced replacement sprockets, referred to as Segmental Sprockets, eliminate this operational headache.1. Modular, Split Construction Our sprockets are explicitly designed as segmental components, typically consisting of two, three, or four separate tooth segments. These segments are precision-bolted to form a complete sprocket. This modular design provides two transformative advantages:

• Ease of Installation: The segments can be mounted directly onto the existing shaft without having to dismantle the entire drive unit.
• Rapid Replacement: When a segment wears out, only that specific segment—or the ring of segments—needs to be replaced, drastically minimizing the time spent on shaft preparation and reassembly.

2. Direct Cost and Time Savings (TCO) The Segmental Sprocket design directly impacts the Total Cost of Ownership (TCO) in two key areas:

• Reduced Labor Time: Replacement labor is reduced from potentially multiple shifts down to mere hours, immediately boosting productivity.
• Minimized Inventory Costs: In many cases, only the worn segments need to be stocked and replaced, rather than the entire solid sprocket wheel or drive drum.
• Customizable Fitment: Our replacement sprockets are customizable to suit different shaft diameters and feature coupling methods via keyway or internal spline, ensuring seamless mechanical integration.

Metallurgical Superiority:

The Induction Hardening Edge: Achieving $56?60\text{?HRC}$

The core of a sprocket’s longevity is the hardness of its tooth flank. Our commitment to Robust Durability is guaranteed through advanced thermal treatments applied to every drive component.1. Advanced Induction Hardening Process Every tooth on our Segmental Sprockets undergoes an advanced induction hardening process. This is a targeted heat treatment that provides several critical benefits:

• Extreme Surface Hardness: The tooth surface is hardened to achieve an exceptional rating of $56?60\text{?HRC}$, making the component highly resistant to abrasive wear and impact fatigue caused by the chain under high tension.
• Controlled Hardness Depth: The process allows for precise control over the hardness depth and distribution, often exceeding $20\text{mm}$. This ensures uniform hardness across the entire engaging surface.
• Core Toughness Retention: Crucially, the process ensures that only the tooth surface is hardened, leaving the inner core of the sprocket segment relatively softer. This prevents the sprocket from becoming brittle, allowing it to absorb the massive shock loads inherent in mining operations.

2. Optimized Tooth Profile Our sprockets are precision-machined using advanced CNC processing centers. We use Finite Element Method (FEM) analysis in our design process , ensuring the chain pocket profile is optimized for reduced contact pressure and uniform wear distribution. This engineering focus extends the overall wear life of both the sprocket and the adjacent chain links.

Technical Specifications & Compatibility Matrix:

Our replacement Segmental Sprockets and Assemblies are manufactured to deliver perfect engagement across the widest range of chain dimensions and pitches. Our product line is designed to match the technical requirements of high-performance chains up to $64\text{mm}$ nominal diameter and beyond.1. Dimensional Compatibility Our sprockets are dimensionally engineered to replace the full spectrum of OEM drive components used on armored face and scraper conveyors. We cover the following critical dimensions:

• Chain Diameters: $\text{?}26,\text{?}30,\text{?}34,\text{?}38,\text{?}42,\text{?}48,\text{?}52,\text{?}56,\text{?}60,\text{?and?}\text{?}64\text{mm}$ systems.
• Number of Teeth (Z): Available in standard counts, typically $Z=4$ up to $Z=8$ (or higher upon request).
• Pitch Diameter (d2?): Available to match all common chain pitches (e.g., $92\text{mm},108\text{mm},126\text{mm},170\text{mm}$).

2. Full Assembly Solution We provide replacement components that extend beyond the Segmental Ring itself, ensuring a comprehensive solution for your entire drive unit:

• Sprocket Segments: The outer, high-wear tooth ring sections.
• Split Hubs/Centers: The inner assembly components that bolt the segments to the shaft.
• Full Assemblies: Complete head and tail sprocket assemblies, guaranteeing full compatibility with the given conveyor frame.

Manufacturing & Quality Control: The Trust Guarantee:

Certified Processes for Enduring Reliability

Our ability to deliver reliable, heavy-duty replacement components is rooted in decades of specialization and a rigorous commitment to quality that aligns with global industry standards.1. Vertical Manufacturing Integration Our manufacturing facilities maintain tight control over the entire production process, a factor crucial for ensuring material consistency and component integrity. This includes:

• Precision Machining: Utilizing advanced CNC machining centers capable of handling high-diameter sprockets with precision.
• Internal Tooling: All tooling, including forging dies and precision jigs, are designed and produced in-house, ensuring control over geometric accuracy and consistent dimensions for zero-hassle fitment.

2. Rigorous Quality Control and Testing Every component is subjected to extensive, continuous monitoring to ensure reliability:

• Hardness Verification: The $56?60\text{?HRC}$ surface hardness achieved via induction hardening is routinely checked to guarantee the required wear profile.
• Non-Destructive Testing (NDT): As with our critical chain components, all primary forged elements undergo stringent NDT processes to ensure freedom from internal defects or surface flaws that could compromise performance under severe shock load.

3. Quality Management System Our operations are governed by certified quality management systems, providing the ultimate assurance that our components are manufactured with consistency and traceability.

Operational Longevity & Value Proposition:

The long-term value of our replacement Segmental Sprockets is realized through significant operational benefits and maintenance savings.1. Operational Stability and Durability

• Reduced Abrasive Wear: The extreme surface hardness of $56?60\text{?HRC}$ on the teeth maximizes resistance against the abrasive environment of the AFC, leading to Longer Lifespan for the component.
• Smooth Engagement: The optimized chain pocket profile ensures even load transfer, extending the life of the entire drive chain (including connecting links and flight bars).

2. Financial and Labor Efficiency

• Minimal Downtime: The primary financial benefit is the speed of replacement. By allowing for the swap-out of only the segments rather than the entire assembly, unscheduled downtime is dramatically reduced, directly increasing production uptime.
• Strategic Inventory: Stocking only the relatively lighter and smaller sprocket segments, rather than large, solid hubs, simplifies logistics and warehousing.

3. Direct Replacement Confidence: we guarantee?that our replacement sprockets are engineered to be a functional, dimensional, and performance-equivalent solution to the OEM drive assemblies, ensuring your system performs reliably from the moment of installation.

The Reliable Choice for High-Capacity Mining

For the Double-Strand Conveyor Systems that power your high-tonnage production, the integrity of the drive sprocket is non-negotiable. Our forged replacement Segmental Sprockets deliver the ultimate performance characteristics: extreme wear resistance, modular replacement capability, and guaranteed dimensional fitment.Upgrade your essential haulage systems with the confidence of certified quality and specialized expertise.Contact our expert technical and sales team today to request a customized quote and consultation.
