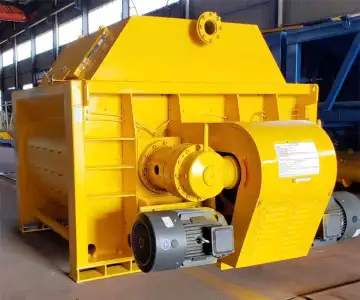

Right Angle Planetary Gearbox for Twin Shaft Concrete Mixer

Planetary Gearbox Specifically Designed for Twin-shaft Concrete Mixers

The Right Angle Planetary Gearbox is specially designed for dual-shaft concrete mixers. It relies on unique right-angle planetary gear transmission technology to achieve efficient power conversion and precise control. Our products use industry-leading materials and precision manufacturing processes to ensure long-lasting and stable operation under harsh working conditions, greatly improving concrete mixing quality and production efficiency.Whether on a construction site or in a precast factory, the Right Angle Planetary Gearbox demonstrates its outstanding load-bearing capacity, excellent torque transmission performance and impeccable durability. Extensive application cases and customer praise have proven that this gearbox can effectively improve equipment availability and productivity while reducing maintenance costs.Choosing our Right Angle Planetary Gearbox is choosing to inject surging power and excellent performance into your twin-shaft concrete mixer, helping you to take a leading position in the field of concrete mixing and win the advantage in market competition. Let us work together to create a new era of more efficient, durable and economical concrete production equipment!

How Planetary Gearbox for Twin Shaft Concrete Mixer Works?

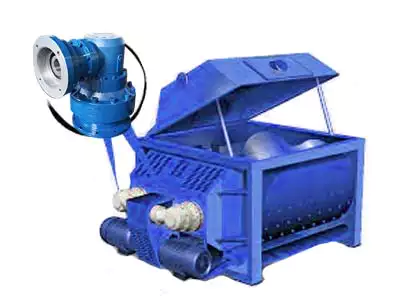

The location where the Right Angle Planetary Gearbox is installed in a Twin Shaft Concrete Mixer is usually part of the mixer shaft drive system. Its function is to turn the rotational power generated by the motor or other power source through 90 degrees, and then efficiently and accurately transfer it to the two relatively vertical mixing shafts of the mixer.Here’s how it works:

• Installation location: The Right Angle Planetary Gearbox is generally fixed on the bottom or side of the mixer, close to the motor or main drive unit, to facilitate direct input and output of power. The input end is connected to the motor shaft, and the output end is connected to the stirring shaft through a coupling or directly.
• Torque conversion: The core of the planetary gearbox is a planetary gear train including sun gear, planetary gear and ring gear. When the electric motor drives the sun gear to rotate, the planet gears, supported by the planet carrier, simultaneously rotate around the sun gear and revolve along the internal ring gear, thus achieving a 90-degree turn of power and amplification of torque.
• Torque distribution: For dual-shaft concrete mixers, the planetary gearbox is usually designed to evenly distribute the input torque to the two mixing shafts, ensuring that the two shafts mix concrete synchronously and efficiently.
• Efficient transmission: Due to the unique structure of the planetary gear, it can transmit large torque in a small volume and maintain a relatively constant output torque when the load changes, which is crucial to ensuring the uniformity and stability of concrete mixing.

Why Choose Our Planetary Gearbox?

Core Technical FeaturesEfficient transmission and large torque conversion capability This planetary gearbox adopts an optimized design. Through the superposition of multi-stage planetary gear sets, the small torque input by the motor can be amplified several times, providing powerful mixing power even when handling high-strength concrete operations. Can handle it easily.Compact structure: Space-saving design, the structure is very compact and takes up little space, perfectly adapting to the complex mechanical layout inside the twin-shaft concrete mixer.High-precision transmission and smooth operation characteristics: Precision gear manufacturing technology and advanced lubrication system ensure smooth movement during the mixing process and avoid excessive vibration that affects the quality of the concrete and the service life of the mixing equipment.Materials and manufacturing processes

• Use high-quality wear-resistant steel and special alloy materials
• Advanced heat treatment and finishing processes
• Anti-corrosion protection and sealing design The gearbox housing has undergone strict anti-corrosion treatment and uses high-quality seals.

Torque Range	1000-450.000 Nm
Transmissible Mechanical Power	up to 150 kVV
Gear Ratios	6.9-9.000
Gear Unit Versions	Right angle (with a spiral bevel gear set)
Output Configuration	Foot and flange mountedOutput shaft: solid with key, splined, splined hollow, hollow with shrink disc
Input Configurations	Flanged axial piston hydraulic motorsHydraulic orbit motorsIEC and Nema motor adaptorsSolid input shaft
Hydraulic Brake	Hydraulically released parking brake on request
Electric Brake	DC and AC type

Adaptable Twin-shaft Concrete Mixers Brands and Models

Our Right Angle Planetary Gearbox is deeply optimized for Twin-shaft Concrete Mixers, which are widely used in the concrete industry. This planetary gearbox is known for its high degree of modularity and customization, and can be seamlessly connected to most mainstream brands of twin-shaft concrete mixers on the market. Whether it is in terms of interface size, power matching or torque requirements, we can make detailed adjustments and professional customization according to customers' specific equipment specifications and operation needs, ensuring that every planetary gearbox shipped from the factory can achieve the best performance with the target mixer match.For example, our planetary gearboxes can be easily adapted to twin-shaft concrete mixers from world-renowned brands, such as Sicoma's MAO series, BHS-Sonthofen's DKX series, Liebherr's ETM series, and other well-known brands such as Simem, Carmix, Camelway, etc. Various models of twin-shaft mixers. Through in-depth cooperation and precise design, our products can maximize the efficiency of the mixer, reduce energy consumption, and ensure stability and long service life under extreme working conditions.In short, we are committed to providing each customer with the most suitable planetary gearbox solution for their Twin-shaft Concrete Mixer, so that the equipment can reach new heights in terms of mixing performance, durability and economic benefits.
