Ringlock Scaffolding System for Building Construction

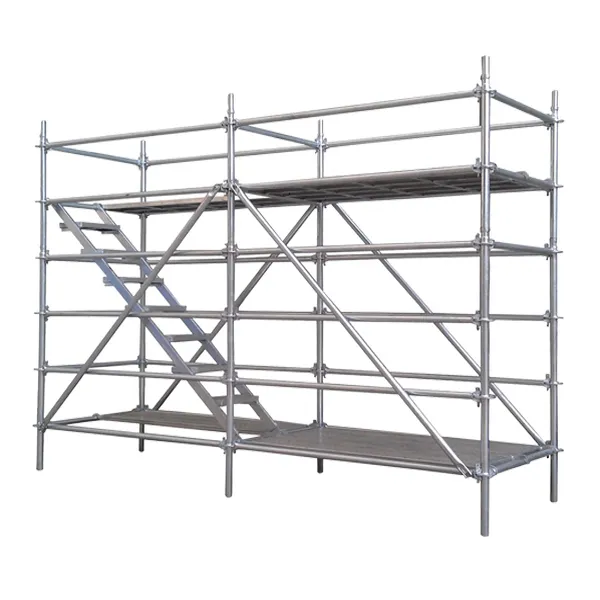

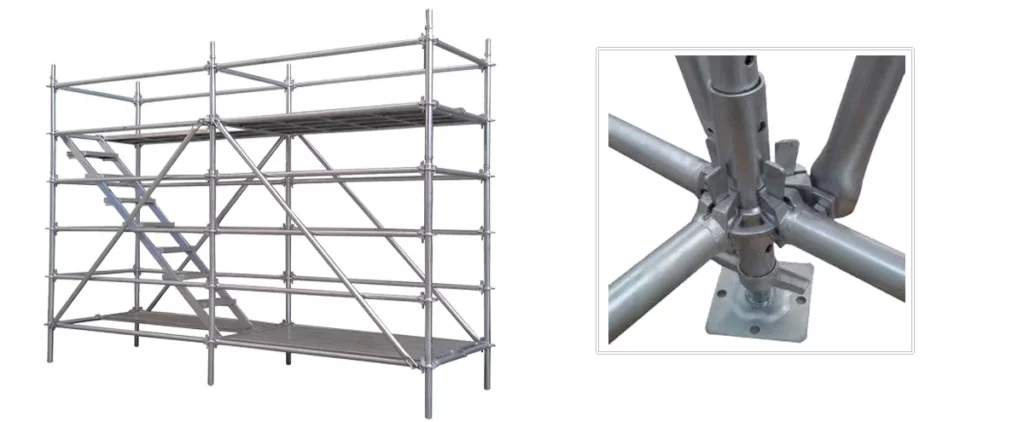

Ringlock Scaffolding System is a modular scaffold system that can provide significant savings in labor costs while meeting the demands for safety, ease of handling, and reductions in maintenance. It enables workers to set up, use, and disassemble a temporary work structure with speed and efficiency, saving on time and labor costs.

Ringlock Scaffolding Parts/Components

Of course, there need to be components to make up the entirety of a Ringlock scaffolding structure. Similar to most types and categories of scaffolding, the names and terms are remarkably identical, if not entirely equal.

Standards / Verticals

Standards are considered the most relevant component in a ringlock scaffolding system because it serves as a connection point for all other members. Without a bar, you wouldn't be able to connect ledgers to brackets and many other features.

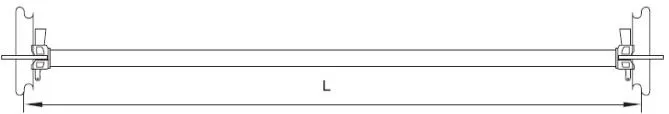

Ledgers

Ledgers are the components that bring standards together, ensuring they're just far from each other. It's used by connecting it at two (2) ends of each criterion, so they become conjoined.

Diagonal Braces

Many people think that diagonal braces are similar to ledgers and are just positioned diagonally. However, that's not entirely true. Yes, they're manufactured the same as ledgers, but instead of having it the same way, the ends are welded and made with a diagonal plug.

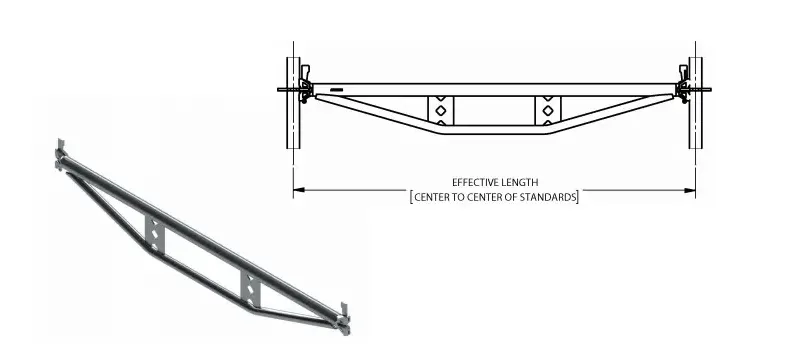

Truss Ledgers

Truss ledgers are components designed to allow higher loads to the scaffolding system. It's like added support at the top tube so it can carry more force, stress, and weight without experiencing shakiness on the scaffolding system.

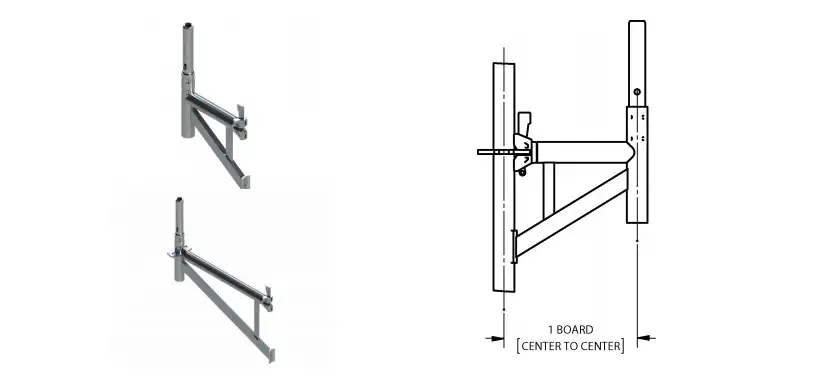

Side Brackets

These are what are considered extensions of a scaffolding system. Usually positioned at the end of a scaffolding system, side brackets would widen the steel planks' broad area for a more flexible working environment for the personnel.

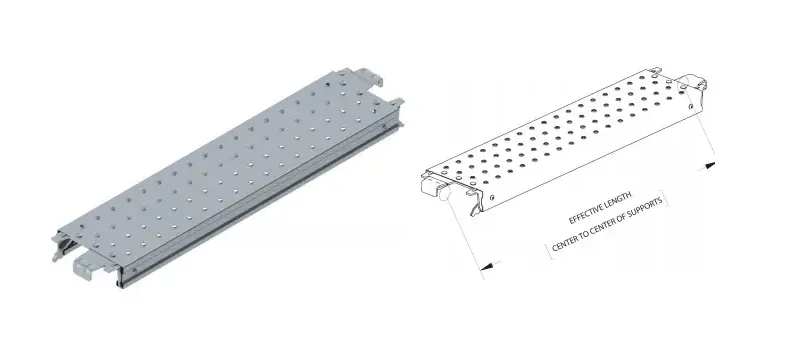

Steel Planks

The steel planks are the parts or components used as the working space or area of the workers or the personnel. Steel planks are typically fixated and installed on the ledger so the workers wouldn't have trouble slipping or sliding through it.NOTE: The steel planks' surface part is usually coated with a non-stick coating.

Lattice Girders

These are also used for support or added weight on the platforms. This enables scaffolding systems to carry and hold twice the weight they were initially made for!NOTE: You will also find other or secondary components in the names and labels of wood toe boards, steel stairs, transoms, collars, and others!

Main specification

Vertical Pipe(Standard)48.3*3.2mm with a spigot(Hot dip galvanized or painted)
Product code	Specification(mm)	Weight(kg)	Material	Surface treatment
TY-RV050	48.3*3.2*500	3.06	Q345/Q235	galvanized/painted
TY-RV100	48.3*3.2*1000	5.56	Q345/Q235	galvanized/painted
TY-RV0150	48.3*3.2*1500	8.05	Q345/Q235	galvanized/painted
TY-RV0200	48.3*3.2*2000	10.55	Q345/Q235	galvanized/painted
TY-RV0250	48.3*3.2*2500	13.04	Q345/Q235	galvanized/painted
TY-RV0300	48.3*3.2*3000	15.54	Q345/Q235	galvanized/painted
Horizontal Pipe(Ledger)48.3*3.2mm with ledger head (Hot dip galvanized or painted)
Production Code	Specification(mm)	Weight(kg)	Material	Surface treatment
TY-RH073	48.3*3.2*730	3.68	Q235	galvanized/painted
TY-RH104	48.3*3.2*1040	4.48	Q235	galvanized/painted
TY-RH109	48.3*3.2*1090	5.08	Q235	galvanized/painted
TY-RH140	48.3*3.2*1400	6.28	Q235	galvanized/painted
TY-RH157	48.3*3.2*1570	6.94	Q235	galvanized/painted
TY-RH207	48.3*3.2*2070	8.88	Q235	galvanized/painted
TY-RH257	48.3*3.2*2570	10.83	Q235	galvanized/painted
TY-RH307	48.3*3.2*3070	12.77	Q235	galvanized/painted
Diagonal Brace Pipe(Brace)48.3*2.5mm with brace head(Hot dip galvanized or Painted)
	Product Code	Specification(W*H)	Weight(kg)	Material
	TY-RDB2120	730*2000mm	8.29	Q235
	TY-RDB2230	1040*2000mm	8.60	Q235
	TY-RDB2250	1090*2000mm	8.67	Q235
	TY-RDB2400	1400*2000mm	9.15	Q235
	TY-RDB2490	1570*2000mm	9.40	Q235
	TY-RDB2810	2070*2000mm	10.37	Q235
	TY-RDB3180	2570*2000mm	11.50	Q235
	TY-RDB3580	3070*2000mm	12.72	Q235

Applications of Ringlock Scaffolding System

The main functions and uses of the Ringlock scaffolding:

• Support for construction formwork (including road, tunnel, viaduct, and other bridge constructions), especially for high-attitude formwork supports;

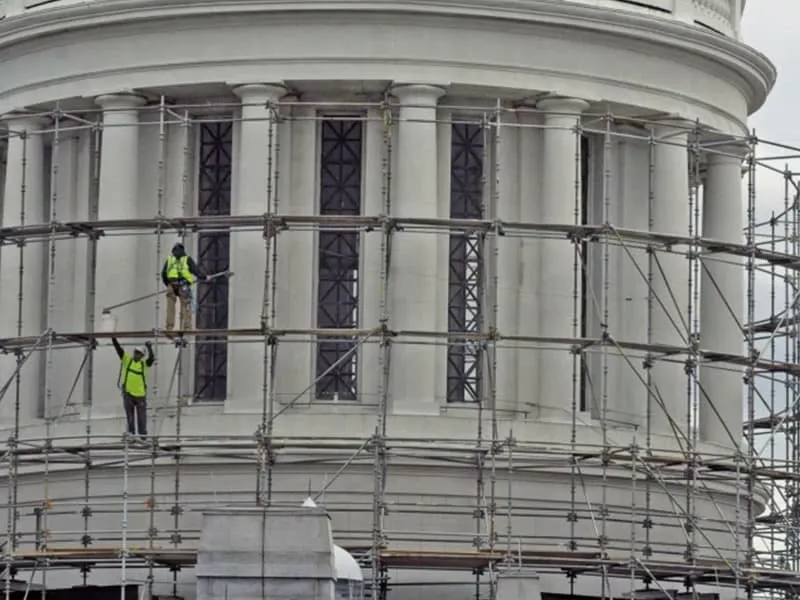

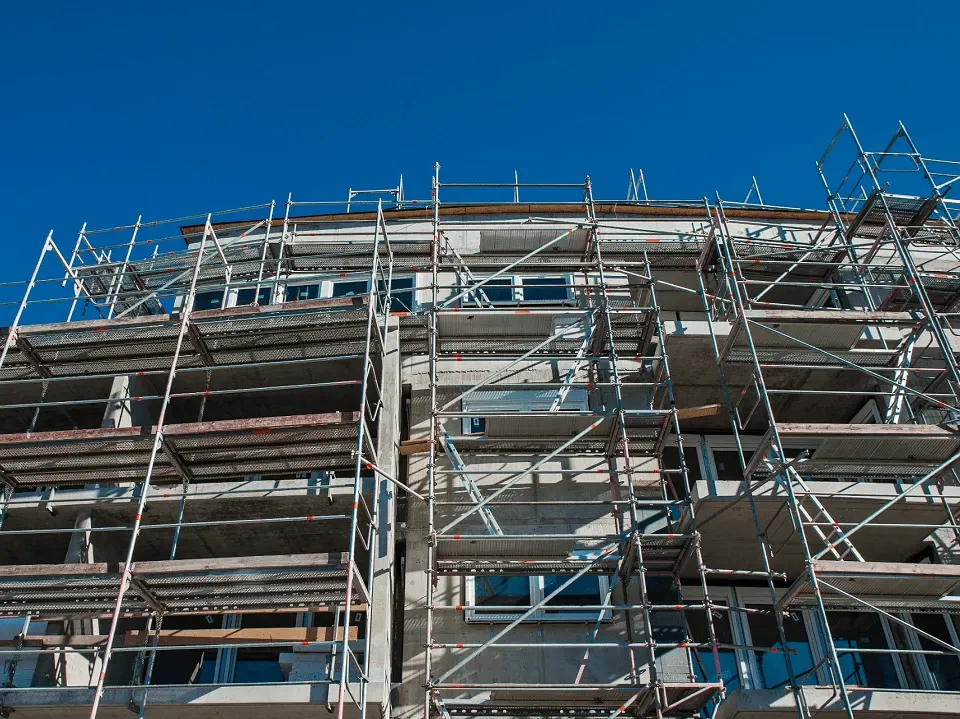

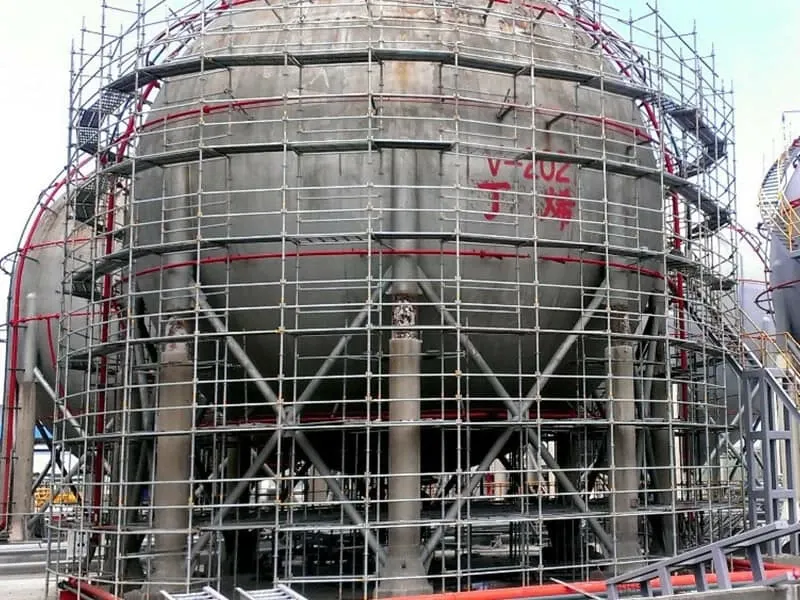

• Scaffolding on external walls of high and low buildings, workshops, elevated water towers, power plants, oil refineries, overpasses, span scaffolds, chimneys, etc., as well as support designs for special facilities.
• Large, medium, and small warehouse shelves (three-dimensional shelves);
• Working platform for high-altitude operation of decoration engineering and electromechanical installation, internal and external scaffolding of ship repair and construction industry;
• Large-scale concert stages, background stands, sports meets, temporary stands, stair systems, viewing stands and stage scaffolds, etc.;
• Mobile sheds for construction units.

Adjustable Safety Steel Ringlock Scaffolding	Ringlock Scaffolding For Bridge Construction

Galvanized Allround Ringlock Scaffolding	Heavy Duty Steel Material Ringlock Scaffolding
