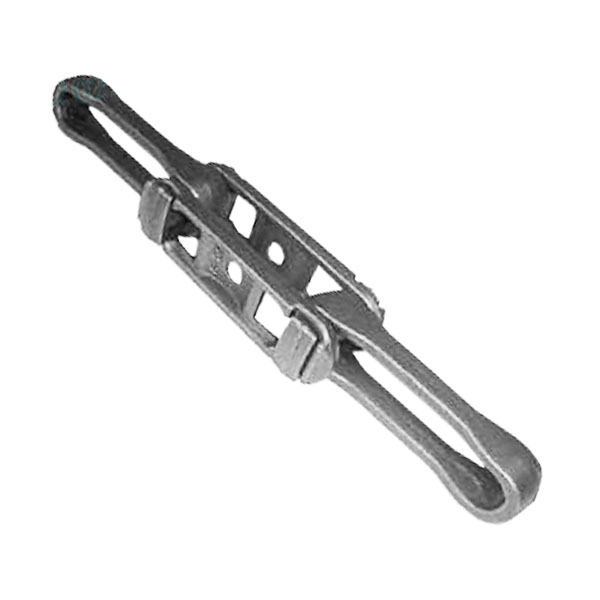

Rivetless Drop Forged Chain With T Head Pin S Type S348 S458 S468 S9118

Raydafon Guoup's Rivetless Drop Forged Chain With T Head Pin S Type S348 S458 S468 S9118 delivers unmatched durability and reliability for industrial applications. Crafted with drop-forged steel and a T-head pin design, this chain offers superior strength and smooth operation, ideal for demanding environments. Users will experience enhanced safety and efficiency, solving issues like wear and failure common in lesser brands. Its rivetless construction sets it apart, ensuring longer service life and reduced maintenance. Trust Raydafon Guoup for premium quality that boosts performance and peace of mind.

Send Inquiry

Product Description

S Type S348 S458 S468 S9118 Rivetless Drop Forged Chain Bar Loop Chains With T Head Pin

Rivetless Drop Forged Chain is highly regarded as one of the most robust chains ever developed and has found widespread application in many industries. Because materials do not tend to pack in its open structure, Rivetless Drop Forged Chain is used extensively for flight conveyors. Its design permits both horizontal and vertical operation over irregular routes, making it particularly adapt- able for trolley conveyor service. Special features of this chain include maximum strength without excessive weight, and resistance to lengthening even after the extensive operation.

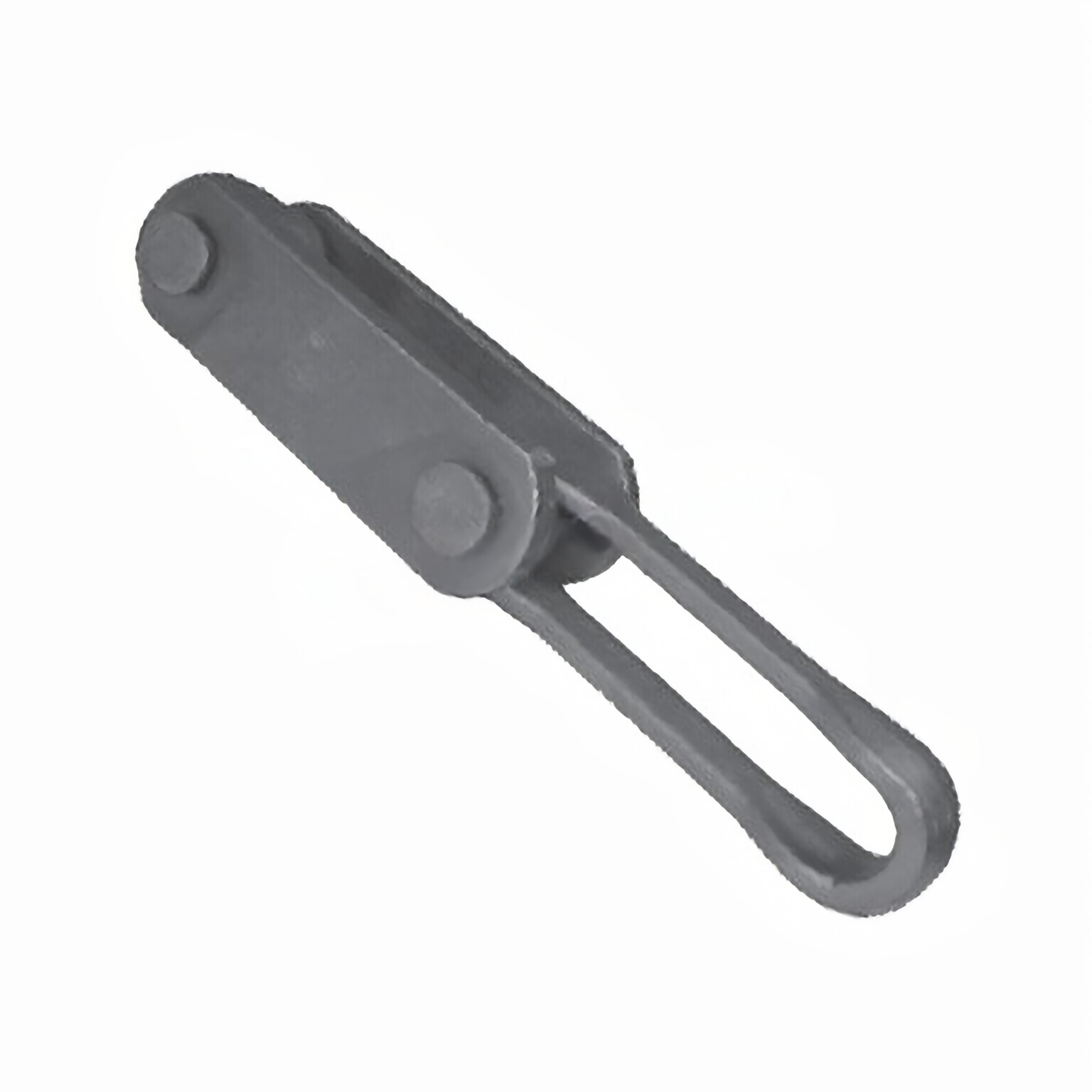

S-TYPE Barloop chain is manufactured with a standard rivet-less block link and fabricated steel sidebars. Barloop chains offer the advantage of a flat steel sidebar for welding attachments. The pins are a riveted style to keep the sidebars locked, eliminating the chance of the chain coming apart when slack is present and reducing wear between the pin and sidebar.

	A-L CHAIN NO.	PITCH IN INCHES	LINKS PER10 FEET	WEIGHT PER FOOT LBS.	AVERAGE ULTIMATE STRENGTH—LBS.Heat Treated Steel*	CHAIN CONSTRUCTION
3.031" PITCH CHAIN	X348	3.031	40	2.2	24,000	Special Pin
4.031" PITCH CHAIN	X458	4.031	30	3.2	48,000	Special Pin
4.031" PITCH CHAIN	468	4.031	30	7.5	70,000	Special Pin
6.031" PITCH CHAIN	X658	6.031	20	2.6	48,000	Special Pin
	X678	6.031	20	6.7	85,000	Special Pin

	698	6.031	20	11.4	130,000	Special Pin
9.031" PITCH CHAIN	998	9.031	13.3	9.0	130,000	Special Pin
	9118	9.031	13.3	16.0	220,000	Special Pin
	9148	9.031	13.3	27.0	300,000	Special Pin
3.031" PITCH CHAIN	S348	3.031	40	2.4	24,000	Riveted
4.031" PITCH CHAIN	S458	4.031	30	3.5	48,000	Riveted
4.031" PITCH CHAIN	S468	4.031	30	7.9	80,000	Riveted
9.031" PITCH CHAIN	S9118	9.031	13.3	20.4	220,000	Riveted

X-TYPE X-Type is furnished with all components heat-treated and is designed to have increased flexibility, transverse strength, and better operating performance.

REGULAR TYPE Regular Type is furnished with only the T-head pins heat treated. These pins are symmetrical and may be reversed when worn.
