RX Series Single Stage Helical Gearbox with Foot Mounted

Raydafon Group's RX Series Single Stage Helical Gearbox with Foot Mounted delivers reliable power transmission for industrial machinery, featuring durable construction and efficient design. Ideal for manufacturers seeking smooth operation and reduced noise, it enhances productivity with precise engineering. Our gearbox stands out with superior durability and easy installation, solving common mechanical challenges. Upgrade your equipment today and experience enhanced performance with Raydafon Group.

Send Inquiry

Product Description

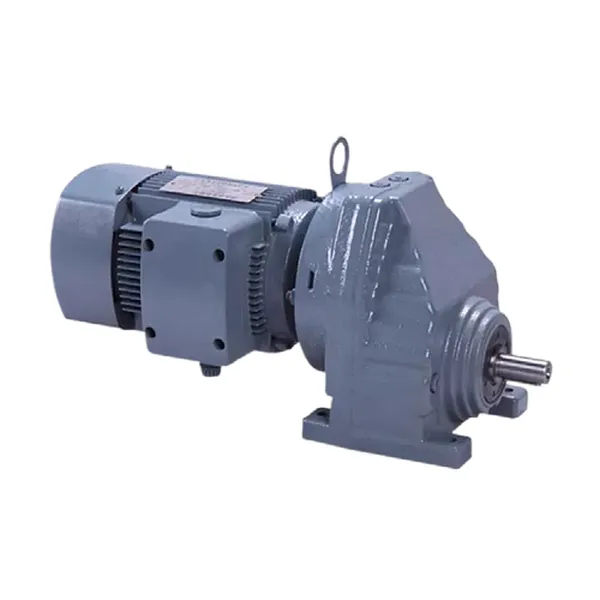

RX Series Single Stage Helical Gearbox with Foot Mounted

RX series helical gearbox is one type of R series single-stage helical gearbox with foot mounted. The transmission ratio of the R series helical gearbox is finely graded to meet different working conditions based on the customer’s need. R series helical gearbox realizes mechatronics, high transmission efficiency, and low energy consumption. It is mostly used in metallurgy, sewage treatment, chemical industry, pharmaceutical, and other industries. Shengjie’s R series gearbox is designed and manufactured on the basis of the modular combination system. There are many motor combinations, installation forms, and structural schemes.

RX Series Single Stage Helical Gearbox Specifications:

Model:	RX17/27/37/47/57/67/77/87/97/107/137/147/167
Mounting ways:	Foot mounted and flange mounted
Input ways:	Motor input, AM (IEC) flange input and shaft input
Output way:	Solid shaft output
Efficiency:	94%-98%(depends on the transmission stage)
Housing material:	HT250 high-strength cast iron
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or another brand
Oil seal:	NAK or another brand
Lubricating oil:	Gear oil
Packing:	Pywood case

RX Series Single Stage Helical Gearbox Parameters:

Size	37	57	67	77	87	97	107	127	157
Structure	RX RXF
Input nowerrating (kW)	0.18-1.1	0.18-5.5	0.18-7.5	1.1-11	3-22	5.5-30	7.5-45	7.5-90	11-132
Ratio	1.62-4.43	1.3-5.5	1.4-6.07	1.42-8.00	1.39-8.65	1.42-8.23	1.44-6.63	1.51-6.2	1.57-6.2
Permissible torque(N.M)	20	70	135	215	400	600	830	1110	1680

RX Series Single Stage Helical Gearbox Features:

standardized and modular design
high-efficiency operation and lower noise
wide selection of speed ratios(2-3stages)
flange or foot mounted for option
accept standard IEC/NEMA motors ensuring ease of replacement
long service life and low maintenance cost
power ranging from 0.12kW to 160kW
torque capacities up to 23200N.m
available to combine with 4 series of helical gear reducers (R Series, K Series, F Series, S Series)

RX Series Single Stage Helical Gearbox Design:

We use reinforced cast iron HT250 as material of housing, which has high density, high strength, and not easy to crack. The process of the housing is completed in our imported machining center. The gears material of helical gearbox is high-strength 20CrMnTi, the surface hardness reaches HRC58-62, and the gears are all optimized, ensuring low noise, low vibration, and high bearing capacity. Our bearings are from well-known brands such as SKF, C&U, HRB, etc. Oil seals are from brand SKF, NAK, KSK. The shafts are made of 40Cr, which has been under multi-precision machining, through rigorous dynamic and static balance test, to ensure low noise and smooth operation of the gearbox. Each helical gearbox is cleaned with diesel oil, powered on after painting, and pressurized to 2.5KG with a leak tester to ensure that there is no oil leakage, and then tested whether the noise level is qualified by decibel meter.

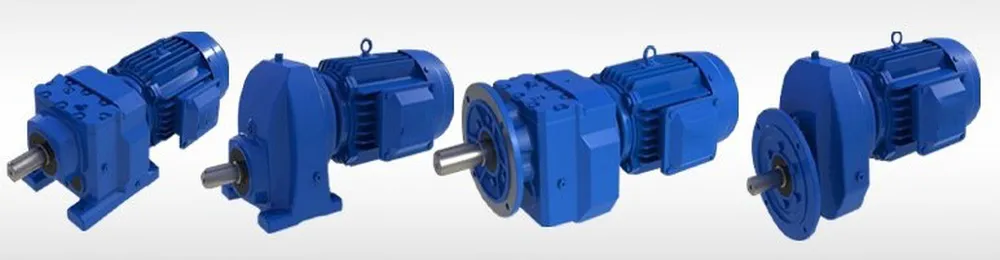

Four Basic Types of R Series Helical Gearbox:

R..: foot mountedRF..: flange mountedRX..: Single-stage foot mountedRXF..: Single-stage flange mounted

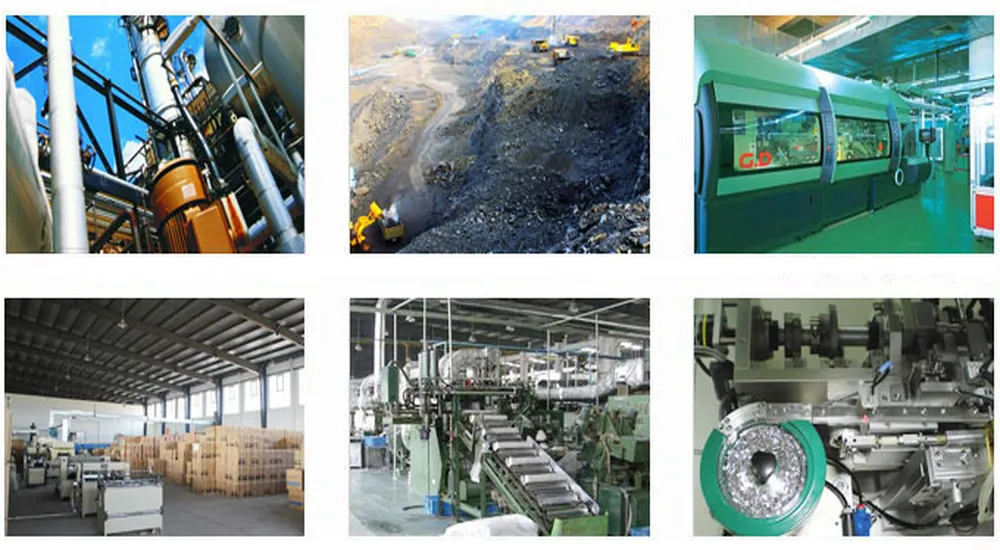

RX Series Single Stage Helical Gearbox Main Applied for:

Harbor and shipping
Hoist and transport
Electric power
Coal mining
Cement and construction
Paper and light industry
Chemical industry
and environmental protection, etc.

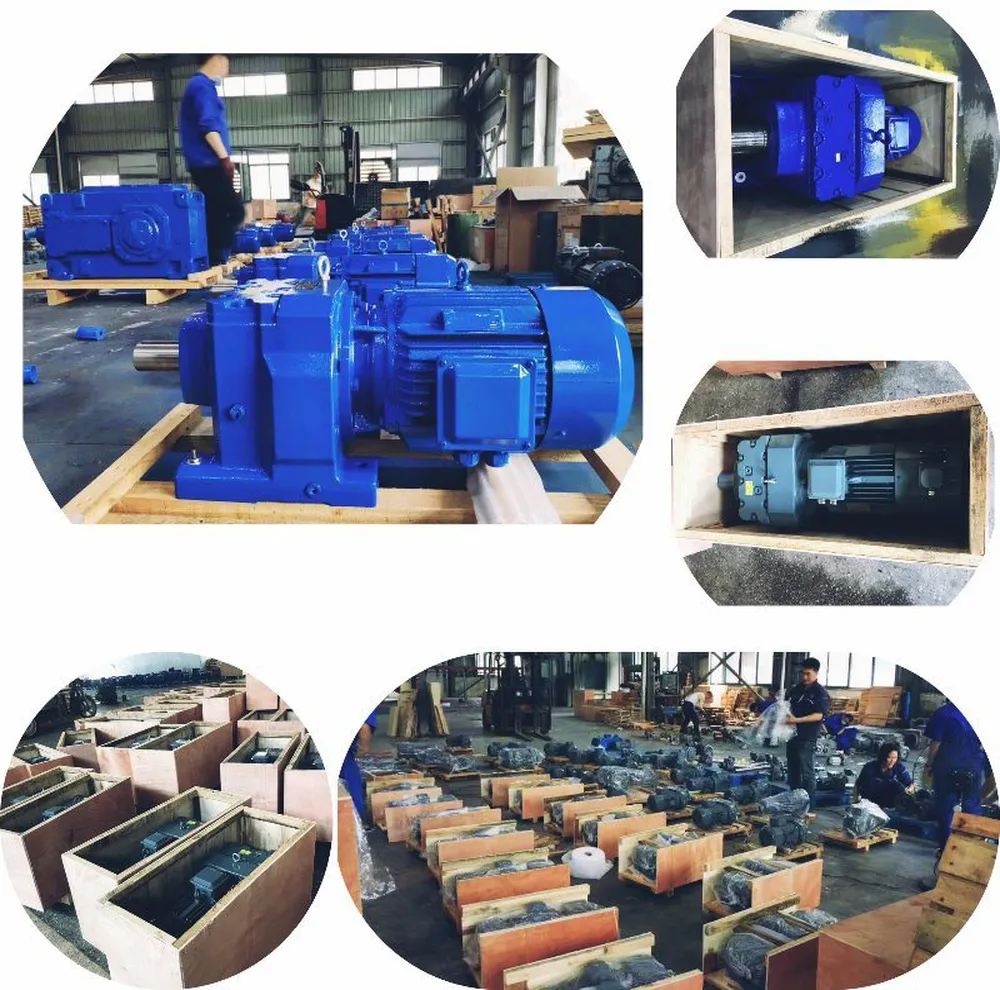

Single Stage Helical Gearbox Packing and Transportation

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. RX Series Single Stage Helical Gearbox with Foot Mounted

Helical Gearbox Manufacturer in China

Our company is located in the city of Ningbo, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, HB series helical gearboxes, RC series helical gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you. RX Series Single Stage Helical Gearbox with Foot Mounted

FAQ

Q1: Are you a trading company or a manufacturer?A: We are a manufacturer in Zhejiang Province, China. Our company owns the ability of manufacturing, processing, designing and R&D. We welcome your visit.Q2: How do we select models and specifications?A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…Q3: How is your price? Can you offer any discount?A: Our prices are always competitive. If the customer can place a large order, we surely will allow a discount.Q4: How long should I wait for the feedback after I send the inquiry?A4: We will reply as soon as possible, 12 hours at most.Q5: What is your product warranty period?A: We have the certifications of ISO9001, CE, and SGS.Q6: What industries are your helical gearboxes being used in?A: Our helical gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
