RXF Series High Torque Single Stage Helical Gearbox with Flange Mounted

Boost your machinery's power with Raydafon Group's RXF Series High Torque Single Stage Helical Gearbox with Flange Mounted, designed for seamless integration and superior torque performance. Its robust construction and advanced helical gear design deliver smooth, quiet operation, perfect for industrial applications requiring high durability. Ideal for engineers and manufacturers, this gearbox enhances efficiency and reduces wear, ensuring long-lasting reliability. Experience the difference with its unique flange mounting for easy installation and maintenance. Elevate your operations today with Raydafon Group's trusted innovation.

Send Inquiry

Product Description

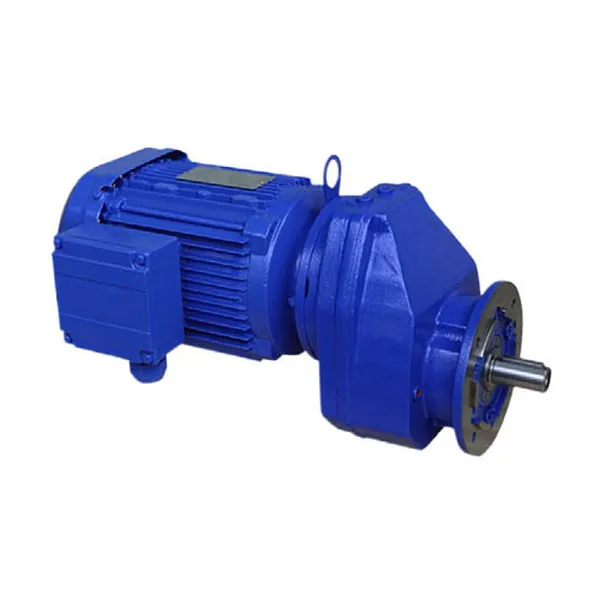

RXF Series High Torque Single Stage Helical Gearbox with Flange Mounted

RXF series helical gearboxes are novel reduction transmission devices composed of helical gear reducer and various motors. It has wide transmission ratios, high transmission efficiency, low energy consumption, and superior performance. The gears are processed by a high-precision gear grinding machine. RXF series helical gearbox has its own advantages of high torque, long life, compact design, small size, easy installation, wide ranges of uses, and various installation methods, and it’s suitable for all-around installation configurations. RXF series helical gearbox is the single-stage type of helical gear reducer with a flange mounted, and its ratio is up to 8.65 and its output torque up to 1680N.m. RXF Series High Torque Single Stage Helical Gearbox with Flange Mounted

RXF Series Single Stage Helical Gearbox Specifications:

Model:	RXF17/27/37/47/57/67/77/87/97/107/137/147/167
Mounting ways:	Foot mounted, and flange mounted
Input ways:	Motor input, AM (IEC) flange input, and shaft input
Output way:	Solid shaft output
Efficiency:	94%-98%(depends on the transmission stage)
Housing material:	HT250 high-strength cast iron
Gear material:	20CrMnTi
Surface hardness of gears:	HRC58-62
Input/Output shaft:	40Cr steel
Heat treatment:	Carburizing and quenching
Bearing:	C&U or another brand
Oil seal:	NAK or another brand
Lubricating oil:	Gear oil
Packing:	Pywood case

RXF Series Single Stage Helical Gearbox Parameters:

Size	37	57	67	77	87	97	107	127	157
Structure	RX RXF
Input nowerrating (kW)	0.18-1.1	0.18-5.5	0.18-7.5	1.1-11	3-22	5.5-30	7.5-45	7.5-90	11-132
Ratio	1.62-4.43	1.3-5.5	1.4-6.07	1.42-8.00	1.39-8.65	1.42-8.23	1.44-6.63	1.51-6.2	1.57-6.2
Permissible torque(N.M)	20	70	135	215	400	600	830	1110	1680

RXF Series Single Stage Helical Gearbox Design:

(1)The cast box is made of high-strength grey cast iron HT250 and ball ground cast iron. The small and medium box is made of integral structure with good rigidity, excellent anti-vibration performance, improved wave strength, and extended service life.(2)The gear material is processed by 20CrMnTi + carbonization process. The hardness of the tooth surface reaches 58~62HRC.(3)The shaft is made of alloy steel, adopts a 40Cr + high frequency quenching and tempering treatment, and the oil seal position adopts radial grinding to improve wear resistance and reduce the risk of oil leakage.(4)Bearings, oil seals, and other standard parts, which are used at home and abroad for famous brand products.(5)100% strict ex-factory inspection.

Characteristic of RXF Series Single Stage Helical Gearbox

1, RXF series single stage helical gearbox inclined gear with international technical requirements manufacturing, has a very high technology content;2, save space, reliable and durable, bear overload ability, power can reach high 132KW;3, low energy consumption, superior performance, and reducer efficiency of over 95%;4, little vibration, low noise, energy-saving high;5, select high-quality forging steel materials, cast iron box, and gear surface rigidity by high-frequency heat treatment;6, precision machined, ensure shaft parallelism and positioning bearing requirements, form helical gear transmission assembly equipped with various reducer motor, the combination becomes electromechanical integration, fully guarantee the product quality characteristics.

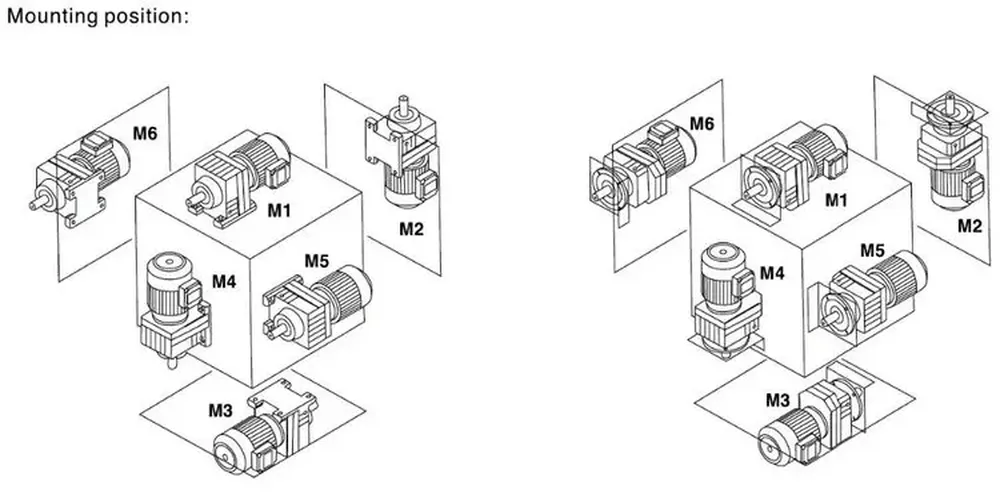

RXF Series Single Stage Helical Gearbox Mounting Position

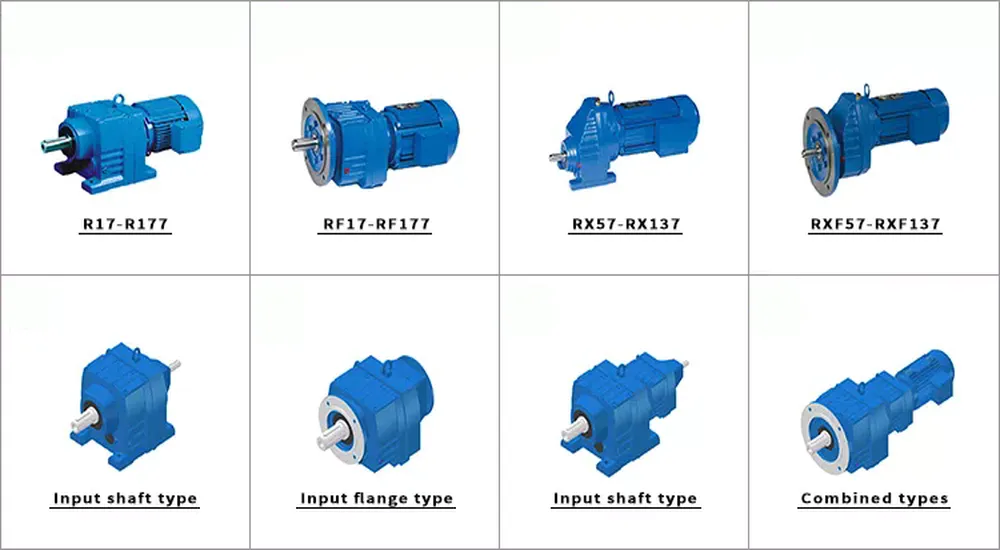

R Series Coaxial Helical Gearbox Includes Two Main Types:

1. the single stage helical gearbox RX31 to RX151 (high output speed and offer a compact solution for system design);2. R series 2 stage helical gearbox and 3 stage helical gearbox. The details models are as follows:R Series (Foot-mounted): R37~R167RS Series (Foot-mounted, Solid Shaft InputRF Series (Flange-mounted): RF37~RF167RFS Series (Flange-mounted, Solid Shaft InputRX Series (1 Stage, Foot-mounted): RX31~RX151RXS Series (1 Stage, Foot-mounted, Solid Shaft InputRXF Series (1 Stage, Flange-mounted): RXF31~RXF151RXFS Series (1 Stage, Flange-mounted, Solid Shaft Input)RM Series (agitator gearboxes): Specially designed for agitating applications RXF Series High Torque Single Stage Helical Gearbox with Flange Mounted

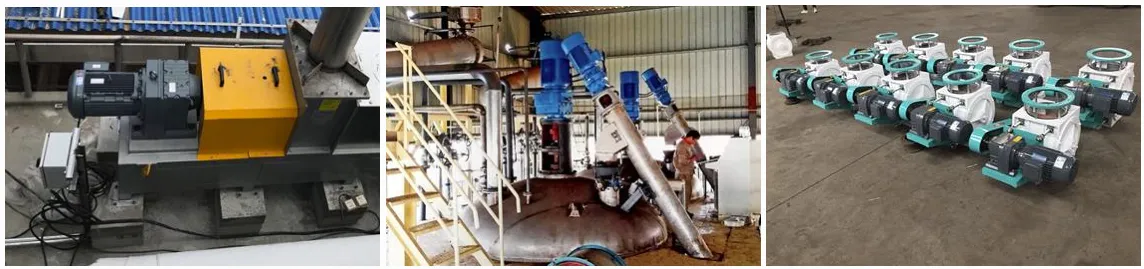

RXF Series Single Stage Helical Gearbox Use Industry

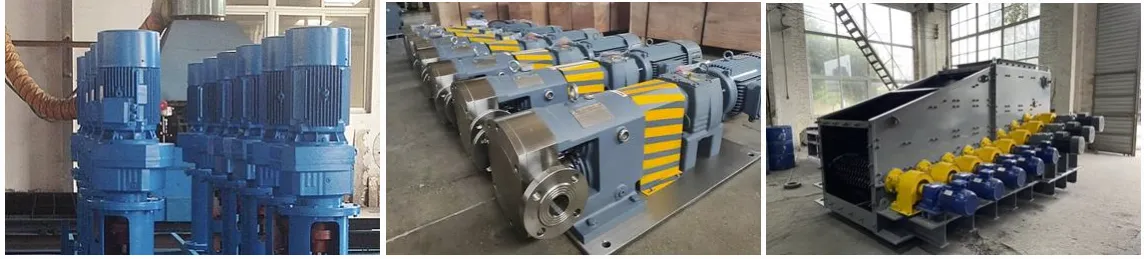

(1) Fans(2) Blenders(3) Rubber machinery(4) Plastic industry(5) Metal rolling machinery(6) Food machinery(7) Textile machinery(8) Water treatment machinery RXF Series High Torque Single Stage Helical Gearbox with Flange Mounted

Single Stage Helical Gearbox Packing and Transportation

●Packaging: In order to ensure the integrity of product appearance, we will choose cartons, wooden pallets, and wooden pallets according to customer needs.●Delivery time: Each reducer is manufactured and tested in accordance with strict and fixed procedures to ensure that the quality is correct before leaving the factory and delivery on time.●Transportation mode: We will choose the most suitable mode of transportation for our customers according to the weight and size of the goods. We can also choose the mode of transportation according to the needs of our customers.●Receiving and after-sales service: After receiving the goods, please check whether they are in good condition. We will provide customers with perfect after-sales service. RXF Series High Torque Single Stage Helical Gearbox with Flange Mounted

Helical Gearbox Manufacturer in China

Our company is located in the city of Ningbo, Zhejiang Province of China. We handle the products of power transmission, and our lines mainly cover series products in speed reducers, RV series worm gearboxes, WP series worm gearboxes, HB series helical gearboxes, RC series helical gearboxes, S/R/K/F series helical gearboxes, X/B series cycloidal gearboxes, ATA series shaft mounted gearboxes, SMR series shaft mounted gearboxes, associated electric motors, and other power transmission accessories. Based on their versatile functions, our products can be utilized in many fields: machines of wastewater treatment, dredgers, the chemical industry, cranes, metalworking mills, conveyors, the paper industry, the cement industry, cableways, and so on. With excellent quality and reasonable prices, our products enjoy a good reputation from customers and peers all over the world.Furthermore, the R&D investment is annually increasing for the purpose of better meeting the new demands of our customers and adapting to the new tendency of the industry. Depending on the principles of honestly operating and mutual benefit, We sincerely look forward to cooperating with you. RXF Series High Torque Single Stage Helical Gearbox with Flange Mounted

FAQ

Q1: Are you a trading company or a manufacturer?A: We are a manufacturer in Zhejiang Province, China. Our company owns the ability to manufacture, processing, design, and R&D. We welcome your visit.Q2: How do we select models and specifications?A: According to the specific details of the demands from the part of the inquiry, we will recommend the products’ models upon synthesizing the factors of the field of product usage, power, torque arm, and ratio…Q3: How is your price? Can you offer any discount?A: Our prices are always competitive. If the customer can place a large order, we surely will allow a discount.Q4: How long should I wait for the feedback after I send the inquiry?A4: We will reply as soon as possible, 12 hours at most.Q5: What is your product warranty period?A: We have the certifications of ISO9001, CE, and SGS.Q6: What industries are your helical gearboxes being used in?A: Our helical gearboxes are widely applied to metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment, and so on.
