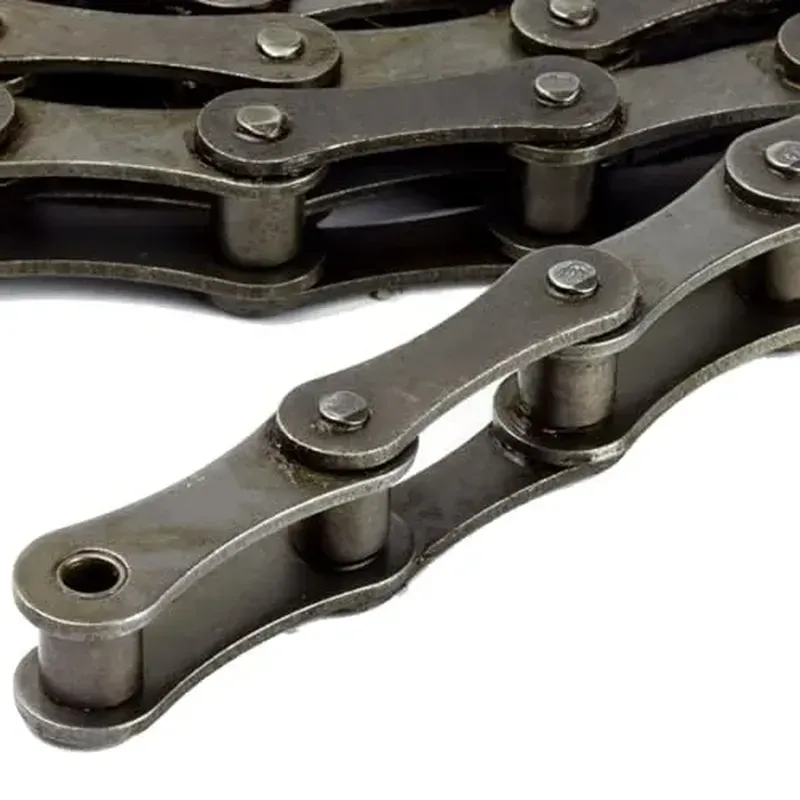

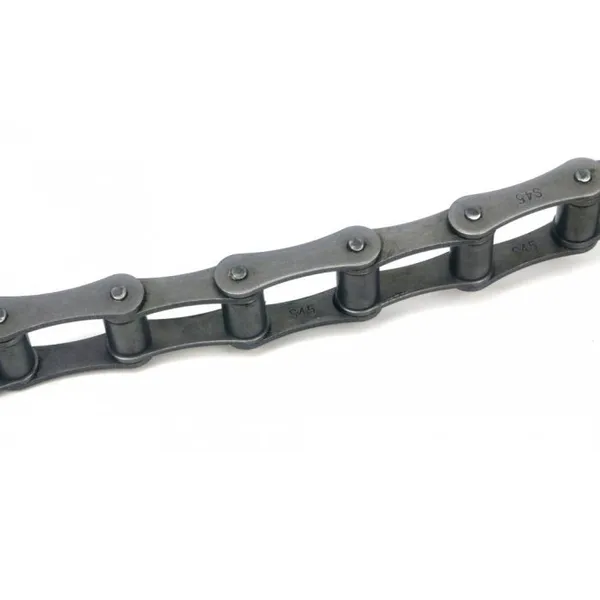

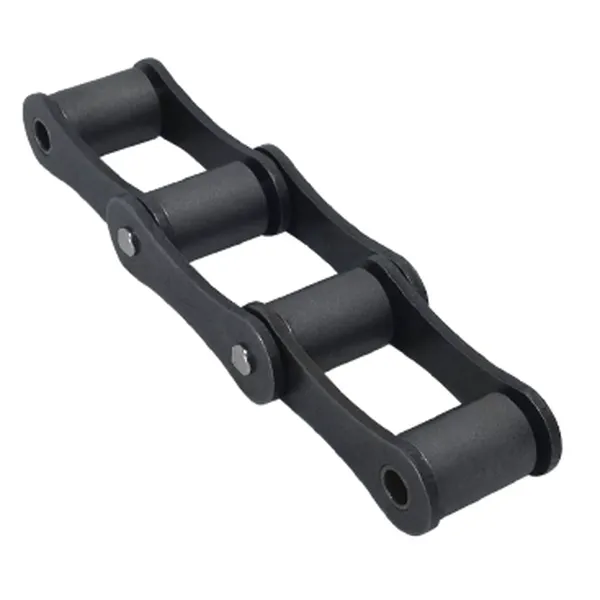

S45 Agricultural Roller Chain

S45 Roller Chain S45 Agricultural Chain

The S45 agricultural roller chain is a high-strength chain designed for use in agricultural equipment. It is made of solid rollers and heat-treated components, which make it durable and resistant to wear. The S45 chain has a simple design consisting of inner and outer plates, pins, bushings, and rollers. The rollers allow the chain to move smoothly and efficiently over sprockets, which are toothed wheels that transmit rotary motion and power to other parts of the machinery.The S45 agricultural roller chain is known for its strength, durability, and resistance to wear and fatigue. It is designed to handle heavy loads and high speeds, making it ideal for use in agricultural applications such as combine harvesters, balers, spreaders, and other farm equipment. The S45 agricultural roller chain is an important component in many types of agricultural machinery, helping to ensure reliable and efficient operation in the field.

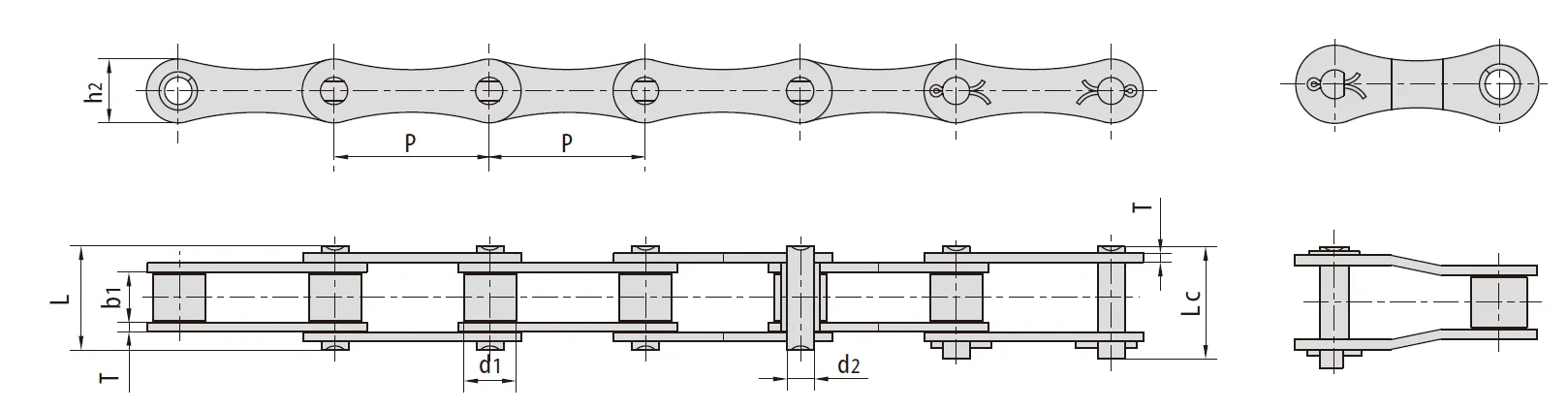

S45 Roller Chain Dimensions

Chain No:	S45 Roller Chain (S45 Agricultural Chain)
Pitch (P):	41.40mm
Roller Diameter (d1):	15.24mm
Width Between Inner Plates (b1):	22.23mm
Pin Diameter (d2):	5.72mm
Pin Length (L):	37.7mm
Connecting Link Pin Length (Lc):	40.4mm
Inner Plate Depth (h2):	?17.3mm
Plate Thickness (T):	2.8mm
Tensile Strength:	7,868 LBS
Weight Per Meter:	3.66 LBS

S45 Agricultural Roller Chain Design Features

The S45 agricultural roller chain boasts several design features that make it well-suited for the demanding conditions of agricultural applications:

1. High Strength and Durability: The S45 agricultural roller chain is engineered using premium-grade materials such as carbon steel and alloy steel, ensuring exceptional tensile strength and durability. This robust construction enables the chain to withstand heavy loads and resist wear, making it ideal for demanding agricultural applications that require reliable power transmission.
2. Corrosion Resistance: To combat the effects of moisture, dirt, and other contaminants common in agricultural environments, the S45 roller chain is often treated with corrosion-resistant coatings or finishes. This protective layer helps prevent rust and corrosion, enhancing the chain's longevity and reliability in challenging farming conditions.
3. Smooth and Quiet Operation: Precision manufacturing techniques and high-quality components ensure that the S45 chain operates smoothly and quietly. This feature is essential for maintaining optimal performance in agricultural machinery, reducing noise levels, and enhancing overall user experience during prolonged operation in the field.
4. Long Service Life: The S45 agricultural roller chain is designed to deliver a long service life, even under rigorous working conditions. Its durable construction, coupled with proper maintenance practices, helps extend the chain's operational lifespan, minimizing downtime and replacement costs for farmers and agricultural equipment operators.
5. Wide Range of Applications: Due to its versatility and robust design, the S45 roller chain finds applications in various agricultural machinery, including combine harvesters, manure spreaders, hay balers, and more. Its compatibility with different equipment types makes it a go-to choice for farmers and agricultural professionals seeking reliable power transmission solutions.
6. Compatibility with ANSI Standard: The S45 roller chain is designed in accordance with ANSI (American National Standards Institute) standards, ensuring compatibility and interchangeability with other ANSI-compliant chains and sprockets. This standardization simplifies maintenance and replacement processes, allowing for easy integration into existing agricultural equipment setups that adhere to ANSI specifications.

Typical Applications of S45 Agricultural Chains

The S45 agricultural roller chain finds widespread use in a variety of applications within the agricultural sector due to its robust design and reliability. Some typical applications where the S45 chain is commonly employed include:

• Combine Harvesters: S45 agricultural roller chains are commonly used in combine harvesters to drive various components such as the cutting platform, reel, and grain elevator. Their high strength, durability, and smooth operation make them essential for efficiently harvesting crops like wheat, corn, soybeans, and more in large-scale agricultural operations.

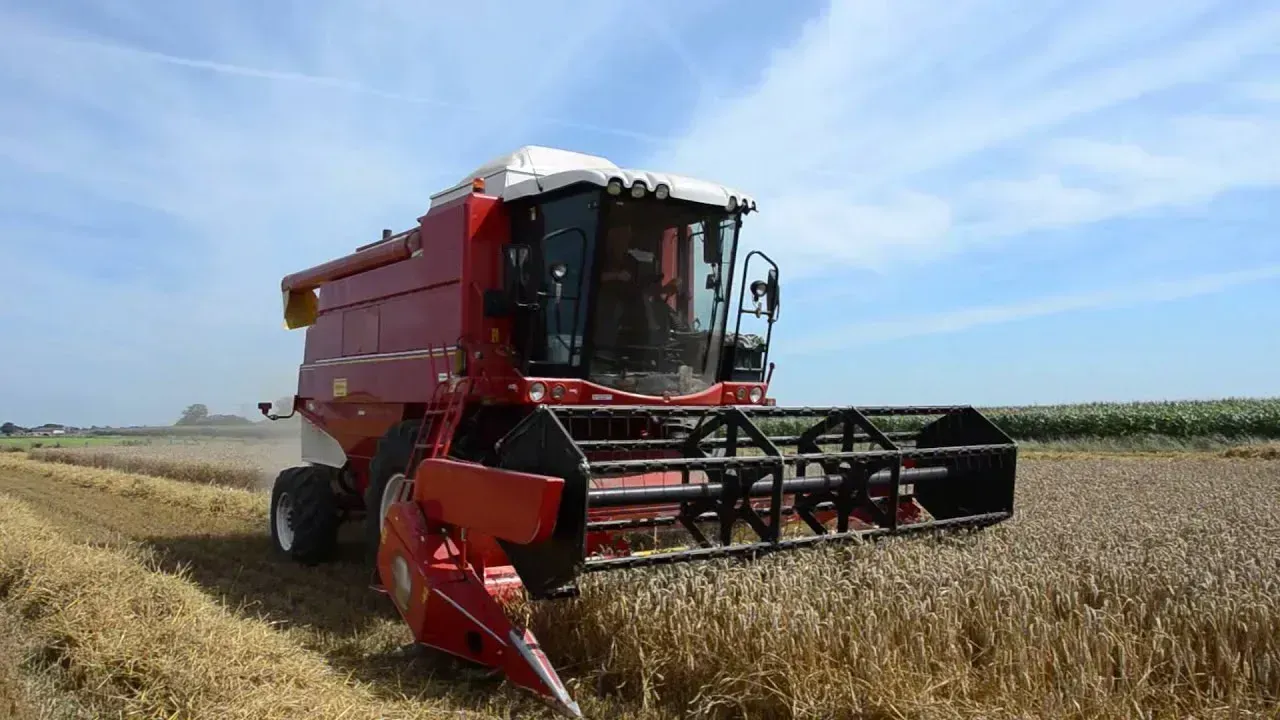

• Wheat Harvesters: In wheat harvesting machinery, S45 roller chains play a crucial role in powering the cutting mechanisms, conveyors, and other moving parts. Their corrosion resistance and long service life make them well-suited for enduring the rigorous conditions involved in harvesting wheat fields efficiently and effectively.

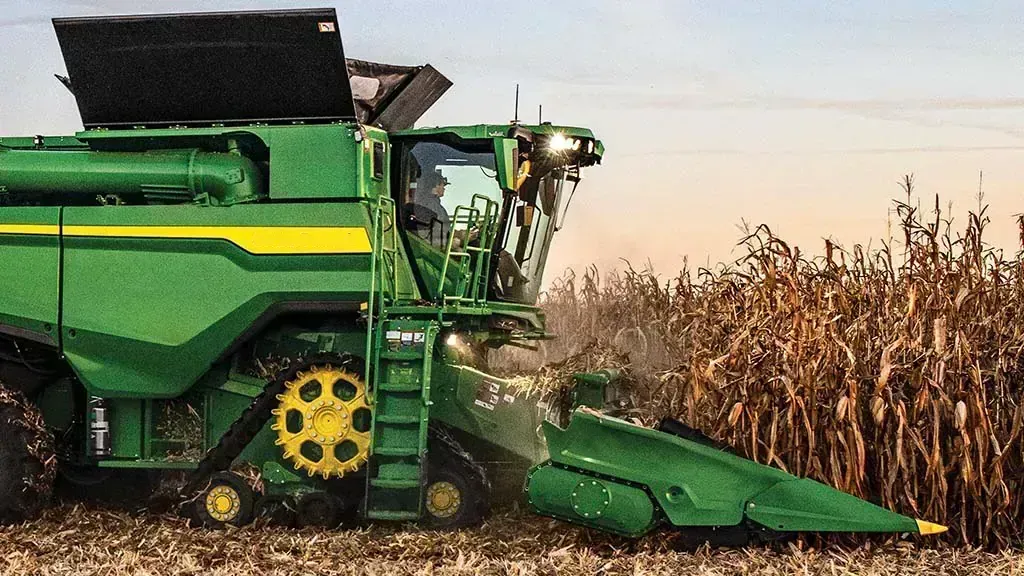

• Corn Harvesters: S45 chains are integral components in corn harvesters, where they transmit power to the corn header, gathering chains, and other key systems. Their ability to withstand heavy loads and provide smooth operation ensures consistent performance during the demanding task of harvesting corn crops in agricultural settings.

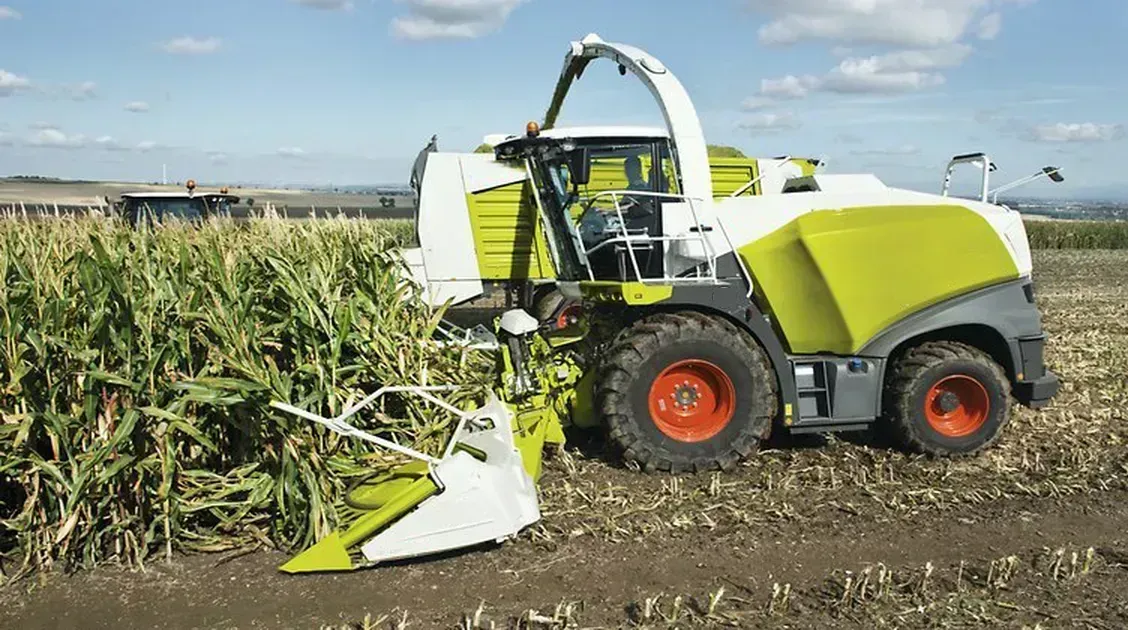

• Forage Harvesters: For forage harvesters used to cut and process crops like alfalfa, grass, and other forage plants, S45 agricultural roller chains are utilized to drive the cutting units, feed mechanisms, and discharge systems. Their durability, compatibility with different equipment configurations, and wide range of applications make them essential components in forage harvesting operations.
• Manure Spreaders: S45 roller chains find application in manure spreaders to drive the spreading mechanisms and conveyor systems responsible for distributing manure across fields. Their high strength, corrosion resistance, and compatibility with the demanding conditions of manure handling make them reliable components in ensuring efficient and effective manure spreading operations.

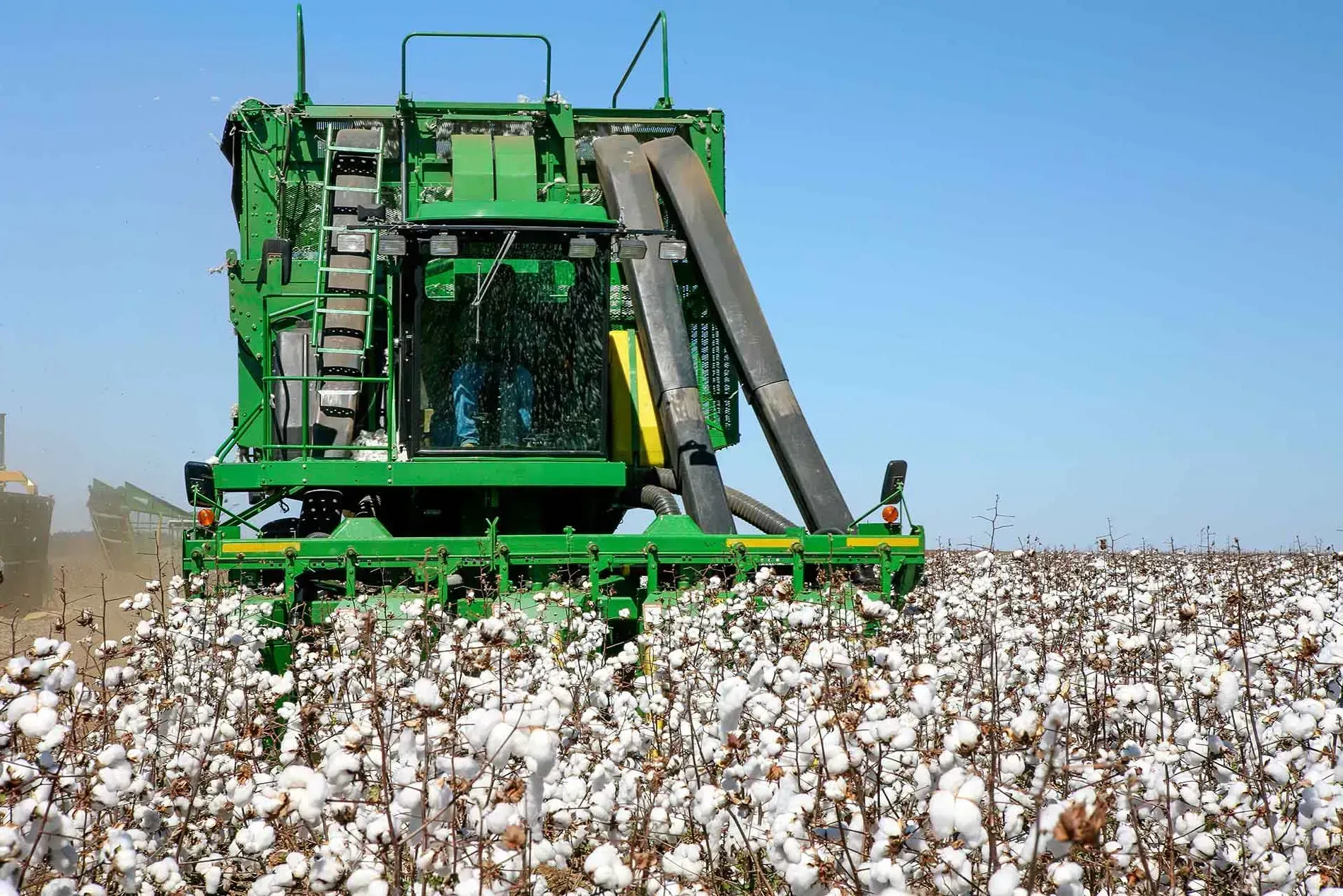

• Cotton Harvesters: Cotton harvesters rely on S45 roller chains to power critical components such as spindles, gathering units, and conveyors during the harvesting process. Their ability to withstand heavy loads, provide smooth operation, and resist corrosion make them indispensable in efficiently harvesting cotton crops in agricultural operations.

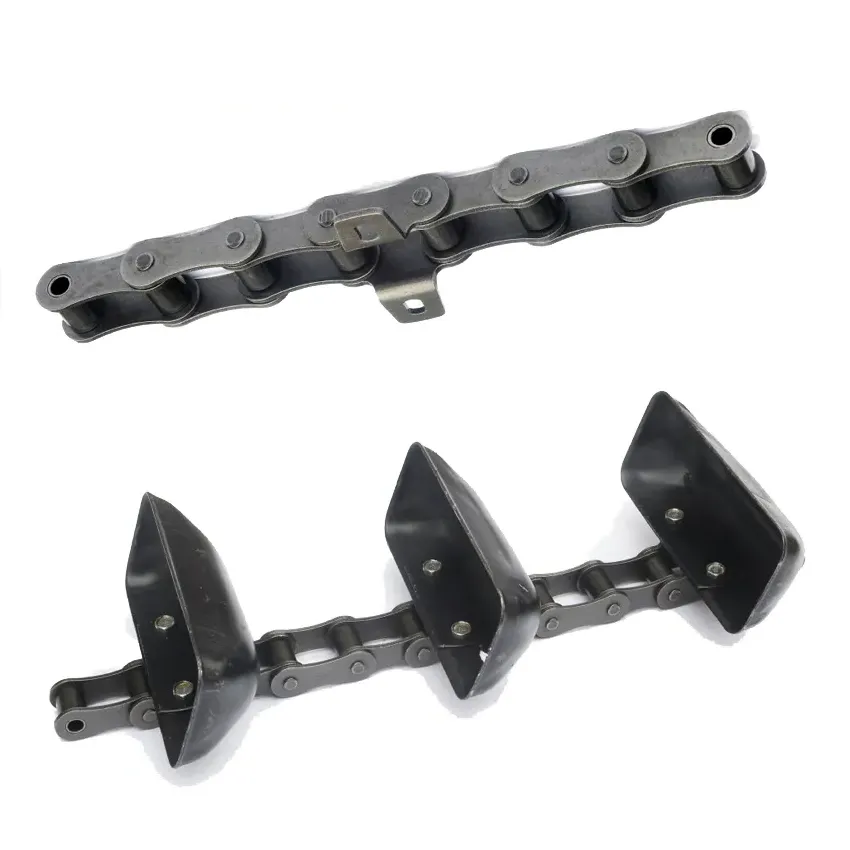

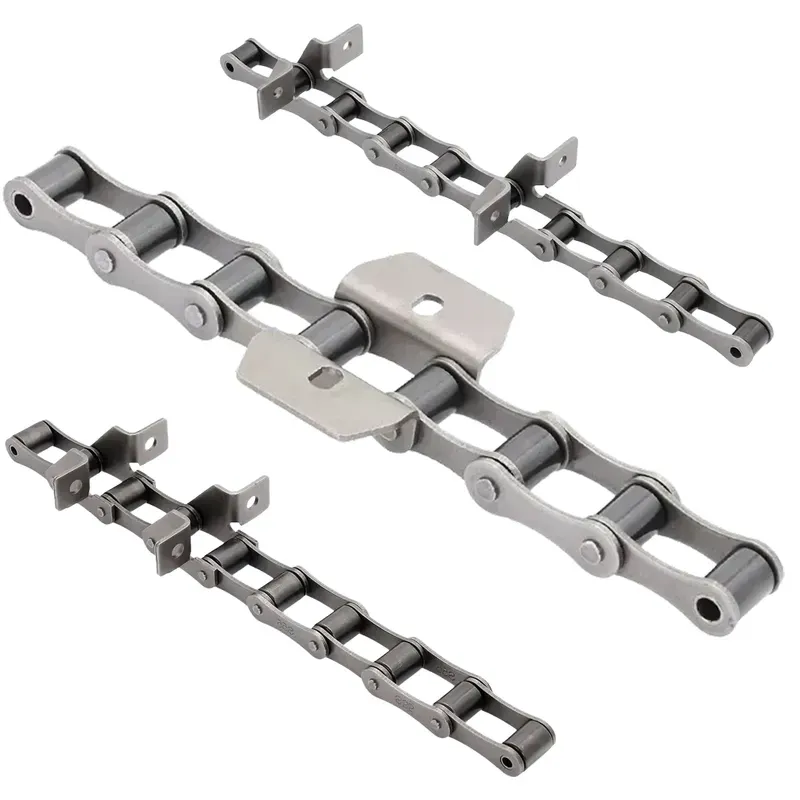

S45 Roller Chain Attachments

The S45 roller chain, commonly used in agricultural applications, can be enhanced with a variety of attachments to suit specific operational requirements. These attachments expand the functionality and versatility of the chain, allowing it to perform specialized tasks within agricultural machinery. Here are some common attachments that can be found with the S45 roller chain:

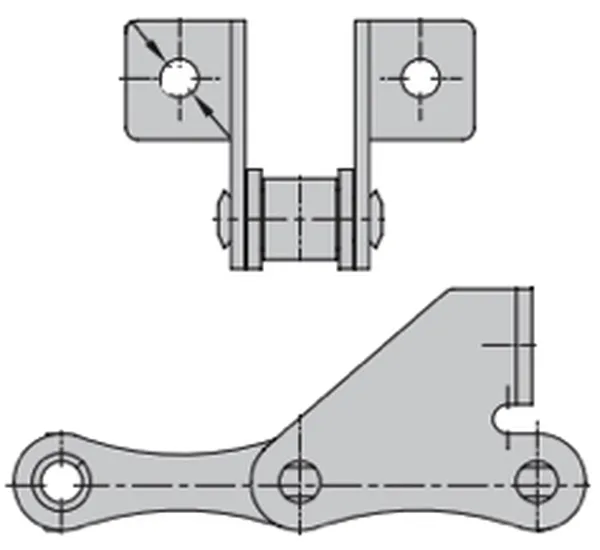

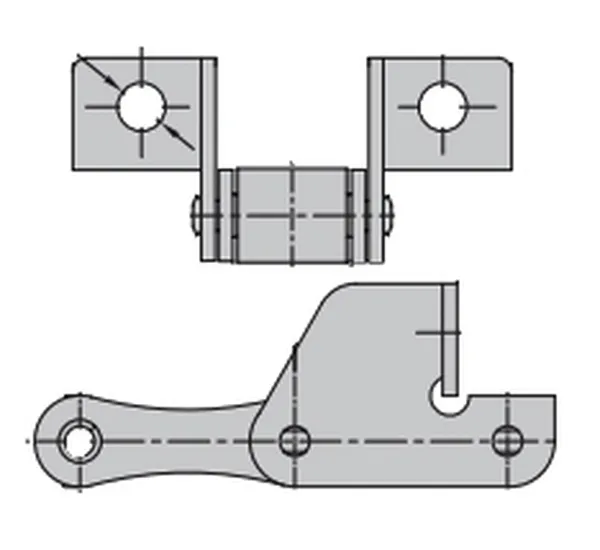

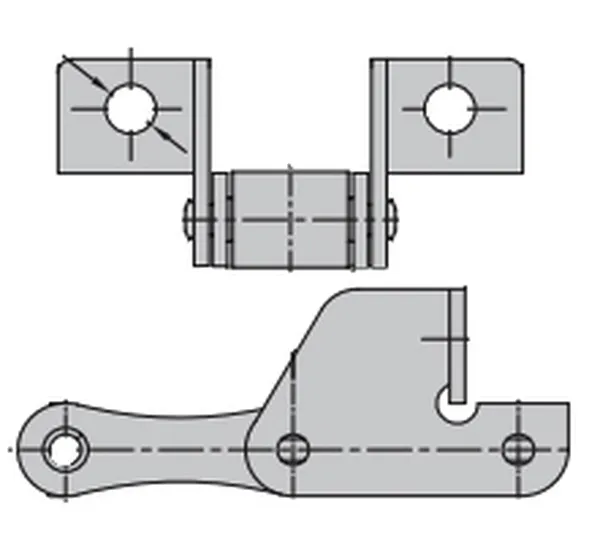

S45 Chain V Attachment	S45 Chain SDF1 Attachment	S45 Chain W-F1 Attachment	S45 Chain W-F4 Attachment

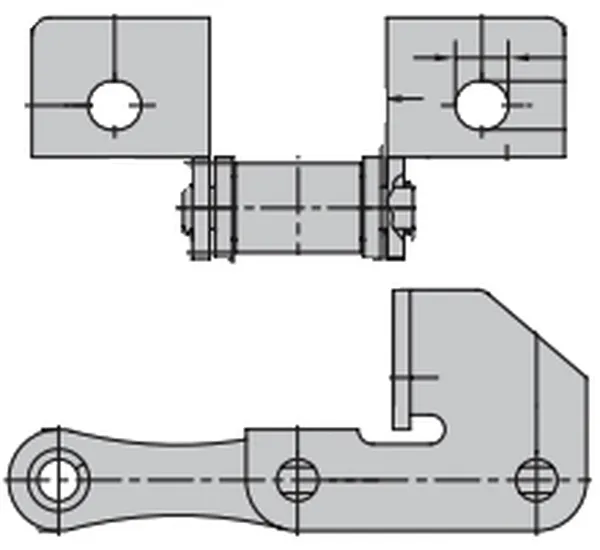

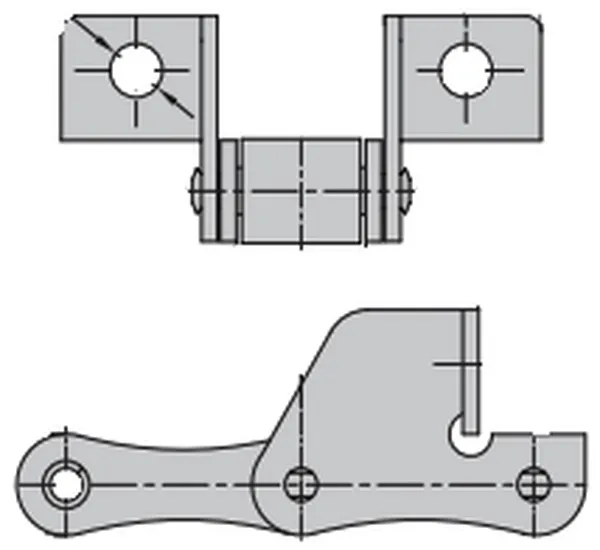

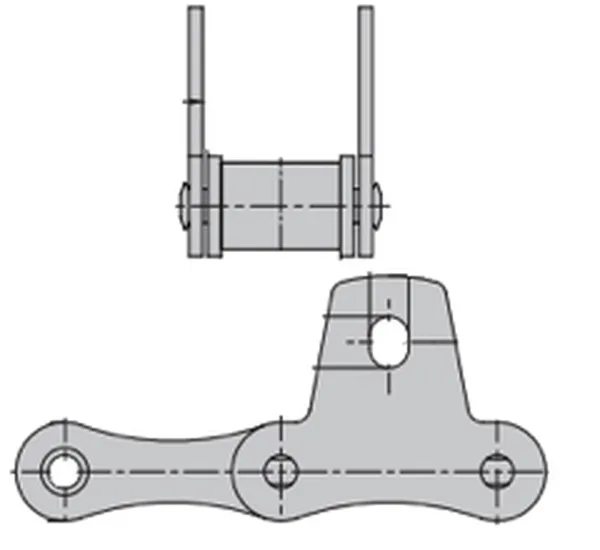

S45 Chain SK1 Attachment	S45 Chain SD Attachment	S45 Chain HF1 Attachment	S45 Chain F1 Attachment

S45 Agricultural Roller Chain Materials?Available

The S45 agricultural roller chain, designed for demanding agricultural applications, is available in a variety of materials to suit different operating conditions and requirements. The choice of material for the roller chain influences its strength, durability, corrosion resistance, and overall performance. Some common materials used for manufacturing S45 agricultural roller chains include:

1. 45Mn Alloy Steel: S45 agricultural roller chains can be manufactured using 45Mn alloy steel, known for its high strength and wear resistance. This material offers excellent durability and toughness, making it suitable for withstanding heavy loads and harsh conditions commonly encountered in agricultural applications, ensuring reliable performance and extended service life.
2. 42CrMo Alloy Steel: S45 roller chains made from 42CrMo alloy steel exhibit superior hardness, fatigue strength, and impact resistance. This material is ideal for applications requiring high-performance chains that can endure intense operating conditions, such as those found in agricultural machinery where durability and reliability are paramount.
3. 20CrMo Alloy Steel: S45 roller chains constructed from 20CrMo alloy steel offer a balance of strength, toughness, and wear resistance. This material is well-suited for agricultural applications where a combination of durability and cost-effectiveness is desired, providing reliable power transmission while maintaining longevity and performance under demanding working environments.
4. SS304 Stainless Steel: S45 agricultural roller chains crafted from SS304 stainless steel provide excellent corrosion resistance and hygiene properties. Ideal for applications where cleanliness and resistance to rust and chemicals are critical, these chains offer durability and reliability in agricultural settings where exposure to moisture, fertilizers, and other corrosive elements is common.
5. SS316 Stainless Steel: S45 roller chains manufactured from SS316 stainless steel offer enhanced corrosion resistance and durability compared to SS304. These chains are particularly well-suited for agricultural applications where exposure to harsh environments, chemicals, and high humidity levels is prevalent, ensuring long-lasting performance and minimal maintenance requirements in demanding agricultural machinery setups.

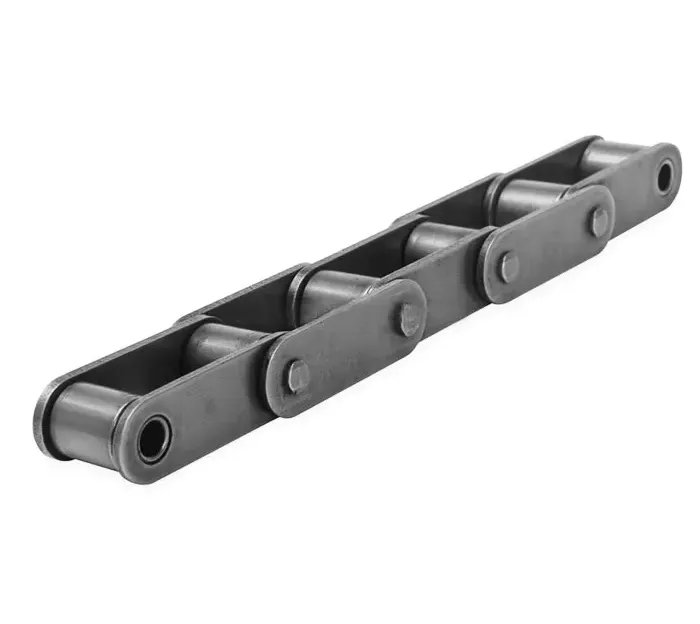

S45 Roller Chains vs. CA550 Roller Chains

S45 roller chains and CA550 roller chains are both used in agricultural applications but have distinct differences. S45 roller chains are designed for high strength and durability, often made from robust materials like 45Mn alloy steel. They are known for their smooth operation and corrosion resistance, making them suitable for heavy-duty machinery like combine and corn harvesters. Their construction allows them to handle significant stress and wear in harsh environments.On the other hand, CA550 roller chains are typically used in lighter agricultural machinery, such as conveyors and small harvesters. They are generally made from materials that prioritize flexibility and ease of maintenance. While they offer good performance in less demanding applications, they may not withstand the same extreme conditions as S45 chains. CA550 chains are often chosen for their cost-effectiveness and suitability for equipment with moderate load requirements.The choice between S45 and CA550 roller chains depends on the specific agricultural application, with S45 chains preferred for more challenging tasks and CA550 chains for lighter, less demanding uses.

Feature	S45 Roller Chains	CA550 Roller Chains
Material	Typically 45Mn, 42CrMo, or SS316	Often standard carbon steel or basic alloy
Strength	High strength for heavy-duty applications	Moderate strength for lighter applications
Durability	Highly durable in harsh conditions	Suitable for moderate conditions
Corrosion Resistance	Excellent, especially with stainless steel options	Basic corrosion resistance
Wear Resistance	Superior, designed for frequent use	Adequate for less demanding use
Applications	Combine, corn, and forage harvesters	Conveyors, small harvesters
Load Capacity	Handles high loads	Designed for moderate loads
Flexibility	Less flexible due to robust construction	More flexible
Cost	Higher due to advanced materials	More cost-effective
Maintenance	Requires less frequent maintenance	Requires regular maintenance
Operating Environment	Suitable for extreme environments	Suitable for standard environments
Noise Level	Smooth and quiet operation	Moderate noise levels
Service Life	Long service life	Shorter service life
Compatibility	Compatible with ANSI standards	Compatible with standard agricultural machinery
Ease of Installation	Slightly more complex due to heavy-duty design	Easier installation
Typical Use	High-demand agricultural machinery	Light to medium agricultural equipment

S45 Roller Chains	CA550 Roller Chains

S45 Agricultural Chain Lubrication and Maintenance

Proper lubrication and maintenance are crucial for ensuring the optimal performance and longevity of S45 agricultural roller chains in agricultural machinery. Here are some key considerations for lubrication and maintenance of S45 roller chains:Lubrication:

• Clean the Chain: Before applying lubricant, thoroughly clean the chain to remove dirt, debris, and old lubricant. Use a brush and a suitable cleaning solution to scrub the chain, ensuring all particles are removed. This step helps the lubricant adhere properly and prevents abrasive wear.
• Choose the Right Lubricant: Select a high-quality lubricant designed for roller chains, preferably one that provides protection against corrosion and wear. Consider the operating environment and temperature to choose the appropriate viscosity. The right lubricant will ensure smooth operation and extend the chain's lifespan.
• Apply Lubricant Evenly: Apply the lubricant evenly across the entire length of the chain. Focus on the areas where the chain contacts the sprockets and between the rollers and pins. Use an applicator or a brush to ensure thorough coverage, allowing the lubricant to penetrate all moving parts effectively.
• Wipe Off Excess Lubricant: After application, wipe off any excess lubricant with a clean cloth. Excess lubricant can attract dust and debris, leading to increased wear. Removing the surplus ensures the chain remains clean and reduces the likelihood of buildup, maintaining optimal performance and reducing maintenance needs.

Maintenance:

• Regular Inspection: Conduct regular inspections to identify signs of wear, elongation, or damage. Look for cracked plates, rust, or bent links. Early detection allows for timely repairs or replacements, preventing unexpected failures and ensuring the chain operates efficiently and reliably in agricultural machinery.
• Proper Tensioning: Maintain the correct tension in the chain to prevent unnecessary stress on the links and sprockets. A chain that is too tight or too loose can cause excessive wear and reduce efficiency. Adjust the tension according to manufacturer specifications to ensure smooth operation and longevity.
• Lubrication Routine: Establish a regular lubrication schedule to keep the chain well-lubricated. Proper lubrication reduces friction and wear, extending the chain’s life. Use a lubricant suitable for the operating conditions, and apply it consistently to maintain optimal performance and prevent rust and corrosion.
• Sprocket Alignment: Ensure sprockets are properly aligned to prevent uneven wear on the chain. Misalignment can cause the chain to twist or bind, leading to premature failure. Regularly check and adjust sprocket alignment to ensure the chain runs smoothly and efficiently, reducing maintenance costs and downtime.

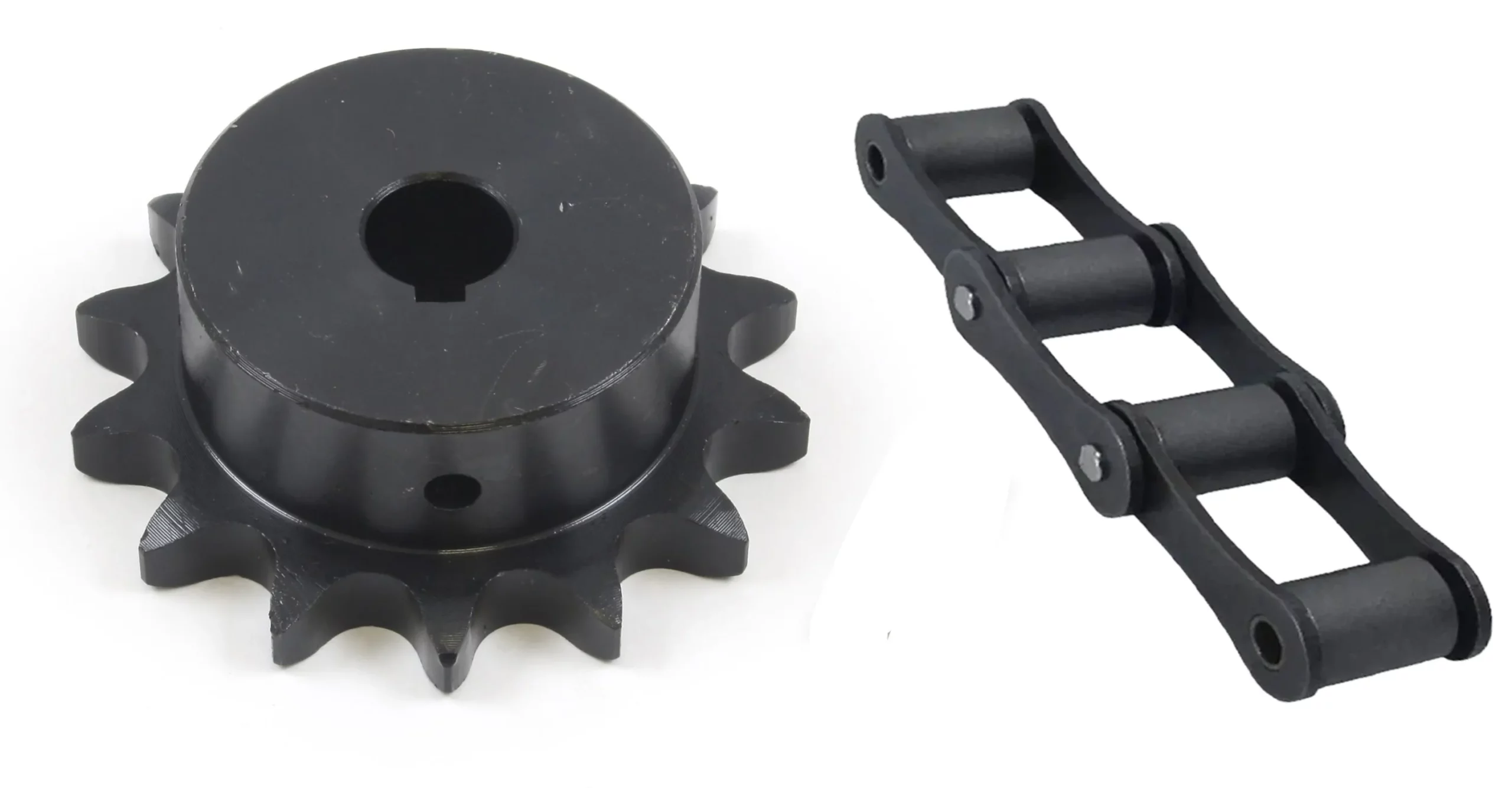

S45 Chain Sprockets for S45 Chains

S45 chain sprockets and S45 chains work in tandem to ensure the efficient operation of agricultural machinery, such as rice combine harvesters. The relationship between these components is crucial, as they must be precisely aligned to function effectively.S45 chain sprockets are designed to mesh perfectly with S45 agricultural chains. The sprockets have teeth that engage with the chain links, providing a secure grip. This interaction transmits power from the machine’s engine to various components, enabling tasks such as threshing, conveying, and elevating crops. The precise fit between the?sprocket?teeth and chain links minimizes slippage and maximizes power transfer, which is essential for maintaining the efficiency and reliability of agricultural machinery.The primary use of this system is to drive the mechanical operations within harvesters. For example, in rice harvesters, the S45 chains and sprockets work together to move harvested rice through the machine from the cutting mechanism to the storage area. This process involves several stages, including threshing, separating, and conveying, all of which require synchronized movement made possible by the chain and sprocket system. The durability of S45 chains, combined with the strength of the sprockets, ensures that the machinery can handle the heavy loads and demanding conditions of agricultural work.The performance of S45 chains and sprockets is crucial for minimizing downtime and maximizing productivity. Their robust construction allows them to withstand the wear and tear of continuous use in challenging environments. Regular maintenance and proper alignment are essential to ensure that both the chains and sprockets operate smoothly, preventing premature wear and potential failure.The S45 chain sprockets and S45 chains are foundational to the effective functioning of agricultural equipment. Their combined use ensures efficient power transmission and reliable operation, which are vital for the productivity of farming activities.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber conveyor chains, 81X chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

FAQs:

Q: What are the key features of the S45 roller chain?A: The S45 roller chain is known for its durability, high tensile strength, and resistance to wear and corrosion. It's designed to withstand the harsh conditions of agricultural environments, ensuring reliable performance in machinery like combines and balers.Q: How often should the S45 roller chain be maintained?A: Regular maintenance is essential for optimal performance. It's recommended to inspect the chain periodically for signs of wear, lubricate it to minimize friction, and adjust the tension as needed to prevent slack and ensure smooth operation.Q: Can the S45 roller chain be used in wet conditions?A: Yes, many S45 chains are available in corrosion-resistant materials like stainless steel or with protective coatings. These options help the chain perform well in wet or chemically exposed environments, reducing the risk of rust and extending its lifespan.Q: Is the S45 roller chain customizable?A: Absolutely. The S45 chain can be customized in length, pitch, and attachments to fit specific agricultural machinery requirements. This flexibility ensures a precise fit and optimal performance for various applications.Q: What types of agricultural machinery use the S45 roller chain?A: The S45 roller chain is versatile and used in a range of equipment, including combine harvesters, balers, conveyors, silage cutters, and manure spreaders. Its robust design makes it suitable for handling different tasks efficiently.Q: How does the S45 roller chain improve machine efficiency?A: By providing smooth and reliable operation, the S45 chain reduces friction and energy loss, leading to better machine efficiency. Its durability minimizes downtime and maintenance needs, allowing for uninterrupted agricultural processes.Q: What materials are available for the S45 roller chain?A: The S45 roller chain is available in various materials, including carbon steel, stainless steel, alloy steel, and zinc-plated options. Each material offers specific benefits, such as enhanced strength, corrosion resistance, or cost-effectiveness.Q: What should be done if the S45 roller chain sh
