Silent Chains for Engine Timing CL04D-4×5W CL05D-4×4W CL05D-3×4W

Silent Chains for Engine Timing

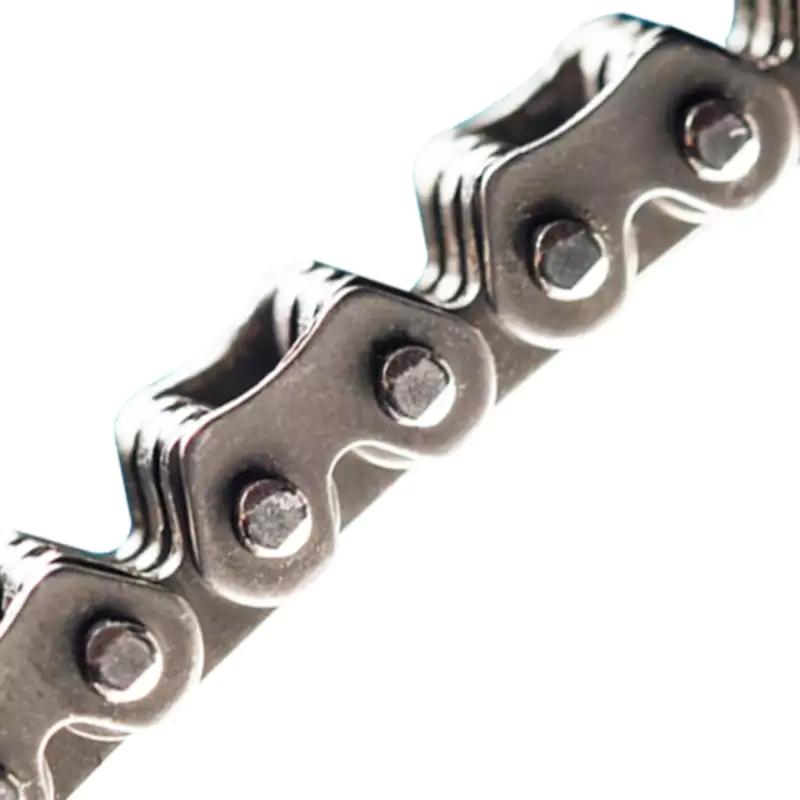

A silent chain for engine timing is mainly used for automobile engine timing systems. The chain is the critical engine component with excellent performance, high strength, durability, silencing, etc.

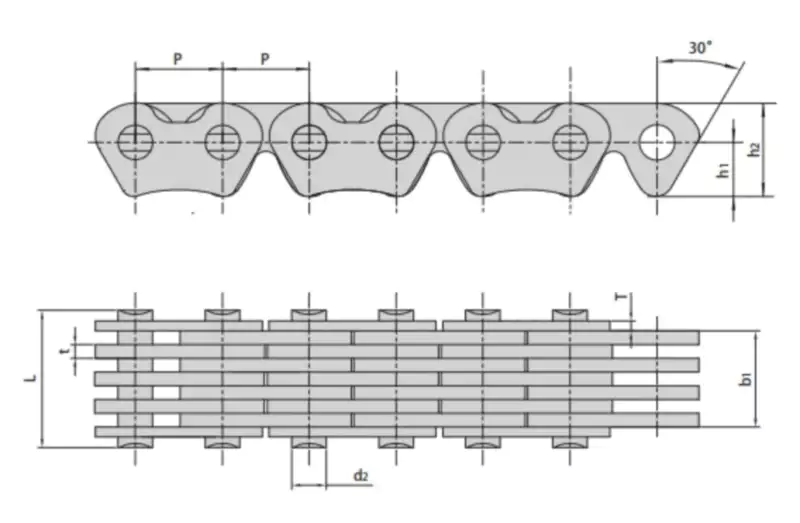

Chain No.	Pitch	Chainwidth	Pindiameter	Pinlength	Platedepth	Platethickness		Guideform	Number of plates	Ultimatetensilestrength	Weightper?meter
	P	b1?min	d2?max	L max	h2?max	t?max	T max		n	Q min	q
	mm	mm	mm	mm	mm	mm	mm			kN/lbf	kg/m
CL04D-4×5W	6.35	7.6	2.40	11.70	6.95	1.2	0.75	Outside	9(4X5)	12.4/2790	0.38
CL05D-4×4W	8.00	7.6	2.92	11.78	9.59	1.3	1.04	Outside	8(4X4)	16.5/3712	0.51
CL05D-3×4W	8.00	6.5	2.92	10.48	9.59	1.3	1.04	Outside	7(3X4)	12.4/2790	0.45

The silent chain is constructed using metal links held in place by cylindrical pins. This type of chain is featured in the Ford engine developing the ILSAC?GF-6 chain wear test.

It is a standard design with many advantages:

• Simplicity
• Lower cost
• Low chain noise

The roller chain is a more complex system designed to reduce friction, in which link pins are reinforced by roller support (or bushing) that accommodates freely rotating steel rollers. However, this type has several disadvantages:

• Expensive to manufacture
• Rapid wear if particles become trapped
• Significant chain noise

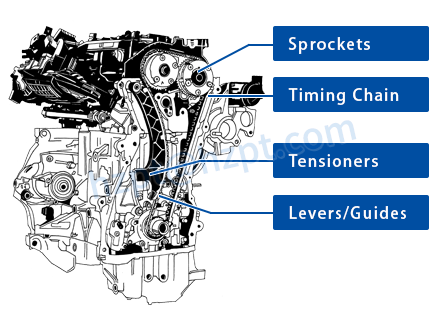

An automobile engine's timing chain system is used to adjust the movement timing of each component to operate the "intake" process correctly → compression → combustion→ engine "exhaust."Raydafon automotive engine timing chain system has won a high reputation for meeting the stringent requirements of high-power, compact and high-performance engines, such as excellent wear resistance, fatigue strength, and quietness. In particular, for the 6.35mm pitch silent chain and diesel engine roller chain that is first used in small car engines worldwide, we lead the global auto engine chain market with our unique surface treatment technology.

?Application of Silent Timing Chains?

With the development of the automobile industry, the timing chain of the hzpt automobile engine continues to progress. It has excellent wear resistance, fatigue strength, quietness, and impact toughness, and meets some requirements of today's high-output, compact, high-performance engines. It has high reliability.In particular, our 6.35mm pitch automobile engine silent chain has been used in automobiles for the first time worldwide and has been using our unique surface treatment technology.
