Slewing Drive Planetary Gearbox Reducer for Wind Turbine (Yaw & Pitch Drive)

The Importance Of Wind Energy As A Renewable Energy Source

Wind energy, the result of atmospheric movement caused by solar radiation, is an almost endless natural resource. It occupies a crucial position in the renewable energy system due to its cleanliness, sustainability and wide global distribution. The use of wind energy does not produce greenhouse gas emissions or cause serious environmental pollution. It is of great significance to cope with global climate change, reduce dependence on fossil fuels, and promote the diversification of energy structure. With technological advancement and cost reduction, wind energy has become one of the most cost-competitive power sources in many countries and regions, playing an indispensable role in promoting the green and low-carbon transformation of the economy and society.

Basic Structure & Working Principles Of Wind Turbines

Wind turbines mainly consist of the following parts: tower, nacelle, wind wheel (blade and hub), generator, control system and necessary safety and protection devices. Its working principle is briefly described as follows:

• Tower: supports the nacelle and allows the wind wheel to reach a sufficient height to capture more stable wind energy.
• Engine room: Contains core components such as generator, gearbox (or direct drive device), and controller.
• Wind wheel: Consists of multiple blades that rotate by capturing wind energy and converting it into mechanical energy.
• Generator: Converts the mechanical energy generated by the rotation of the wind wheel into electrical energy.
• Control system: monitors wind speed and direction, and adjusts blade angle (pitch control) and rotor direction (yaw control) to optimize energy output and ensure equipment safety.

Planetary Gearbox for Wind Turbine: Yaw Drive & Pitch Drive

The key role of slewing drive planetary gear reducer in wind power generation systemThe slewing drive planetary gear reducer is a key component for converting and transmitting power in wind power generation systems. It is mainly used for the two core functions of yaw drive and pitch drive:

• Yaw Drive: Ensures that the nacelle of the wind turbine can automatically adjust its orientation according to the wind direction to achieve maximum wind energy capture. Through precise and powerful torque transmission, the planetary gear reducer can quickly and smoothly turn the entire cabin even when the wind direction changes rapidly, while ensuring long-term operational reliability and efficiency.

• Pitch Drive: Controls the angle of each rotor blade to optimize wind energy utilization, maintain rated power output and ensure the safety of the wind turbine in strong wind conditions. Through the planetary gear reducer, fine adjustment of the blade angle can be achieved, which is crucial to prevent overload, increase power generation efficiency and extend equipment life.

Yaw Drive System

The role and importance of yaw drive

The yaw drive system in wind turbines is responsible for tracking the wind direction and ensuring that the wind wheel is always facing the wind direction. This automatic wind alignment process is critical to maximizing wind energy capture and is directly related to the efficiency and stability of wind power generation. The efficient operation of the yaw drive reduces wind energy loss and increases overall power generation. It also ensures the safe operation of wind turbines under complex wind conditions and avoids mechanical stress concentration and potential damage caused by sudden changes in wind direction.

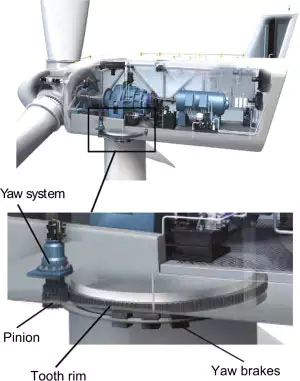

Design features of planetary gear reducer in yaw system

• Torque Carrying Capacity: Planetary gear reducers are known for their high torque capacity, capable of transmitting large amounts of torque at low speeds, which is critical for driving heavy nacelles to rotate for precise winding. The design needs to consider the instantaneous torque demand when the wind changes suddenly to ensure that the reducer can withstand the load under extreme working conditions.
• Precise angular position control: The planetary gear structure achieves precise control of the yaw angle of the wind turbine through precise gear meshing and combined with encoder or sensor feedback. This not only ensures that the wind wheel is always aligned with the wind direction, but also supports functions such as automatic uncapping (preventing cable entanglement), improving the automation level of the system.
• Long life and low maintenance requirements: The yaw drive system is usually located at the top of the tower, making maintenance difficult and costly. Therefore, planetary gear reducers use wear-resistant materials, high-quality lubrication systems, and sealing designs to reduce wear, extend maintenance cycles, and ensure reliable operation throughout the design life.

Actual case analysis: implementation and optimization of efficient yaw drive

Taking a large offshore wind power project as an example, it uses a high-performance planetary gear reducer, combined with an advanced control system and wind direction sensor, to achieve fast and precise yaw movements. By optimizing gear materials, heat treatment processes and lubrication strategies, the system can still maintain excellent stability and low failure rate in the face of salt spray corrosion and extreme climate conditions at sea, significantly improving power generation efficiency and reducing maintenance. cost.

Challenges and solutions: such as stability under extreme weather conditions

Challenges: Extreme weather such as strong winds, ice, salt spray, etc. pose severe challenges to the yaw drive system, which may lead to increased gear wear, lubrication failure, structural fatigue and other problems.Solution:

• Reinforced materials and protection: Use anti-corrosion materials and special coatings, as well as enhanced sealing designs to prevent erosion by environmental factors.
• Intelligent monitoring and predictive maintenance: Integrated intelligent sensors monitor the health of the yaw drive system in real time, predict potential failures through data analysis, and take maintenance measures in advance.
• Dynamic load balancing: Optimize the control system algorithm to achieve smooth transition of power during the yaw process, reduce instantaneous impacts, and improve system stability.
• Redundant design: Redundant solutions are adopted in the design of key components, such as dual motor drives, to ensure that a single point of failure does not affect the normal operation of the entire yaw system.

Pitch Drive System

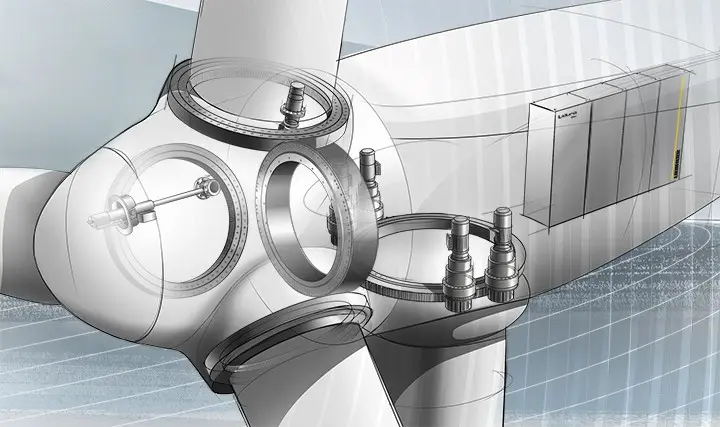

Introduction to the functions of the pitch drive: blade angle adjustment and power control

The pitch drive system adjusts the angle of the wind turbine blades, a function critical to optimizing wind energy capture, maintaining power generation stability and protecting wind turbines from overload damage. By accurately adjusting the pitch angle of the blades, the rotation speed and output power of the wind wheel can be controlled when the wind speed changes, achieving maximum power point tracking (MPPT). At the same time, it can be adjusted to a safe position when the wind speed is too high to avoid excessive mechanical stress and Electric power output fluctuates.

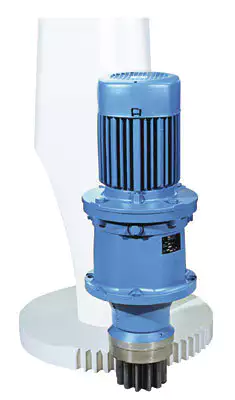

Unique requirements for planetary gear reducers in pitch drives

• Fast responsiveness: The pitch drive requires the ability to quickly respond to control signals and adjust the blade angle in time to respond to changes in wind speed. Planetary gear reducers ensure fast and accurate power transmission to meet the needs of dynamic adjustment by optimizing gear ratios and using high-efficiency transmission components.
• High dynamic load bearing capacity: The blades will experience frequent acceleration and deceleration during the adjustment process, as well as bear huge wind loads at high wind speeds. Planetary gear reducers must be designed with sufficient strength to withstand these dynamic loads while maintaining efficient and low-noise operation.
• Compact design and lightweight: Wind turbines have limited space at the top of the blades, and the added weight directly affects the load on the tower and base. Therefore, the planetary gear reducer in the pitch drive needs to adopt lightweight materials and compact structure design to reduce the size and weight without sacrificing its performance



Technological Progress: Application of Intelligent Control and Predictive Maintenance

• Intelligent control: Modern pitch drive systems incorporate advanced sensor technology and algorithms to achieve intelligent adjustment of blade angles. By analyzing real-time wind speed, wind direction and blade load data, the control system can predictably adjust blade angles to optimize power generation efficiency.
• Predictive maintenance: The integrated health monitoring system uses vibration analysis, temperature monitoring and load history to predict potential failures, schedule maintenance in advance, reduce unplanned downtime and ensure continued efficient operation.

Oneshore and Offshore Wind Energy Application

 Slewing Drive Planetary Gearbox for Wind Turbine is a high-performance rotary drive device designed specifically for the wind power industry, with a wide range of applications including onshore wind power and offshore wind power. Whether it is a large onshore wind farm located in remote mountainous areas or an offshore wind power platform facing harsh marine environmental tests, this gearbox can play its outstanding performance to ensure the smooth operation of the yaw and pitch systems of wind turbines, achieving effective capture and conversion of wind energy.

Factors to Consider When Purchasing Planetary Gearbox/Reducer

Parameter	Definition	Consideration
Nominal Output Torque	The maximum torque that can be transmitted by the gearbox	Should be greater than the torque required by the load
Ratio	The gear ratio of the gearbox	Should be selected based on the desired output speed and torque
Backlash	The amount of clearance between the gears	Should be minimized for high precision applications
Operating Temperature	The range of temperatures at which the gearbox can operate	Should be selected based on the environmental conditions

Our Success Cases of Slewing Drive Planetary Gearbox

The Slewing Drive Planetary Gearbox for Wind Turbine has been widely used in wind power projects around the world and has won high praise from customers. Here is an overview of some successful cases and customer feedback:

• Example 1: In a large-scale onshore wind power project in North America, over 500 wind turbines were installed with our Slewing Drive Planetary Gearbox. After two years of stable operation, data shows that the average time between failures of the gearbox is significantly higher than the industry average, significantly reducing maintenance frequency and downtime costs. Customer feedback indicates that the product maintains excellent performance under extreme weather conditions, and its precise yaw control and pitch adjustment significantly improve wind energy capture efficiency, resulting in significant energy output growth and operational cost savings.
•
• Case 2: A nearshore wind farm in Europe has chosen our Slewing Drive Planetary Gearbox as the standard configuration for its new offshore wind turbines. After one year of operation, the gearbox exhibits excellent corrosion resistance and long-lasting stability in extreme marine environments. According to the data provided by the project party, compared to similar products, the high torque density and low energy consumption design of this gearbox have increased the overall efficiency of wind turbines by about 5%, directly driving an increase in investment return rate.
• Customer evaluation: A well-known wind power equipment manufacturer in Asia highly praised the reliability of our Slewing Drive Planetary Gearbox in practical applications after bulk purchasing and using it. They stated that the refinement and ease of operation in the design of the gearbox have brought great convenience to daily operation and maintenance, and due to its good thermal management and long-life lubrication system, it has significantly reduced overall operating costs.

About Us

We are a leading company dedicated to the research, design, and manufacturing of planetary gearboxes. We specialize in providing high-quality slewing drives and reducers for wind turbine applications. Our products are known for their reliability, durability, and performance. We have a team of experienced engineers and technicians who are committed to providing excellent customer service and technical support. We strive to exceed our customers’ expectations and deliver the best value for their investment.Author: Miya
