SP Series Simplex Strands Roller Chain High Strength Short Pitch

SP Series Simplex Strands Roller Chain High Strength Short Pitch

Raydafon Group's SP Series Simplex Strands Roller Chain High Strength Short Pitch offers exceptional durability and performance for industrial machinery, engineered from premium materials to withstand heavy loads with precision. Ideal for manufacturers and engineers seeking reliable power transmission in demanding applications, it reduces downtime and boosts efficiency. Its high-strength design outperforms competitors, ensuring smooth, long-lasting operation. Elevate your equipment's reliability with Raydafon Group's trusted solution.
Send Inquiry
Product Description

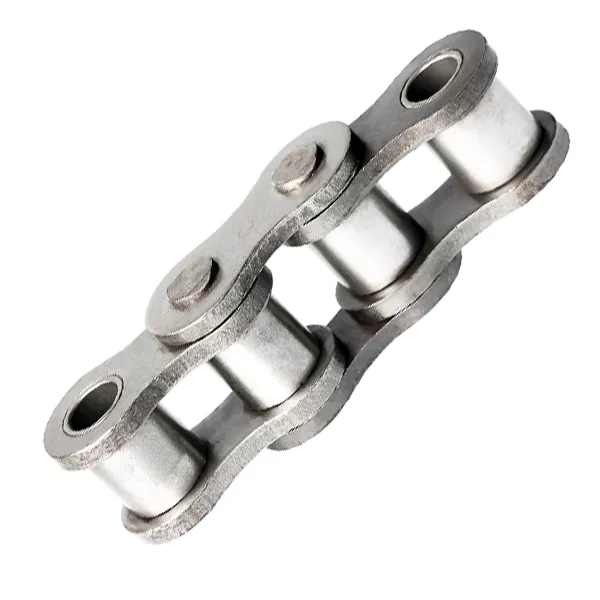

SP Series Simplex Strands Roller Chain High Strength Short Pitch

By adopting an integrated optimum design of the structural dimensions, parts material, and heat treatment process, the ultimate tensile strength of the high strength SP series roller chain is 28% more than that of the A series standard roller chain. Moreover, it has excellent performances of fatigue strength and impact resistance, etc.SP Series Simplex Strands Roller Chain High Strength Short Pitch

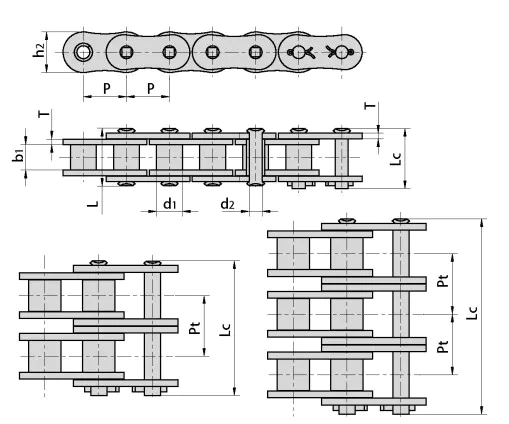

SP Series Simplex Strands Roller Chain Size Chart

SP Series Simplex Strands Roller Chain High Strength Short Pitch
Chain No.PitchRollerdiaWidthbetweeninnerplatesPindiaPinlengthInnerplatedepthPlatethicknessTransversepitchUltimatetensilestrengthAveragetensilestrengthWeightpermeter
Pd1maxb1mind2maxLmaxLcmaxh2maxTPtQminQ0q
mmmmmmmmmmmmmmmmmmkN/lbfkNkg/m
80SP-125.4015.8815.757.9432.736.524.13.2-77.5/1743485.32.86
100SP-131.7519.0518.959.5440.444.730.14.0-115.5/25982127.04.21
120SP-138.1022.2325.2211.1150.354.336.24.8-165.0/37118186.06.36
140SP-144.4525.4025.2212.7154.459.042.25.6-222.7/50098245.08.04
160SP-150.8028.5831.5514.2964.869.648.26.4-285.5/64215314.010.80
200SP-163.5039.6837.8519.8580.387.260.38.0-445.5/100208490.018.00
80SP-225.4015.8815.757.9462.765.824.13.229.29155.0/34868170.65.68
100SP-231.7519.0518.959.5476.480.530.14.035.76231.0/51965255.08.34
120SP-238.1022.2325.2211.1195.899.736.24.845.44339.0/76260373.012.63
140SP-244.4525.4025.2212.71103.3107.942.25.648.87445.5/100218490.015.92
160SP-250.8028.5831.5514.29123.3128.148.26.458.55571.0/128430628.021.43
200SP-263.5039.6837.8519.85151.9158.860.38.071.55892.0/200621981.035.00
80SP-325.4015.8815.757.9491.795.124.13.229.29232.5/52302255.98.18
100SP-331.7519.0518.959.54112.2116.330.14.035.76347.3/78128382.012.47
120SP-338.1022.2325.2211.11141.4145.236.24.845.44508.0/114278559.018.90
140SP-344.4525.4025.2212.71152.2156.842.25.648.87668.0/150271735.023.84
160SP-350.8028.5831.5514.29181.8186.648.26.458.55855.5/192441941.032.10
200SP-363.5039.6837.8519.85223.5230.460.38.071.551336.4/3006331470.052.50

SP Series Simplex Roller Chain Features

  • All roller chains incorporate solid rollers, enhancing rotation on the bushing while reducing impact loads on the sprocket tooth during operation.
  • All roller chain components are heat treated to achieve maximum strength and greater wear resistance.
  • All roller chain is pre-loaded during the manufacturing process to minimize initial elongation.
  • Hot dipped lubrication ensures 100% lubrication of all roller chain components to extend wear life and reduce maintenance costs.
  • Roller chains feature solid rollers and solid bushings.
