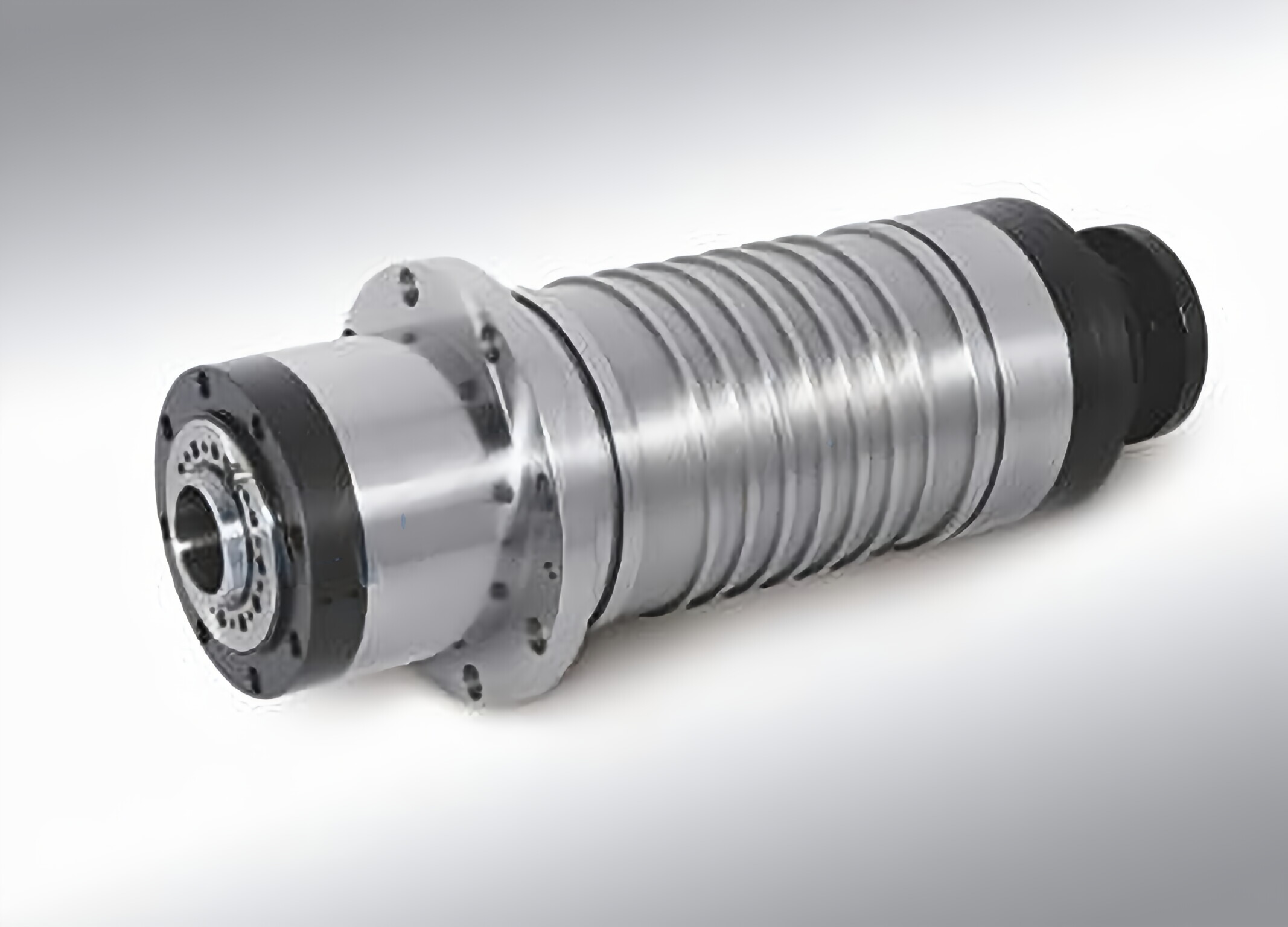

Spindle Motor Used for Lathe JSZD280

Raydafon Group's Spindle Motor Used for Lathe JSZD280 delivers robust performance for precision machining, crafted with advanced technology to enhance durability and efficiency. Ideal for industrial professionals seeking reliable, high-speed operation, it solves vibration issues, ensuring smooth finishes and boosted productivity. Stand out with its unique cooling system, offering superior longevity compared to competitors. Experience unmatched precision and trust in every cut.

Send Inquiry

Product Description

Spindle Motor Used for Lathe JSZD280

Spindle motors have a number of benefits above other varieties of motors, which include their very low size, substantial dependability, and very low energy consumption. They are able to also operate for thousands of hrs without failure and are exceptionally quiet. This allows them for being set up in smaller spaces with much less area occupied by track. The track is often a concentric circle of magnetic materials all over the shaft with the spindle motor.Spindle motors are normally utilized in CNC machine equipment. This equipment needs a large degree of accuracy and precision within its movement management. In addition, they call for a large speed selection and exact position management accuracy. For that reason, spindle motors must have a unique servo motor to meet these needs.

Spindle Motor Used For Lathe

The spindle motor used in a lathe has a variety of benefits. It can produce higher torque and speed than a smaller motor. It also provides more power for cutting larger pieces. It can be used for drilling, milling, and processing steel. The type of spindle motor you choose depends on your intended use.Most spindle motors are equipped with a speed controller. This controller controls the motor by converting AC voltage to DC and back to AC using Pulse Width Modulation (PWM). The output voltage is turned on and off at the right frequency to keep the motor operating within its specifications.Spindle motors require proper balancing. Poor balancing can lead to motor overheating and damage to tooling. Luckily, there are companies that specialize in spindle motor repair. The most important thing to remember about balancing spindle motors is that you should always do it within the manufacturer's specifications. Otherwise, you may end up with an uneven motor.Spindles are an important component in a lathe. If you want to use your lathe for metalwork, you should look for heavy-duty spindles. Metal lathes require spindles that can withstand the stresses of a heavy stack of metal. You can also find lathes designed for woodworking at home. While these machines may not be as powerful, they're still great for many woodworking applications.

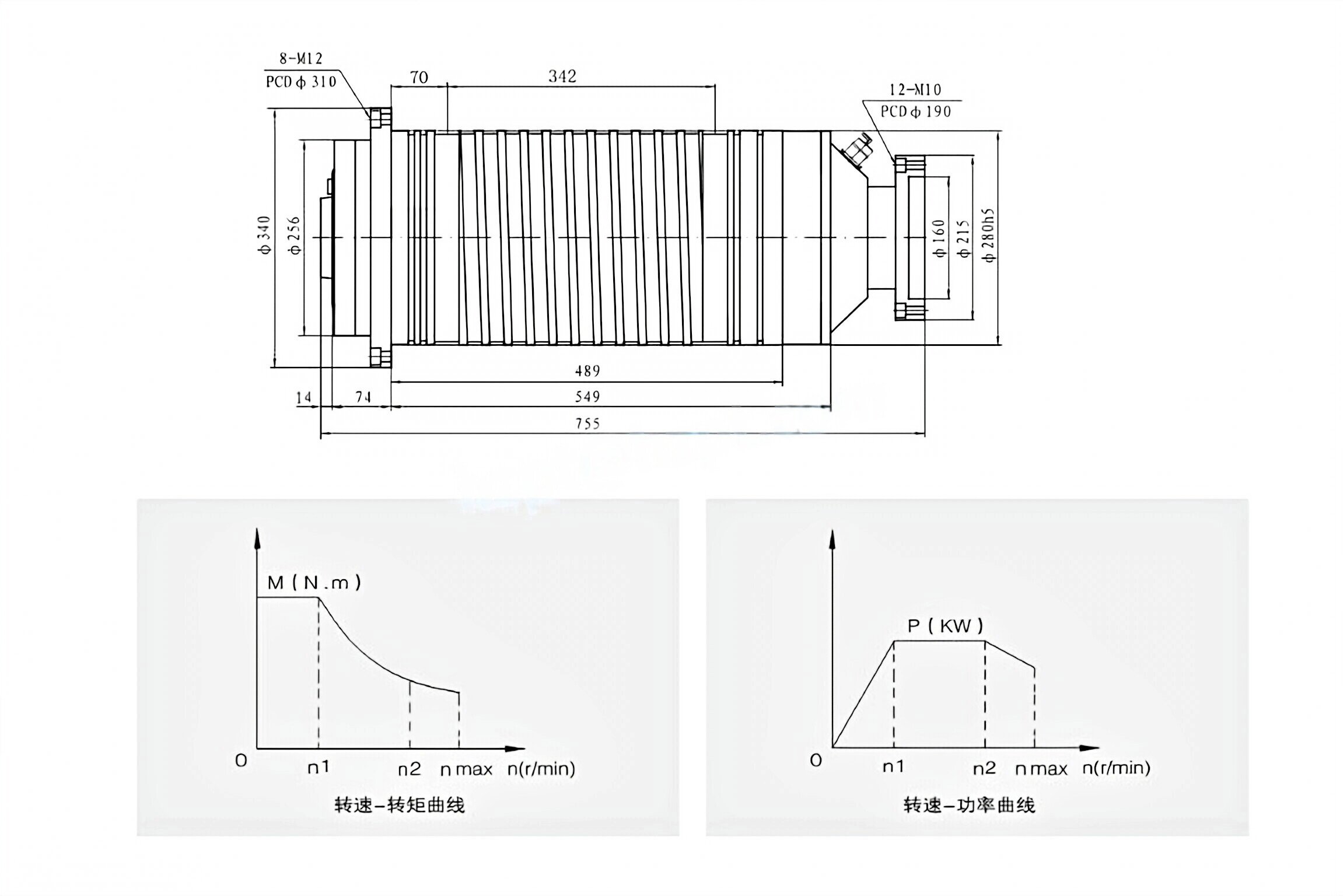

There are Two Ways for the Output One is Constant Torque, and Another is Constant Power as Below:

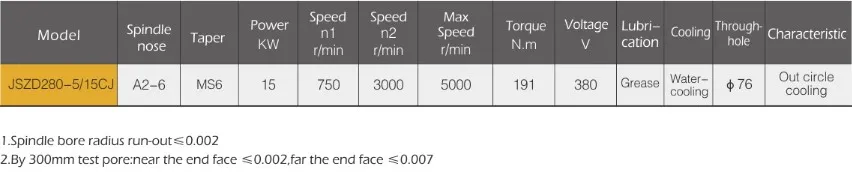

Nomenclature Explanation of Motor Spindle

The End of the Spindle Connection

Its have many different types of connection, depending on the different model spindle, please refer to the table below. Spindle Motor Used for Lathe JSZD280

Spindle Instruction

1. The frequency converter has to match the electric spindle unit. The basic frequency or even the nominal frequency as well as voltage will have to meet the technical parameters of the electrical spindle.2. Electric spindle is generally cooled by circulating water. Cooling water needs to be rust-proof and filtered clean. When acquiring water, the inlet must be under the electric spindle.three. When working with an oil mist lubricated spindle, the stress regulating valve on the oil mist gadget should be adjusted to 0.25~0.3 MPA the fog pressure should be 0.1~0.2 MPA and the variety of drops of oil must be 60-70 drops/min. and also the lubricating oil ought to be bell oil or turbine oil No. 20.four. The velocity around the motorized spindle guide is definitely the highest velocity, and it can not be elevated, nevertheless, it may be employed to reducethe pace, voltage, and frequency are reduced once the speed is lowered.5. The rotation course with the motorized spindle is usually counter-clockwise (viewed in the shaft). except for exclusivedemands.6. The motorized spindle lubricated by oil mist has to be linked with water and gasoline prior to it could possibly commence and cease water and fuel supply after shutdown.Explanation: unique operation is required according to the electric spindle guidelines.
