Split Pillow Block Bearings

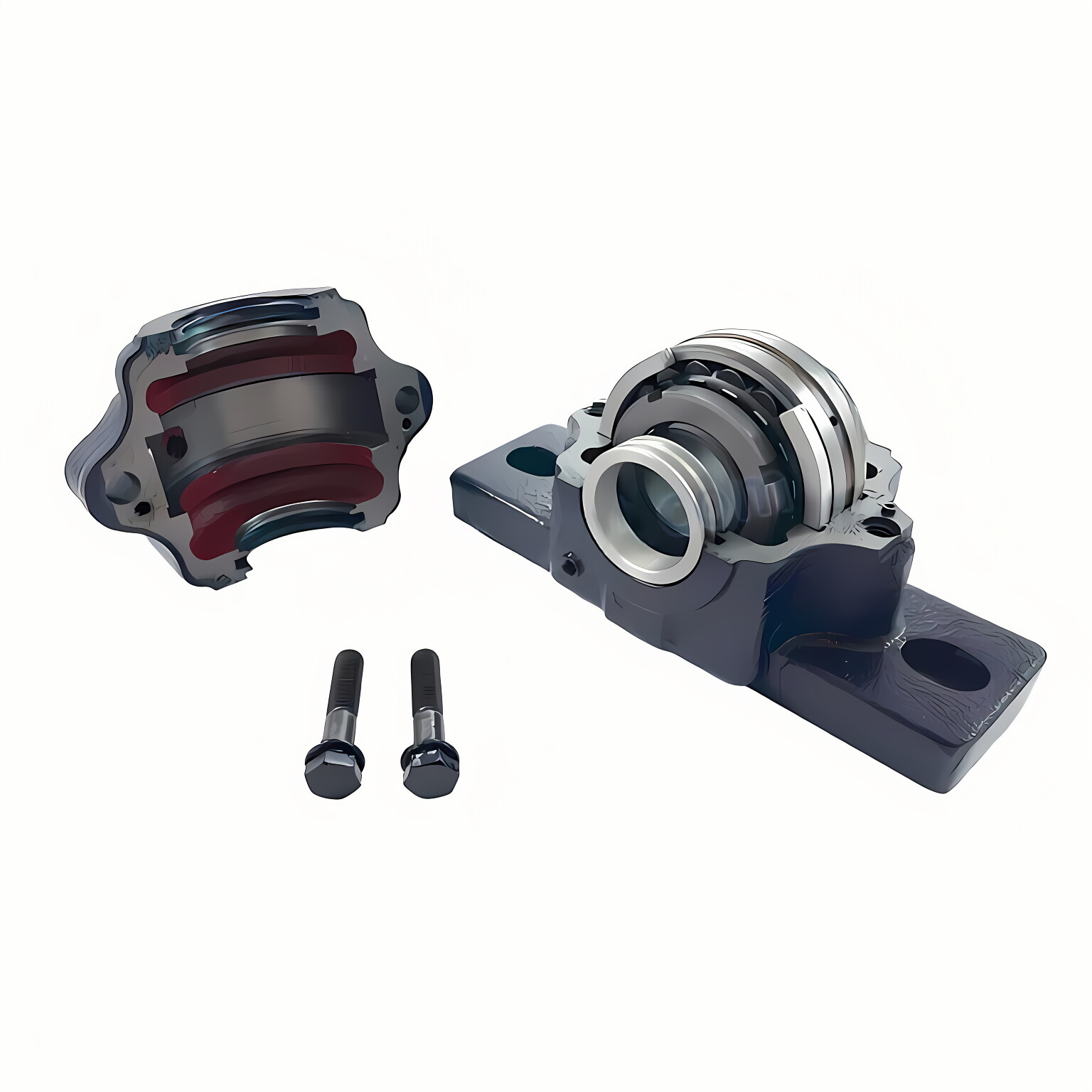

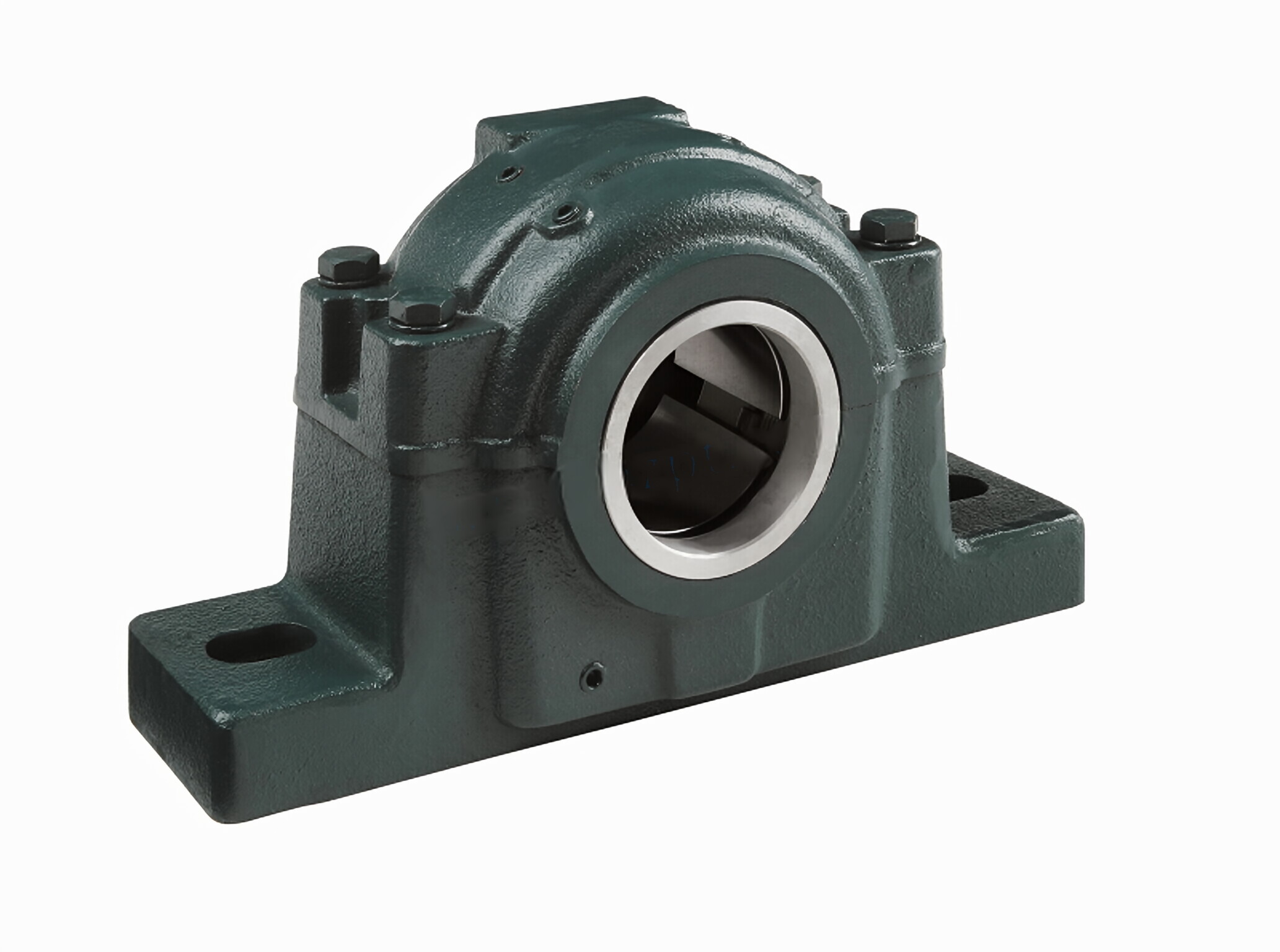

Split Pillow Block BearingsSplit pillow block bearings have been around since the industrial revolution and were designed for improving application versatility and ease of maintenance; they are also commonly referred to as Plummer block bearings. These versatile assemblies can accept a range of shaft sizes at higher loads than other mounted bearing types. The SAF series is the most common series of split pillow block bearings, accommodating five bearing types, four sealing options, and two mounting methods. We also offer the SAW series split pillow block bearings which can accommodate higher load capacities. Additionally, we have the SDAF split pillow block bearings, typically found in high shock-load environments such as steel mills, mineral processing facilities, and more.

Split Pillow Block Bearing Housings

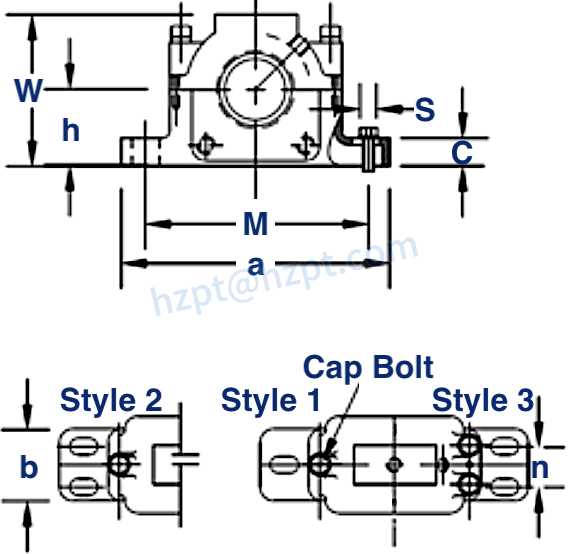

The below size chart shows our standard split pillow block bearing housings; for additional housing types or if you don't see the accommodation you have, please contact us.

Housing #	(D)	(a)	(b)	(c)	(h)	(W)	(M) Max.	(M) Min.	(n)	(S)	Cap Bolt	Style	Labyrinth Seal Ring	Stabilizing Ring	Weight (LBS)
SAF509	85mm	8-1/4"	2-3/8"	13/16"	2-1/4"	4-3/8"	7"	6-1/4"	-	1/2"	3/8-16	1	LER17	SR9-9	8.80
SAF510	90mm	8-1/4"	2-3/8"	15/16"	2-1/2"	4-3/4"	7"	6-1/2"	-	1/2"	7/16-14	1	LER20	SR10-0	10.40
SAF511	100mm	9-5/8"	2-3/4"	15/16"	2-3/4"	5-1/4"	7-7/8"	7-3/8"	-	5/8"	1/2-13	1	LER24	SR11-0	13.70
SAF513	120mm	11"	3-1/8"	1"	3"	5-15/16."	9-1/2"	8-1/8"	2"	5/8"	1/2-13	1	LER29	SR13-0	18.30
FSAF513	120mm	11"	3-1/8"	1"	3"	5-15/16."	9-1/2"	8-1/8"	2"	1/2"	1/2-13	2	LER29	SR13-0	18.30
SAF515	130mm	11-1/4"	3-1/8"	1-1/8"	3-1/4"	6-3/8"	9-5/8"	8-5/8"	1-7/8"	5/8"	1/2-13	1	LER37	SR15-0	18.30
FSAF515	130mm	11-1/4"	3-1/8"	1-1/8"	3-1/4"	6-3/8"	9-5/8"	8-5/8"	1-7/8	1/2"	1/2-13	2	LER37	SR15-0	19.00
SAF516	140mm	13"	3-1/2"	1-3/16"	3-1/2"	6-7/8"	11"	9-5/8"	2-1/8"	3/4"	1/2-13	1	LER44	SR16-13	28.90
FSAF516	140mm	13"	3-1/2"	1-3/16"	3-1/2"	6-7/8"	11"	9-5/8"	2-1/8"	5/8"	1/2-13	2	LER44	SR16-13	29.00
SAF517	150mm	13"	3-1/2"	1-1/4"	3-3/4"	7-5/16"	11"	9-7/8"	-	3/4"	1/2-13	1	LER53	SR17-14	30.60
FSAF517	150mm	13"	3-1/2"	1-1/4"	3-3/4"	7-5/16"	11"	9-7/8"	2-1/8"	5/8"	1/2-13	2	LER53	SR17-14	31.00
SAF518	160mm	13-3/4"	3-7/8"	1-5/16"	4"	7-3/4"	11-5/8"	10-3/8"	-	3/4"	5/8-11	1	LER188	SR18-15	38.40
FSAF518	160mm	13-3/4"	3-7/8"	1-5/16"	4"	7-3/4"	11-5/8"	10-3/8"	2-1/8"	5/8"	5/8-11	2	LER188	SR18-15	38.00
SAF520	180mm	15-3/4"	4-3/8"	1-3/4"	4-1/2"	8-3/4"	13-1/8"	11-5/8"	-	7/8"	5/8-11	1	LER102	SR20-17	49.60
FSAF520	180mm	15-1/4"	4-3/8"	1-3/4"	4-1/2"	8-3/4"	13-1/8"	11-5/8"	2-3/8"	3/4"	5/8-11	2	LER102	SR20-17	49.60
SAF522	200mm	16-1/2"	4-3/4"	2"	4-15/16."	9-5/8"	14-1/2"	12-5/8"	2-3/4"	3/4"	3/4-10	3	LER109	SR22-19	62.00
SAF524	215mm	16-1/2"	4-3/4"	2-1/8"	5-1/4"	10-1/4"	14-1/2"	13-1/4"	2-3/4"	3/4"	3/4-10	3	LER113	SR24-20	66.10
SAF526	230mm	18-3/8"	5-1/8"	2-3/8"	6"	11-1/2"	16"	14-5/8"	3-1/4"	7/8"	3/4-10	3	LER117	SR24-0	95.70
SAF528	250mm	20-1/8"	5-7/8"	2-3/8"	6"	11-3/4"	17-1/8"	16"	3-3/8"	1"	3/4-10	3	LER122	SR28-0	132.30
SAF530	270mm	21-1/4"	6-1/4"	2-1/2"	6-5/16"	12-1/2"	18-1/4"	17"	3-3/4"	1"	3/4-10	3	LER125	SR30-0	140.00
SAF532	290mm	22"	6-1/4"	2-5/8"	6-11/16."	13-5/16"	19-1/4"	17-3/8"	3-3/4"	1"	3/4-10	3	LER130	SR32-0	151.70
SAF534	310mm	24-3/4"	6-3/4"	2-3/4"	7-1/16"	14-3/16"	21-5/8"	19-3/8"	4-1/4"	1"	3/4-10	3	LER140	SR34-0	207.20
SAF536	320mm	26-3/4"	7-1/8"	3"	7-1/2"	14-7/8"	23-5/8"	20-7/8"	4-5/8"	1"	7/8-9	3	LER148	SR36-30	246.90
SAF538	340mm	28"	7-1/2"	3-1/8"	7-7/8"	15-11/16."	24-3/8"	21-5/8"	4-1/2"	1-1/4"	7/8-9	3	LER155	SR38-0	291.00

Split Pillow Block Bearing Units

The chart below shows all the individual components for complete split pillow block bearing units; we offer a full range of individual components and accessories for this series of bearings. For additional information or to get a quote, please contact us.

Shaft Size	Housing #	Bearing #	Adapter #	Seal Ring	Stabilizing Ring	Complete Unit #
1-7/16"	SAF509	22209K	H309X1-7/16	LER17	SR9-9	SAF22509
1-1/2"	SAF509	22209K	H309X1-1/2	LER18	SR9-9	SAF22509
1-11/16."	SAF510	22210K	H310X1-11/16	LER20	SR10-0	SAF22510
1-3/4"	SAF510	22210K	H310X1-3/4	LER21	SR10-0	SAF22510
1-15/16."	SAF511	22211K	H311X1-15/16	LER24	SR11-0	SAF22511
2"	SAF511	22211K	H311X2	LER25	SR11-0	SAF22511
2-3/16"	SAF513	22213K	H313X2-3/16	LER29	SR13-0	SAF22513
2-1/4"	SAF513	22213K	H313X2-1/4	LER30	SR13-0	SAF22513
2-7/16"	SAF515	22215K	H315X2-7/16	LER37	SR15-0	SAF22515
2-1/2"	SAF515	22215K	H315X2-1/2	LER38	SR15-0	SAF22515
2.6875"	SAF516	22216K	H316X2-11/16	LER44	SR16-13	SAF22516
2-3/4"	SAF516	22216K	H316X2-3/4	LER45	SR16-13	SAF22516
2-15/16"	SAF517	22217K	H317X2-15/16	LER53	SR17-14	SAF22517
3"	SAF517	22217K	H317X3	LER54	SR17-14	SAF22517
3-3/16"	SAF518	22218K	H318X3-3/16	LER100	SR18-15	SAF22518
3-7/16"	SAF520	22220K	H320X3-7/16	LER102	SR20-17	SAF22520
3-1/2"	SAF520	22220K	H320X3-1/2	LER103	SR20-17	SAF22520
3-15/16"	SAF522	22222K	H322X3-15/16	LER109	SR22-19	SAF22522
4"	SAF522	22222K	H322X4	LER110	SR22-19	SAF22522
4-3/16"	SAF524	22224K	H3124X4-3/16	LER113	SR24-20	SAF22524
4-7/16"	SAF526	22226K	H3126X4-7/16	LER117	SR26-0	SAF22526
4-1/2"	SAF526	22226K	H3126X4-1/2	LER118	SR26-0	SAF22526
4.9375"	SAF528	22228K	H3128X4-15/16	LER122	SR28-0	SAF22528
5"	SAF528	22228K	H3128X5	LER123	SR28-0	SAF22528
5-3/16"	SAF530	22230K	H310X5-3/16	LER125	SR30-0	SAF22530
5-7/16"	SAF532	22232K	H3132X5-7/16	LER130	SR32-0	SAF22532
5-1/2"	SAF532	22232K	H3132X5-1/2	LER131	SR32-0	SAF22532
5-15/16."	SAF534	22234K	H3134X5-15/16	LER140	SR34-0	SAF22534
6"	SAF534	22234K	H313X6	LER141	SR34-0	SAF22534
6-7/16"	SAF536	22236K	H3136X6-7/16	LER148	SR36-30	SAF22536
6-1/2"	SAF536	22236K	H3136X6-1/2	LER149	SR36-30	SAF22536
6-15/16."	SAF538	22238K	H3138X6-15/16	LER155	SR38-32	SAF22538
7"	SAF538	22238K	H3138X7	LER156	SR38-32	SAF22538

Features of split pillow block bearings

Our high-strength split pillow block bearings utilize several features to exemplify quality, durability, and performance. First, our split housings are made from high-grade cast iron and reinforced with thin webs for heat transfer and ribs to prevent deformation from over-tightening. The SAF housings also feature two threaded plugs on top of the housings for grease fittings and various testing equipment, along with two drain plugs on opposite sides of the housing at the bottom faces. Most of these units are supplied with Labyrinth Seals (LER) and a stabilizing ring (please confirm with your customer service agent for specific sizes). The spherical roller bearings provide superior performance and are made to precision standards from high-quality steel material. Made to perfection, our adapters, seal rings, and stabilizer rings are sure to impress! For additional information or to get a quote, please contact our customer support team, and we will be happy to assist you.The split pillow block bearings are the most versatile mounting components. The product design is halved, and the cover and the bottom can be split, so it is convenient to install and debug the equipment. For demanding equipment, the split pillow block bearings are also designed with double stud holes and four stud holes. These components primarily withstand the radial loads directly experienced by the inner base. Used on demanding and high equipment.The split pillow block bearings accommodate a wide range of shaft sizes and can withstand high loads. Heavy-duty housings are available in grey cast iron as standard, providing greater flexibility in sealing and lubrication (with grease or oil). The split pillow block bearings can be used in equipment such as belt processing equipment in steel mills, fans, and blowers, felt rolls and drying cylinders for the paper industry, crushers for the ore processing industry, hammer mills, and drying ovens.
