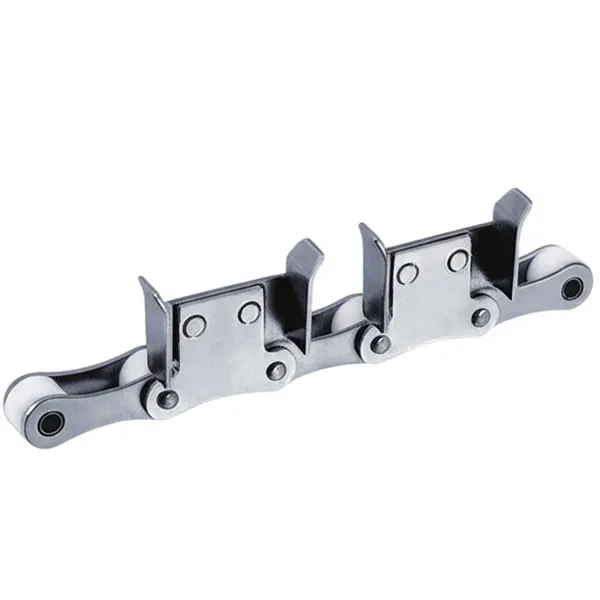

Stainless Steel 304/316 Freezer Chain P50.8FTC16.8-H

Introduction

Stainless Steel 304/316 Freezer Chain P50.8FTC16.8-H is a conveyor chain specially designed for freezing tunnels and is suitable for various industrial freezing environments. It is made of high-quality stainless steel to ensure stable operation under low-temperature conditions. As an ideal freezing tunnel chain, this product is widely used in the fields of food processing and industry, providing reliable conveying performance.The core of this chain lies in its corrosion resistance and high-strength design, which can withstand harsh freezing conditions. If you are looking for an efficient tunnel freezer chain, this product will meet your needs and help improve production efficiency.

Chain Details

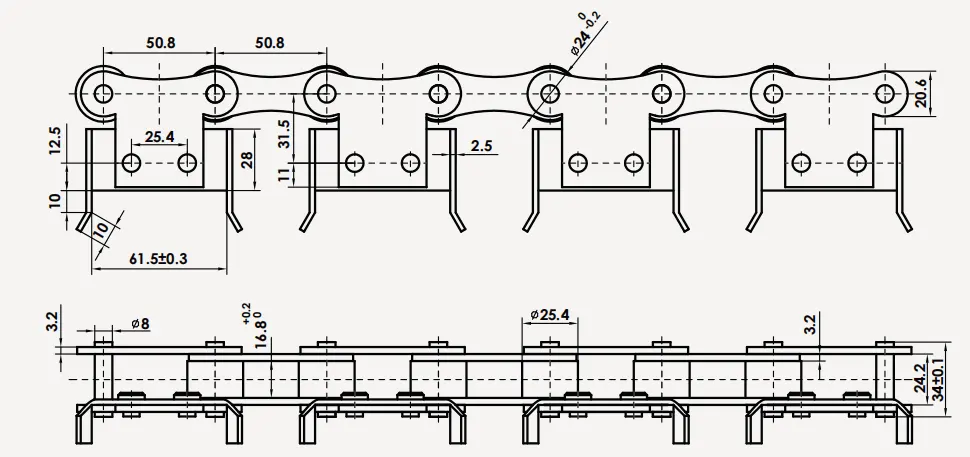

The following are the main technical parameters of Freezer Chain P50.8FTC16.8-H

Item	Details
Chain plate material	SS304 / SS316L
Bushing	SS304 + PE / PEEK
Pin shaft	AISI 630 (17-4PH), hardness HRC 40 - 45
Roller	POM
Tensile strength	40kN
Self-lubricating option	Available
Applicable environment	Low - temperature freezing tunnel, industrial conveyor system

P50.8FTC16.8-H Features

The feature of Stainless Steel 304/316 Freezer Chain P50.8FTC16.8-H lies in its high-quality component combination. The chain plates are made of SS304 or SS316L material, featuring excellent corrosion resistance and suitable for long-term exposure in damp and low-temperature environments. As the preferred choice of food processing freezer chain, it ensures food safety and hygiene standards.The bushing part is made of SS304 + PE/PEEK composite material, which provides excellent wear resistance and self-lubrication effect. The pin shaft is made of AISI 630 (17-4PH) material, with a hardness of HRC 40-45, ensuring the stability of the chain under high load. The rollers are made of POM, further enhancing the durability of the product.In addition, this chain supports self-lubrication options, reducing maintenance requirements and making it an ideal choice for industrial freezer chains. The overall design pays attention to details to ensure excellent performance in the conveyor chain for tunnel freezer application.

Application Uses

Freezer Tunnel Chain P50.8FTC16.8-H is widely used in the food processing industry, such as the rapid freezing process of meat, seafood and fruits and vegetables. As a professional tunnel freezer chain, its performance in the freezing tunnel chain system is particularly outstanding, helping enterprises achieve efficient production.In the industrial field, this chain is applicable to various cold storage warehouses and conveyor lines, especially suitable for the demands of food processing freezer chains. At the same time, it can also be used in low-temperature environments in the pharmaceutical and chemical industries to ensure the stability of materials during the transportation process.If your project involves industrial freezer chain or conveyor chain for tunnel freezer, this product will provide the perfect solution, supporting customized applications to adapt to different scenarios.

Product Advantages

The advantages of choosing Stainless Steel 304/316 Freezer Chain P50.8FTC16.8-H are obvious. First of all, its stainless steel material ensures a long service life and low maintenance cost. As a stainless steel freezing chain, it performs well in humid and corrosive environments. Secondly, its high tensile strength (40kN) enables it to withstand heavy-load operations and is suitable for the high-strength requirements of the industrial freezing chain. The self-lubricating option further reduces friction, extends service life and minimizes downtime. Furthermore, the design of this chain focuses on easy installation and compatibility, seamlessly integrating with the existing tunnel freezer chain system. Compared with traditional chains, it offers higher efficiency and reliability in food processing freezer chain applications, helping users reduce operating costs.

Reviews

[su_table responsive="yes"]

Tamás Váradi, Assembly Technician	Rosa Luzzatto, Purchasing Coordinator	Petar Daki?, Cold Chain Manager
We liked the link design. Easy to pin together, no binding under pressure. Chain didn’t require tension adjustments for the first two months, which is rare.	Ordering was easy and technical documents were detailed. The chains feel robust and manufacturing batch info was clearly labeled. Delivery came with conformance certificates, which helped a lot.	These chains improved our uptime. Gear alignment hasn’t shifted, and they tolerate sudden cooling much better than our older models. A good fit for high-capacity tunnels.

[/su_table]

Get a Quote Now!

Stainless Steel 304/316 Freezer Chain P50.8FTC16.8-H is your best choice when looking for stainless steel food processing chain. It combines advanced materials and precise craftsmanship to ensure stable operation in applications such as conveyor chain for tunnel freezer. Contact us immediately for more details or a customized quotation to make your refrigeration system more efficient!
