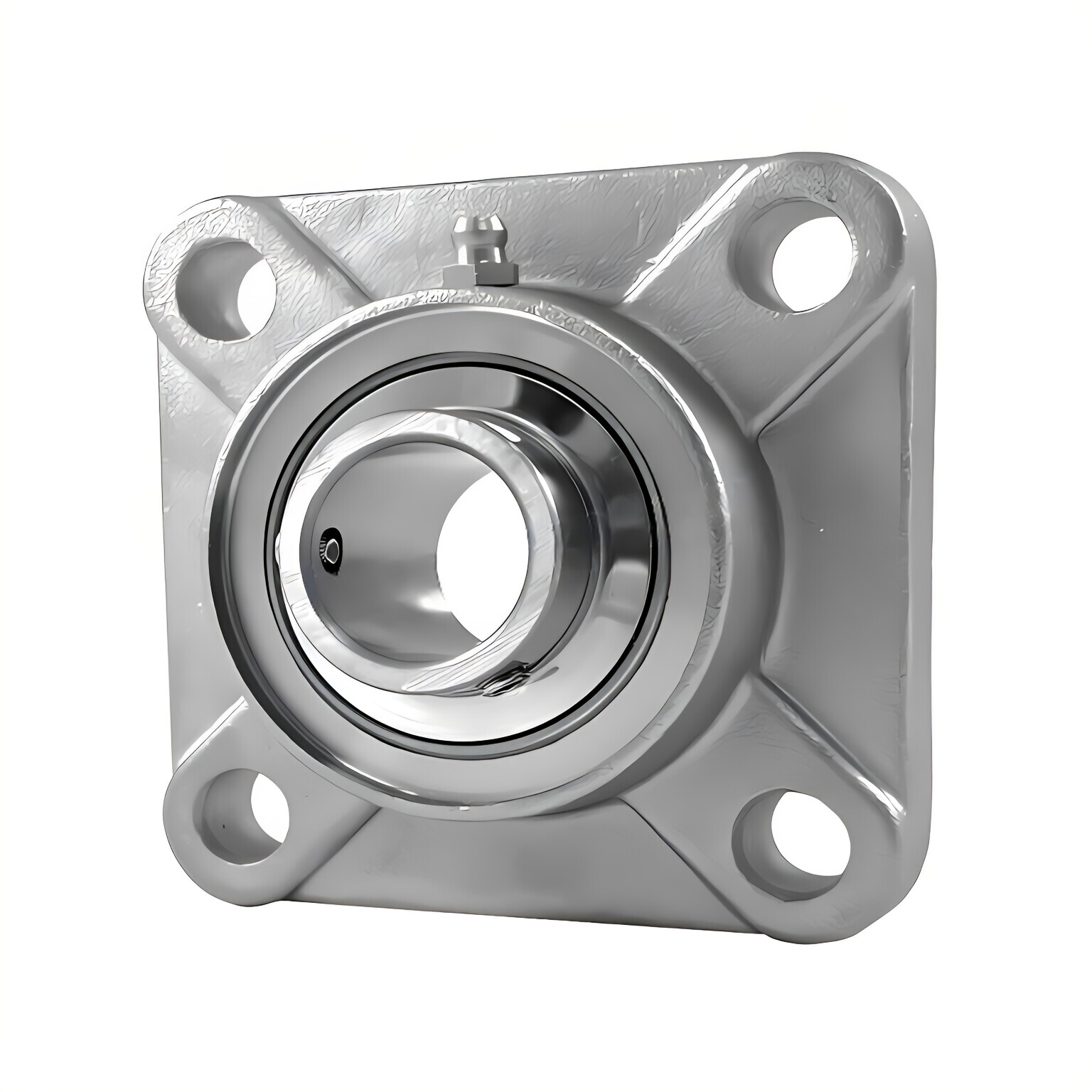

Stainless Steel 4-Bolt Flange Bearings

Raydafon Group's Stainless Steel 4-Bolt Flange Bearings offer superior durability and corrosion resistance, ideal for industrial machinery and harsh environments. Engineered with precision design and high-grade stainless steel, they ensure smooth operation and extended lifespan, appealing to engineers and manufacturers. These bearings solve friction and wear issues, providing reliability and peace of mind, while their robust build sets them apart from competitors.

Send Inquiry

Product Description

Stainless Steel 4-Bolt Flange BearingsStainless steel 4-bolt flanged bearing units are designed with a square shape and four mounting holes. The benefit of this design is that with four mounting points, the team can handle higher loads than three-bolt or two-bolt flange/flannel units. Our stainless steel four-bolt flanged bearings are manufactured from high-quality food-grade stainless steel and feature special features that extend bearing life and enhance performance. For a quote, additional information, or if you don't see the bearing you need in the table below, please contact us, and we'll be happy to help.

Stainless 4-Bolt Flange Bearing Sizes

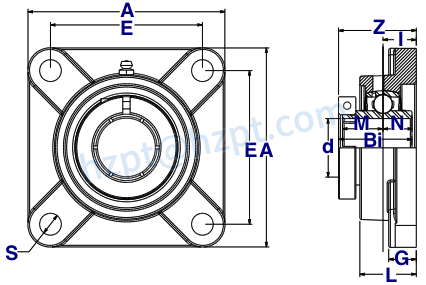

(1) SUCSFM 200 Normal Duty 4-Bolt Flange Bearing With Set Screws

Bearing #	Shaft Diameter (d)	(A)	(E)	(I)	(G)	(L)	(S)	(Z)	(Bi)	(N)	(M)	Bolt Size	Dynamic Load Rating (LBS)	Static Load Rating (LBS)	Bearing Insert	Housing Number	Weight (LBS)
SUCSFM 201	12	3.38	2.500	0.59	0.47	1.00	0.47	1.31	1.2205	0.5000	0.7205	3/8	2,331	1,142	SUC 201	SFM 204	1.8
SUCSFM 201-8	1/2	3.38	2.500	0.59	0.47	1.00	0.47	1.31	1.2205	0.5000	0.7205	3/8	2,331	1,142	SUC 201-8	SFM 204	1.8
SUCSFM 202	15	3.38	2.500	0.59	0.47	1.00	0.47	1.31	1.2205	0.5000	0.7205	3/8	2,331	1,142	SUC 202	SFM 204	1.8
SUCSFM 202-10	5/8	3.38	2.500	0.59	0.47	1.00	0.47	1.31	1.2205	0.5000	0.7205	3/8	2,331	1,142	SUC 202-10	SFM 204	1.8
SUCSFM 203	17	3.38	2.500	0.59	0.47	1.00	0.47	1.31	1.2205	0.5000	0.7205	3/8	2,331	1,142	SUC 203	SFM 204	1.8
SUCSFM 204-12	3/4	3.38	2.500	0.59	0.47	1.00	0.47	1.31	1.2205	0.5000	0.7205	3/8	2,331	1,142	SUC 204-12	SFM 204	1.8
SUCSFM 204	20	3.38	2.500	0.59	0.47	1.00	0.47	1.31	1.2205	0.5000	0.7205	3/8	2,331	1,142	SUC 204	SFM 204	1.8
SUCSFM 205-14	7/8	3.75	2.750	0.63	0.55	1.06	0.47	1.41	1.3425	0.5630	0.7795	7/16	2,542	1,349	SUC 205-14	SFM 205	2.4
SUCSFM 205-15	15/16	3.75	2.750	0.63	0.55	1.06	0.47	1.41	1.3425	0.5630	0.7795	7/16	2,542	1,349	SUC 205-15	SFM 205	2.4
SUCSFM 205	25	3.75	2.750	0.63	0.55	1.06	0.47	1.41	1.3425	0.5630	0.7795	7/16	2,542	1,349	SUC 205	SFM 205	2.4
SUCSFM 205-16	1	3.75	2.750	0.63	0.55	1.06	0.47	1.41	1.3425	0.5630	0.7795	7/16	2,542	1,349	SUC 205-16	SFM 205	2.4
SUCSFM 206-17	1-1/16	4.25	3.250	0.71	0.55	1.22	0.47	1.58	1.5000	0.6260	0.8740	7/16	3,554	1,942	SUC 206-17	SFM 206	3.1
SUCSFM 206-18	1-1/8	4.25	3.250	0.71	0.55	1.22	0.47	1.58	1.5000	0.6260	0.8740	7/16	3,554	1,942	SUC 206-18	SFM 206	3.1
SUCSFM 206	30	4.25	3.250	0.71	0.55	1.22	0.47	1.58	1.5000	0.6260	0.8740	7/16	3,554	1,942	SUC 206	SFM 206	3.1
SUCSFM 206-19	1-3/16	4.25	3.250	0.71	0.55	1.22	0.47	1.58	1.5000	0.6260	0.8740	7/16	3,554	1,942	SUC 206-19	SFM 206	3.1
SUCSFM 206-20	1-1/4	4.25	3.250	0.71	0.55	1.22	0.47	1.58	1.5000	0.6260	0.8740	7/16	3,554	1,942	SUC 206-20	SFM 206	3.1
SUCSFM 207-20	1-1/4	4.56	3.625	0.75	0.63	1.34	0.55	1.75	1.6890	0.6890	1.0000	1/2	4,683	2,626	SUC 207-20	SFM 207	4.6
SUCSFM 207-21	1-5/16	4.56	3.625	0.75	0.63	1.34	0.55	1.75	1.6890	0.6890	1.0000	1/2	4,683	2,626	SUC 207-21	SFM 207	4.6
SUCSFM 207-22	1-3/8	4.56	3.625	0.75	0.63	1.34	0.55	1.75	1.6890	0.6890	1.0000	1/2	4,683	2,626	SUC 207-22	SFM 207	4.6
SUCSFM 207	35	4.56	3.625	0.75	0.63	1.34	0.55	1.75	1.6890	0.6890	1.0000	1/2	4,683	2,626	SUC 207	SFM 207	4.6
SUCSFM 207-23	1-7/16	4.56	3.625	0.75	0.63	1.34	0.55	1.75	1.6890	0.6890	1.0000	1/2	4,683	2,626	SUC 207-23	SFM 207	4.6
SUCSFM 208-24	1-1/12	5.13	4.000	0.83	0.63	1.42	0.63	2.02	1.9370	0.7480	1.1890	9/16	5,294	3,057	SUC 208-24	SFM 208	5.5
SUCSFM 208-25	1-9/16	5.13	4.000	0.83	0.63	1.42	0.63	2.02	1.9370	0.7480	1.1890	9/16	5,294	3,057	SUC 208-25	SFM 208	5.5
SUCSFM 208	40	5.13	4.000	0.83	0.63	1.42	0.63	2.02	1.9370	0.7480	1.1890	9/16	5,294	3,057	SUC 208	SFM 208	5.5
SUCSFM 209-26	1-5/8	5.38	4.125	0.87	0.71	1.50	0.63	2.06	1.9370	0.7480	1.1890	9/16	5,923	3,507	SUC 209-26	SFM 209	6.8
SUCSFM 209-27	1-11/16	5.38	4.125	0.87	0.71	1.50	0.63	2.06	1.9370	0.7480	1.1890	9/16	5,923	3,507	SUC 209-27	SFM 209	6.8
SUCSFM 209-28	1-3/4	5.38	4.125	0.87	0.71	1.50	0.63	2.06	1.9370	0.7480	1.1890	9/16	5,923	3,507	SUC 209-28	SFM 209	6.8
SUCSFM 209	45	5.38	4.125	0.87	0.71	1.50	0.63	2.06	1.9370	0.7480	1.1890	9/16	5,923	3,507	SUC 209	SFM 209	6.8
SUCSFM 210-30	1-7/8	5.63	4.375	0.87	0.71	1.57	0.63	2.15	2.0315	0.7480	1.2835	9/16	6,402	4,046	SUC 210-30	SFM 210	7.5
SUCSFM 210-31	1-15/16	5.63	4.375	0.87	0.71	1.57	0.63	2.15	2.0315	0.7480	1.2835	9/16	6,402	4,046	SUC 210-31	SFM 210	7.5
SUCSFM 210	50	5.63	4.375	0.87	0.71	1.57	0.63	2.15	2.0315	0.7480	1.2835	9/16	6,402	4,046	SUC 210	SFM 210	7.5
SUCSFM 210-32	2	5.63	4.375	0.87	0.71	1.57	0.63	2.15	2.0315	0.7480	1.2835	9/16	6,402	4,046	SUC 210-32	SFM 210	7.5
SUCSFM 211-32	2	6.38	5.125	0.98	0.79	1.69	0.75	2.31	2.1890	0.8740	1.3150	5/8	7,931	5,036	SUC 211-32	SFM 211	10.1
SUCSFM 211-34	2-1/8	6.38	5.125	0.98	0.79	1.69	0.75	2.31	2.1890	0.8740	1.3150	5/8	7,931	5,036	SUC 211-34	SFM 211	10.1
SUCSFM 211	55	6.38	5.125	0.98	0.79	1.69	0.75	2.31	2.1890	0.8740	1.3150	5/8	7,931	5,036	SUC 211	SFM 211	10.1
SUCSFM 211-35	2-3/16	6.38	5.125	0.98	0.79	1.69	0.75	2.31	2.1890	0.8740	1.3150	5/8	7,931	5,036	SUC 211-35	SFM 211	10.1
SUCSFM 212-36	2-1/4	6.88	5.625	1.13	0.79	1.89	0.75	2.71	2.5630	1.0000	1.5630	5/8	9,554	5,921	SUC 212-36	SFM 212	12.5
SUCSFM 212	60	6.88	5.625	1.13	0.79	1.89	0.75	2.71	2.5630	1.0000	1.5630	5/8	9,554	5,921	SUC 212	SFM 212	12.5
SUCSFM 212-38	2-3/8	6.88	5.625	1.13	0.79	1.89	0.75	2.71	2.5630	1.0000	1.5630	5/8	9,554	5,921	SUC 212-38	SFM 212	12.5
SUCSFM 212-39	2-7/16	6.88	5.625	1.13	0.79	1.89	0.75	2.71	2.5630	1.0000	1.5630	5/8	9,554	5,921	SUC 212-39	SFM 212	12.5

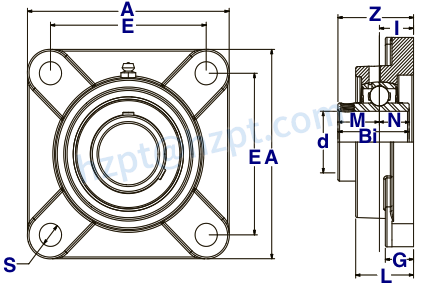

(2) SNCSFM 200 Normal Duty 4-Bolt Flange Bearing With Eccentric Locking Collar

Bearing #	Shaft Diameter (d)	(A)	(E)	(I)	(G)	(L)	(S)	(Z)	(Bi)	(N)	(M)	Bolt Size	Dynamic Load Rating (LBS)	Static Load Rating (LBS)	Bearing Insert	Housing Number	Weight (LBS)
SNCSFM 201-8	1/2	3.8	2.500	0.59	0.47	1.00	0.47	1.64	1.5472	0.5000	0.6732	3/8	2,331	1,142	SNC 201-8	SFM 204	1.8
SNCSFM 202-10	5/8	3.8	2.500	0.59	0.47	1.00	0.47	1.64	1.5472	0.5000	0.6732	3/8	2,331	1,142	SNC 202-10	SFM 204	1.8
SNCSFM 204-12	3/4	3.8	2.500	0.59	0.47	1.00	0.47	1.64	1.5472	0.5000	0.6732	3/8	2,331	1,142	SNC 204-12	SFM 204	1.8
SNCSFM 204	20	3.8	2.500	0.59	0.47	1.00	0.47	1.64	1.5472	0.5000	0.6732	3/8	2,331	1,142	SNC 204	SFM 204	1.8
SNCSFM 205-14	7/8	3.75	2.750	0.63	0.55	1.06	0.47	1.69	1.6220	0.5630	0.6850	7/16	2,542	1,142	SNC 205-14	SFM 205	2.5
SNCSFM 205-15	15/16	3.75	2.750	0.63	0.55	1.06	0.47	1.69	1.6220	0.5630	0.6850	7/16	2,542	1,349	SNC 205-15	SFM 205	2.5
SNCSFM 205	25	3.75	2.750	0.63	0.55	1.06	0.47	1.69	1.6220	0.5630	0.6850	7/16	2,542	1,349	SNC 205	SFM 205	2.5
SNCSFM 205-16	1	3.75	2.750	0.63	0.55	1.06	0.47	1.69	1.6220	0.5630	0.6850	7/16	2,542	1,349	SNC 205-16	SFM 205	2.5
SNCSFM 206-17	1-1/16	4.25	3.250	0.71	0.55	1.22	0.47	1.89	1.8110	0.6260	0.7165	7/16	3,554	1,942	SNC 206-17	SFM 206	3.2
SNCSFM 206-18	1-1/8	4.25	3.250	0.71	0.55	1.22	0.47	1.89	1.8110	0.6260	0.7165	7/16	3,554	1,942	SNC 206-18	SFM 206	3.2
SNCSFM 206	30	4.25	3.250	0.71	0.55	1.22	0.47	1.89	1.8110	0.6260	0.7165	7/16	3,554	1,942	SNC 206	SFM 206	3.2
SNCSFM 206-19	1-3/16	4.25	3.250	0.71	0.55	1.22	0.47	1.89	1.8110	0.6260	0.7165	7/16	3,554	1,942	SNC 206-19	SFM 206	3.2
SNCSFM 206-20	1-1/4	4.25	3.250	0.71	0.55	1.22	0.47	1.89	1.8110	0.6260	0.7165	7/16	3,554	1,942	SNC 206-20	SFM 206	3.2
SNCSFM 207-20	1-1/4	4.56	3.625	0.75	0.63	1.34	0.55	2.02	1.9606	0.6890	0.7402	1/2	4,683	2,626	SNC 207-20	SFM 207	4.8
SNCSFM 207-21	1-5/16	4.56	3.625	0.75	0.63	1.34	0.55	2.02	1.9606	0.6890	0.7402	1/2	4,683	2,626	SNC 207-21	SFM 207	4.8
SNCSFM 207-22	1-3/8	4.56	3.625	0.75	0.63	1.34	0.55	2.02	1.9606	0.6890	0.7402	1/2	4,683	2,626	SNC 207-22	SFM 207	4.8
SNCSFM 207	35	4.56	3.625	0.75	0.63	1.34	0.55	2.02	1.9606	0.6890	0.7402	1/2	4,683	2,626	SNC 207	SFM 207	4.8
SNCSFM 207-23	1-7/16	4.56	3.625	0.75	0.63	1.34	0.55	2.02	1.9606	0.6890	0.7402	1/2	4,683	2,626	SNC 207-23	SFM 207	4.8
SNCSFM 208-24	1-1/2	5.13	4.000	0.83	0.63	1.42	0.63	2.20	2.1220	0.7480	0.8425	9/16	5,294	3,507	SNC 208-24	SFM 208	5.8
SNCSFM 208-25	1-9/16	5.13	4.000	0.83	0.63	1.42	0.63	2.20	2.1220	0.7480	0.8425	9/16	5,294	3,507	SNC 208-25	SFM 208	5.8
SNCSFM 208	40	5.13	4.000	0.83	0.63	1.42	0.63	2.20	2.1220	0.7480	0.8425	9/16	5,294	3,507	SNC 208	SFM 208	5.8
SNCSFM 209-26	1-5/8	5.38	4.125	0.87	0.71	1.50	0.63	2.24	2.1220	0.7480	0.8425	9/16	5,923	3,507	SNC 209-26	SFM 209	7.1
SNCSFM 209-27	1-11/16	5.38	4.125	0.87	0.71	1.50	0.63	2.24	2.1220	0.7480	0.8425	9/16	5,923	3,507	SNC 209-27	SFM 209	7.1
SNCSFM 209-28	1-3/4	5.38	4.125	0.87	0.71	1.50	0.63	2.24	2.1220	0.7480	0.8425	9/16	5,923	3,507	SNC 209-28	SFM 209	7.1
SNCSFM 209	45	5.38	4.125	0.87	0.71	1.50	0.63	2.24	2.1220	0.7480	0.8425	9/16	5,923	3,507	SNC 209	SFM 209	7.1
SNCSFM 210-32	1-7/8	5.63	4.375	0.87	0.71	1.57	0.63	2.37	2.2480	0.7480	0.9685	9/16	6,402	4,046	SNC 210-32	SFM 210	8.0
SNCSFM 210-31	1-15/16	5.63	4.375	0.87	0.71	1.57	0.63	2.37	2.2480	0.7480	0.9685	9/16	6,402	4,046	SNC 210-31	SFM 210	8.0
SNCSFM 210	50	5.63	4.375	0.87	0.71	1.57	0.63	2.37	2.2480	0.7480	0.9685	9/16	6,402	4,046	SNC 210	SFM 210	8.0
SNCSFM 210-32	2	5.63	4.375	0.87	0.71	1.57	0.63	2.37	2.2480	0.7480	0.9685	9/16	6,402	4,046	SNC 210-32	SFM 210	8.0
SNCSFM 211-32	2	6.38	5.125	0.98	0.79	1.69	0.75	2.70	2.5906	0.8740	1.0905	5/8	7,931	5,036	SNC 211-32	SFM 211	10.8
SNCSFM 211-34	2-1/8	6.38	5.125	0.98	0.79	1.69	0.75	2.70	2.5906	0.8740	1.0905	5/8	7,931	5,036	SNC 211-34	SFM 211	10.8
SNCSFM 211	55	6.38	5.125	0.98	0.79	1.69	0.75	2.70	2.5906	0.8740	1.0905	5/8	7,931	5,036	SNC 211	SFM 211	10.8
SNCSFM 211-35	2-3/16	6.38	5.125	0.98	0.79	1.69	0.75	2.70	2.5906	0.8740	1.0905	5/8	7,931	5,036	SNC 211-35	SFM 211	10.8
SNCSFM 212-36	2-1/4	6.88	5.625	1.13	0.79	1.89	0.75	2.98	2.8430	1.0000	1.2165	5/8	9,554	5,921	SNC 212-36	SFM 212	13.4
SNCSFM 212	60	6.88	5.625	1.13	0.79	1.89	0.75	2.98	2.8430	1.0000	1.2165	5/8	9,554	5,921	SNC 212	SFM 212	13.4
SNCSFM 212-38	2-3/8	6.88	5.625	1.13	0.79	1.89	0.75	2.98	2.8430	1.0000	1.2165	5/8	9,554	5,921	SNC 212-38	SFM 212	13.4
SNCSFM 212-39	2-7/16	6.88	5.625	1.13	0.79	1.89	0.75	2.98	2.8430	1.0000	1.2165	5/8	9,554	5,921	SNC 212-39	SFM 212	13.4

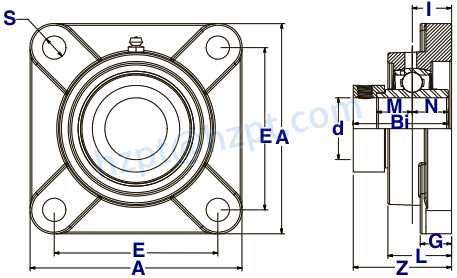

(3) SUESFM 200 Normal Duty 4-Bolt Flange Bearing With Concentric Locking Collar Clamp

Bearing #	Shaft Diameter (d)	(A)	(E)	(I)	(G)	(L)	(S)	(Z)	(Bi)	(N)	(M)	Bolt Size	Dynamic Load Rating (LBS)	Static Load Rating (LBS)	Bearing Insert	Housing Number	Weight (LBS)
SUESFM 204-12	3/4	3.8	2.500	0.59	0.47	1.00	0.47	1.39	1.2992	0.5000	0.7205	3/8	2,331	1,142	SUE 204-12	SFM 204	1.8
SUESFM 204	20	3.8	2.500	0.59	0.47	1.00	0.47	1.39	1.2992	0.5000	0.7205	3/8	2,331	1,142	SUE 204	SFM 204	1.8
SUESFM 205-14	7/8	3.75	2.750	0.63	0.55	1.06	0.47	1.46	1.3937	0.5630	0.7795	7/16	2,542	1,349	SUE 205-14	SFM 205	2.4
SUESFM 205-15	15/16	3.75	2.750	0.63	0.55	1.06	0.47	1.46	1.3937	0.5630	0.7795	7/16	2,542	1,349	SUE 205-15	SFM 205	2.4
SUESFM 205	25	3.75	2.750	0.63	0.55	1.06	0.47	1.46	1.3937	0.5630	0.7795	7/16	2,542	1,349	SUE 205	SFM 205	2.4
SUESFM 205-16	1	3.75	2.750	0.63	0.55	1.06	0.47	1.46	1.3937	0.5630	0.7795	7/16	2,542	1,349	SUE 205-16	SFM 205	2.4
SUESFM 206-17	1-1/16	4.25	3.250	0.71	0.55	1.22	0.47	1.65	1.5669	0.6260	0.8740	7/16	3,554	1,942	SUE 206-17	SFM 206	3.1
SUESFM 206-18	1-1/8	4.25
