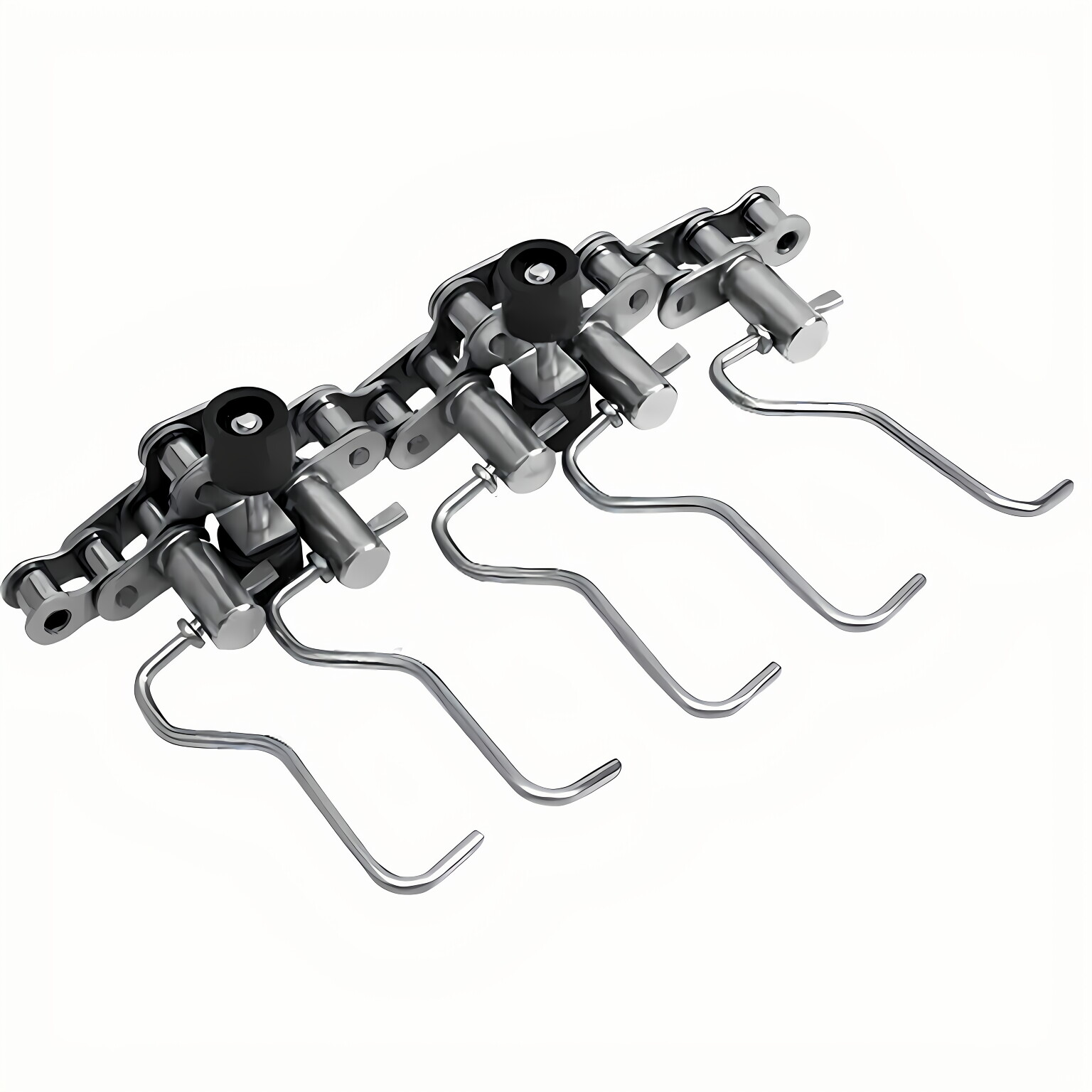

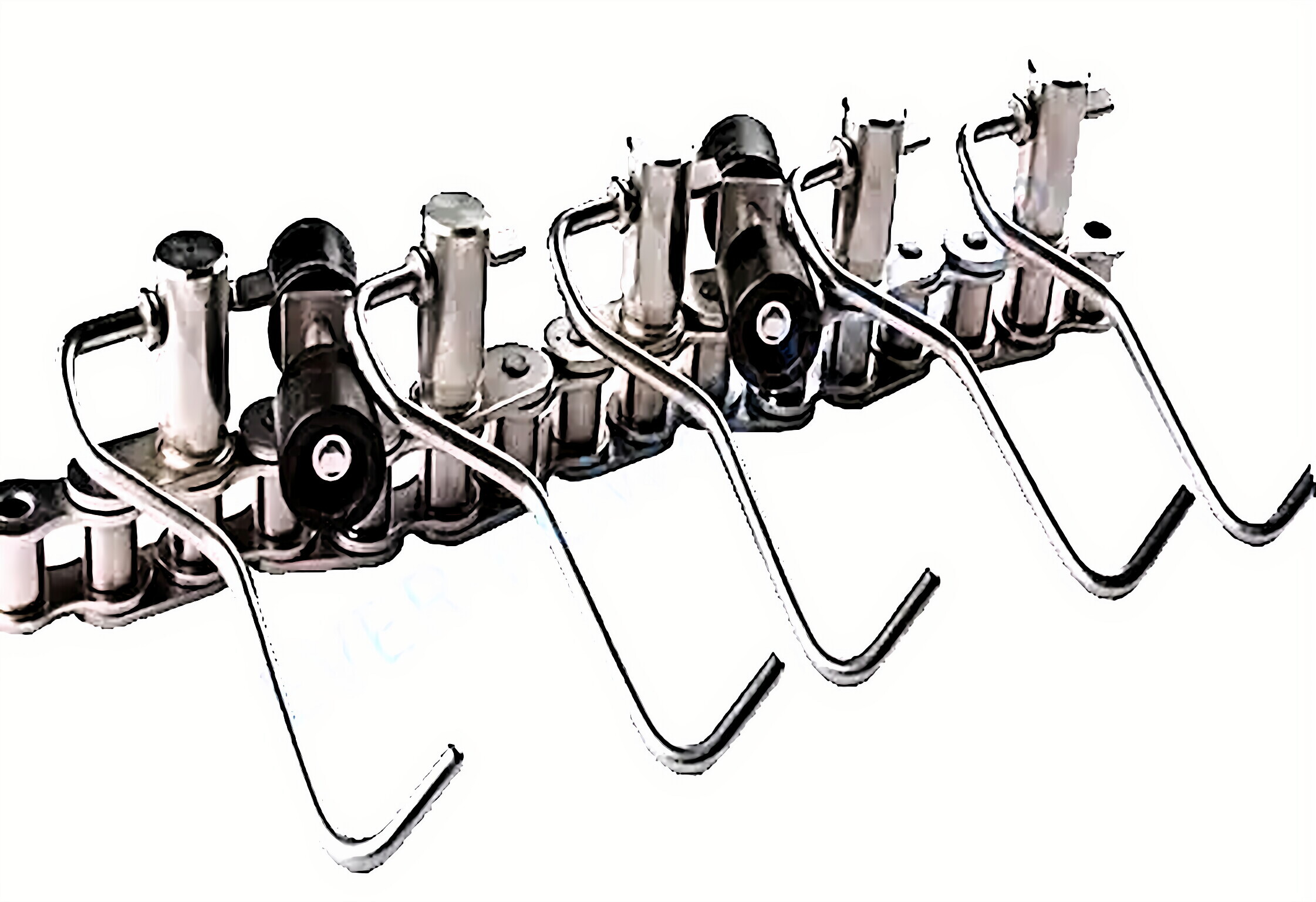

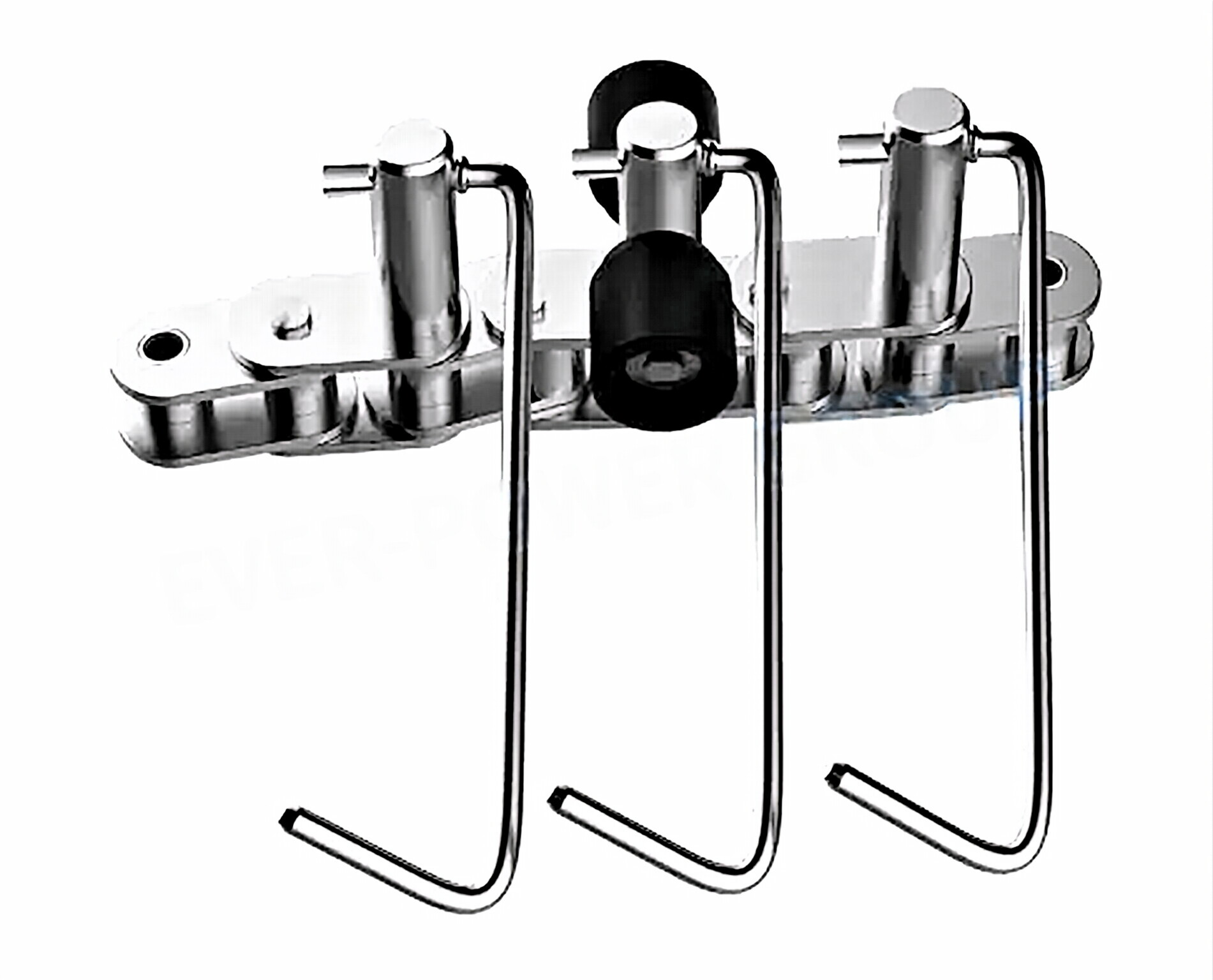

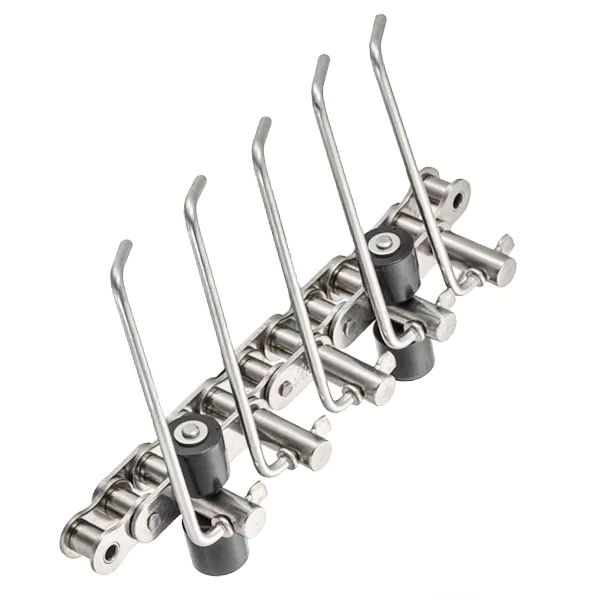

Stainless Steel Conveyor Chain for Sausage/Hot Dog Production

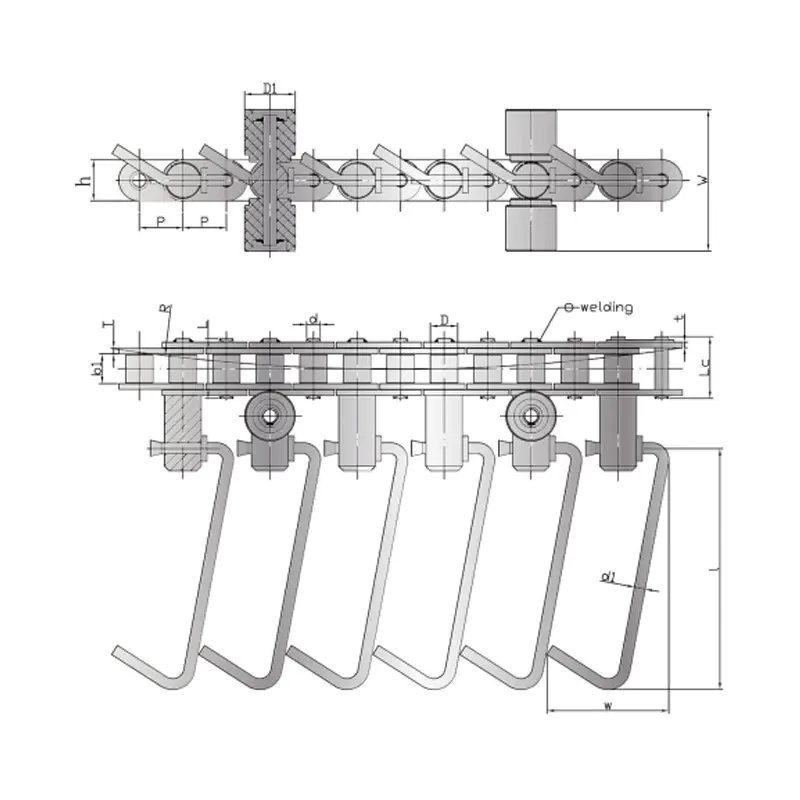

Specifications of Stainless Steel Sausage & Hot Dog Production Line Conveyor Chain

[su_table responsive="yes"]

Chain No.	Pitch	Pin Length	PinDiameter	RollerDiameter	Plate Height	Width BetweenInner Plates	Pin Length	PlateThickness	Roller Size	Side BowRadius	Hook Size
	P	L	d	D	h	b1	Lc	T/t	W*D1	≤R	d1*w*l
	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
ST-SSC60SB	19.05	25.6	5.94	11.91	18	12.57	27.5	2.42	62	1500	4.7*53*108

[/su_table]In the modern food production industry, automation has become a critical component for ensuring efficiency, hygiene, and consistency. One of the essential elements of an automated production line for sausages and hot dogs is the conveyor chain system. The Stainless Steel Conveyor Chain for Sausage/Hot Dog Production plays a pivotal role in transporting sausages, especially during baking processes. This specialized conveyor system is designed to meet the demanding needs of food manufacturing environments, offering durability, reliability, and performance.

Overview of the Stainless Steel Conveyor Chain

The stainless steel conveyor chain used in sausage and hot dog production lines is crafted from high-quality 316 stainless steel, ensuring exceptional durability and long service life. This material is known for its resistance to corrosion, particularly in environments where food-grade hygiene standards are a priority. The conveyor chain facilitates the movement of sausages or hot dogs through various stages of production, from cooking to cooling, without the risk of contamination or damage to the product.One of the key advantages of stainless steel is its ability to withstand high temperatures, making it particularly suitable for use in baking ovens where sausages or hot dogs are processed at elevated temperatures. The stainless steel conveyor chain maintains its strength and shape under these harsh conditions, ensuring smooth, uninterrupted transportation throughout the production cycle.

Key Features of the Conveyor Chain

1. Corrosion Resistance:The 316 stainless steel used in the construction of the conveyor chain offers superior resistance to rust and corrosion, even in environments exposed to moisture, heat, and acidic substances often found in food production. This corrosion resistance ensures that the conveyor system maintains its integrity and cleanliness throughout its service life, which is essential in food production where hygiene is critical.2. High-Temperature Resistance:The conveyor chain’s ability to withstand high temperatures makes it ideal for applications in sausage and hot dog production lines, where baking or cooking processes take place at temperatures that can exceed 300°F (150°C). The high-temperature resistance prevents warping, weakening, or degradation of the material, ensuring the conveyor chain functions optimally in heat-intensive environments.3. Precision in Chain Length:In food production, especially for sausages and hot dogs, precision is vital. The conveyor chain is designed with high chain length accuracy, ensuring that each segment of the chain fits precisely into place. This precision reduces wear and tear, minimizes maintenance needs, and ensures reliable transportation of sausages over long distances without the risk of misalignment or chain slippage.4. Durability and Longevity:Made from premium 316 stainless steel, the conveyor chain is built to last. The advanced processing technology used to manufacture these chains ensures a high level of quality control, providing a product that can withstand the rigors of daily, continuous operation in demanding production environments. The durability of the stainless steel chain translates to reduced downtime and lower maintenance costs for food manufacturers.

Benefits for Sausage/Hot Dog Production Lines

1. Smooth and Efficient Transportation:The stainless steel conveyor chain ensures the smooth movement of sausages or hot dogs along the production line. The robust construction allows the conveyor system to function continuously over long distances without the need for frequent adjustments or repairs. This smooth transportation is essential for maintaining the flow of the production line, improving overall efficiency.2. Hygiene and Food Safety:The stainless steel material is non-porous and resistant to bacterial growth, making it an ideal choice for food production environments where cleanliness is paramount. The conveyor chain can be easily cleaned and sanitized, reducing the risk of cross-contamination. The smooth surface of the chain prevents the accumulation of food debris and ensures that sausages or hot dogs remain uncontaminated as they are transported.3. Long-Distance Transportation Capability:The hot dog production line conveyor chain is designed to handle smooth transportation over long distances, which is critical for large-scale food production operations. Whether the sausages are being moved to a baking oven, a cooling station, or packaged for distribution, the conveyor system ensures that the sausages or hot dogs are transferred efficiently without the need for additional manual intervention.4. Low Maintenance and Cost Efficiency:Thanks to its corrosion resistance, high-temperature tolerance, and precision engineering, the stainless steel conveyor chain requires minimal maintenance. The chain’s durability reduces the frequency of replacements, making it a cost-effective solution for long-term use. Reduced downtime due to conveyor failures also leads to higher productivity and lower operational costs.

Applications in Sausage and Hot Dog Production Lines

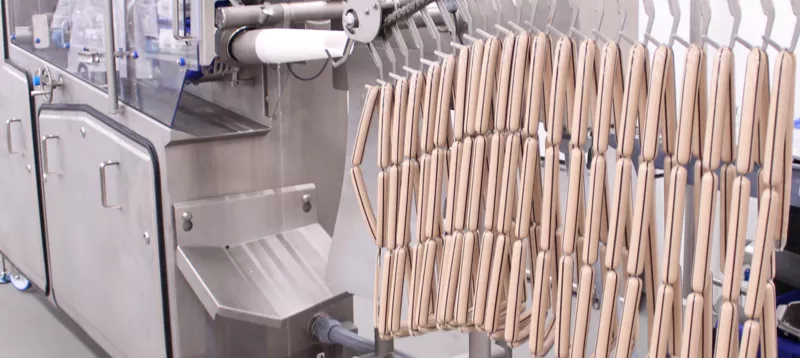

The stainless steel conveyor chain is a vital part of both sausage and hot dog production lines. The production process often involves multiple stages, including filling, cooking, and cooling. The conveyor system ensures that sausages or hot dogs are seamlessly moved from one stage to another, without compromising on the quality or safety of the product.1. Sausage Baking Process:During the sausage baking process, sausages need to be transported into ovens at specific intervals to ensure even cooking. The stainless steel conveyor chain can withstand the high heat and continue to operate smoothly, transporting sausages through the oven without deformation or damage.2. Hot Dog Production and Cooling:Once hot dogs are cooked, they must be cooled rapidly to prevent bacterial growth. The conveyor system ensures that hot dogs are smoothly moved through cooling chambers, maintaining the necessary spacing between each unit for effective cooling.

Related Products

We specialize in the chains made to customers’ drawings and specification. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain, Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.

We also provide sprockets to match your roller chains：https://hzpt.com/sprockets/

Packaging Display of Roller Chains

Our chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.

Production Workshop of Roller Chains

The Stainless Steel Conveyor Chain for Sausage/Hot Dog Production is an indispensable component in the automation of modern food manufacturing. With its robust construction, high resistance to temperature and corrosion, and precision engineering, it enhances the efficiency, hygiene, and reliability of sausage and hot dog production lines. By choosing a stainless steel conveyor chain from us, we can ensure a smoother, faster, and more cost-effective production process, all while adhering to the highest food safety and hygiene standards.Raydafon is an industry-leading, reliable and outstanding roller chain supplier that aims to provide high-quality products at more competitive prices and better service.* Good quality products at competitive pricing* Wide variety of products available in various materials and sizes* Our products are manufactured in an ISO9001 certified factory* Great customer service that's here to answer all of your questions* Largest online selection of power transmission products* High quality made to order products
