Stainless Steel Conveyor Chains With Top Rollers

Stainless Steel Conveyor Chains With Top Rollers

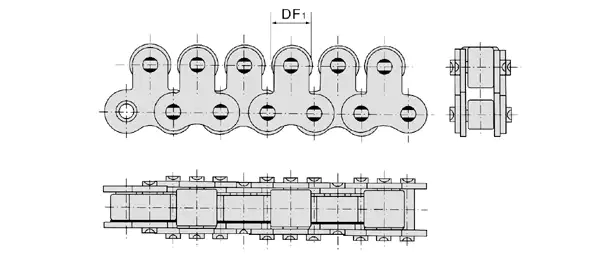

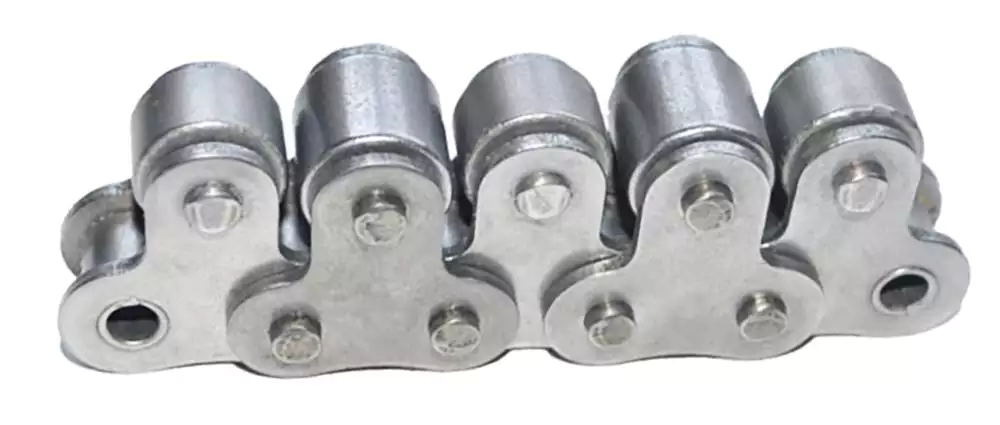

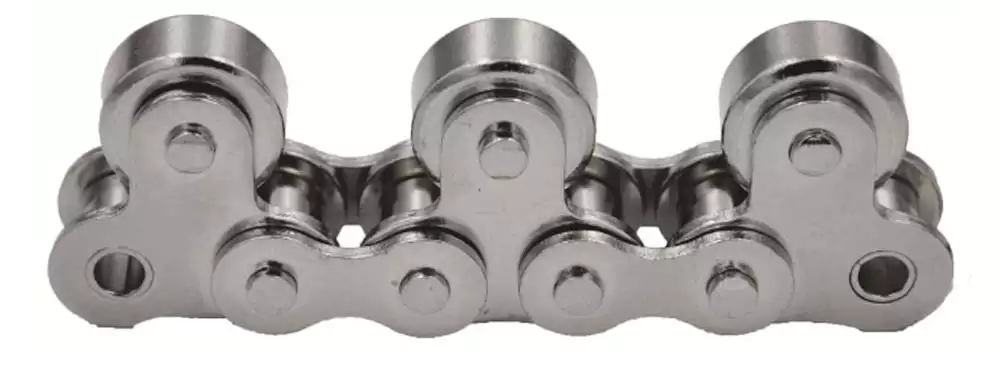

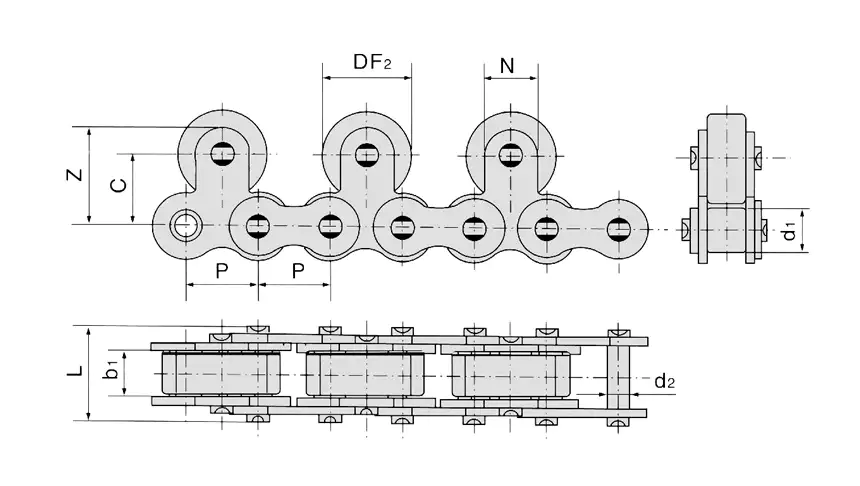

Top Roller Conveyor Chain (TOP Roller Chain)

• A free flow chain using an RS Chain base with a raised link plate with freely rotating top rollers attached.
• The width of the chain itself is smaller than other free flow chains. The top rollers are supported by plates on both sides, making the chain ideal for rugged free flow conveyors.
• We have a lineup of Standard specifications, Lambda (lube-free) specifications, and SS (stainless steel) specifications.
• We also manufacture NP specifications (nickel plating), so please contact us.

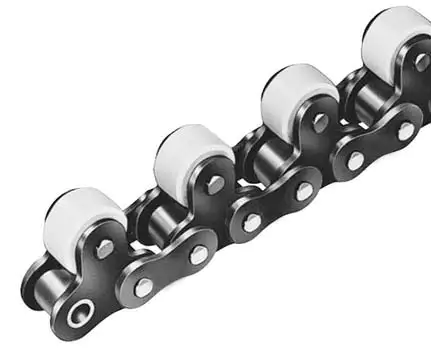

Top Roller Conveyor Chain is based on ANSI roller chain and double-pitch roller chain. Extra roller is mounted on top of the chain pitch line to convey materials directly on them. Materials can be loaded, taken off, or temporarily stopped while the chain is in continuous operation. Customers can specify spacing of the top roller.The top roller can also be made of plastic

Applications

• Chain can be run continuously while conveyed items on top of the conveyor can be accumulated temporarily with a stopper.
• Conveying and stopping can be performed simultaneously on top of the same chain.
• Alleviates impacts during transfer

Related Products

Standard?Top Roller Conveyor Chain (TOP Roller Chain) products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table?Top Chain,?Side Bow Chain, Lumber Chain, Agriculture Chain,?Silent Chain, PIV Chain,?Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain,?Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.

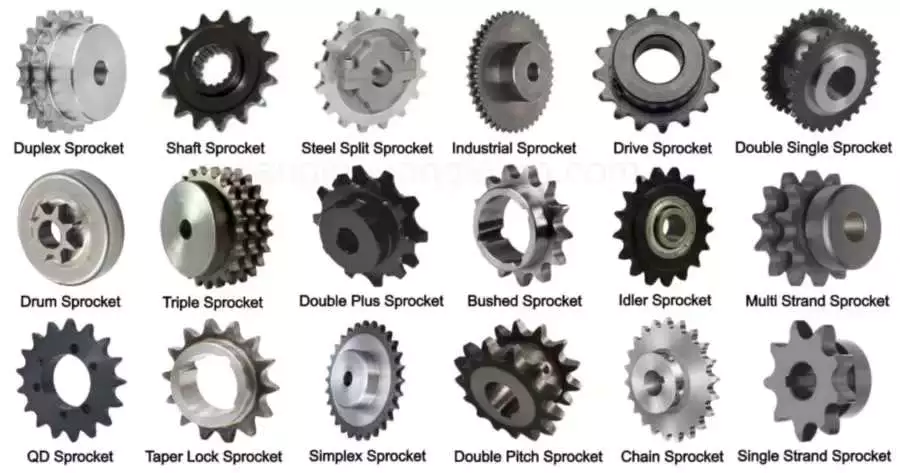

We also provide sprockets to match your roller chains：https://hzpt.com/sprockets/

Packaging Display of Roller Chains

Our chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.

Production Workshop of Roller Chains

Raydafon is an industry-leading, reliable and outstanding roller chain supplier that aims to provide high-quality products at more competitive prices and better service.* Good quality products at competitive pricing* Wide variety of products available in various materials and sizes* Our products are manufactured in an ISO9001 certified factory* Great customer service that's here to answer all of your questions* Largest online selection of power transmission products* Easy online shopping and ordering available 24/7 - 365 days a year* High quality made to order products
