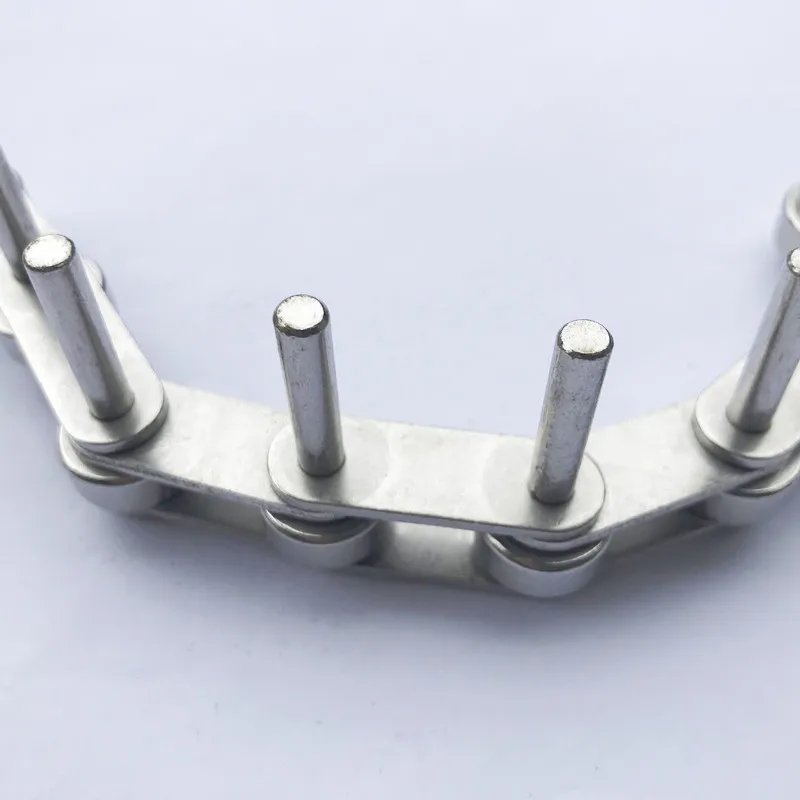

Stainless Steel Double Pitch Conveyor Chains with Extended Pins

Raydafon Group's Stainless Steel Double Pitch Conveyor Chains with Extended Pins deliver robust, corrosion-resistant performance for demanding industrial applications. Engineered with precision and durability, these chains excel in conveying systems where extended pins provide enhanced stability and load capacity. Ideal for sectors like food processing, packaging, and manufacturing, they ensure smooth, efficient operations while minimizing maintenance. Users benefit from reliable, long-lasting equipment that boosts productivity and peace of mind. Stand out from competitors with Raydafon's superior stainless steel quality and innovative design, trusted by professionals worldwide for superior results.

Send Inquiry

Product Description

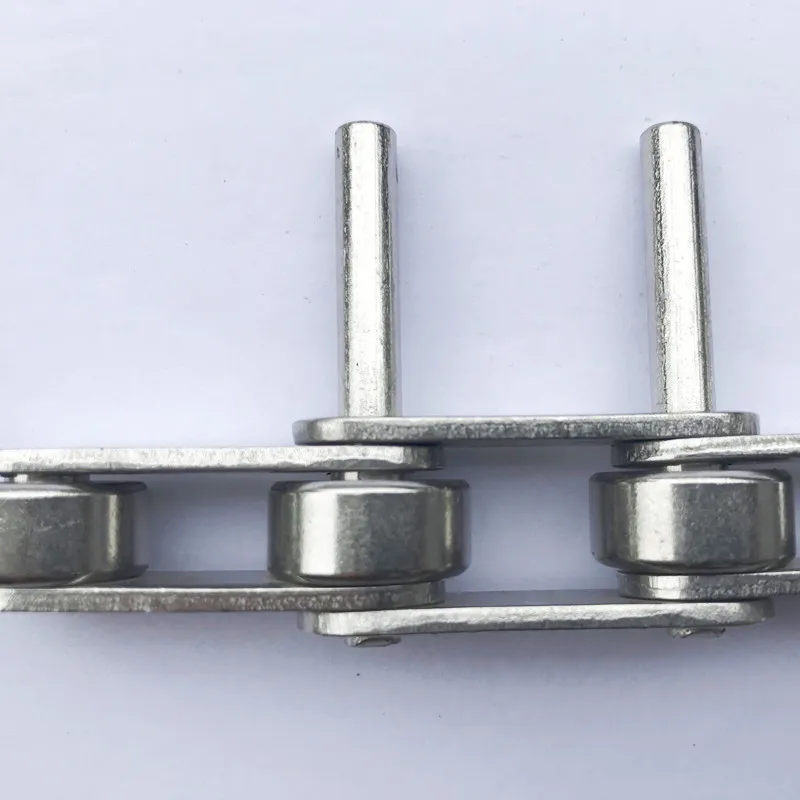

Stainless Steel Double Pitch Conveyor Chains with Extended Pins

The Double Pitch Chains With Extended Pins is a deformed product derived from the standard roller chain. Its structural characteristics are the same as the standard roller chain, except that the pin shaft is lengthened according to special requirements to fix the raw materials or semi-finished products used in production.

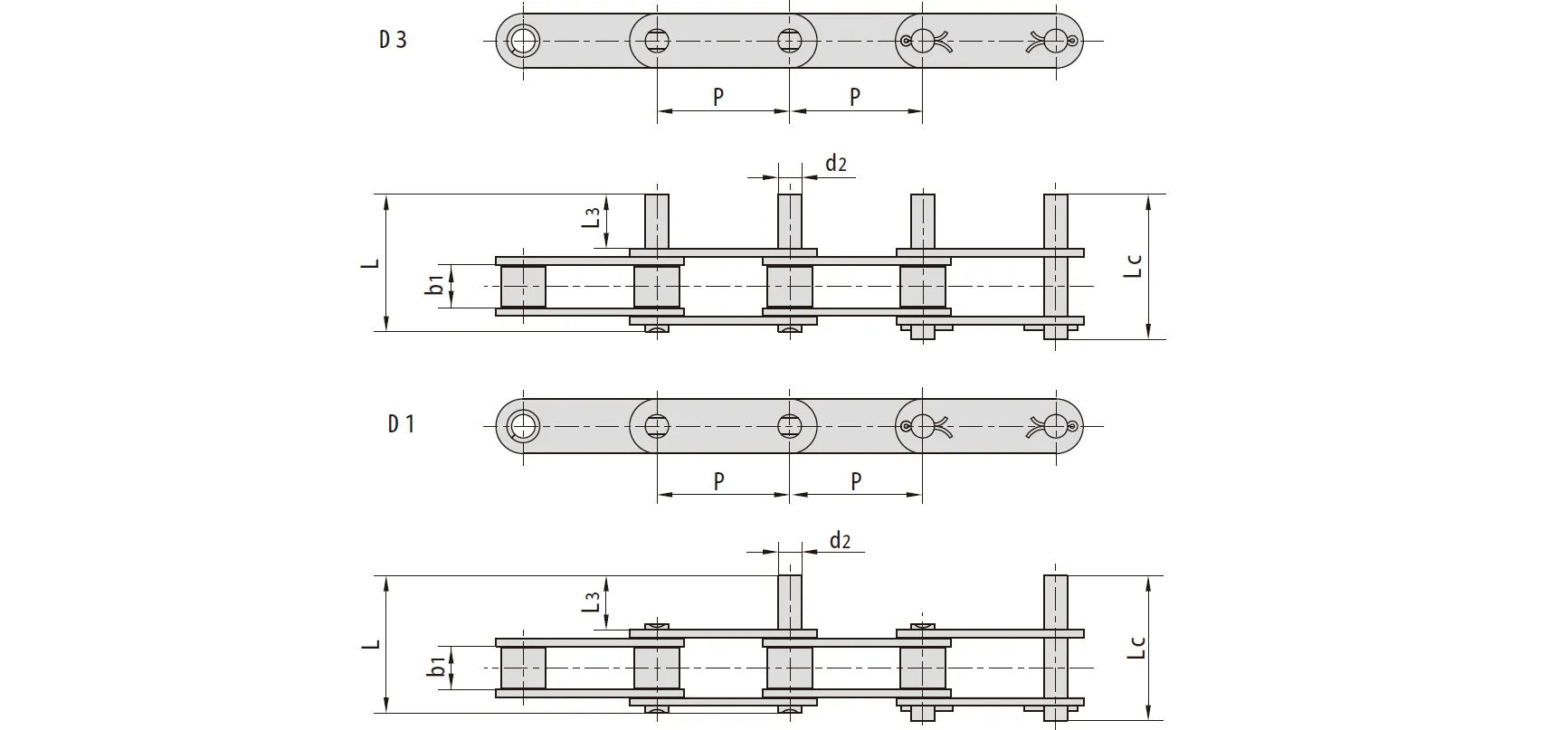

▍Specifications of Stainless Steel Double Pitch Conveyor Chains with Extended Pins

Chain No.	P	b1	d2	L3	L	Lc
Chain No.	mm	mm	mm	mm	mm	mm
C2040SSC2042SS	25.40	7.85	3.96	9.5	25.1	26.2
C2050SSC2052SS	31.75	9.40	5.08	11.9	31.3	33.1
C2060SSC2062SS	38.10	12.57	5.94	14.3	38.6	40.6
C2060HSSC2062HSS	38.10	12.57	5.94	14.3	42.0	43.8
C2080SSC2082SS	50.80	15.75	7.92	19.1	50.3	53.3
C2080HSSC2082HSS	50.80	15.75	7.92	19.1	53.5	55.0
C2100SSC2102SS	63.50	18.90	9.53	23.8	61.8	66.1
C2100HSSC2102HSS	63.50	18.90	9.53	23.8	65.0	68.3
C2120HSSC2122HSS	76.20	25.22	11.10	28.6	79.6	83.6
C2160HSSC2162HSS	101.60	31.75	14.27	38.1	103.0	107.8

▍Features of Stainless Steel Double Pitch Conveyor Chains with Extended Pins

Stainless steel double pitch conveyor chains with extended pins are designed to be more robust and impact-resistant than standard roller chains. They feature high-tensile strength pins, heat-treated plates, and heavy-duty roller bushes to ensure maximum durability. The chains are highly corrosion-resistant, making them ideal for applications in corrosive environments. They also feature low noise levels, making them suitable for use in noise-sensitive applications. The pitch is twice as long as standard roller chains, making them suitable for larger loads, and the attachment points are available in both standard carbon steel and stainless steel for extra strength and corrosion resistance.

▍What to Look for when Selecting a Roller Chain with Extended Pins

One of the key factors to consider when selecting a roller chain with extended pins is the type of application it will be used in. For example, if the chain will be used in a conveyor system, it is important to choose a chain that is designed for this specific application. The conveyor chain is typically made from high-strength steel and features a special chain construction that is designed to withstand the high loads and shock loads that are typical in conveyor systems.

▍Extended Pins Chains Usage Areas

Roller chains with extended pins are widely used in a variety of industrial applications, including material handling equipment, conveyor systems, and other machinery that requires reliable and efficient power transmission. These chains offer a number of benefits, including increased load-carrying capacity, smooth and quiet operation, and a longer lifespan. By carefully considering the specific requirements of the application, it is possible to select the right roller chain with extended pins to meet the needs of your business.

▍Applications of Stainless Steel Double Pitch Conveyor Chains with Extended Pins

The Stainless Steel Double Pitch Roller Chain with Extended Pins is mainly used for conveying purposes. Raydafon adopts high-quality SS304 or SS316 to make the chain which owns characteristics such as acid and alkali resistance, cold and heat resistance, long life, etc. This chain is widely used in food, chemical, pharmaceutical, rubber, printing, silk, and other industries.

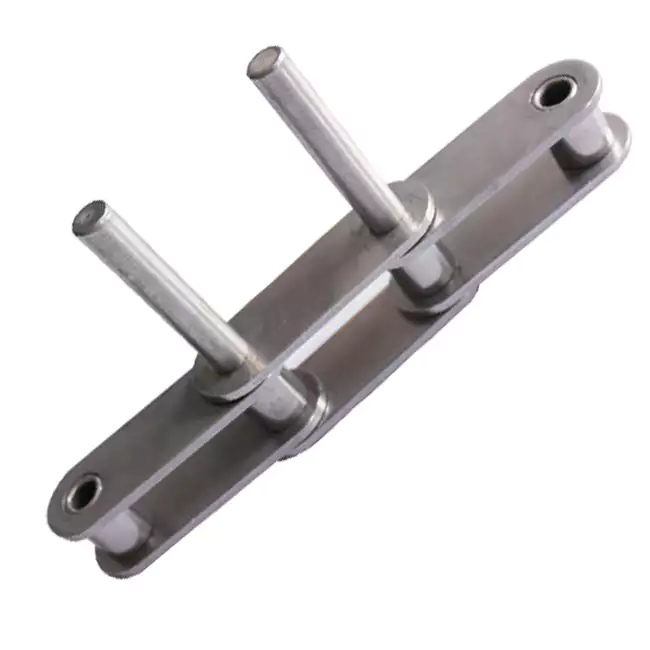

▍Other Chains Related Products

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and?conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber chains, agriculture chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain,?engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

▍We Also Provide Other Types of Chain Sprockets

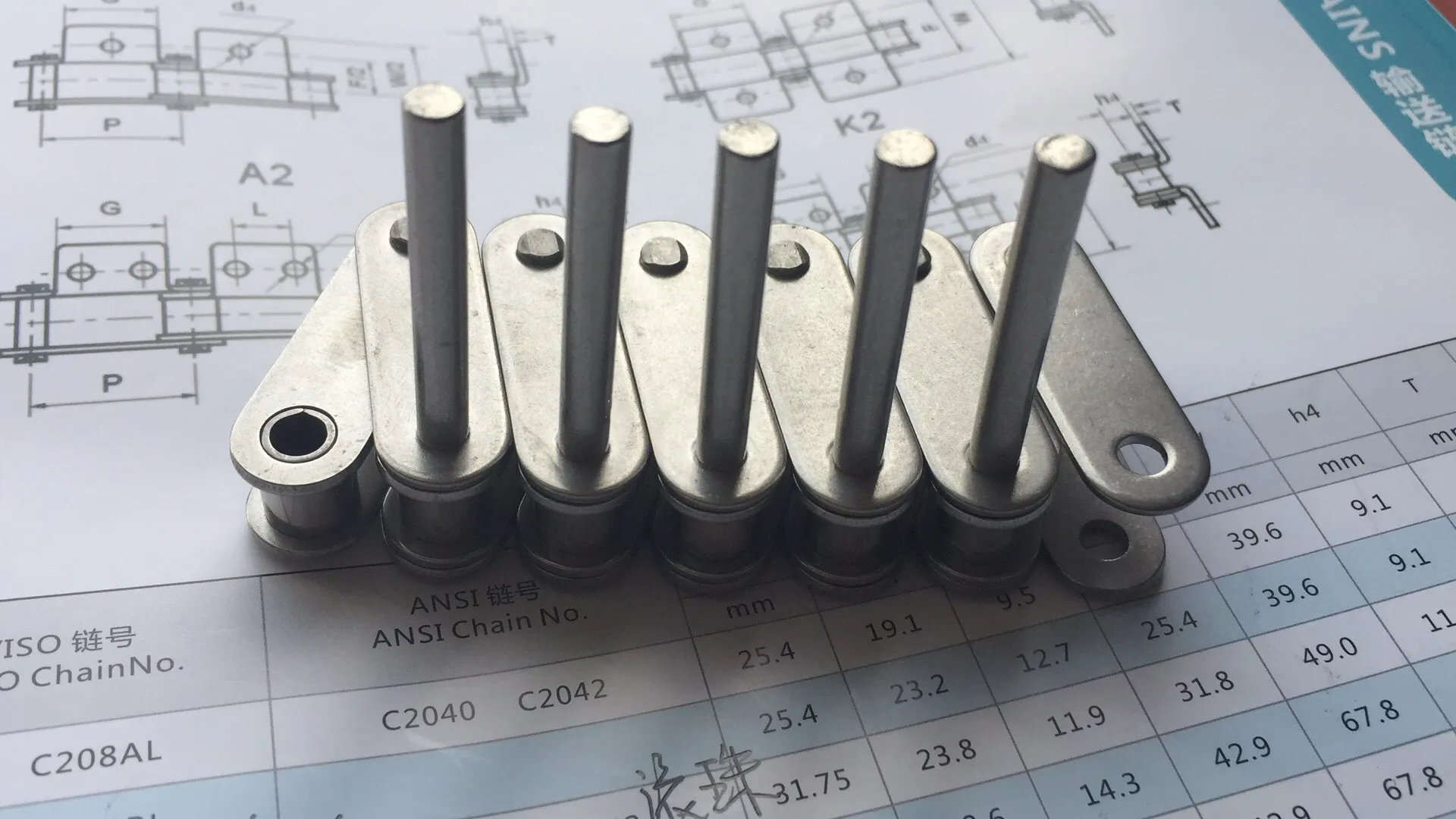

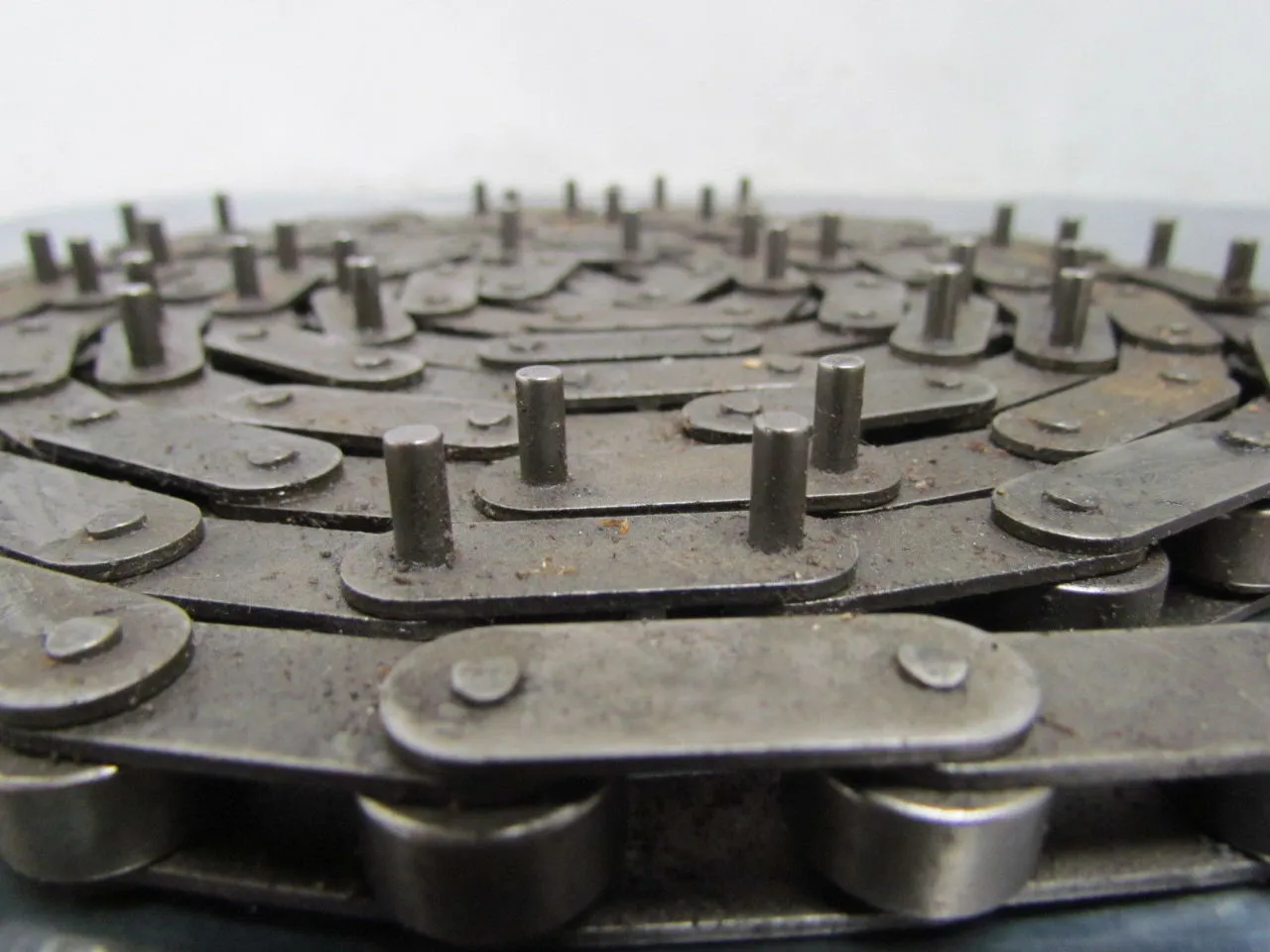

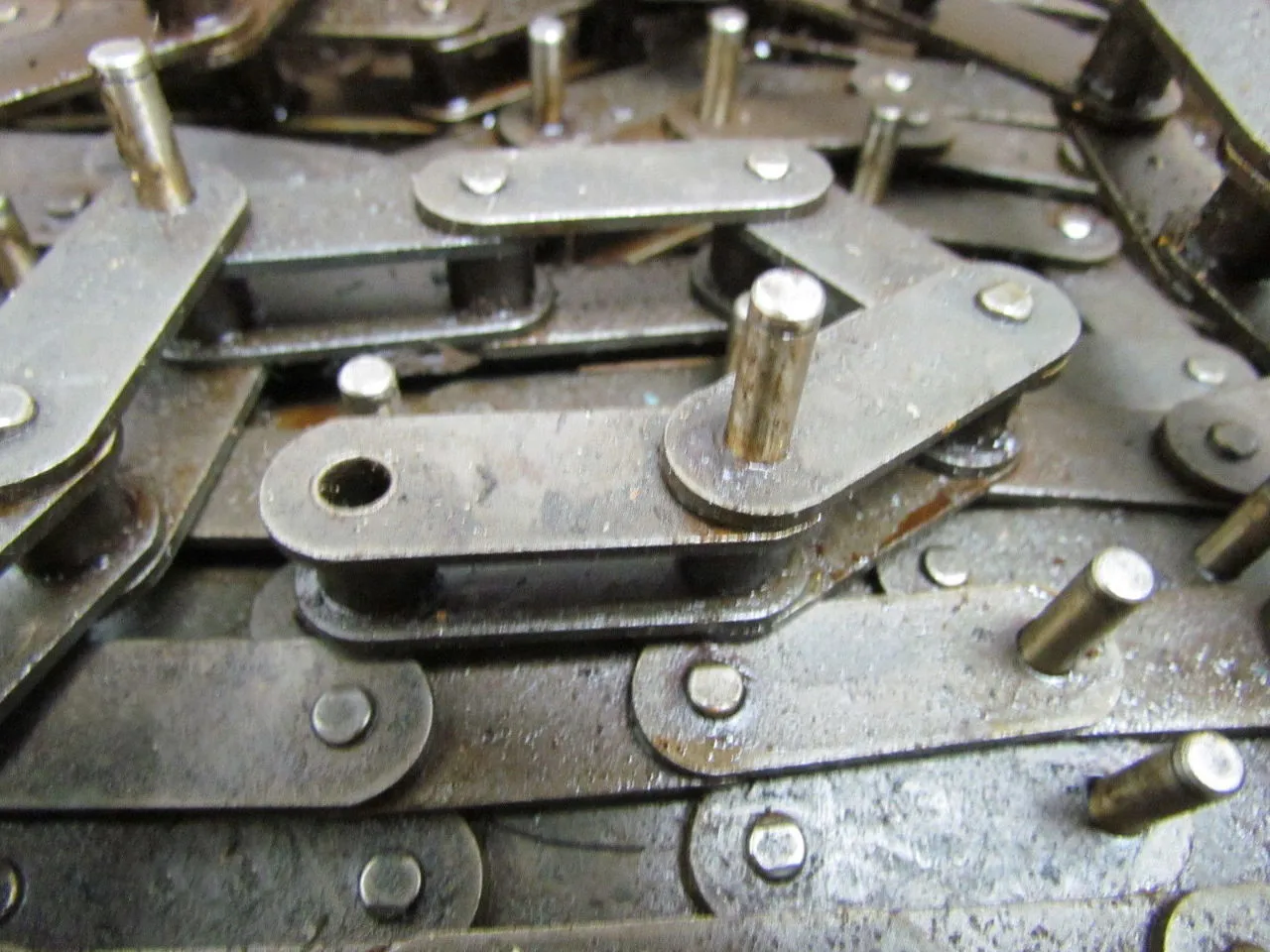

▍Stainless Steel Double Pitch Conveyor Chain Manufacturers

Raydafon was established in 1995, it is one of the earliest professional manufacturers that trial-manufactures and manufactures all kinds of stainless steel chains and chain sprockets. Relying on rich experience, complete equipment, reliable quality, and reasonable price, products sell well in China and have been exported to America, France, Japan, Korea, the Middle East, and other national areas for many years, deeply welcomed by domestic and foreign merchants.Our factory passed ISO9002 quality system certification in 1999 and products meet ISO, ANSI, BS, DIN, and JIS standards. All the chains and chain wheels are made of 304, 316L, and 310S high-quality stainless steel. Our products are widely used in industrial mechanical production lines, such as food, baking, pharmacy, rubber, printing and dyeing, cleaning, sanitary ware, electronics, electroplating, and cooling and provide convenience for imported equipment parts localization. In recent years, on the basis of original single stainless steel roller chain, we have developed six series of more than three hundred kinds of products, such as sheet-type net belt chains, differential chains, nylon stainless steel composite chains, nylon flat top chain, stainless steel flat top chain, special window opener chain, etc, and provide convenience for our customers to design and manufacture more reasonable and professional conveying equipment.Our factory can also produce various kinds of nonstandard stainless steel chains and stainless steel chains sprockets according to customers’ requirements. We warmly welcome domestic and foreign customers to visit, negotiate, and guide.
