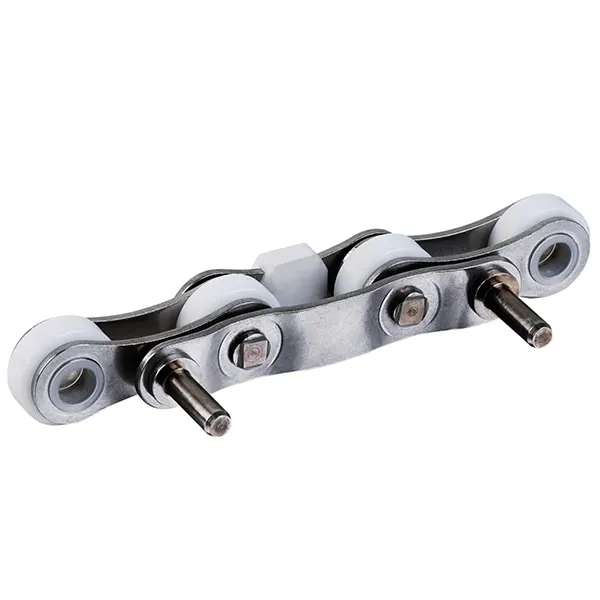

Stainless Steel Side Bow Deep Freezing Tunnel Chain for Ice Cream Production P50FTC17-I

Introduction

In the production process of ice cream, the freezing tunnel is a key link to ensure the quality and taste of the product. A high-quality freezing tunnel chain plays a crucial role in the stable operation of freezing tunnels. We launched Stainless Steel Side Bow Deep Freezing Tunnel Chain for Ice Cream Production P50FTC17-I It is precisely designed to meet the demands of the ice cream production and other food processing industries for efficient and reliable frozen tunnel chains.

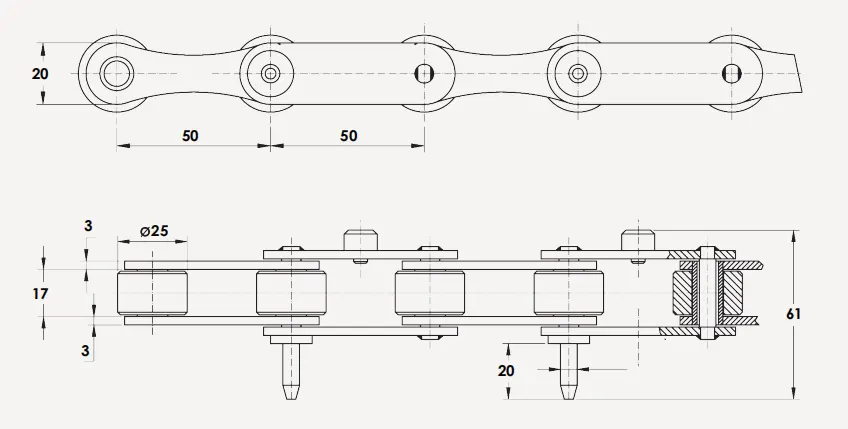

Technical Specifications

Advantages

Composition of high-quality materials

Our stainless steel freezing chain is extremely strict in material selection. Chain plates are made of SS304 and SS316L stainless steel materials. These two materials have excellent corrosion resistance and can be used for a long time in low-temperature and humid environments without rusting, ensuring the long-term stability and hygiene safety of the chain. The bush section is composed of SS304 + PE/PEEK. The PE and PEEK materials have excellent wear resistance and self-lubricating properties, which can reduce friction during chain operation, lower energy consumption, and extend the service life of the chain at the same time. The pin selects AISI 630 (17-4PH) stainless steel. After heat treatment, the hardness reaches HRC 40-45. It has high strength and good toughness, and can withstand greater tensile and impact forces. The roller is made of POM material, which features a low coefficient of friction, high wear resistance and excellent dimensional stability, ensuring smooth and stable operation of the chain.

Outstanding performance

This Chain is designed for the stainless steel side bow chain. This special structure enables the chain to be more flexible during bending operation, reducing the possibility of jamming and wear. Its tensile strength is as high as 38kN, capable of withstanding considerable tensile force and ensuring stable operation even under heavy loads. In addition, we also provide self-lubricating also available, which further reduces the maintenance cost and downtime of the chain and improves production efficiency.

Applications

Ice cream production frozen tunnelIn the ice cream production freezer tunnel, the P50FTC17-I industrial freezer chain plays a crucial role. It can evenly convey ice cream products through the freezing tunnel, ensuring that each portion of ice cream reaches the required low-temperature state within the specified time, thereby guaranteeing the quality and taste of the product. Meanwhile, the stable operation of the chain can also prevent production interruptions caused by faults and improve production efficiency.Other food processing fieldsIn addition to ice cream production, our conveyor chain for tunnel freezer is also widely used in other food processing fields, such as the freezing processing of meat, seafood, quick-frozen vegetables, etc. Its excellent corrosion resistance and hygiene performance can meet the high requirements of the food processing industry for equipment, ensuring the safety and quality of food.

Customer Reviews

[su_table responsive="yes"]

Rūta Sadauskien?, Facility Engineer	Marek Hruby, Equipment Tester	Yeliz Ural, Compliance Officer
Materials used are clearly high-grade. Chain tolerates frequent temperature cycling and stays dimensionally stable. I suggest improved corner guards in packaging to avoid minor dents during transit.	Tensile test results match what's advertised. Chain remains straight under full load. Weld seams passed ultrasonic inspection. Surface finish is ideal for low-friction operation.	Passed all hygiene audits with no issues. No signs of corrosion or material pitting even in brine-rich environments. We’re using this in frozen seafood handling with good results.

[/su_table]

Why Choose Us?

We have many years of production experience in stainless steel 304/316 freezer chain and have accumulated rich technical knowledge and practical experience in the design, manufacture and installation of freezer tunnel chains. Our professional team can provide personalized solutions based on the specific needs of customers to ensure that the products can be perfectly adapted to the production equipment of customers.Also, we are well aware that the production demands of different customers vary, and thus we offer customized services. Whether it is the length, width, material or special structure of the chain, we can customize and produce it according to the customer's requirements to ensure that the customer can obtain the most suitable refrigerated tunnel chain for their production process.If you are looking for a reliable and efficient freezing tunnel chain or industrial freezer chain, please feel free to contact us at any time. We will provide you with professional consultation and high-quality product services.
